The groundbreaking new "Four in One AC Charging Pile Automation Testing System" has been launched and put into use in the charging pile industry, showcasing Skonda's R&D strength and leading role, representing the future development of charging pile automation testing systems towards higher technology and convenience.

As is well known, with the increasing awareness of environmental protection in Chinese society, stimulated by social demand, government support, and private capital, the development of China's new energy vehicle industry is rapid. With the development of new energy vehicles, the charging pile industry has also grown and developed. In 2019, four ministries including the Ministry of Finance issued relevant regulations to cancel the purchase subsidies for new energy vehicles, and the subsidy policy gradually shifted from "subsidizing vehicles" to subsidizing the construction and operation of charging infrastructure.

Longer range and shorter charging time are the goals that new energy vehicles constantly pursue, which leads to an increase in the power of charging stations and a corresponding need for continuous improvement in the efficiency of charging station testing systems.

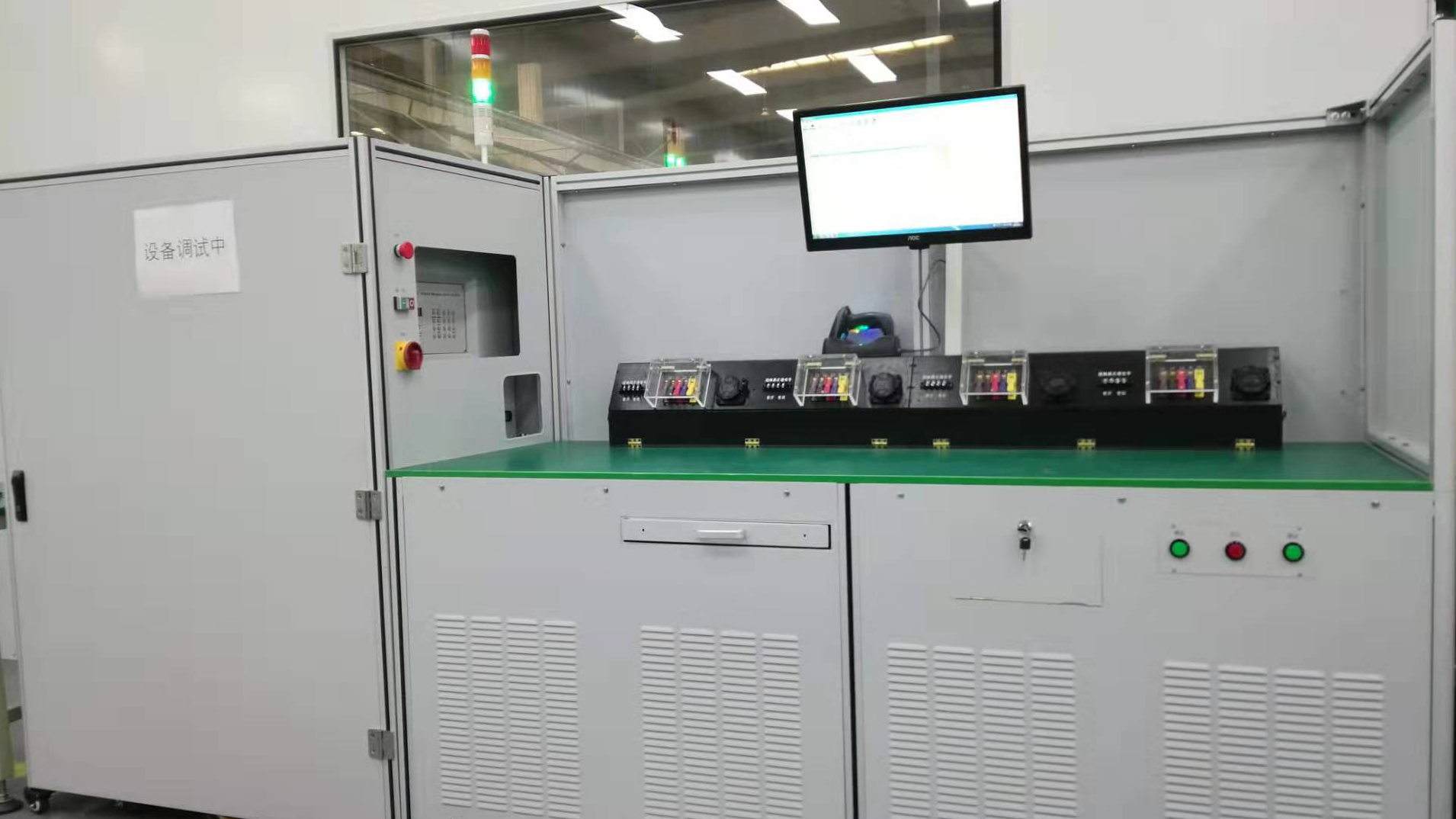

The four in one ATS700 automated testing system developed and put into use by Shenzhen Skonda Electronics Co., Ltd. has received widespread attention from customers and peers because it is the industry's first charging detection system with four channels. Now, let's learn about Skonda's four in one AC charging pile automated testing system!

The SKONDA ATS700 automated testing system integrates various instruments used for power testing, which can be connected to standard industrial computers through standard hardware interfaces such as IEEE-488, RS-232, USB, LAN, etc. The system software is installed in the standard industrial computer.

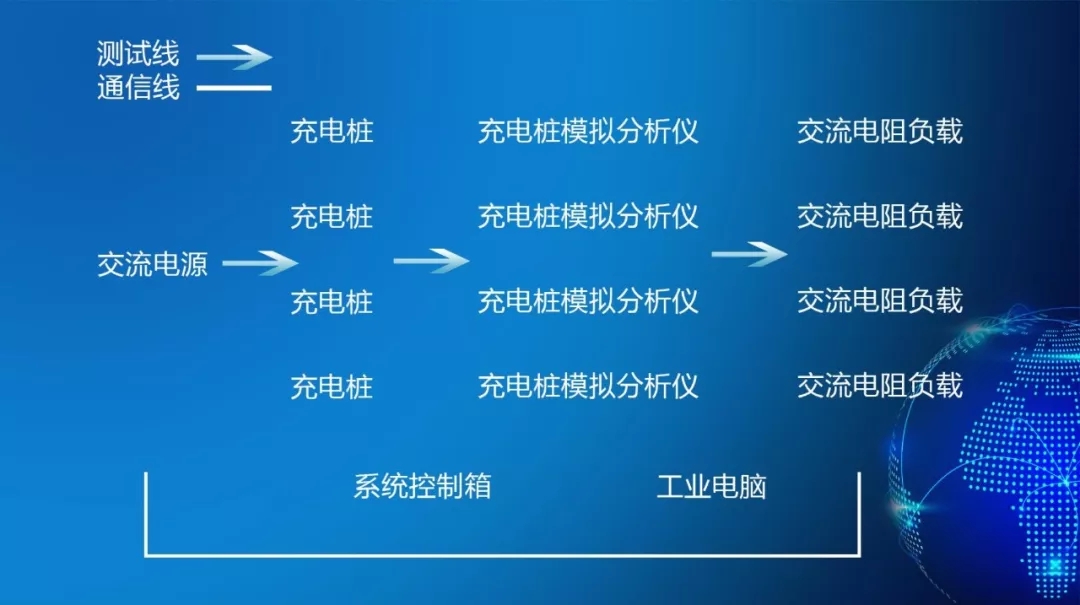

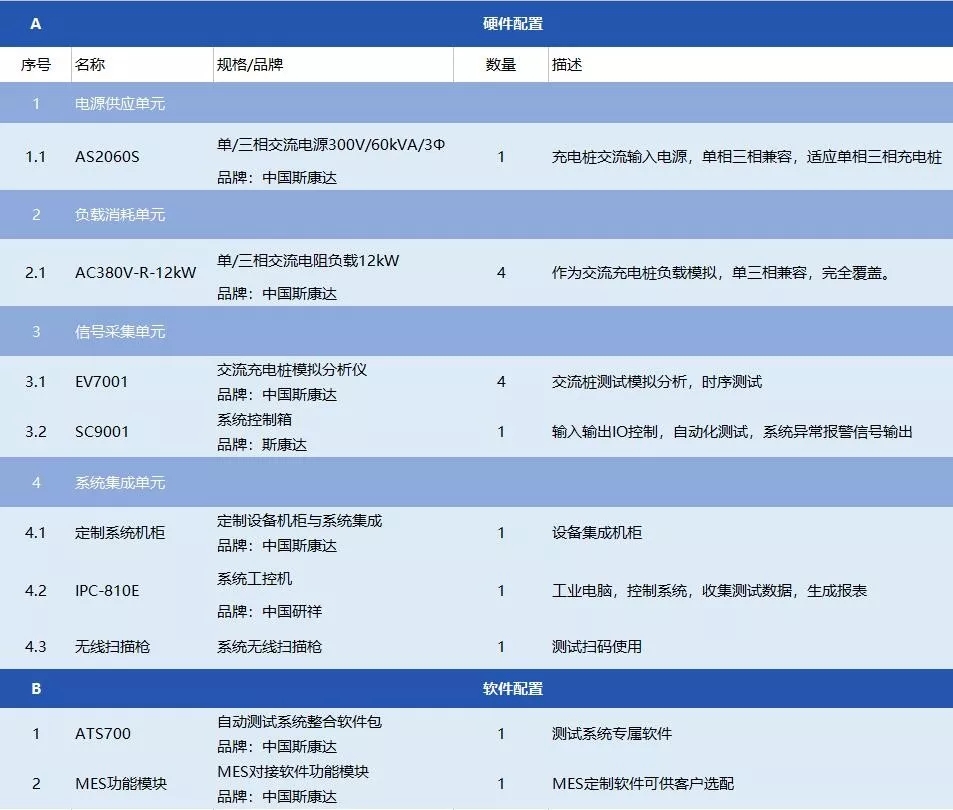

Main components of the system

The SKONDA ATS700 automated testing system integrates various instruments used for power testing, which can be connected to standard industrial computers through standard hardware interfaces such as IEEE-488, RS-232, USB, LAN, etc. The system software is installed in the standard industrial computer.

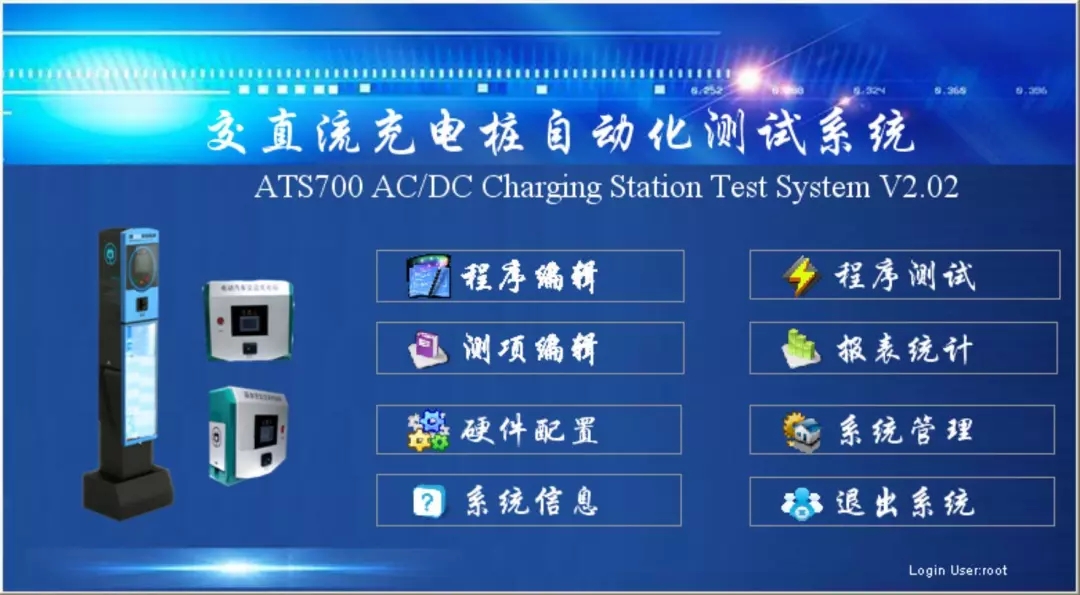

SKONDA ATS700 is a standard testing platform developed for the new national standard AC/DC charging piles. It has a Chinese English interface and is suitable for international demand applications. In addition, it can solve the problems of traditional customization or self-developed systems. This platform continues SKONDA's over 10 years of professional experience in the industry.

SKONDA ATS700 is an open architecture that allows users to easily integrate various hardware combinations into this system, such as selectable AC/DC power supplies, electronic loads, power analyzers, oscilloscopes, power meters, and various digital/analog I/O cards. This open architecture that combines multiple possibilities provides users with a flexible, powerful, and cost-effective testing system. SKONDA ATS700 provides a multifunctional execution environment, including a variety of built-in testing projects. Users can use the "Project Editing" function to write their own test projects according to their actual needs. This elastic feature can be almost infinitely expanded into a unique testing library. So this platform has the ability to meet the testing needs of different stages and different power conversion devices, allowing users to apply testing programs to research and development or production lines in the same operating environment. This feature can help save labor and time costs required for product transfer and mass production.

The main features are as follows:

1. Standardized graphical user interface with user-friendly design.

2. Open system design, easy to design and analyze new projects.

3. Ensemble compilation design to improve execution efficiency.

4. Can debug test projects and verify test results.

5. Supports multiple report formats.

6. Archive test results for easy management of statistical reports.

System Design Scheme Standards

according to the standard

1. Standard for Electrical and Connection Testing of Charging Interface

GB/T 18487.1-2015 Electric Vehicle Conductive Charging System Part 1: General Requirements

GB/T 20234.1-2015 Connection devices for conductive charging of electric vehicles Part 1: General requirements

GB/T 20234.3-2015 Connection Devices for Conductive Charging of Electric Vehicles Part 3: AC Charging Interface

2、 Inspection basis

NB/T 33008.2-2018 Inspection and Test Specification for Electric Vehicle Charging Equipment Part 2: AC Charging Pile

NB-T 33001-2010 Technical Specifications for Off Board Conductive Chargers for Electric Vehicles

GB/T 34657.1-2017 Test Specification for Interoperability of Conductive Charging of Electric Vehicles Part 1: Power Supply Equipment

Q/GDW 1233-2014 General Requirements for Off Board Electric Vehicle Chargers (Basis for Determination)

Q/GDW 1591-2014 Technical Specification for Inspection of Off board Chargers for Electric Vehicles (Basis for Judgment)

3、 Requirements for testing system of communication charging station

The AC charging pile testing system refers to the requirements for AC charging pile testing in Part 1 of NB/T 33008.2-2018 Electrical Performance Testing and GB/T 34657.1-2017 Electric Vehicle Conductive Charging Interoperability Testing Specification.
