Release time:2025-09-26 Click count:0

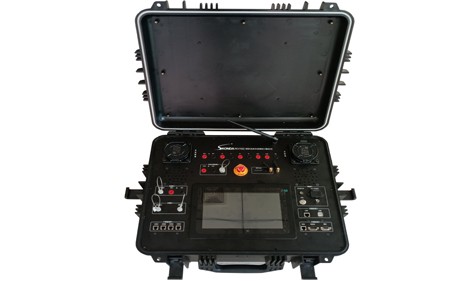

The Skonda portable DC charging pile testing and metering comprehensive instrument PEV7002 has the functions of interoperability specification testing, communication protocol consistency testing, and metering verification testing specified by national standards. Mainly used for performance testing, communication protocol testing, and metrological verification of newly installed DC charging piles, repaired charging piles, and upgraded charging piles. The comprehensive instrument has the characteristics of high accuracy, small size, light weight, and easy portability, which can meet the measurement and performance testing needs of various occasions such as laboratories and on-site. The comprehensive instrument has a measuring module that meets the metrological verification regulations of JJG 1149-2018 Electric Vehicle Off Board Charging Machine, and software functional modules that meet the testing requirements of GB/T 34657.1-2017 Electric Vehicle Conductive Charging Interoperability Test Specification Part 1 Power Supply Equipment. The software functional module implements the testing requirements for the "GB/T 34658-2017 Communication Protocol Consistency Test between Off board Conductive Chargers and Battery Management Systems for Electric Vehicles" test project. Built in simulation vehicle BMS software, the software complies with the protocol standard GB/T 27930-2015 Communication Protocol between Off Board Conductive Chargers and Battery Management Systems for Electric Vehicles and is compatible with the requirements specified in GB/T 27930-2011 version. Equipped with two 250A charging gun holders and complying with the requirements of "GB/T 20234.3-2015 Connection Devices for Conductive Charging of Electric Vehicles Part 3: DC Charging Interface".
Features:
Having pile end signal voltage, current, CC1,CAN, Auxiliary power supply, abnormal synchronization signal and other output terminals can be connected to other testing instruments for testing and inspection of pile end signals
When measuring, the load is allowed to be connected to the actual vehicle or any simulated load
It has the function of detecting environmental temperature, calculating the error caused by temperature based on the actual working scene temperature, and determining the measurement results.
Equipped with GPS timing function, it can perform Beijing time timing error testing on the charger.
Equipped with a charging timing test interface, it can be connected to the front-end voltage of K1K2 relay, gun feedback S signal, and emergency stop pile end signal
The comprehensive instrument has a 16 channel timing synchronization measurement function, which can meet the timing testing related to interoperability testing. Specifically T1,T2,T3,T4,T4->T5,T6,T9,T10,T6->T10,T11,T12,T13,T11->T13,T14,T15,T16,T17,T19 Wait.
Control the pilot voltage limit test project, and ensure that the control pilot circuit complies with the principles specified in GB/T 18487.1-2015 Electric Vehicle Conductive Charging System Part 1: General Requirements. It has built-in K5 and K6 switch state simulation functions, built-in R4 resistor simulation module, and a resistance adjustment range of 400 Ω to 5000 Ω with a step size of 1 Ω.
Insulation reverse connection module: It can meet the insulation and reverse connection testing of chargers, with a test voltage range of 0 V to 1000 V, an insulation resistance adjustment range of 10 k Ω to 610 k Ω, and a step size of 5 k Ω.
It has the function of measuring the voltage, current, auxiliary power supply voltage, and CC1 voltage of DC charging stations.
Internally integrated battery voltage simulator with a voltage range of 0-1000V, used for testing the timing process of charging pile startup.
Can export BMS communication messages in EXCEL format with message parsing comments.
Built in national standard testing projects, automated program testing and report generation to facilitate changes and upgrades to national standard items.
It has the function of generating test report templates, and generates test report formats according to the client's layout format. The report formats can be TXT, EXECL, XLC, WORD.
Test project submodule, network data interface, supporting cross platform calling.
The testing module of the software platform has structured input and output standard data, which is easy to parse and call.
Equipped with a 10 inch high-definition LCD touch screen, it is convenient for users to touch and operate.
2.1. Basic functional items
2.1.1. BMS simulator
NO. | test project | ||
1 | Measurement of charging station parameters | 1. Charging voltage 3. BMS auxiliary power supply voltage 5. Charging time | 2. Charging current 4. Current SOC 6. Current charging status |
2 | BMS battery parameter settings | 1. Communication protocol version 3. Maximum individual voltage 5. The nominal total capacity of the battery 7. Maximum allowable charging current | 2. Battery type 4. Maximum allowable temperature 6. Maximum allowable charging voltage 8. Current battery voltage value |
3 | Charging parameter settings | 1. Charging mode 3. Charging request current 5. End of charging SOC | 2. Charging request voltage 4. Charging start SOC 6. Total charging time |
4 | BMS state simulation | 1. Vehicle interface status simulation 3. Mechanical switch S state simulation 5. Simulation of R4 Resistance in Control Guidance Circuit 7. Simulation of insulation fault resistance value | 2. Simulation of PE pin status in vehicle interface 4. Communication state simulation 6. Insulation fault state simulation |
5 | BMS message anomaly simulation | 1. The voltage of a single battery is too high 3. Battery SOC too low 5. Battery charging overcurrent 7. Abnormal insulation status 9. BMS actively terminates 11. Abnormal high voltage relay 13. Termination of other faults | 2. The voltage of a single battery is too low 4. Battery SOC too high 6. The battery temperature is too high 8. The connector status is abnormal 10. BMS abnormal termination 12. Abnormal voltage at detection point 2 |
2.1.2. Interoperability specification testing
It can meet all the testing items specified in the national standard GB/T 34657.1-2017 Test Specification for Interoperability of Conductive Charging of Electric Vehicles Part 1 Power Supply Equipment, as shown in the following table:
serial number | project | Test Number | Corresponding chapters | PEV7002 | |
1 | Charging control status test | Connection Confirmation Test | D0.1001 | 6.3.2.1 | √ |
Self check test of charger | D0.2001 | 6.3.2.2 | √ | ||
Charging readiness test | D0.3001 | 6.3.2.3 | √ | ||
Charging phase testing | D0.4001 | 6.3.2.4 | √ | ||
Normal charging end test | D0.5001 | 6.3.2.5 | √ | ||
2 | Charging connection control timing test | D0.6001 | 6.3.3 | √ | |
3 | Abnormal charging state test | Communication interruption test | D0.4501 | 6.3.4.1 | √ |
Switch S disconnection test | D0.4502 | 6.3.4.2 | √ | ||
Vehicle interface disconnection test | D0.4503 | 6.3.4.3 | √ | ||
Test for output voltage exceeding the allowable value of the vehicle | D0.4504 | 6.3.4.4 | √ | ||
Insulation fault testing | D0.2501 | 6.3.4.5 | √ | ||
Continuity loss test of protective grounding conductor | D0.4505 | 6.3.4.6 | √ | ||
Other charging fault tests | D0.4506 | 6.3.4.7 | √ | ||
4 | Charging control output test | Output voltage control error test* | D0.4101 | 6.3.5.1 | √ |
Output current control error test* | D0.4102 | 6.3.5.2 | √ | ||
Output current adjustment time test* | D0.4103 | 6.3.5.3 | √ | ||
Output current stop rate test* | D0.5101 | 6.3.5.4 | √ | ||
Control pilot voltage limit test | D0.6002 | 6.3.5.6 | √ |
*The testing project requires an external load module PDCR-750-30 for automatic control.
2.1.3. Measurement of DC charging stations
Can meet all test items specified in the national standard GB/T 34658-2017 Communication Protocol Consistency Test between Off board Conductive Chargers and Battery Management Systems for Electric Vehicles; It can meet the metrological verification regulations of JJG 1149-2018 Electric Vehicle Off board Charging Machine, as shown in the following table:
Inspection Items | initial verification | subsequent verification | In use verification |
Visual inspection | + | + | + |
Insulation resistance test* | + | + | - |
working error | + | + | - |
indication error | + | + | + |
Payment amount error | + | + | + |
Clock indication error | + | + | - |
*The insulation resistance test requires additional high-voltage equipment to be configured, and the test data is manually input.
2.1.4. Protocol Consistency Testing
All test items specified in the national standard GB/T 34658-2017 "Communication Protocol Consistency Test between Off board Conductive Chargers and Battery Management Systems for Electric Vehicles" can be met, as shown in the following table:
serial number | test project | PEV7002 | |
1 | Low voltage auxiliary power on and charging handshake stage | Test case number DP.1001 | √ |
Test case number DP.1002 | √ | ||
Test case number DP.1003 | √ | ||
Test case number DN.1001 | √ | ||
Test case number DN.1002 | √ | ||
Test case number DN.1003 | √ | ||
Test case number DN.1004 | √ | ||
2 | Charging parameter configuration stage | Test case number DP.2001 | √ |
Test case number DP.2002 | √ | ||
Test case number DP.2003 | √ | ||
Test case number DN.2001 | √ | ||
Test case number DN.2002 | √ | ||
Test case number DN.2003 | √ | ||
Test case number DN.2004 | √ | ||
Test case number DN.2005 | √ | ||
Test case number DN.2006 | √ | ||
Test case number DN.2007 | √ | ||
Test case number DN.2008 | √ | ||
Test case number DN.2009 | √ | ||
Test case number DN.2010 | √ | ||
3 | Charging stage | Test case number DP.3001 | √ |
Test case number DP.3002 | √ | ||
Test case number DP.3003 | √ | ||
Test case number DP.3004 | √ | ||
Test case number DP.3005 | √ | ||
Test case number DP.3006 | √ | ||
Test case number DP.3007 | √ | ||
Test case number DN.3001 | √ | ||
Test case number DN.3002 | √ | ||
Test case number DN.3003 | √ | ||
Test case number DN.3004 | √ | ||
Test case number DN.3005 | √ | ||
Test case number DN.3006 | √ | ||
Test case number DN.3007 | √ | ||
Test case number DN.3008 | √ | ||
Test case number DN.3009 | √ | ||
Test case number DN.3010 | √ | ||
4 | Charging end stage | Test case number DP.4001 | √ |
Test case number DP.4002 | √ | ||
Test case number DN.4001 | √ | ||
Test case number DN.4002 | √ | ||
Test case number DN.4003 | √ | ||
Test case number DN.4004 | √ |
2.2. Technical specifications and parameters
2.2.1. Measurement specifications
measurement | |||
DC voltage | range | 1000V | |
scope | 1000V | ||
accuracy | ±0.05%+0.05%F.S. | ||
resolution | 20mV | ||
direct current | current range | 250A | |
scope | 250A | ||
accuracy | ±0.1%+0.1%F.S. | ||
resolution | 5mA | ||
power | accuracy | ±0.2%+0.2%F.S. | |
Timing function | |||
Time series measurement | number of channels | 16 | |
scope | 0.1s-300s | ||
precision | ±1ms(≤1000ms);±(0.1%±10ms)(>1000ms) | ||
resolution | 100us | ||
Timing point | Voltage, current, CC1 voltage, CC2 voltage, EPO enable, electronic lock signal, Relay enable, CC CLOSE, CC OPEN, etc | ||
Message measurement | number of channels | 24 | |
scope | 100us-1800s | ||
precision | ±0.3ms(≤10ms);±1ms(10ms~1000ms); ±(0.1%±10ms)(>1000ms) | ||
resolution | 10us | ||
Timing point | CHM、BHM、CRM、BRM、 BCP、 CTS、 CML、 BRO_00、 CRO_AA、 CRO_00、 CRO_AA、 BCL、 BCS、 CCS、 BSM、 BMV、 BMT、 BSP、 BST、 CTS、BSD、CSD、 BEM、CEM | ||
simulation | |||
battery voltage | scope | 0-1000V | |
precision | 0.2%F.S. | ||
R4 resistor | scope | 400-5000Ω | |
resolution | 1Ω | ||
insulation resistance | scope | 10k-610kΩ | |
resolution | 5kΩ |
2.2.2. Measurement parameters
DC voltage | range | 30V、100V、300V、500V、1000V |
scope | (0~110%)RG | |
accuracy | ±0.05%RD(30V≤V≤1000V) ±(5ppm*RD+5ppm*RG)/℃ | |
resolution | 0.005%RG | |
direct current | current range | 250A |
scope | (0~110%)RG | |
accuracy | ±0.05%RD(5A≤I≤250A) ±(5ppm*RD+5ppm*RG)/℃ | |
resolution | 0.005%RG | |
power | accuracy | ±0.05%RD (30V ≤ U ≤ 1000V,5A ≤ I ≤ 250A) |
electric energy | accuracy | ±0.05%RD (30V ≤ U ≤ 1000V,5A ≤ I ≤ 250A) |
Electric pulse output | Output constant | 1-2000000000 |
maximum frequency | 160kHz | |
pulse type | TTL/CMOS compatible level output | |
Electric energy pulse input | pulse constant | 1-2000000000 |
Range of turns | 1-999999999 | |
Maximum received pulse frequency | 50kHz | |
GPS timing | precision | ±1us |
clock | accuracy | ±0.1ppm |
temperature measurement | accuracy | ±0.3℃ |
resolution | 0.1℃ | |
Humidity measurement | accuracy | ±4% |
resolution | 0.01 |
2.2.3. System Parameters
power supply | Input voltage range | 85-264Vac @47-63Hz |
Maximum Power Consumption | 60VA | |
peripheral interface | USB | 2 |
RS232 | 1 | |
LAN | 1 | |
WIFI | 1 | |
4G network interface | 1 | |
human-computer interaction | 10-inch touch screen | |
ambient temperature | Operating Temperature | -30℃~55℃ |
Operating Humidity | ≤ 95% non condensing | |
Storage temperature | -40℃~70℃ | |
warm-up time | 5 minutes | |
Dimensions & Weight | Dimensions (length * width * height) | 613*488*341mm |
Weight | 29kg |
