Features

• The PV simulator has built-in simulation I-V function, which simulates the output characteristics of various solar cells

• Test static and dynamic MPPT efficiency, input voltage, and input power

• The power grid simulator operates in a full four quadrant mode, simulating harmonics, outputting arbitrary waveforms, and conducting low voltage ride through tests

• The load mode of the power grid simulator can be set to R, L, C, active and reactive power, and supports islanding test simulation

• The battery simulator provides bidirectional feedback, with a conversion time of less than 2mS for -90% to 90%

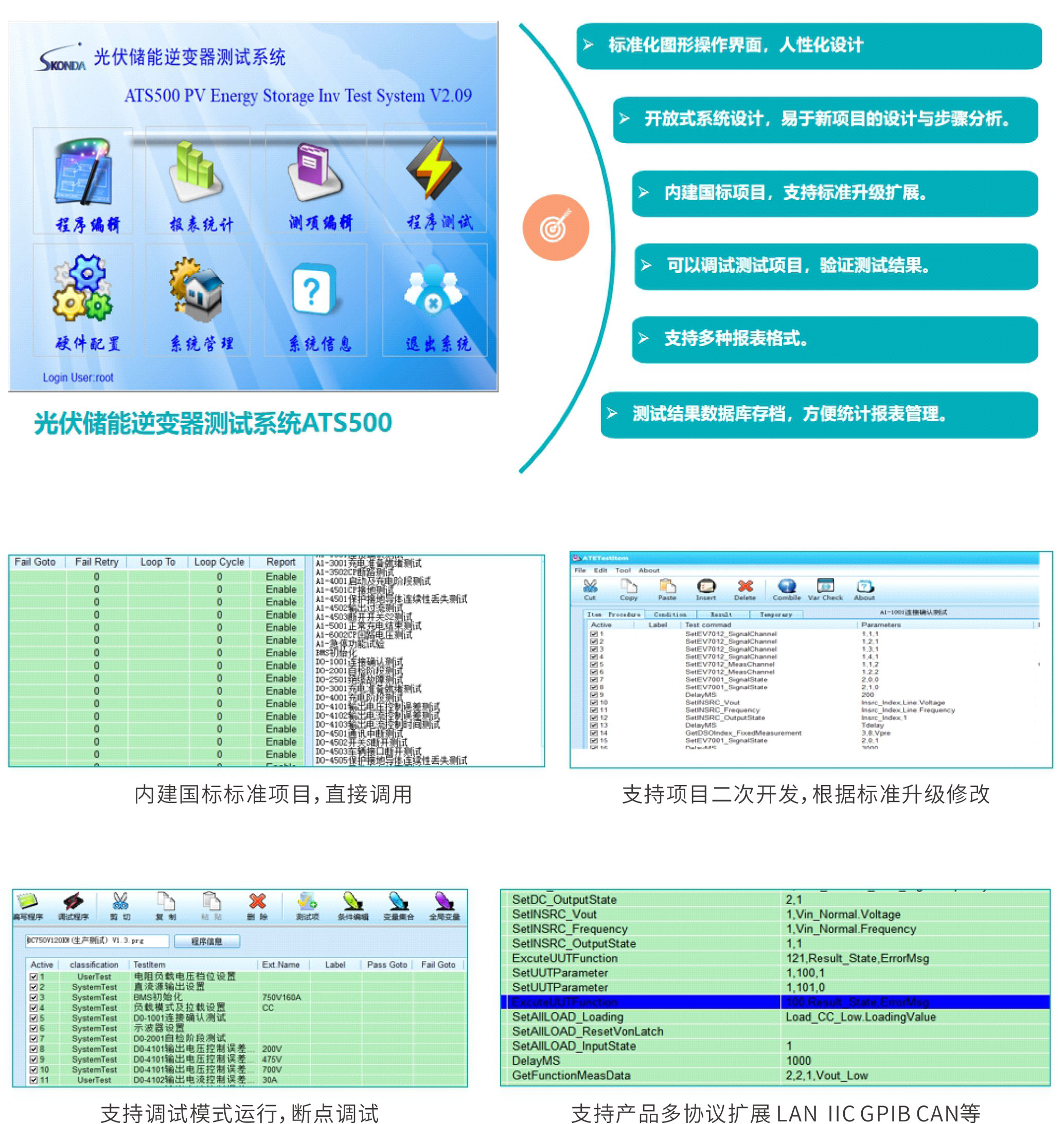

• Modular platform software that can expand instrument and equipment from major manufacturers according to usage needs

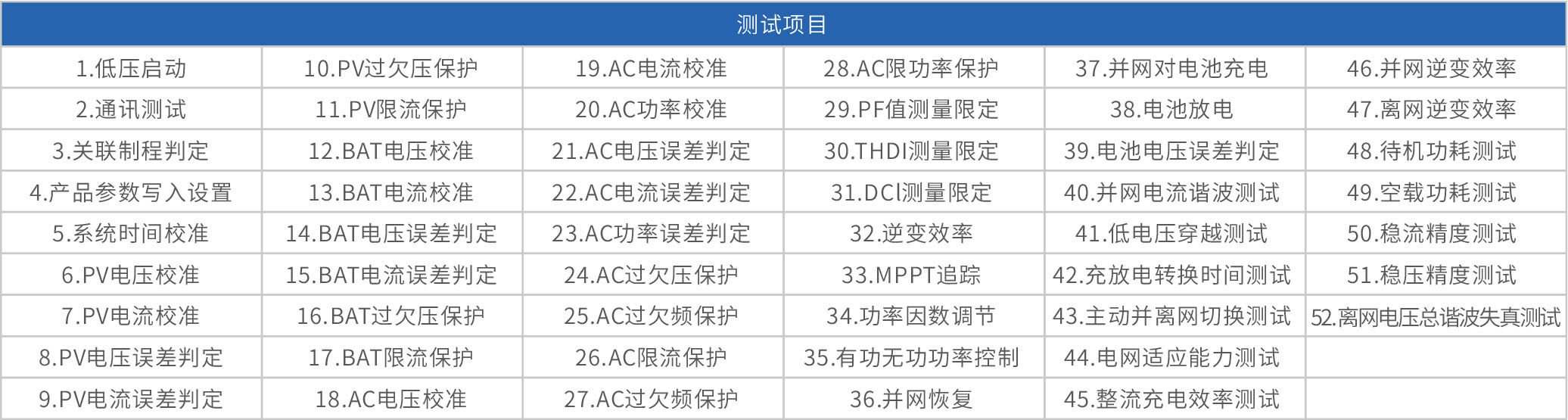

• Built in standardized Test Project, supporting secondary project development

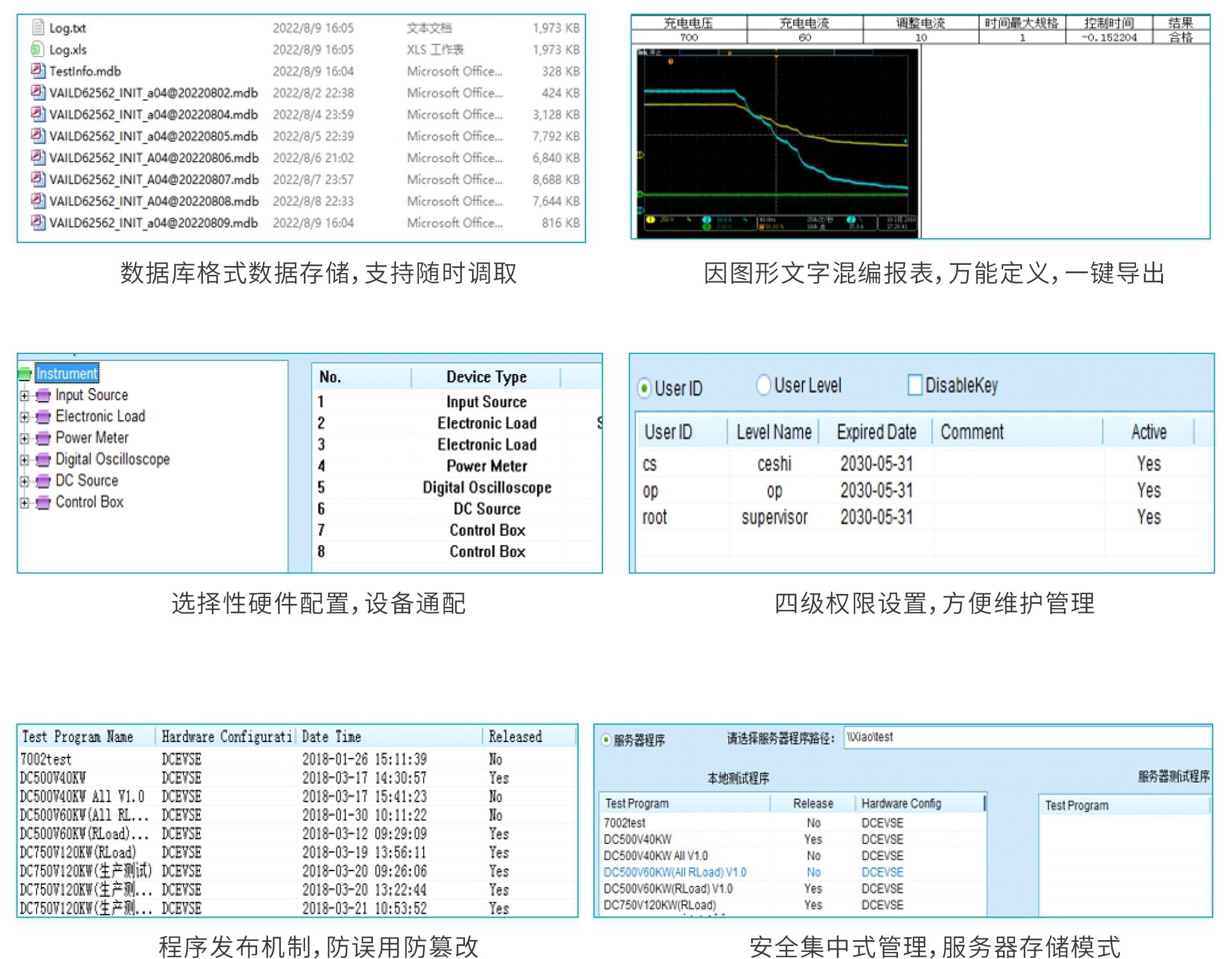

• Supports four levels of permission control and user-defined reports

• Support external MES development interface

Product Architecture

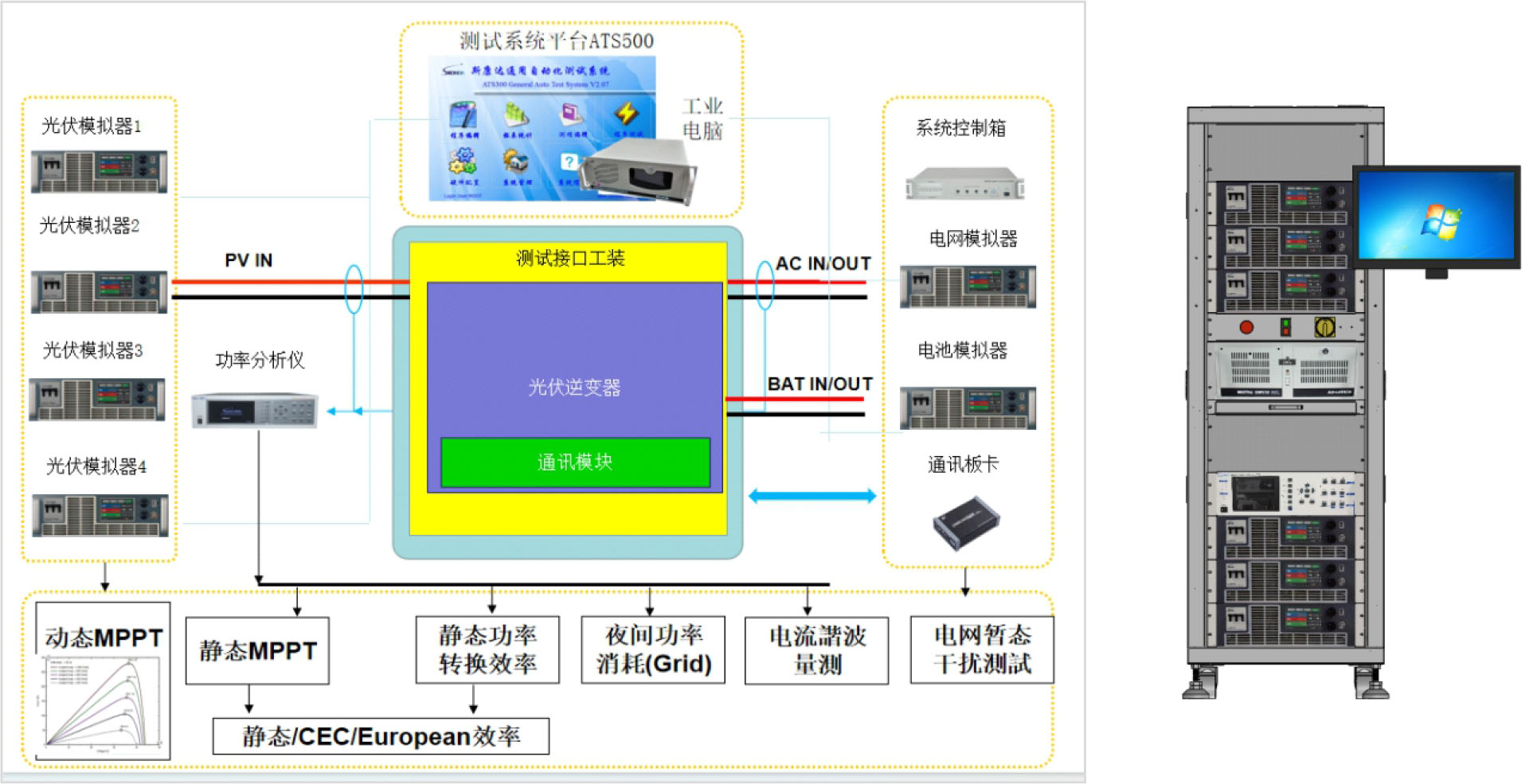

• Photovoltaic Inverter Testing - System Principles

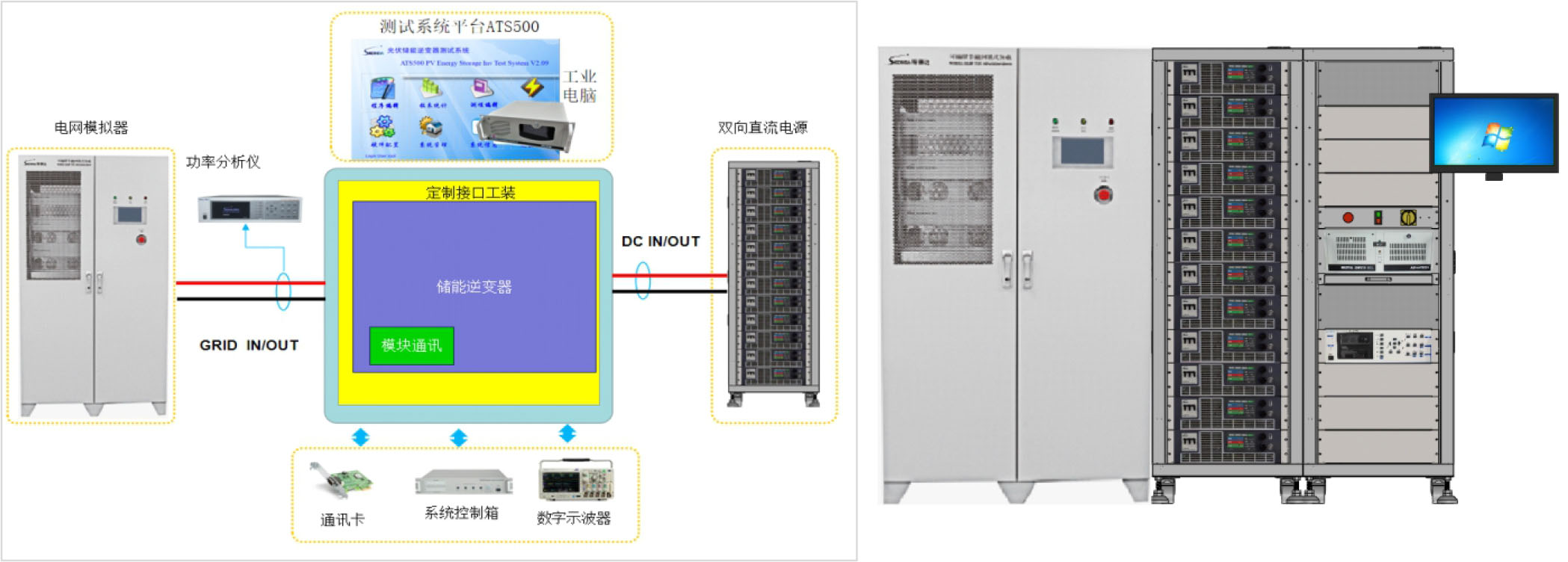

• Energy Storage Inverter Testing - System Principles

Technical Parameters

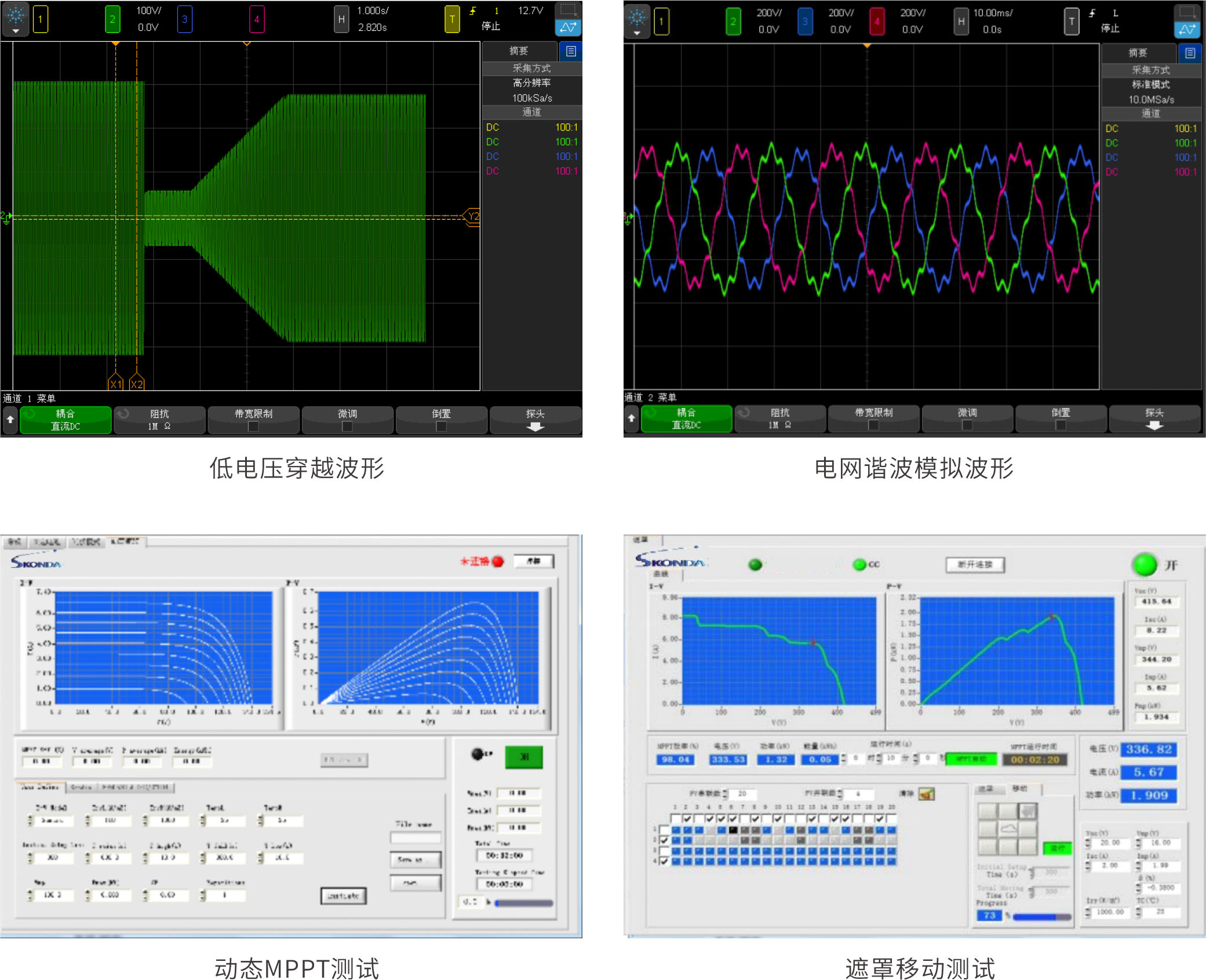

Harmonic Waveform of Power Grid&Photovoltaic Curve

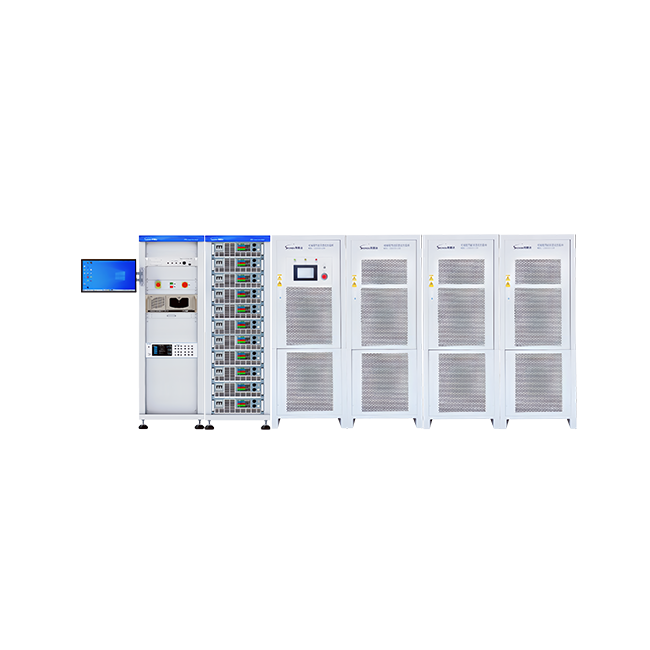

Photovoltaic Energy Storage Inverter Testing System Platform
