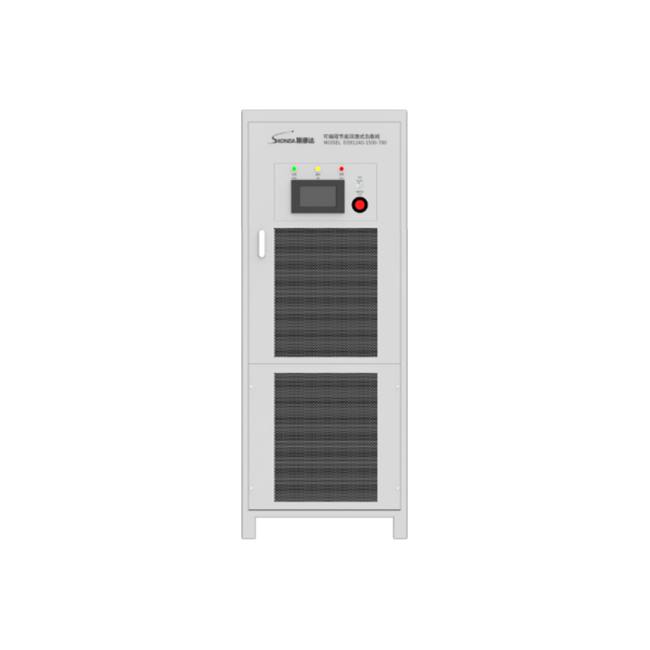

The programmable DC energy-saving feedback load DS910000 series is a device specifically designed for aging testing of DC/AC power products. This series adopts unique active inverter technology and has dual-mode operation capability: it can meet the power experiment requirements during the testing process, and can also invert the electrical energy output from the power supply into AC power and feed it back to the grid, achieving the recycling of electrical energy.
This product is suitable for enterprises in industries such as new energy, power electronics, photovoltaics, and communications, as well as research institutes and testing and certification institutions. It can significantly reduce the energy consumption in the testing process, help enterprises achieve intelligent management of production lines, effectively save production costs, and improve aging testing capacity.
Product Features
• Rated power up to 1200kW
• Working voltage: 100~1500V, working current: up to 3900A
• Operating modes such as constant current (CC) and constant voltage (CV)
• Efficient PWM modulation algorithm effectively reduces switching losses
• Color touch screen design, beautiful and convenient
• High precision measurement of voltage, current, and power
• Input/output overvoltage protection function
• Equipped with RS232 communication interface
Purchase Information
Technical Specifications
| Product Name | Type | Size | Update time | Download |
| Programmable DC energy-saving feedback load - DS910000 series | 546.08 KB | 2025.12.12 |  |
