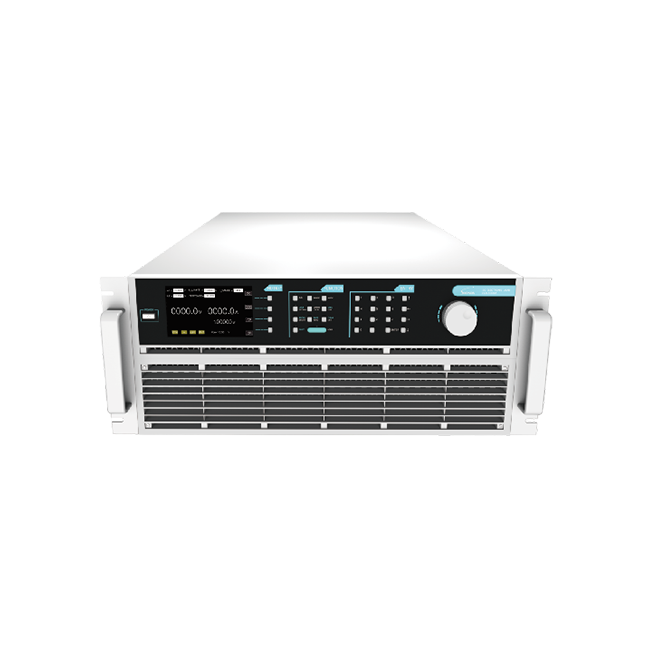

Wide range high power DC electronic load - EL51000A series

The high-precision electronic load EL51000A series has three voltage ranges of 150V, 600V, and 1200V, with a power range of 2kW to 48kW. The maximum current of a single unit can reach 2000A, and through parallel expansion, the maximum power can reach 480kW. The EL51000A series load has the characteristics of high power density, high control and measurement accuracy, and high cost-effectiveness; At the same time, this series of loads has synchronous dynamic and parallel expansion functions, as well as instant triple rated power function, supporting four traditional static loading modes of constant voltage CV, constant current CC, constant resistance CR, and constant power CP, as well as three composite loading modes of CV+CC, CR+CC, and CV+CR.

The product is widely used in various fields such as power supplies, power batteries, on-board OBC/DCDC, DC charging piles, civil aviation, scientific research institutions, etc. It is a high-precision instrument dedicated to simulating load changes of various high-power products.

Product Catalog

User Manual

Product Video

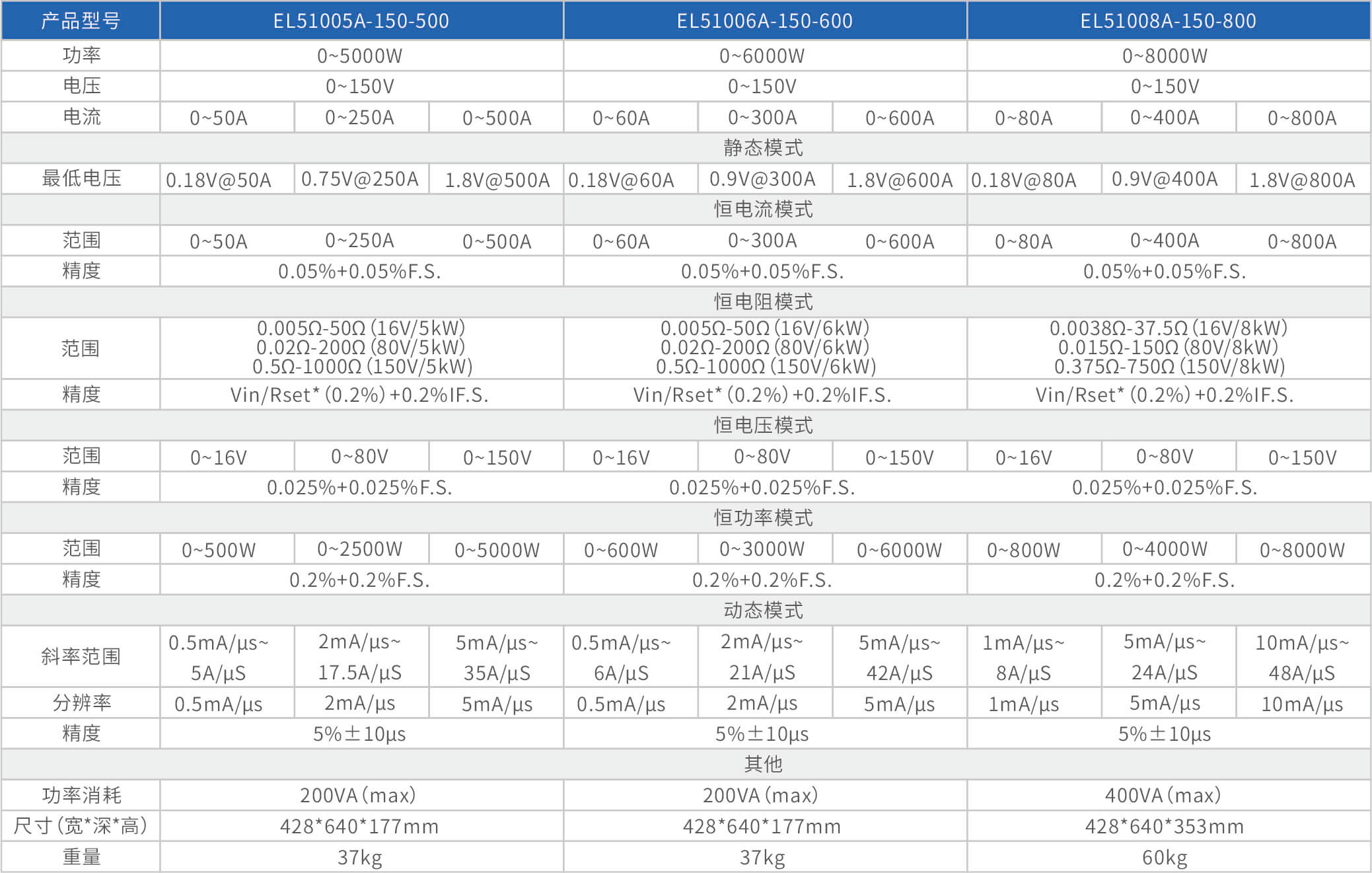

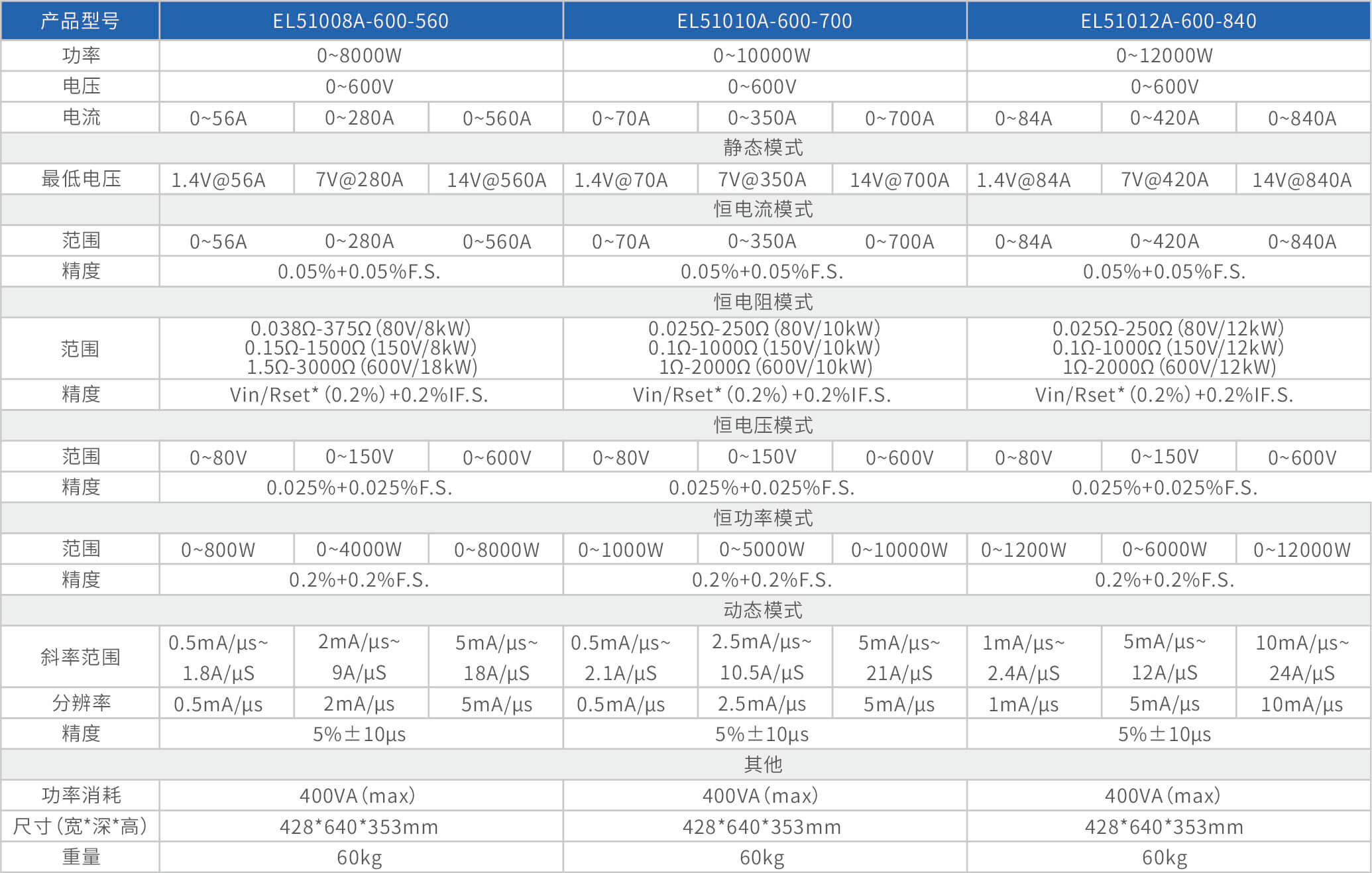

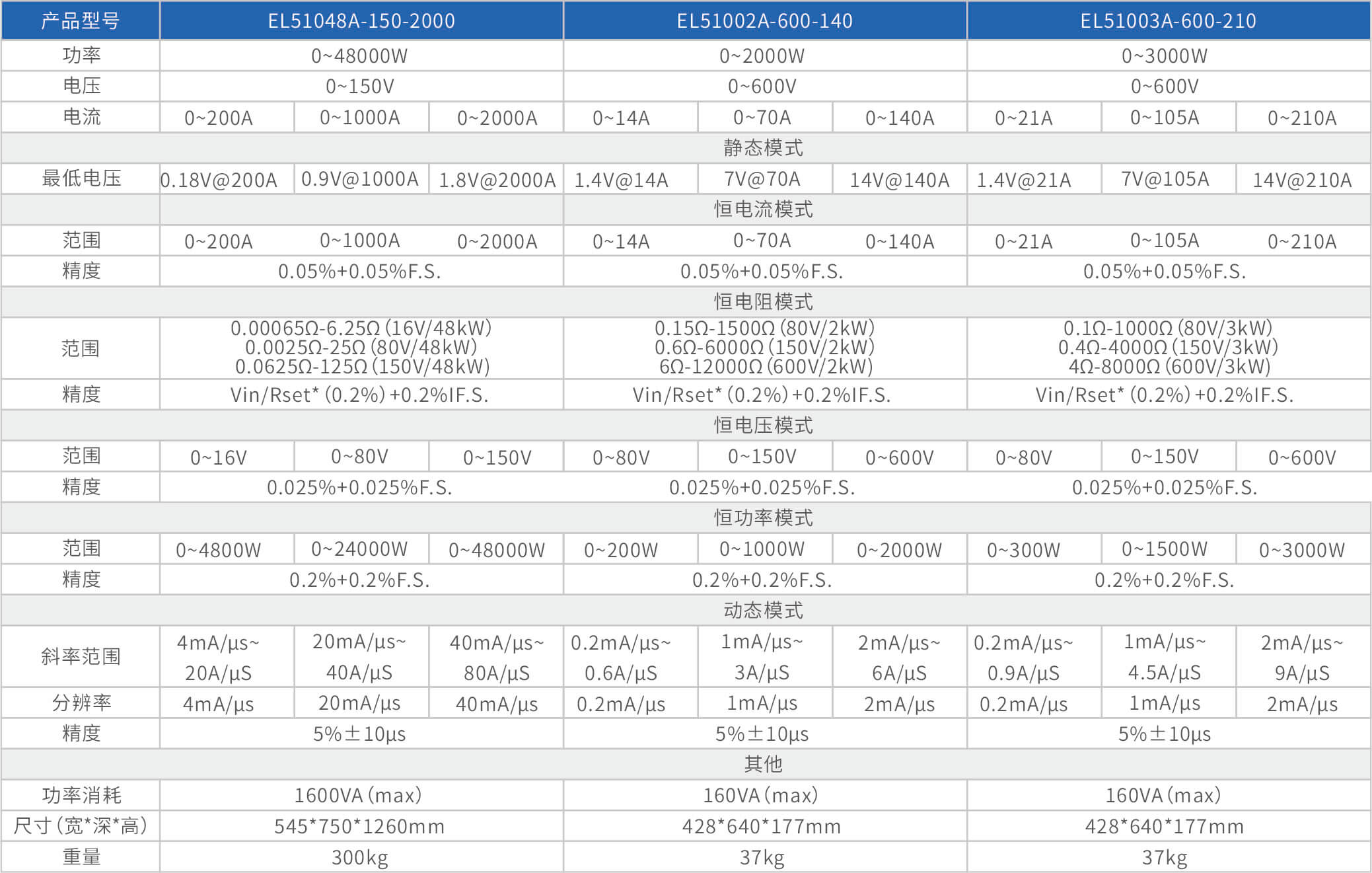

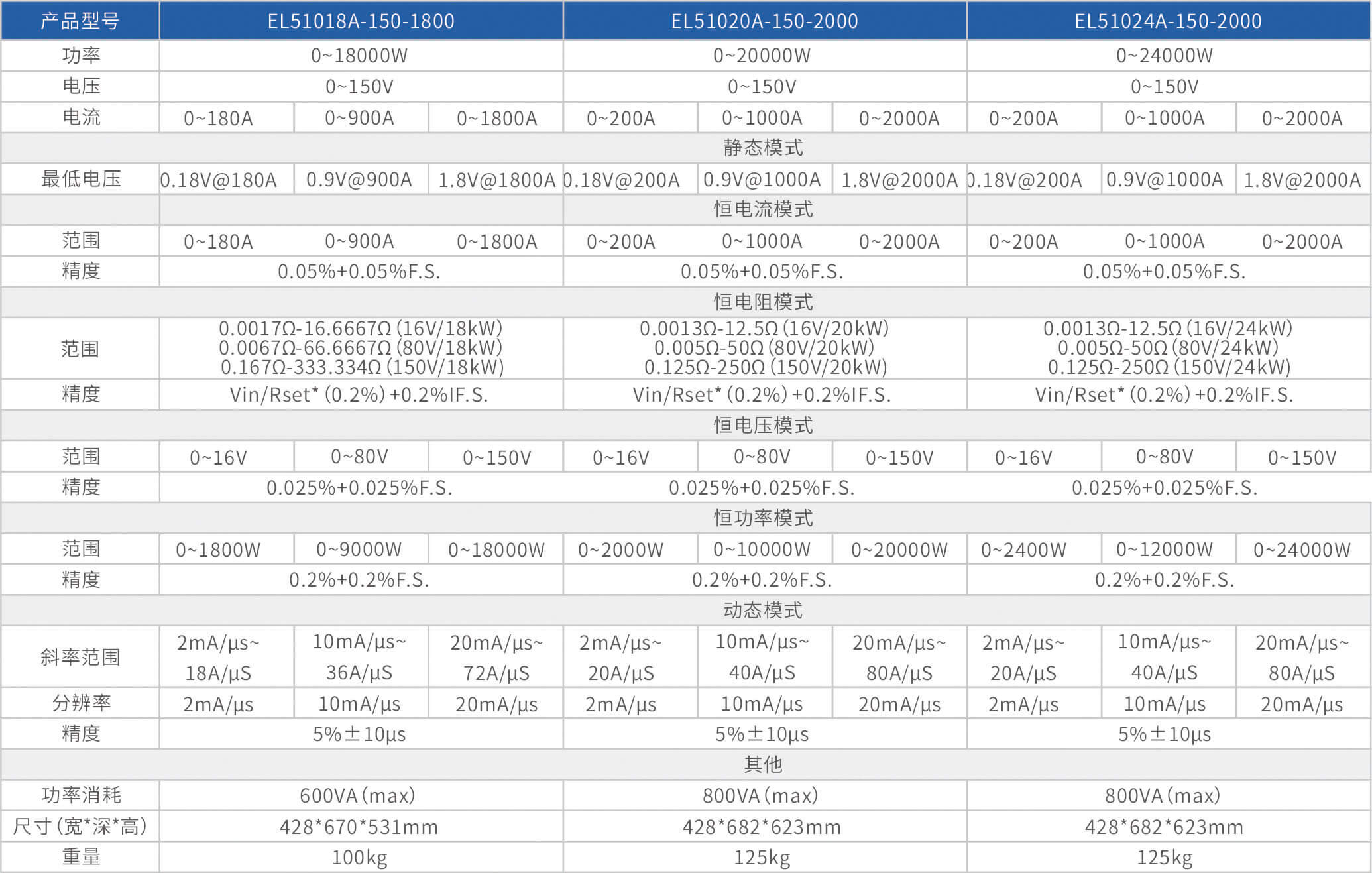

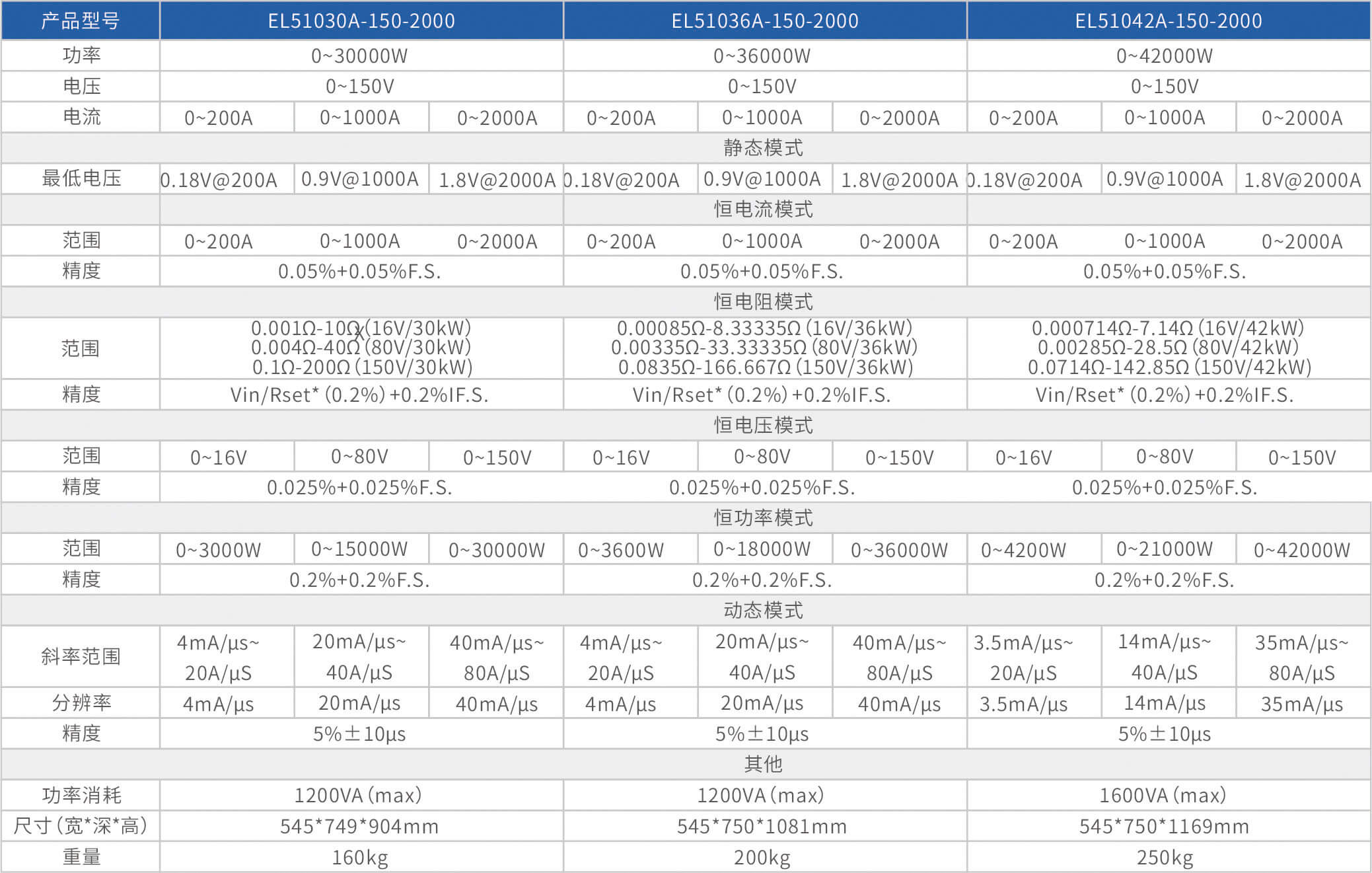

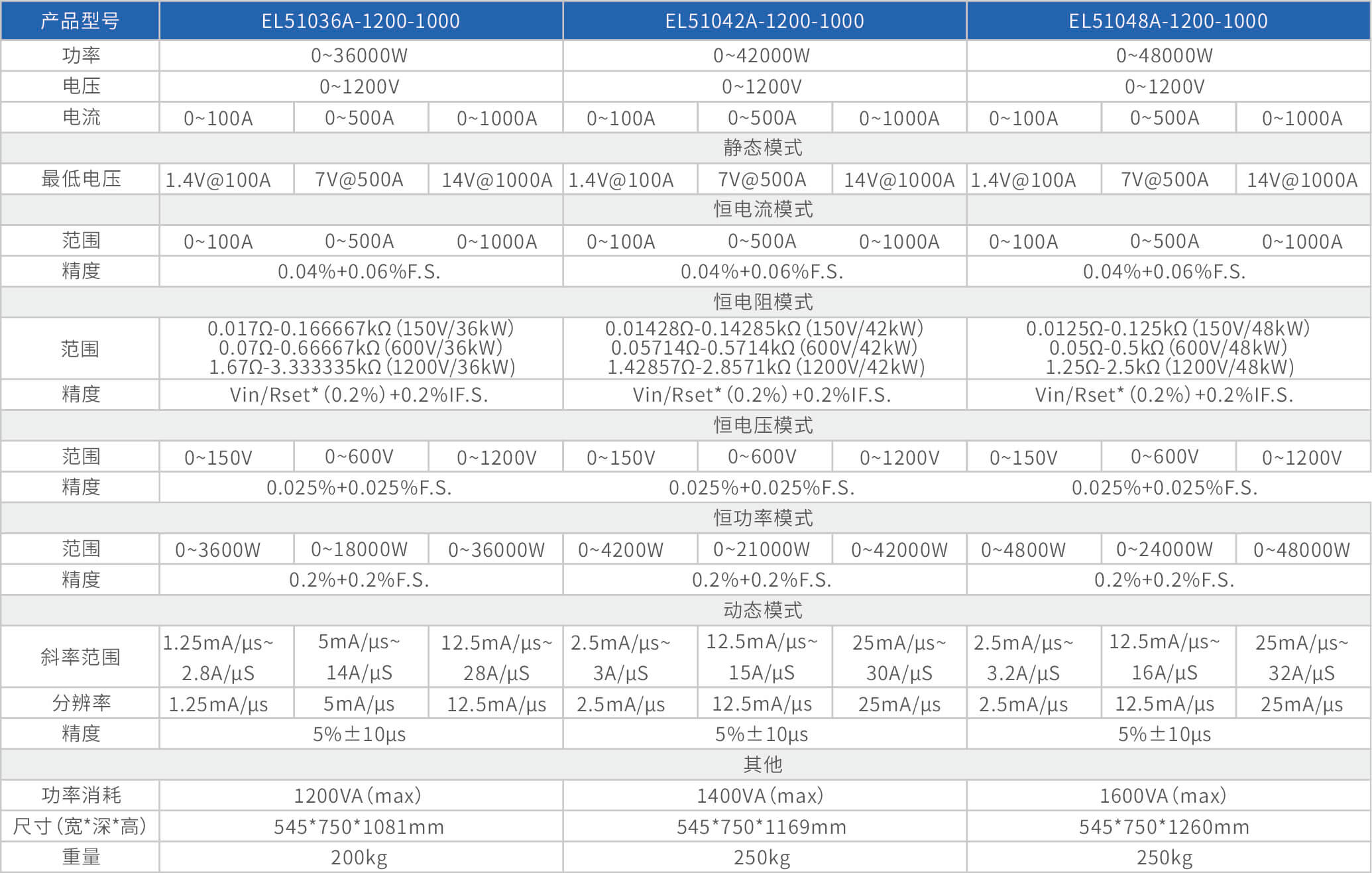

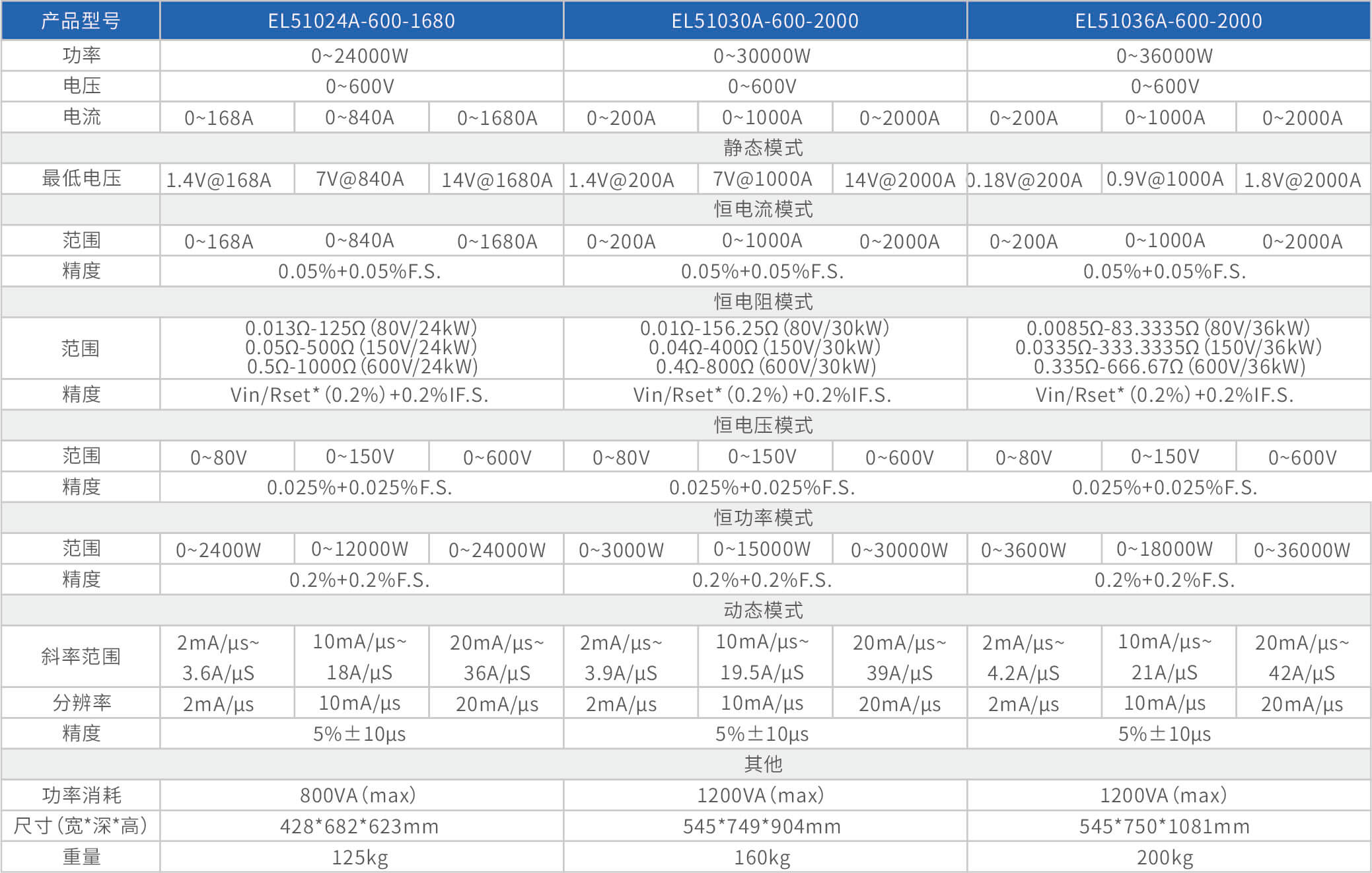

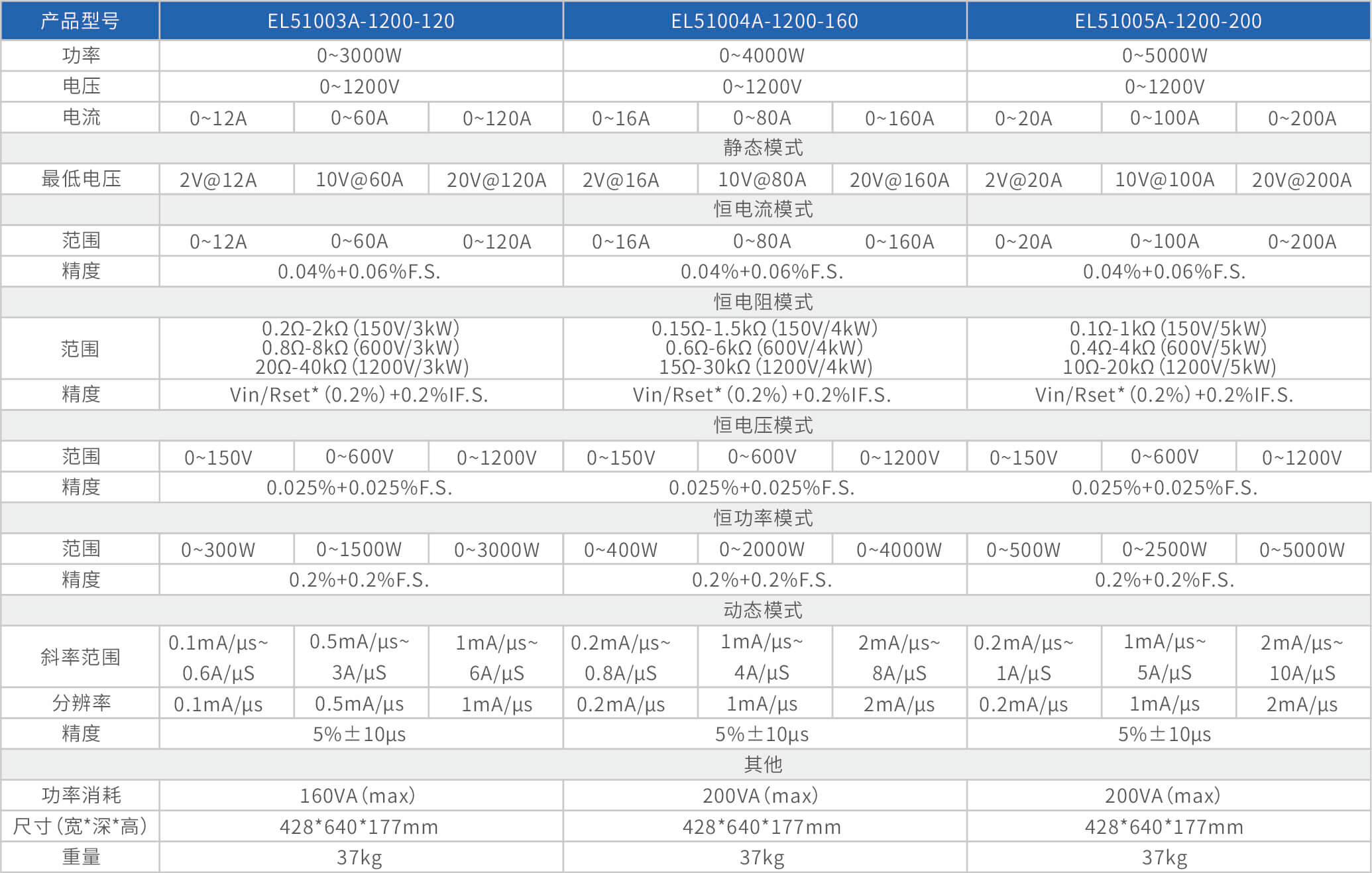

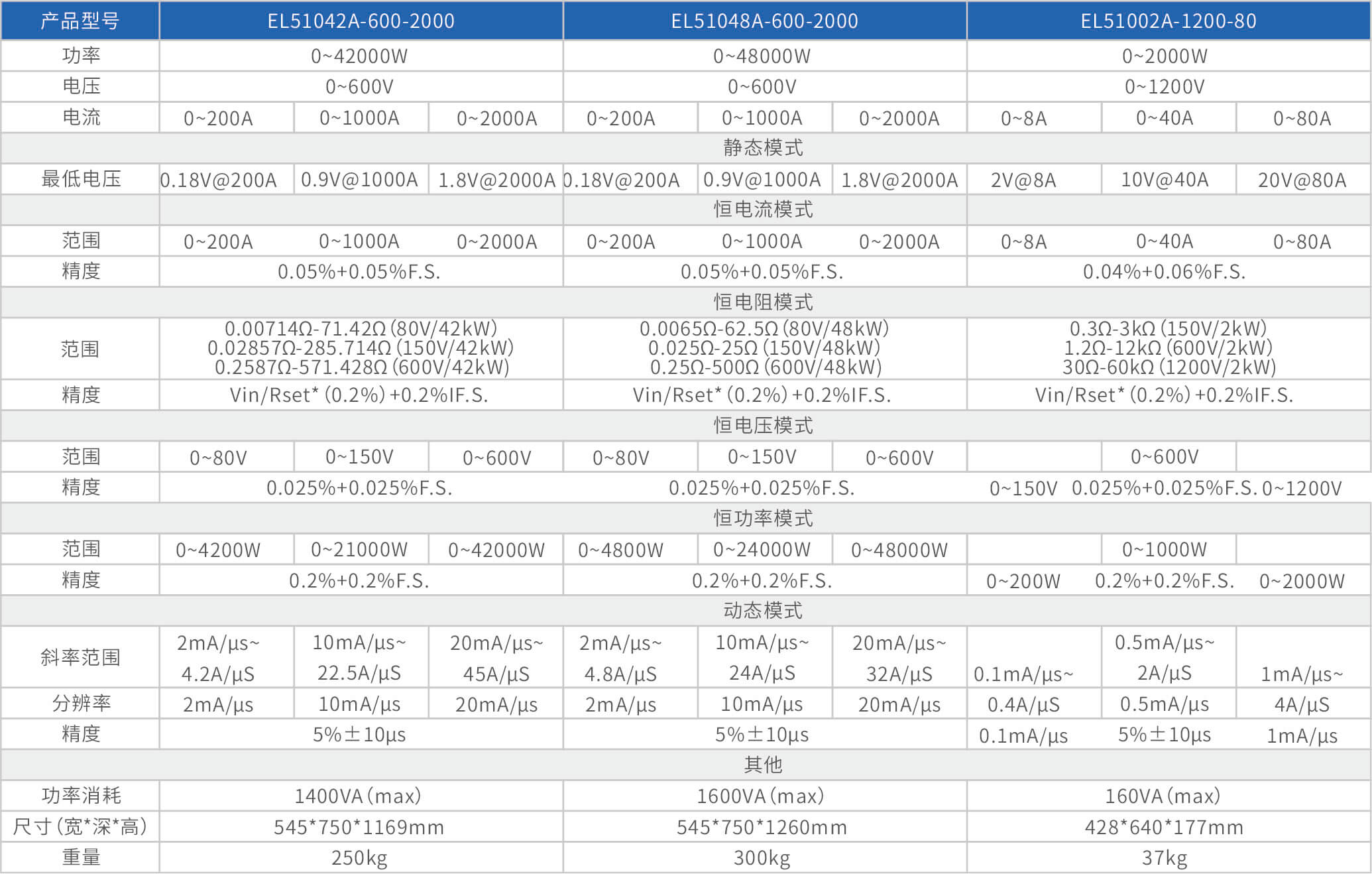

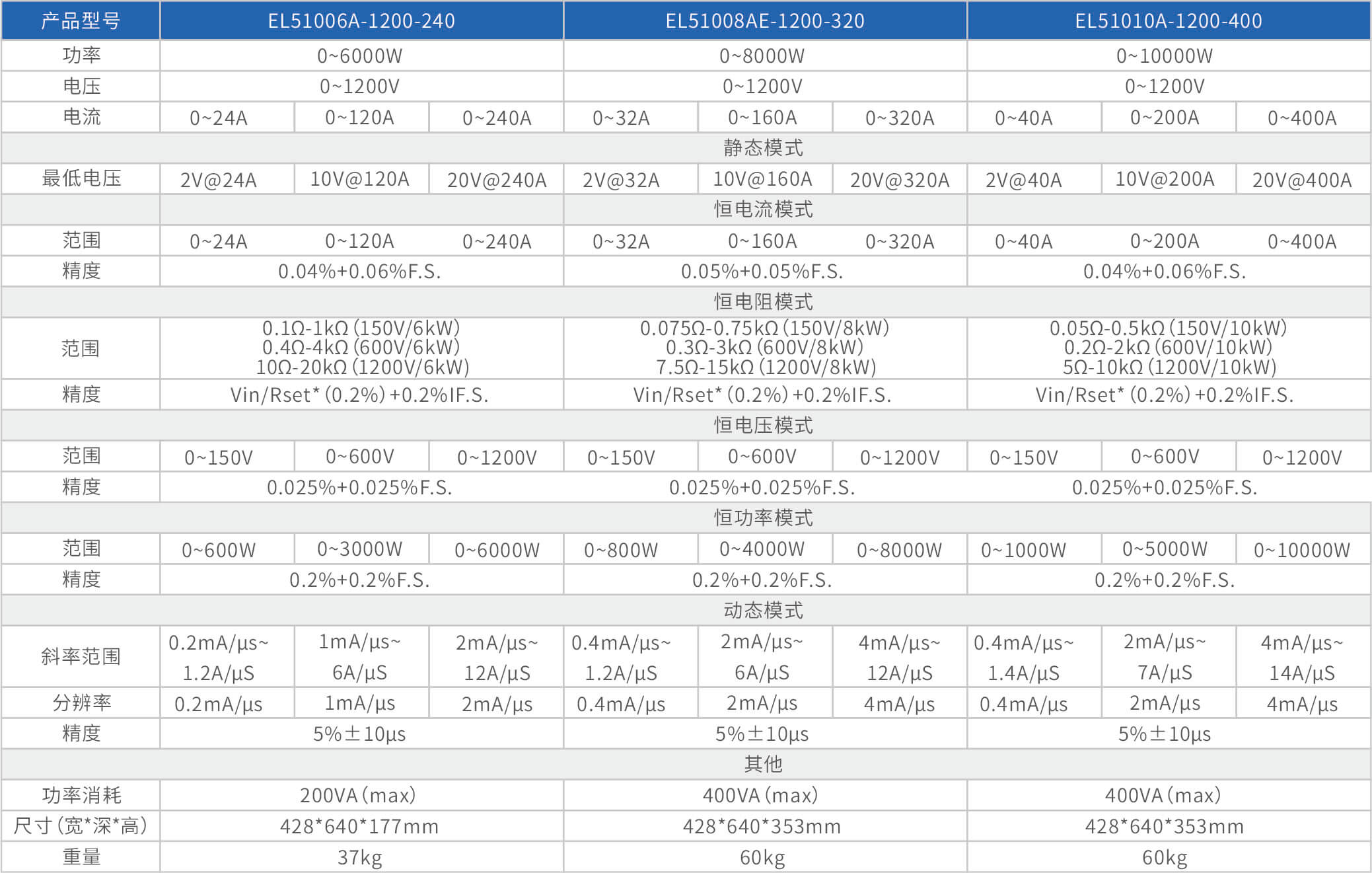

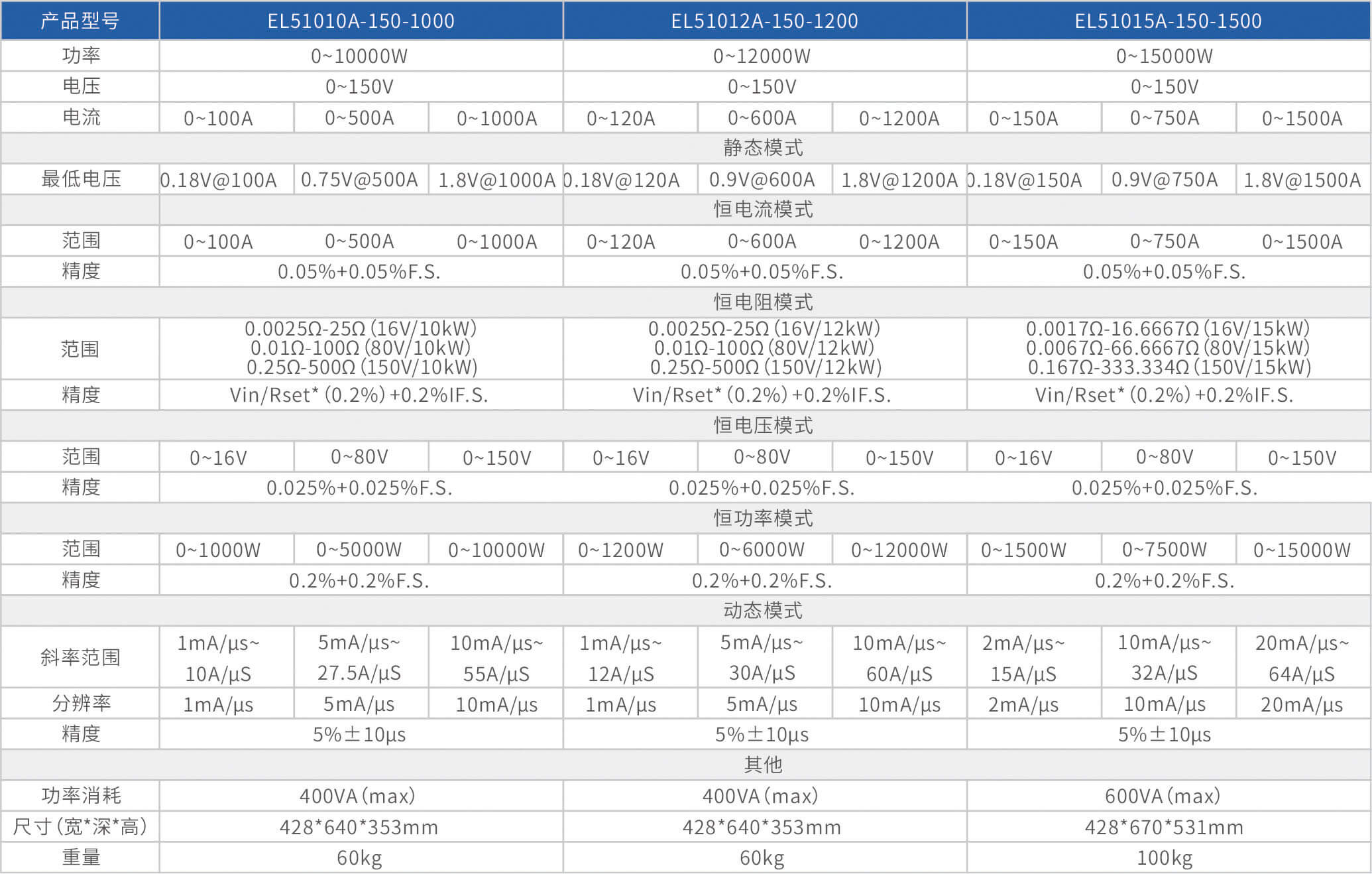

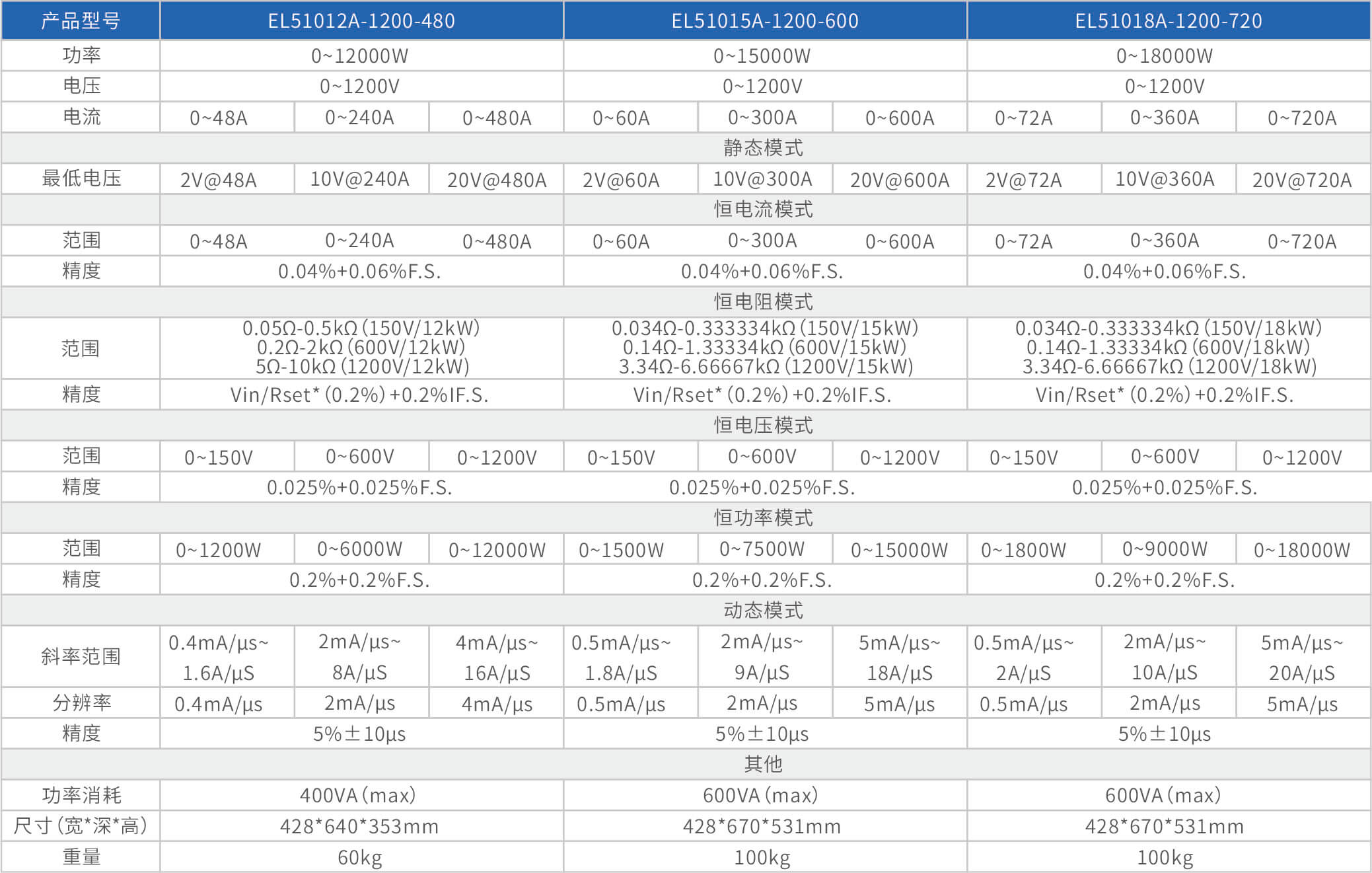

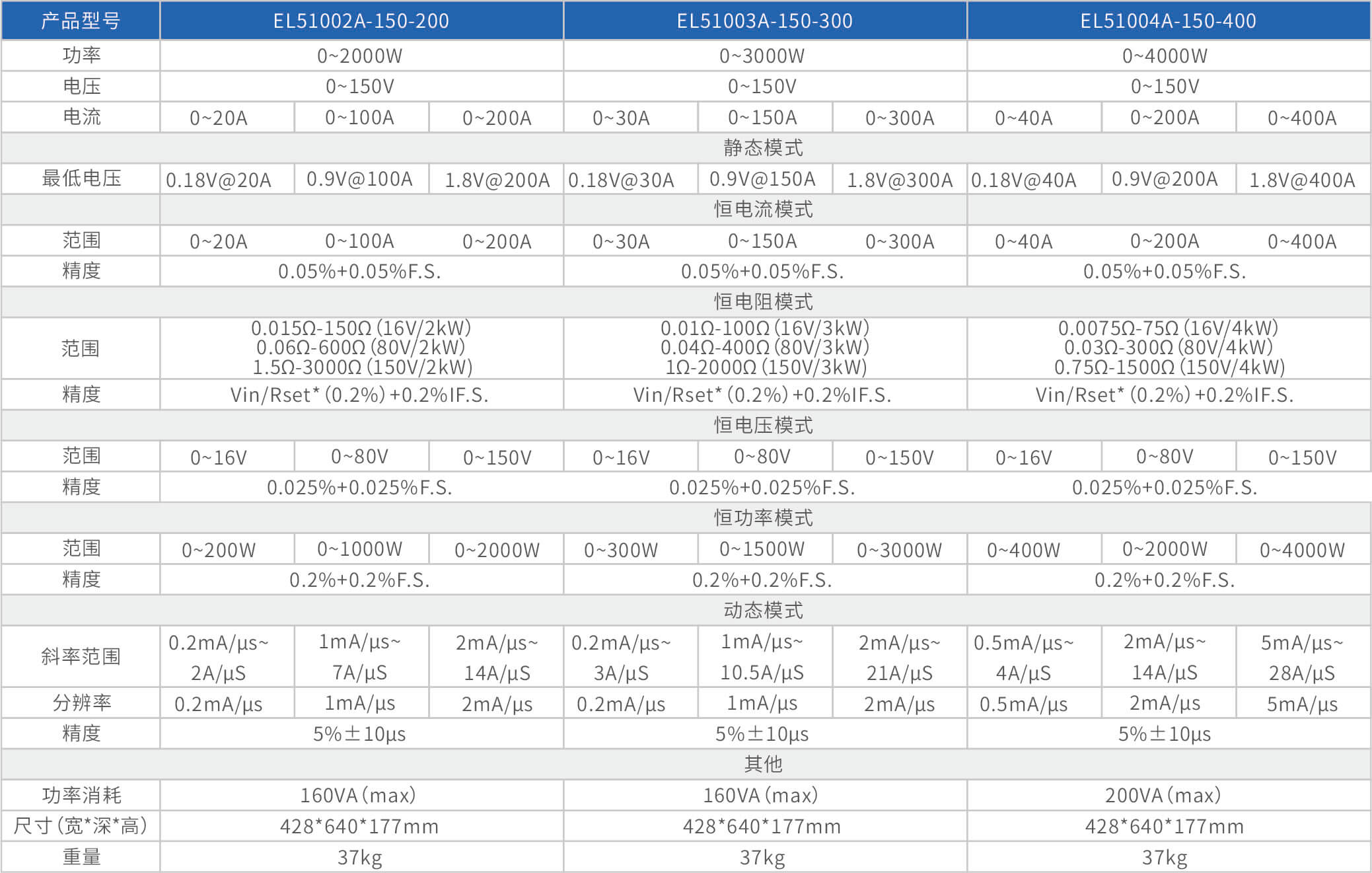

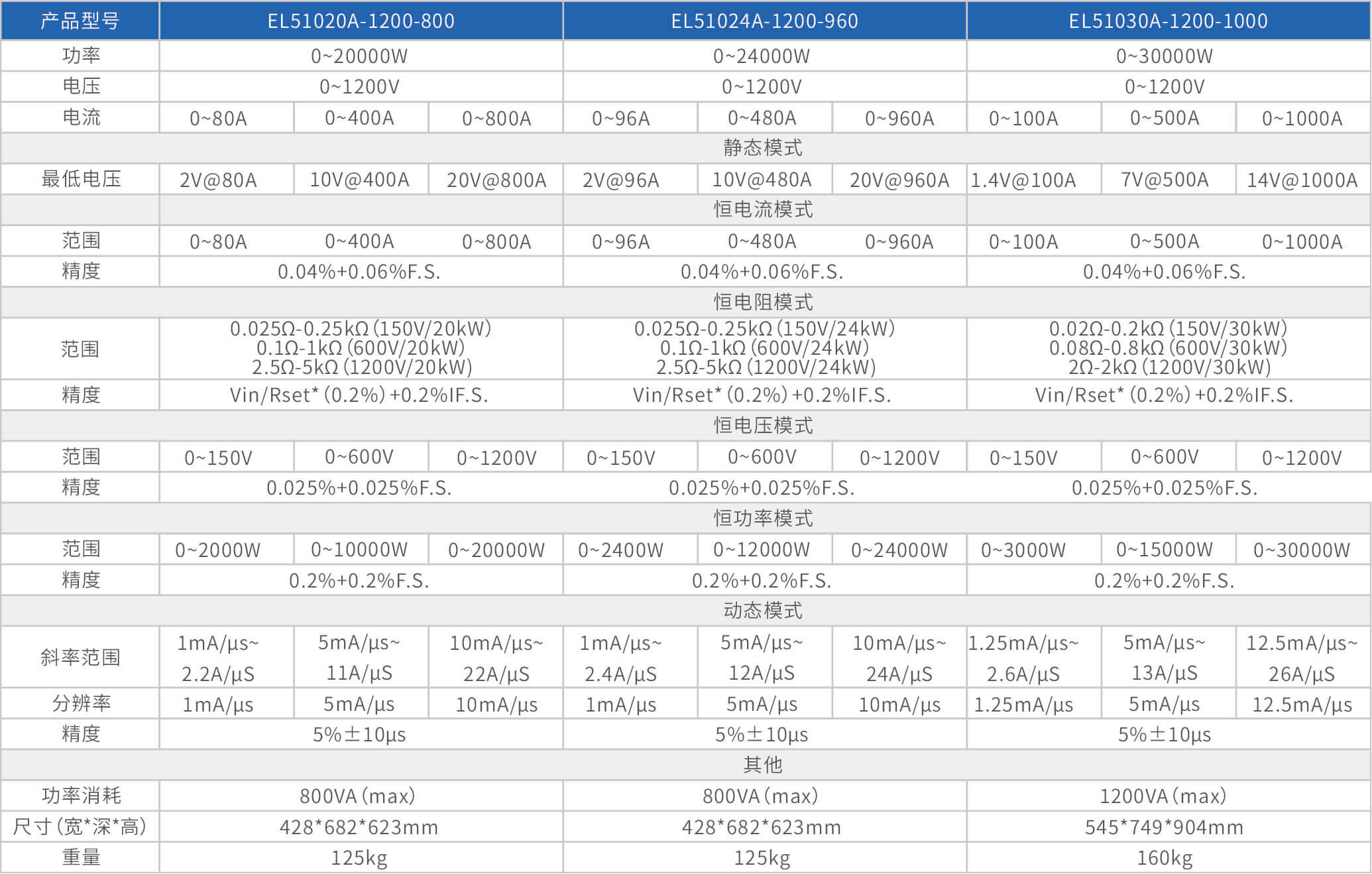

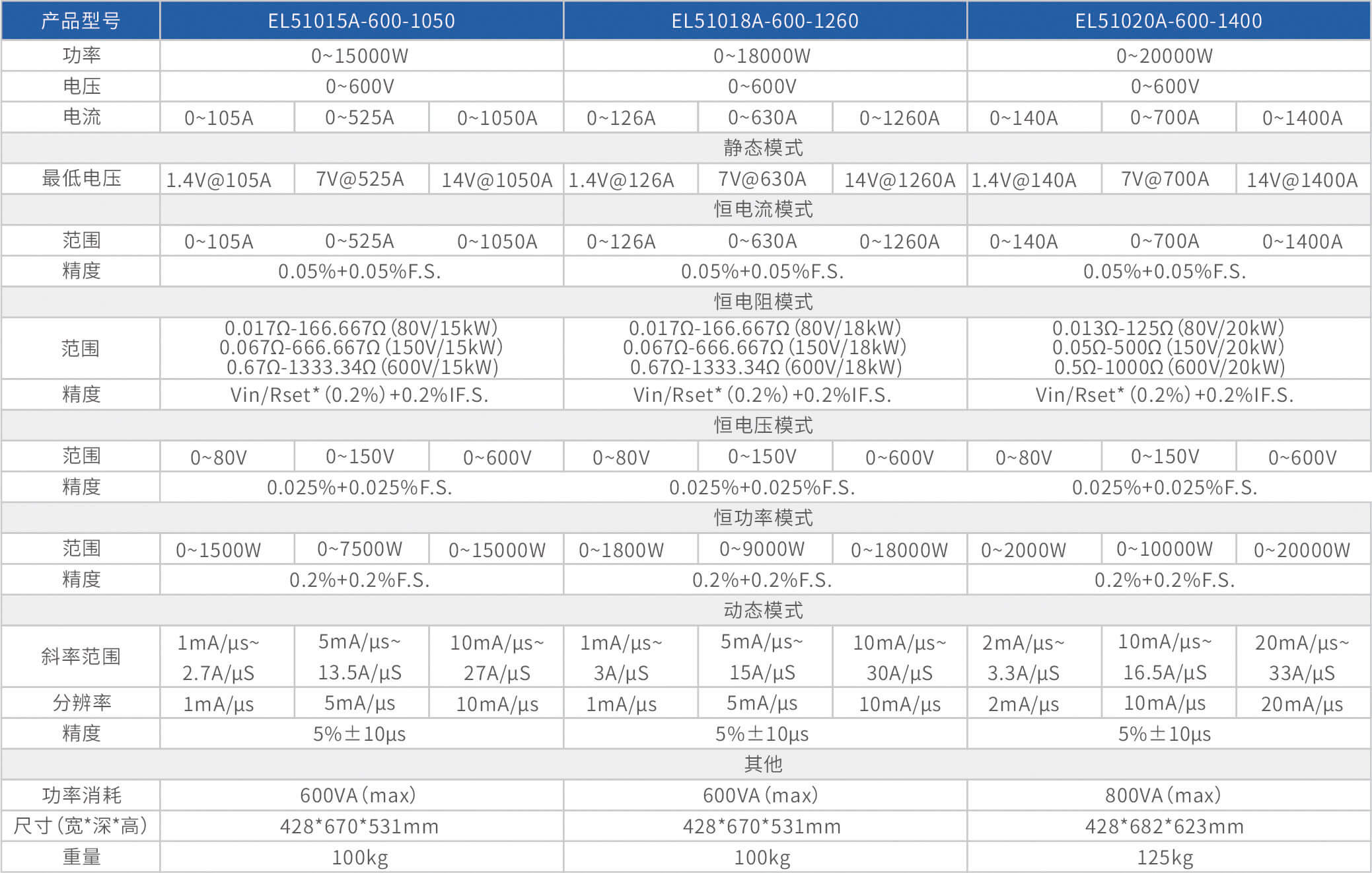

Product Details

Features

• High speed dynamic load, up to 50kHz load waveform simulation function

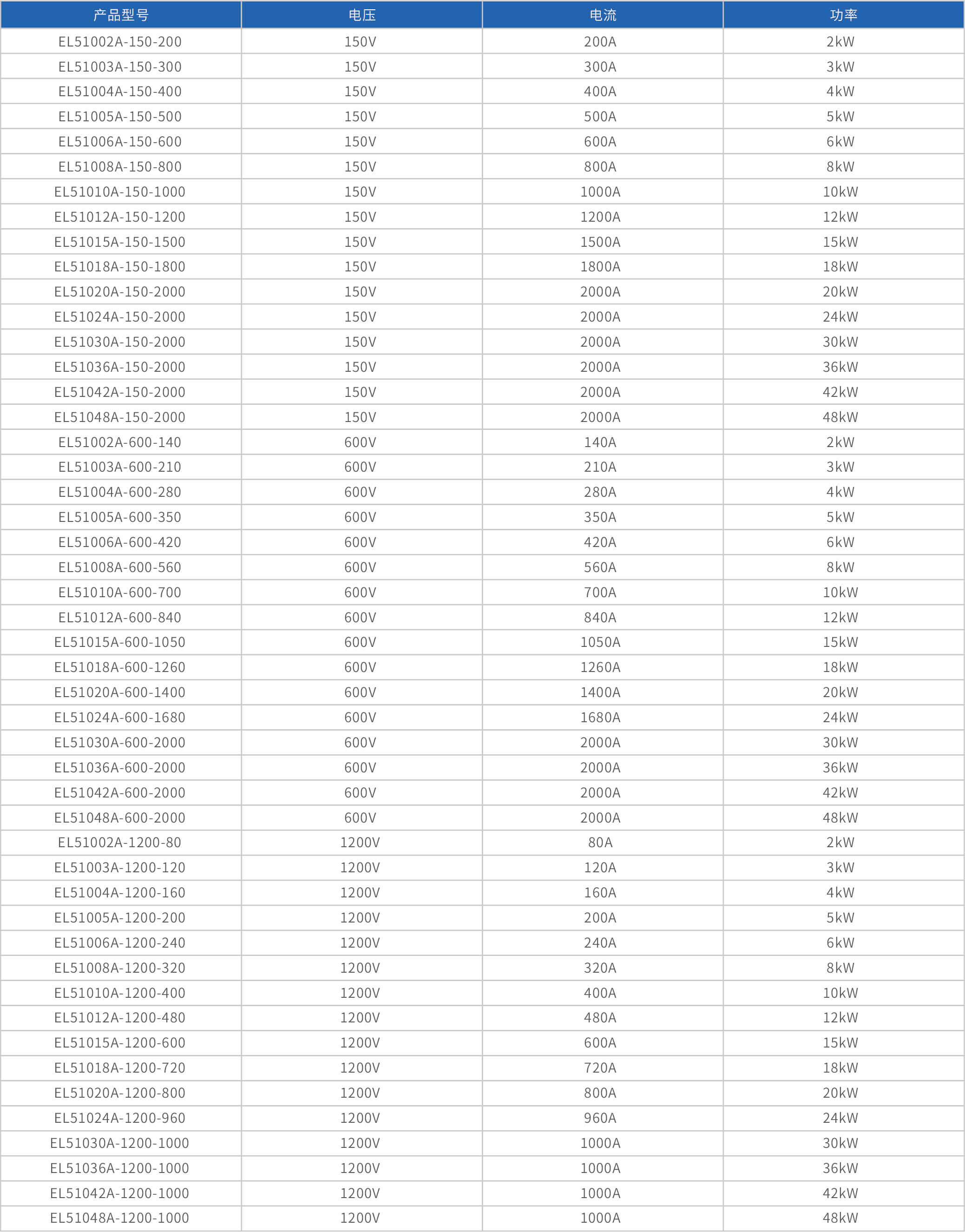

• Voltage range: 150V, 600V, 1200V

• Current range: up to 2000A

• Low voltage load characteristics: 0.15V can load current

• Master/slave parallel control, with up to 10 parallel units

• User defined waveform (UDW)

• Up to 50kHz automatic frequency conversion dynamic scanning (Sweep)

• Real time simulation of transient response of power supply load and

• Measurement of peak voltage (Vpk+/-)

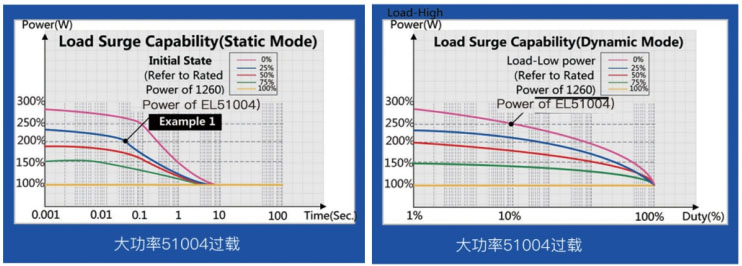

• Instantaneous over power load pulling function

• Short circuit simulation function

• 255 sets of timing can be directly programmed through the front panel

• Battery discharge simulation and measurement of discharge time function

• Quick OCP testing function with programmable switching of multiple load groups

• High precision voltage, current, and power measurement

• ARM control technology, fast communication speed

• Equipped with overvoltage, overcurrent, over power, over temperature, and reverse protection functions

• Equipped with RS232 communication interface, optional RS485/GPIB/LAN/CAN communication interface

• Environmental temperature: -20 ℃ -40 ° C

• Intelligent fan control

Product Application

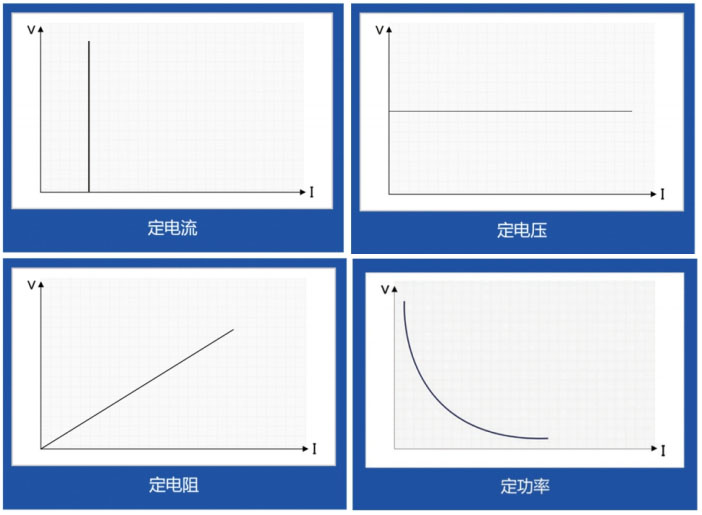

• Four static loading modes are provided: constant current mode (CC) and constant resistance mode (CR) are suitable for traditional switch mode power supply load simulation, constant voltage mode (CV) is suitable for battery charger and constant current output power supply load simulation, and constant power mode (CP) can be used for power battery pack and energy storage device load simulation.

• Measure the protection points of voltage, current, and maximum power point during overcurrent/overload protection of the tested object.

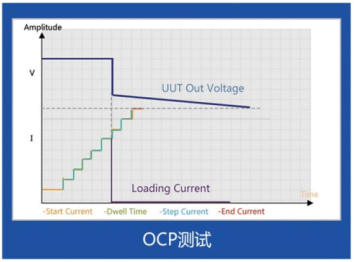

• Quick OCP testing function.

• Built in 255 sets of programmable load timing, allowing users to simulate various real load conditions. The following examples illustrate common programming timing applications.

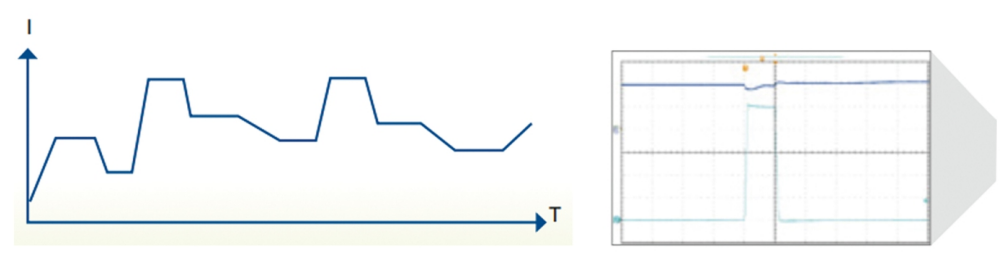

1. Battery discharge and other applications (laptops, electric vehicles, and electric scooters), simulate various kinetic load current waveforms, providing two current levels. The above kinetic current simulation or one shot load simulation.

2. Server or communication power supply mixed load modulation.
