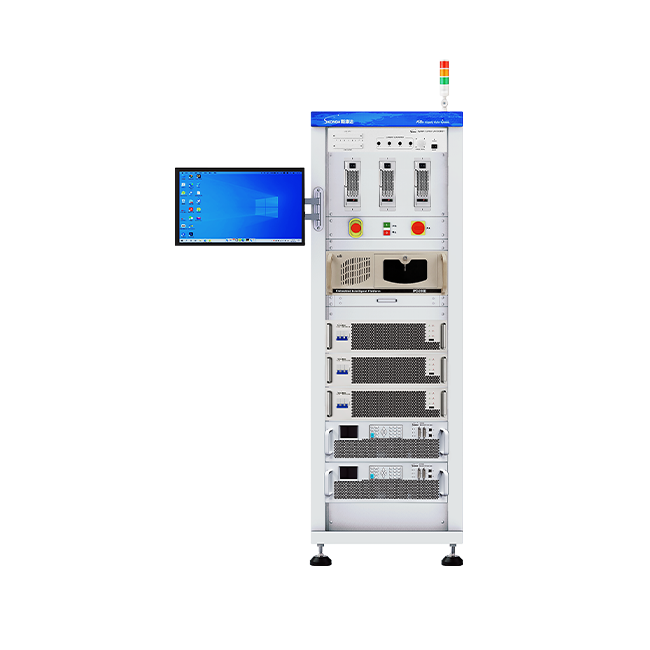

On-board charger OBC & DC-DC laboratory durability aging system BTS610

The vehicle charger OBC&DC-DC laboratory durability aging system BTS610 integrates ultra-high feedback efficiency bidirectional power module, low-voltage load module, and AC feedback load module, greatly reducing aging energy consumption, saving aging costs, and high testing accuracy. The bidirectional power module supports both unidirectional and bidirectional aging modes, with independent communication function modules configured to support one-to-one communication control, accurately reproducing the aging of actual work scenarios. Support the integration of external environmental warehouses and water cooling systems to meet the aging needs of different users, with a wide coverage range. The aging system supports one-to-one data reading and storage, and is applied to third-party testing laboratories and R&D durability testing for OBCDCDC products.

Product Catalog

Product Details

Features

• High voltage bidirectional DC source load integration, simulating actual charging battery operating conditions.

• High feedback efficiency, up to 94%

• DCDC Low Voltage Feedback Load Low Voltage High Current Feedback Efficiency 93%

• OBC inverter AC feedback load efficiency of 92%

• Quick changeover interface, structurally foolproof and misconnected

• High precision voltage and current sampling

• Independent product with independent CAN communication interface, simulating real working conditions

• Independent voltage and current sampling, independent dynamic display

• Improve EHS safety function design for leakage, overload, and door opening protection

• Partition malfunction alarm, partition water and power outage

• Power on device self check, convenient for fault maintenance

• Support dynamic curve editing for aging conditions such as ambient temperature, water temperature, and load conditions

• Support repeated power on/off impact tests during the aging process

• Support DBC import and protocol parsing editing

• Support custom format editing of CAN protocol messages

• Real time curve display of aging conditions with dynamic refresh

• Location code, product code, one-to-one corresponding data traceability

• Multi level permission function design, convenient for user management

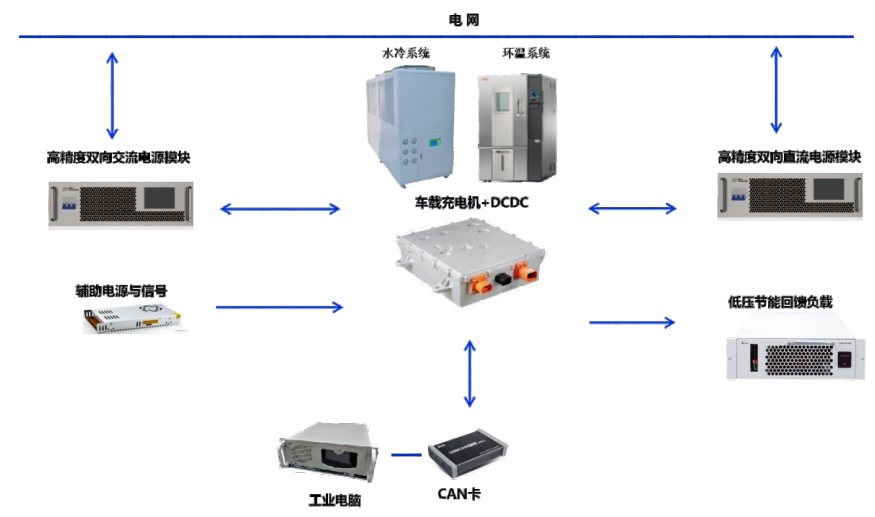

Principle Block Diagram

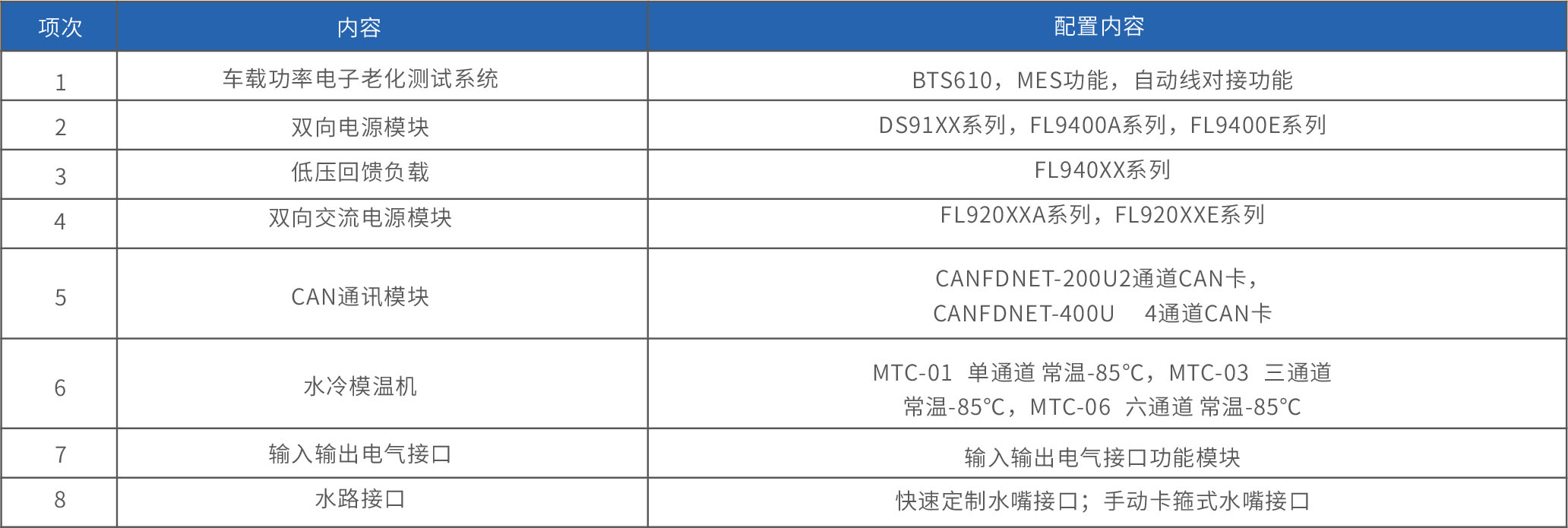

Selection Information

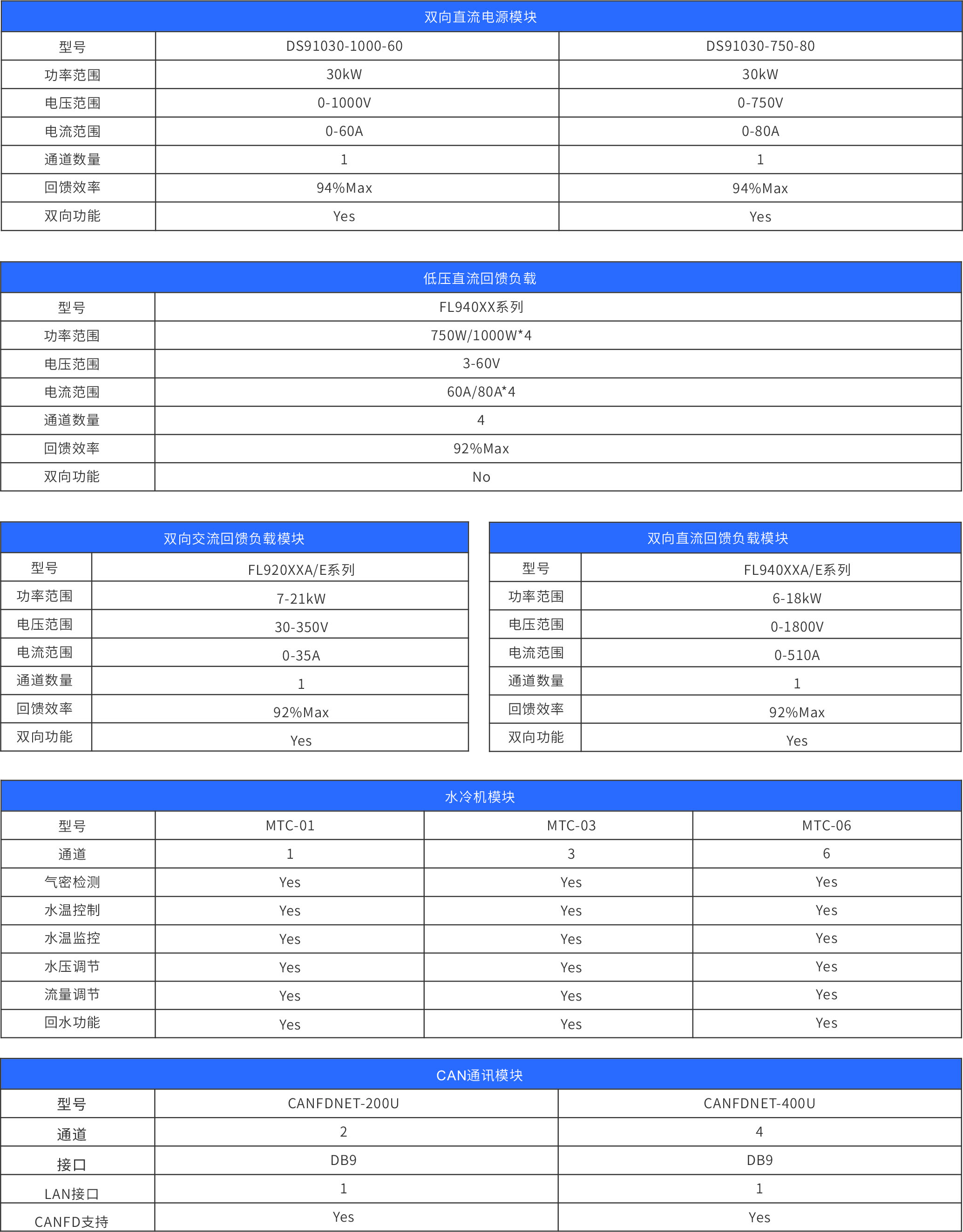

Specifications

Download Materials

Product Name	Type	Size	Update time	Download
On-board charger OBC & DC-DC laboratory durability aging system BTS610	pdf	1.65 MB	2025.09.25
