• PEV7034 complies with the following national standards:

  GB/T 18487.1-2015 Electric Vehicle Conductive Charging System Part 1: General Requirements

  GB/T 20234.2-2015 Connection Devices for Conductive Charging of Electric Vehicles Part 2: AC Charging Interface

  GB/T 20234.3-2015 Connection Devices for Conductive Charging of Electric Vehicles Part 3: DC Charging Interface

  GB/T 34657.2-2017 Test Specification for Interoperability of Conductive Charging of Electric Vehicles (Part 2: Vehicles)

  GB/T 27930-2015 Communication Protocol between Off Board Conductive Chargers and Battery Management Systems for Electric Vehicles

  GB/T 27930-2023 Communication Protocol between Off Board Conductive Chargers and Battery Management Systems for Electric Vehicles (Class A System)

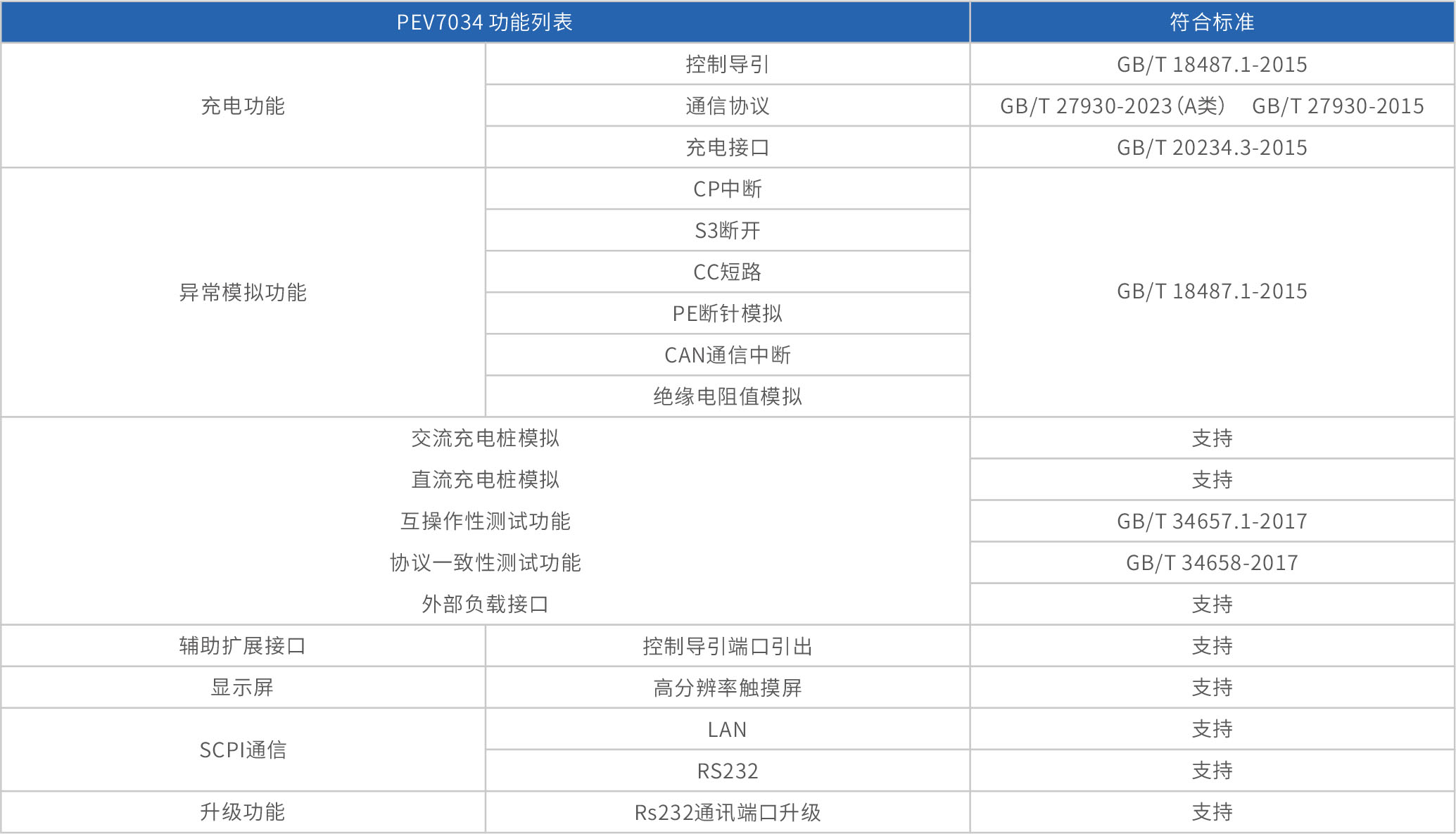

Features

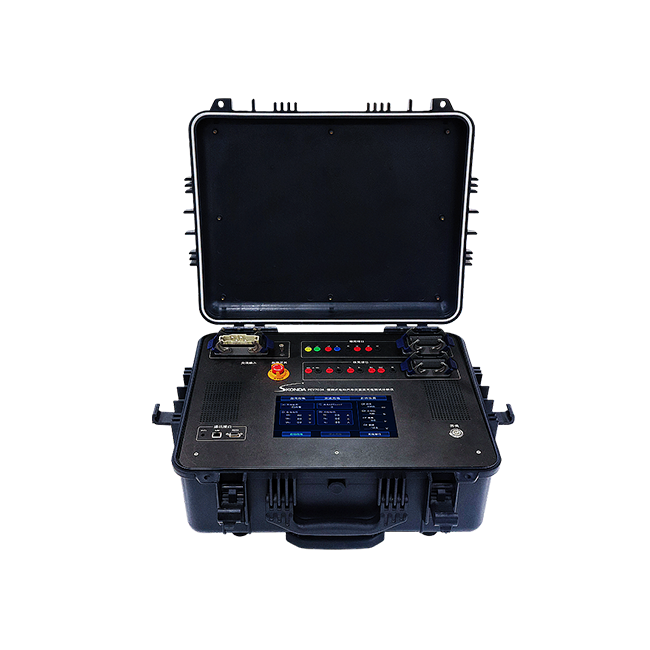

• Superior portability: The lightweight design of the handle box is suitable for various automotive charging and testing scenarios

• Equipped with a built-in 4 kW power module, it can simulate a DC charging station without the need for an external DC power supply

• Can be connected to external single-phase and three-phase AC power input, can simulate AC charging piles, built-in signal generator, CP frequency and duty cycle adjustable

• Support communication charging fault simulation: S3 disconnection, CC short circuit, CP interruption, CC boundary resistance, etc

• Support DC charging abnormal fault simulation: PE needle breakage, insulation abnormality, communication interruption, etc

• Support interoperability testing for charging of AC/DC electric vehicles, with built-in standard test cases and support for generating test reports

• Support consistency testing of EVCC communication protocol for electric vehicles, with built-in standard test cases and support for generating test reports

• Built in insulation detection module to meet the insulation testing needs of electric vehicles

• All detection points of the guiding circuit are externally connected to the panel, making it easy to use other devices to monitor charging parameters

• Can export BMS communication messages as EXCEL format documents with message parsing

• Supports multiple communication interfaces (optional): Supports RS232, LAN and other communication interfaces for remote operation and control

• Equipped with a 10 inch high-definition LCD touch screen, the charging parameters are intuitive and the operation is smooth

Product Application

• This product can be applied to the research and development testing, online debugging, production line inspection, on-site inspection, etc. of electric vehicle AC/DC charging products.

Purchase Information

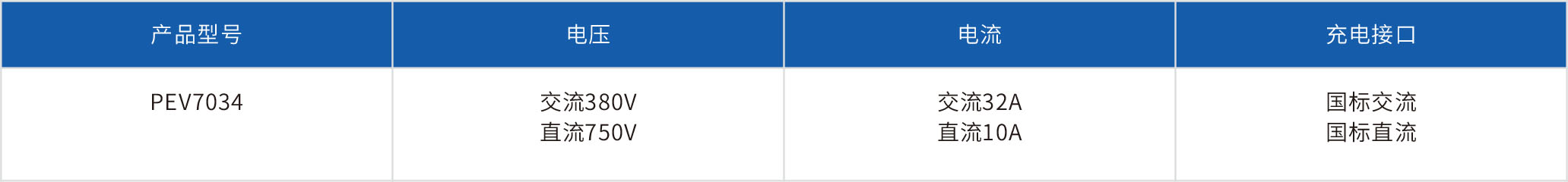

Main Functions

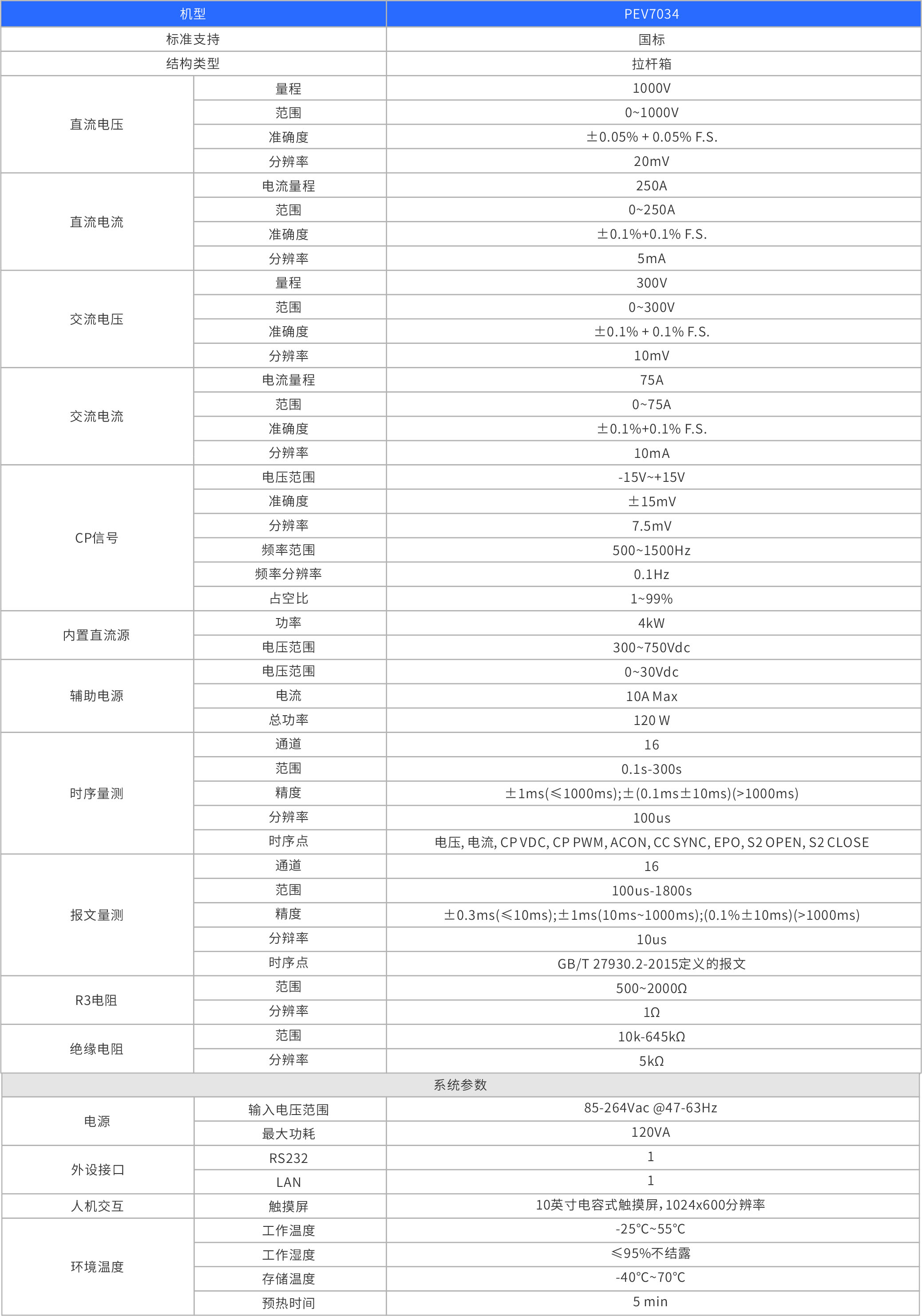

Technical Parameters

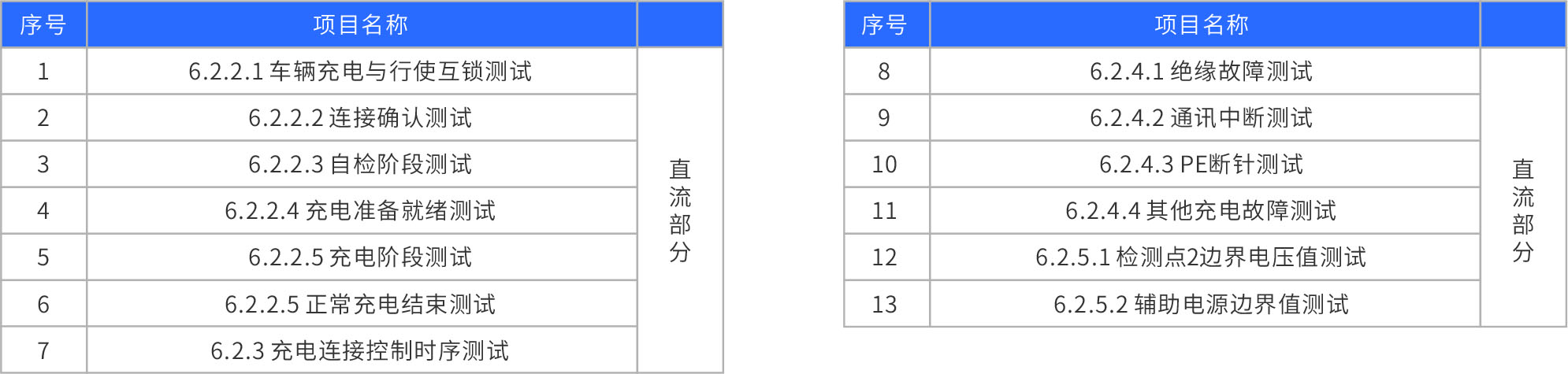

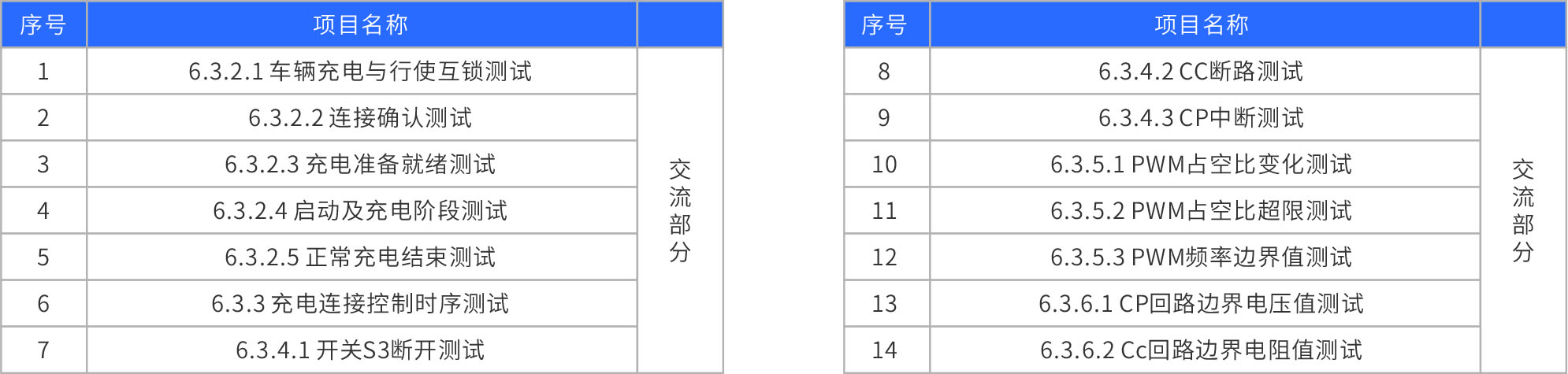

Interoperability Testing

• Meet all test projects of GB/T 34657.2-2017 Electric Vehicle Conducted Interoperability Test Specification Part 2: Vehicles

• Meet all test projects of GB/T 34657.2-2017 Electric Vehicle Conducted Interoperability Test Specification Part 2: Vehicles

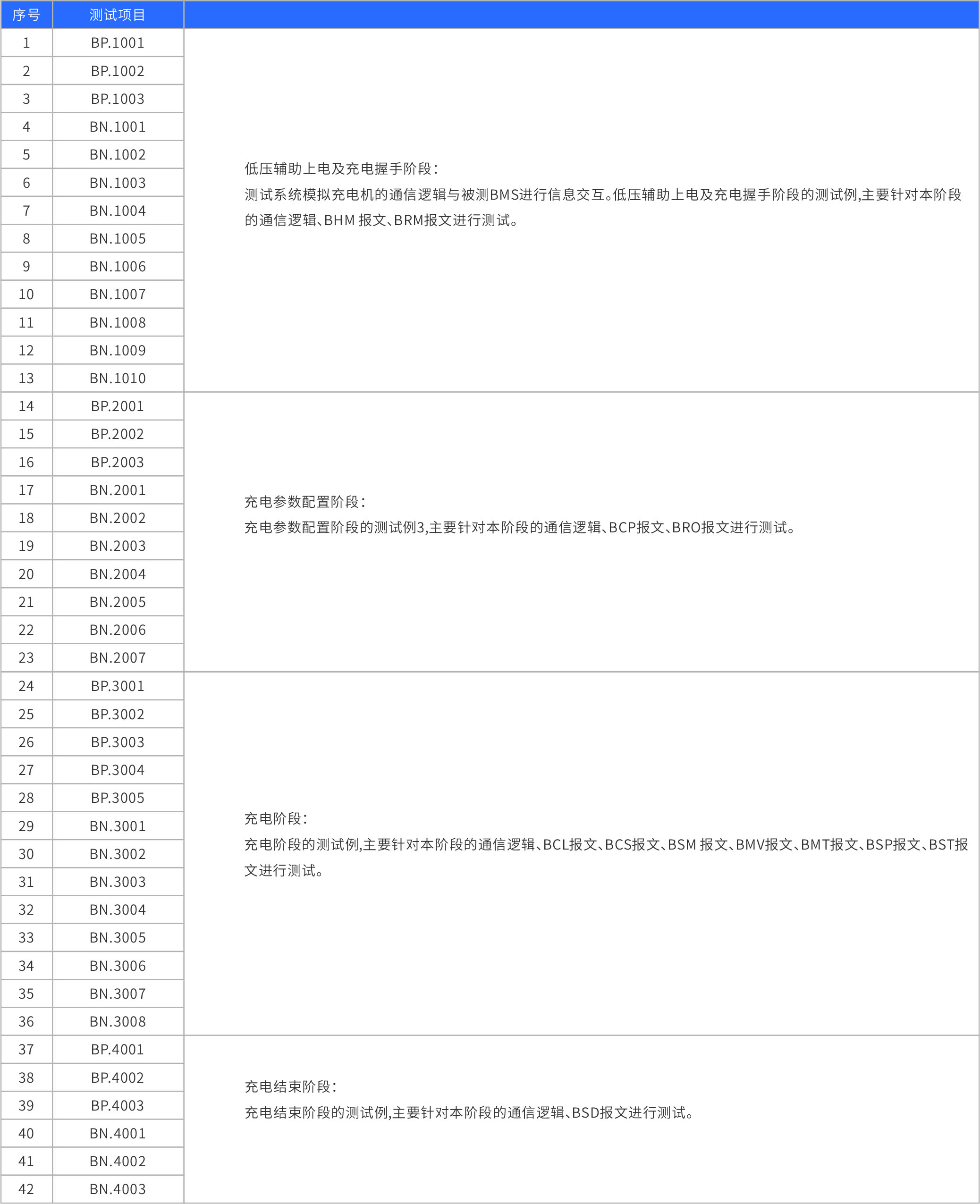

Protocol Consistency Testing

• Meet all Test Projects for Vehicle (EVCC) in GB/T 34658-2017 Communication Protocol Consistency Test between Off Board Conductive Chargers and Battery Management Systems for Electric Vehicles
