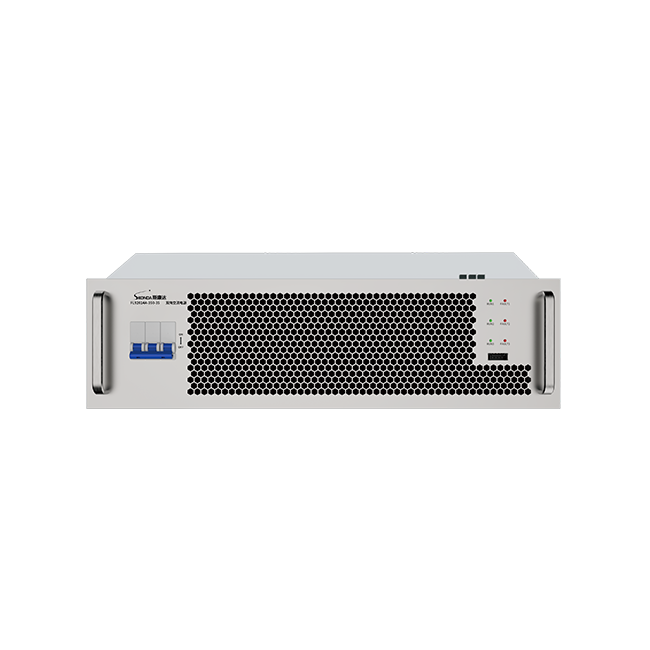

Bidirectional AC power supply - FL92000E series

The FL92000E series bidirectional AC power supply adopts a single/three-phase PFC feedback design, pure digital PWM rectification technology, high power factor, low pollution to the power grid, high output accuracy, fast dynamic response speed, and efficiently feeds back energy to the power grid, saving electricity and energy. Widely used in factories, research institutions, laboratories, universities and other institutions as generator sets, frequency converters UPS/EPS、 Aging, testing, performance testing of AC system products such as AC power supplies and AC converters, as well as testing of DC-AC and AC-AC power converters.

Wide voltage input/output range (30V-350V)
Wide current input/output range (0A-150A)

Product Catalog

User Manual

Product Video

Product Details

Features

• Wide voltage input and output range (30V-350V)

• Wide current input and output range (0A-150A)

• High voltage accuracy (1%+0.5% F.S.)

• High current accuracy (1%+0.5% F.S.)

• Each channel is isolated from each other and supports independent output

• Support CC/CV/CP working mode

• Integrated source and load, full power feedback, full power four quadrant

• Supports RS485 and CAN communication methods

• Efficiency up to 92%

• Over/under voltage/over temperature/over voltage/over-current/short circuit protection, etc

• High voltage plug-in design, easy to replace

Product Application

• This series of products is suitable for multiple testing fields such as 5G communication and data centers, industrial components, aging testing, photovoltaic energy storage, and power optimizers.

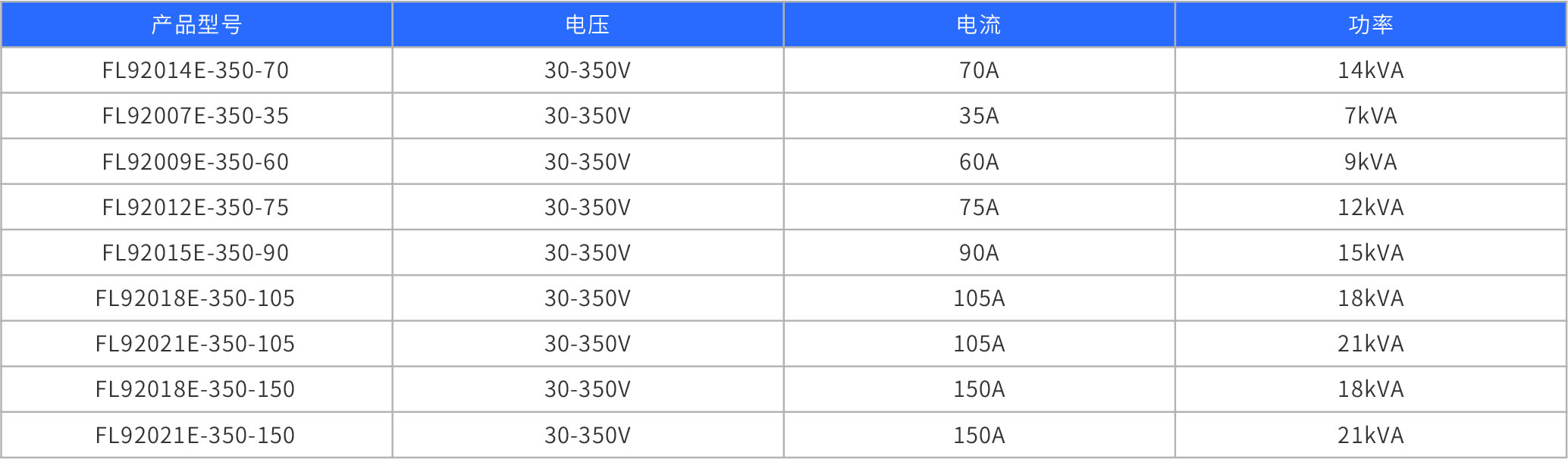

Purchase Information

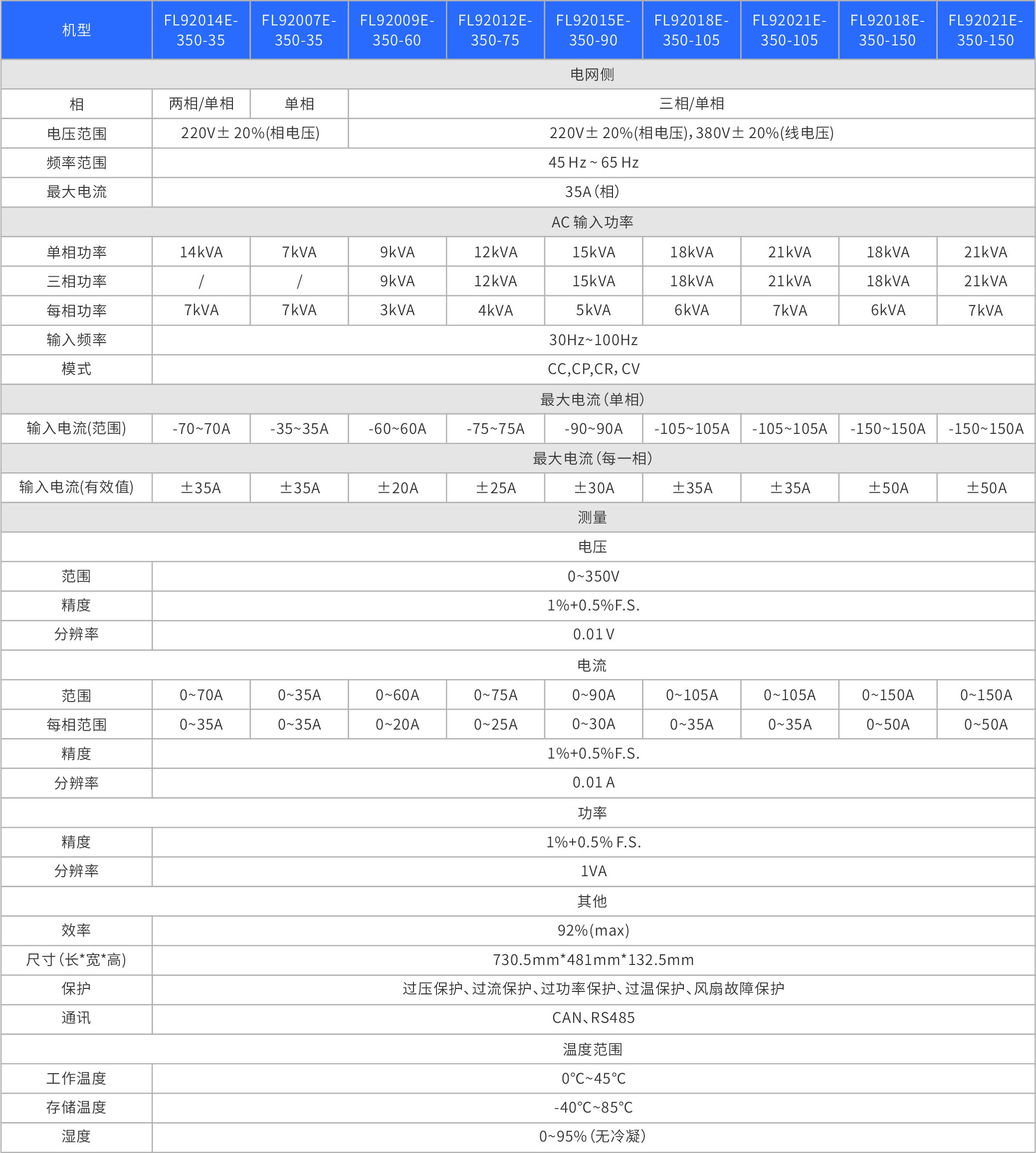

Technical Parameters

Download Materials

Product Name	Type	Size	Update time	Download
Bidirectional AC power supply - FL92000E series	pdf	1.12 MB	2025.09.25
