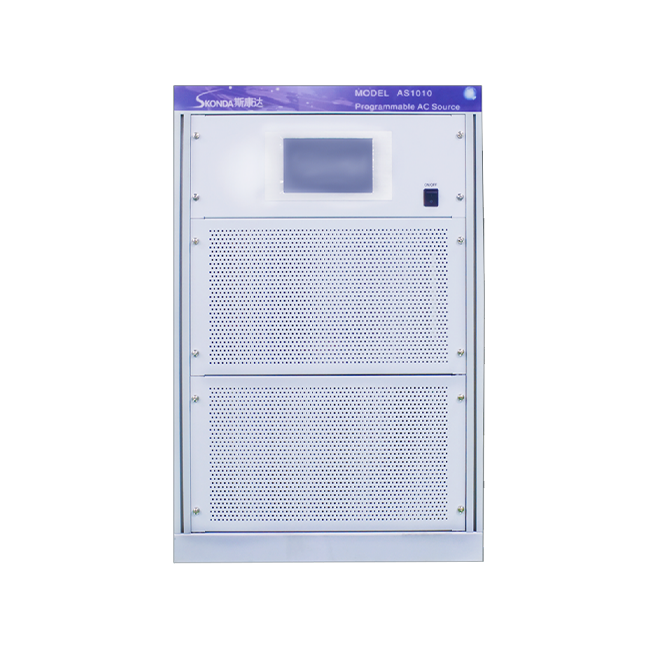

Programmable AC power supply-AS1000/AS1000S series

The AS1000/AS1000S series programmable AC power supply is a cost-effective and highly stable AC variable frequency power supply that uses digital technology and precise control to output very pure and low harmonic sinusoidal AC waveforms. This power supply has a voltage output range of 0-300V and a wide frequency range, making it suitable as an input source for testing electronic products with power frequency input. Comprehensive protection mechanisms make it safer for users to use. Optional RS232 or RS485 communication interfaces are available, allowing this product to be integrated for various testing systems.

Online monitoring function: monitoring IGBT temperature, transformer temperature, fan speed, input voltage and other parameters in output state
3 times the rated current impulse withstand 2S, can directly start an impulse load equivalent to 1/3 of the power supply power

Product Catalog

User Manual

Product Video

Product Details

Features

• Online monitoring function: monitoring IGBT temperature, transformer temperature, fan speed, input voltage and other parameters in output state

• 3 times the rated current impulse withstand 2S, can directly start an impulse load equivalent to 1/3 of the power supply power

• Voltage grading function: automatic adjustment or locking of 1-300V for 150V and 300V gears

• Adopting FPGA digital technology and precise control to ensure high-quality sine waveform output.

• Black box function: automatically records the power status and alarm code when an alarm occurs

• Adjust voltage and frequency in output state

• Measurement functions: voltage, current, frequency, active power

• The machine speed is automatically adjusted according to temperature to reduce noise

• Equipped with overvoltage, overcurrent, overtemperature, overpower, and fan protection functions

• Multiple shortcut groups, power down memory function, shortcut keys, and knob operations

• Lock key, user-friendly design, automatically locks after 5 minutes of inactivity to prevent accidental operation

• Equipped with RS232 communication interface, optional RS485/GPIB/LAN/CAN communication interface

Product Application

• This series can be used in various fields such as new energy vehicles, research and development laboratories, and is the preferred product for production testing and quality control.

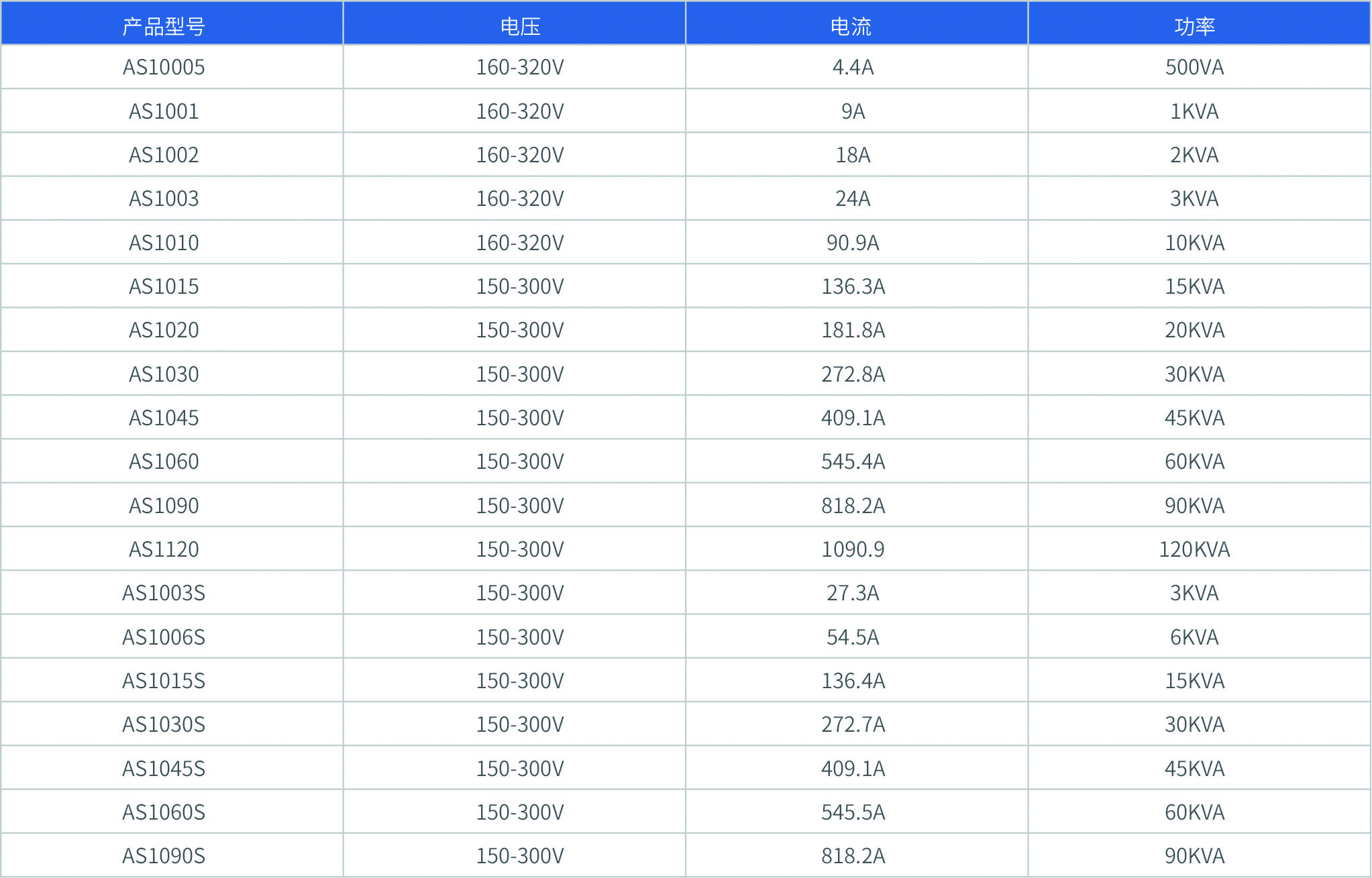

Purchase Information

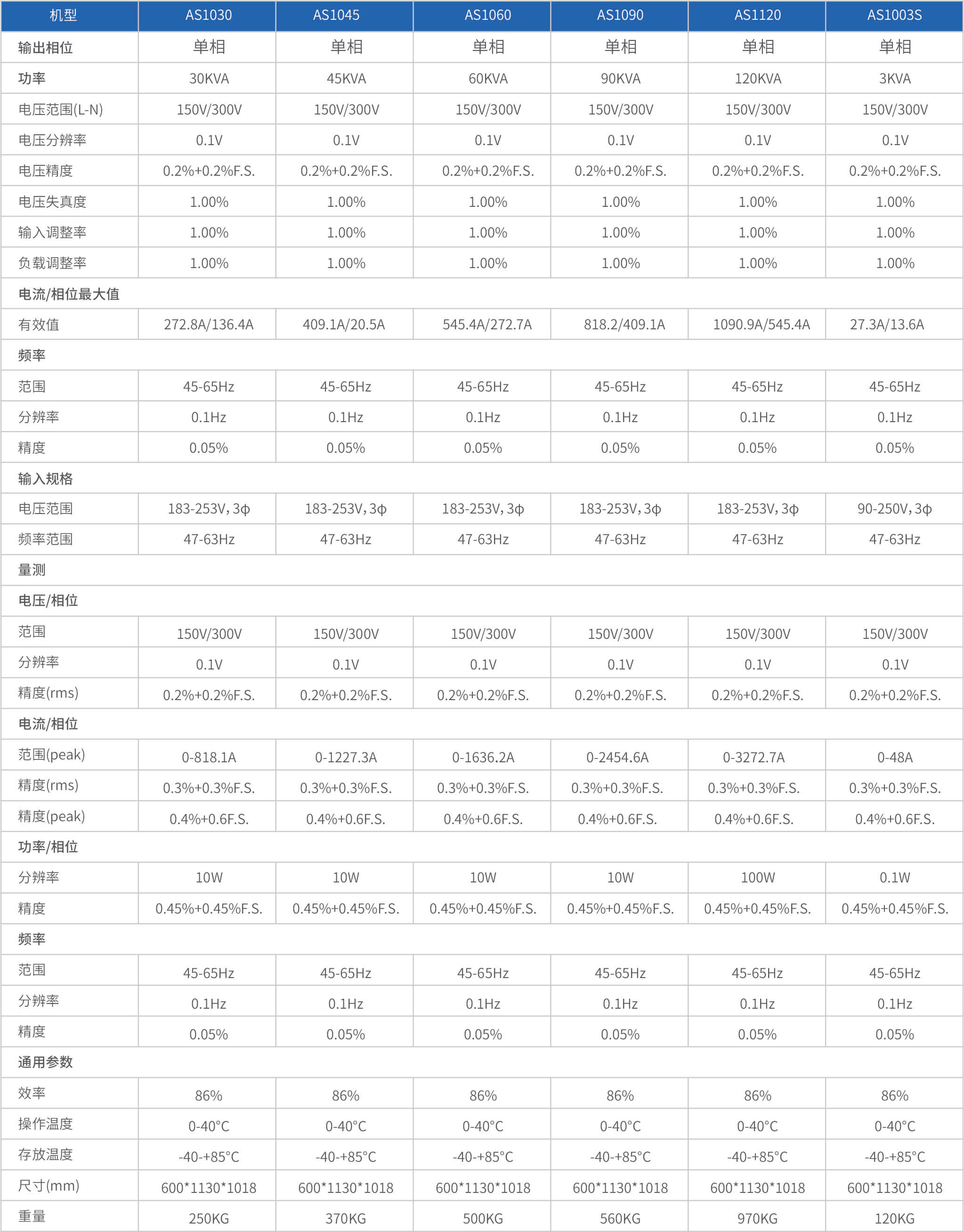

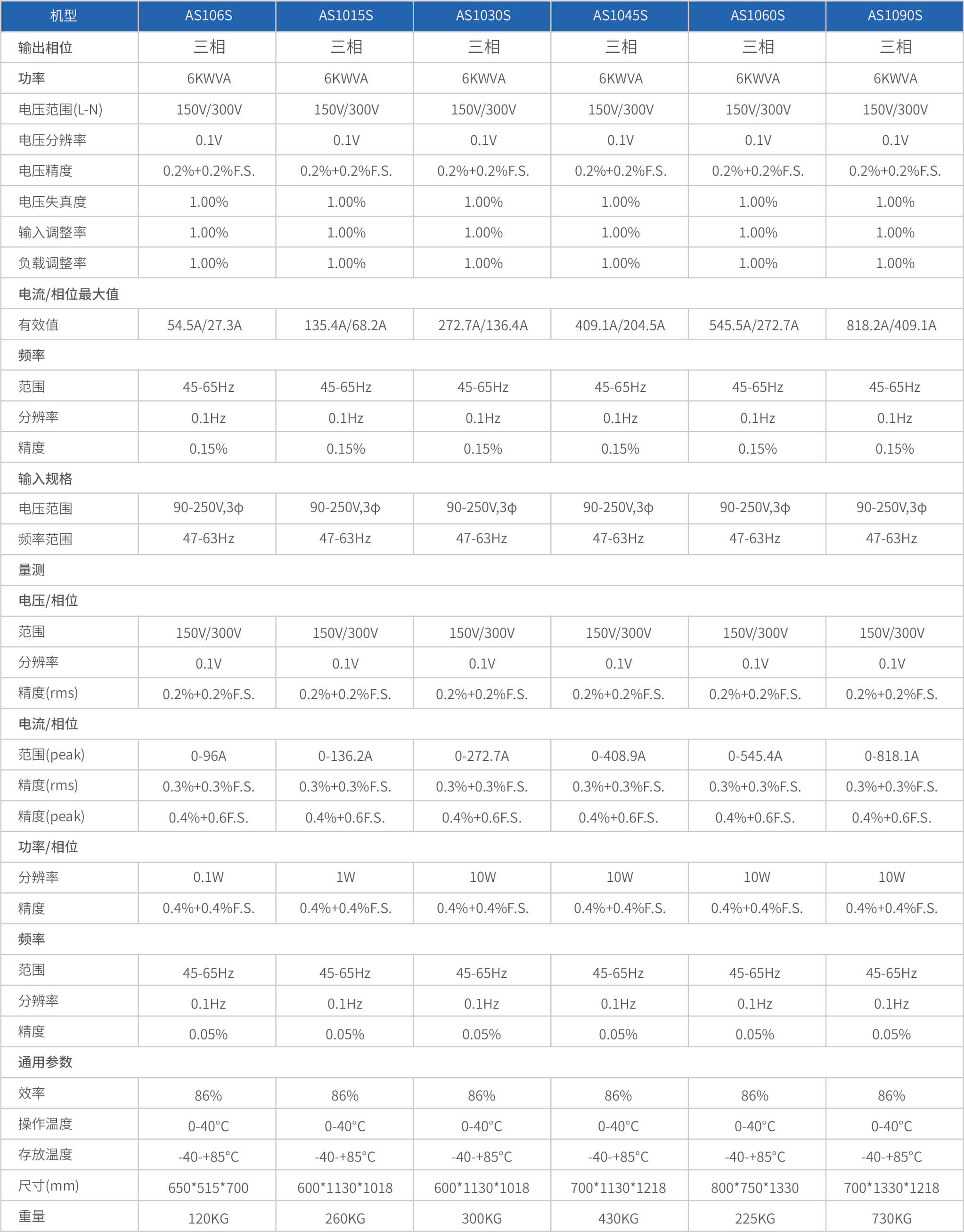

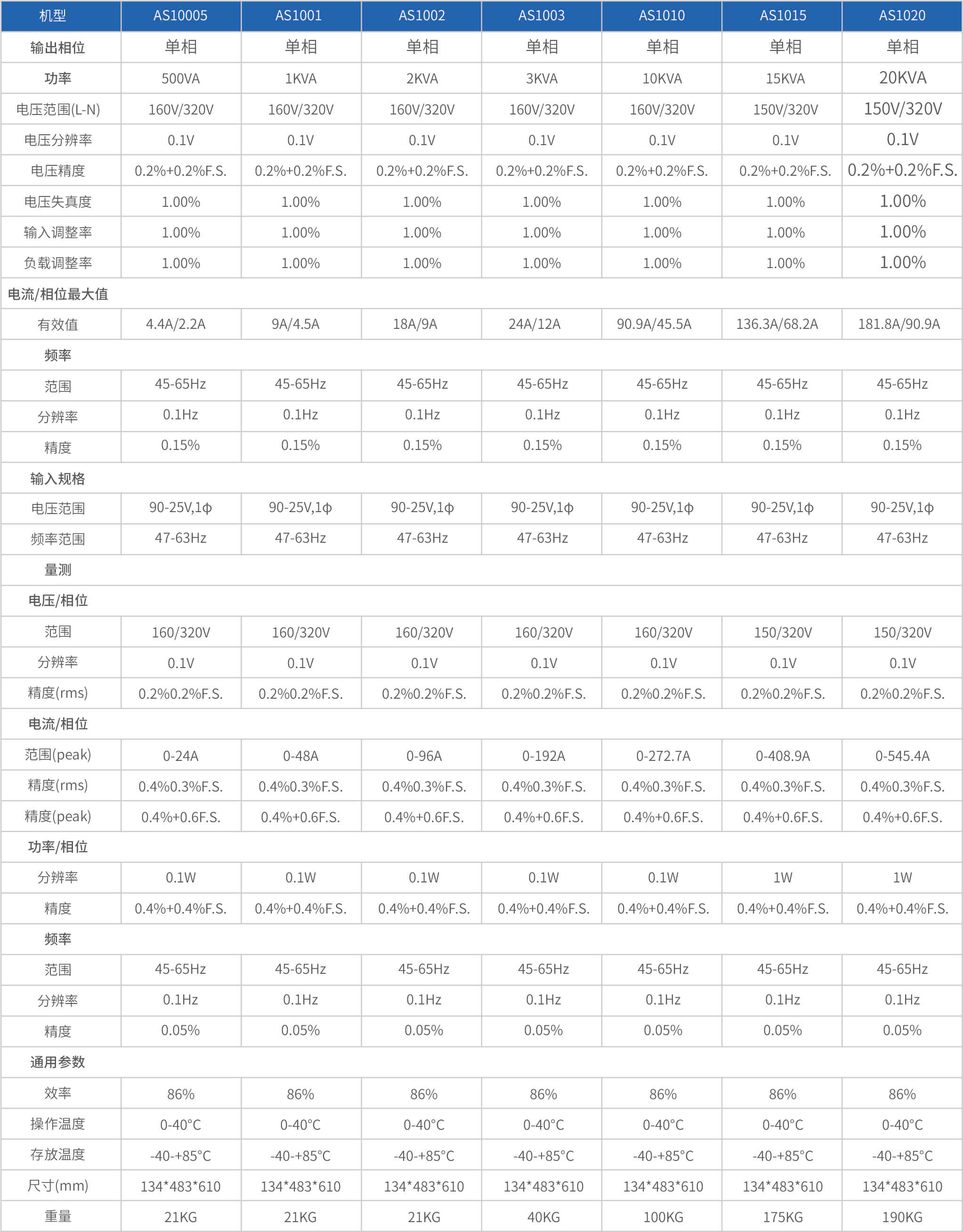

Technical Parameters

Download Materials

Product Name	Type	Size	Update time	Download
Programmable AC power supply-AS1000/AS1000S series	pdf	772.2 KB	2025.09.25
