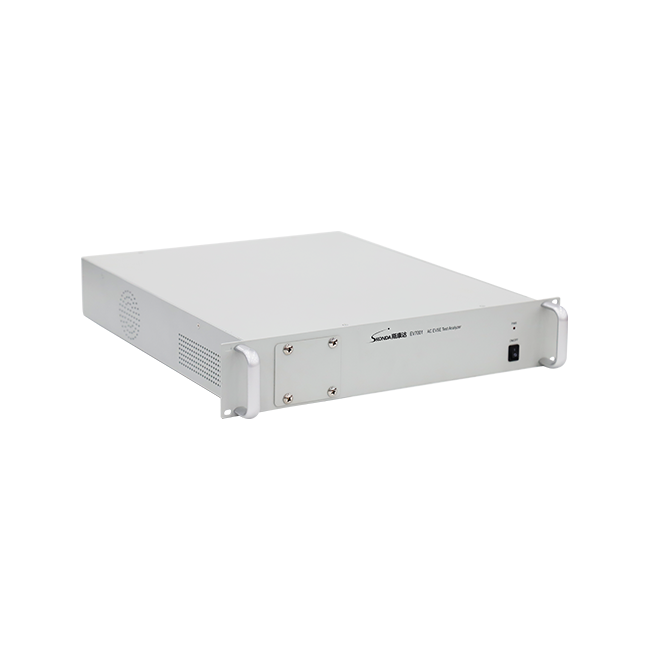

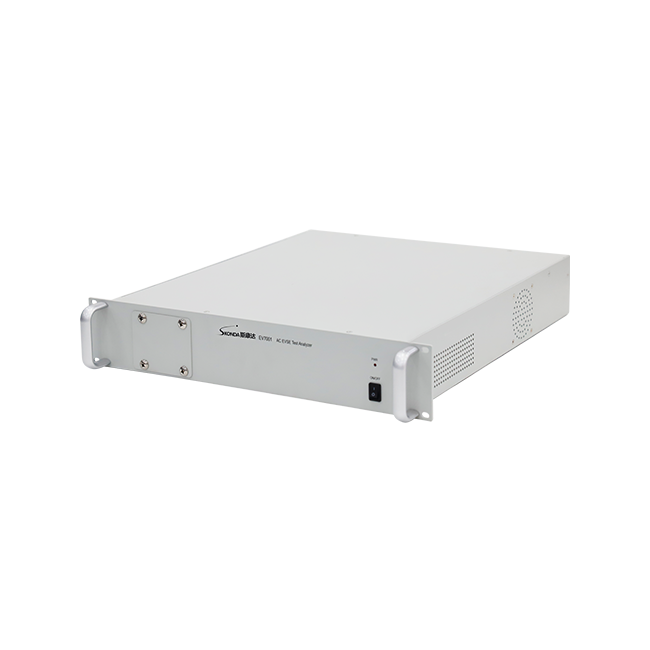

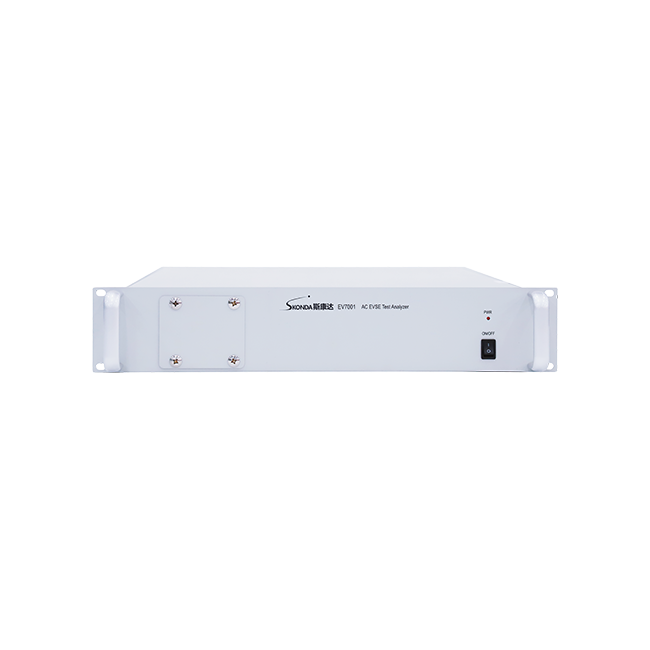

AC charging pile simulation test analyzer-EV7001_Standard single machine_Charging facilities_Applications

Product Details

Reference Specifications

(1) GB/T 18487.1-2015 Electric Vehicle Conductive Charging System Part 1: General Requirements

(2) GB/T 34657.1-2017 Test Specification for Interoperability of Conductive Charging of Electric Vehicles Part 1: Power Supply Equipment

(3) GB/T 20234.1-2015 Connection Devices for Conductive Charging of Electric Vehicles Part 1: General Requirements

(4) GB/T 20234.2-2015 Connection Devices for Conductive Charging of Electric Vehicles Part 2: AC Charging Interface

(5) NB/T 33001-2018 Technical Conditions for Off board Conductive Chargers for Electric Vehicles

(6) NB/T 33008.2-2018 Inspection and Test Specification for Electric Vehicle Charging Equipment Part 2: AC Charging Pile

Features

• Combined with the upper computer system platform, it can meet the interoperability testing standards of national, European, and American communication piles.

• Optional national standard, European standard, American standard testing functions and corresponding vehicle sockets.

• Portable design: Portable handle design for easy access, storage, and transportation, suitable for testing applications in various scenarios

• Extended load interface: It can connect external loads to test the load characteristics of charging piles according to actual testing needs

• Abnormal fault simulation: Can simulate hardware faults such as CP interruption, CP grounding, PE pin breakage, etc

• Precision measurement: high-precision measurement of voltage and current parameters, CP parameters

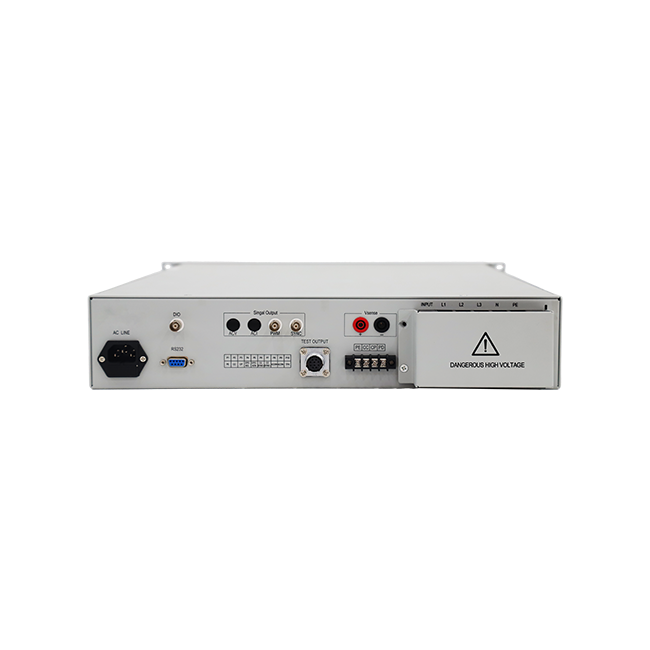

• Rich expansion interfaces: PWM signal, synchronization signal, PE and other signal connection terminals, can be connected to external oscilloscope and other detection equipment to monitor the actual charging station status during the testing process

• Support remote control: RS232 standard, can be remotely operated and controlled

Product Application

• This product can be applied to online debugging, production line testing, on-site testing, and other scenarios of national standard, European standard, and American standard AC charging pile products.

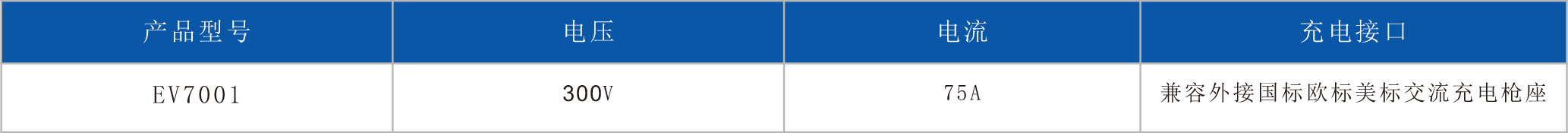

Purchase Information

Technical Parameters

Download Materials

Product Name	Type	Size	Update time	Download
AC charging pile simulation test analyzer-EV7001	pdf	565.72 KB	2025.09.24
