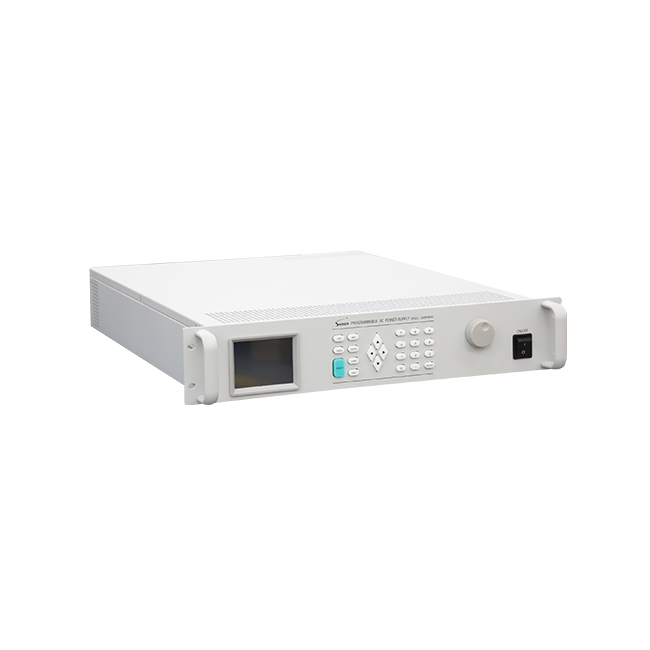

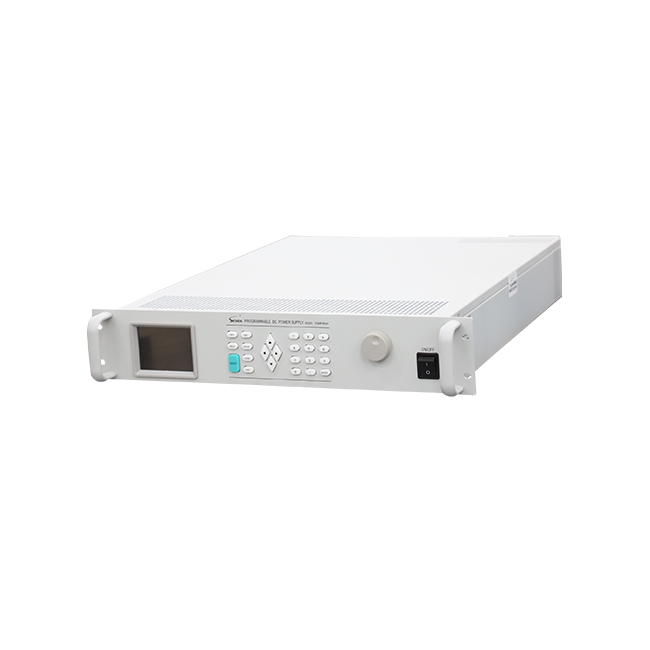

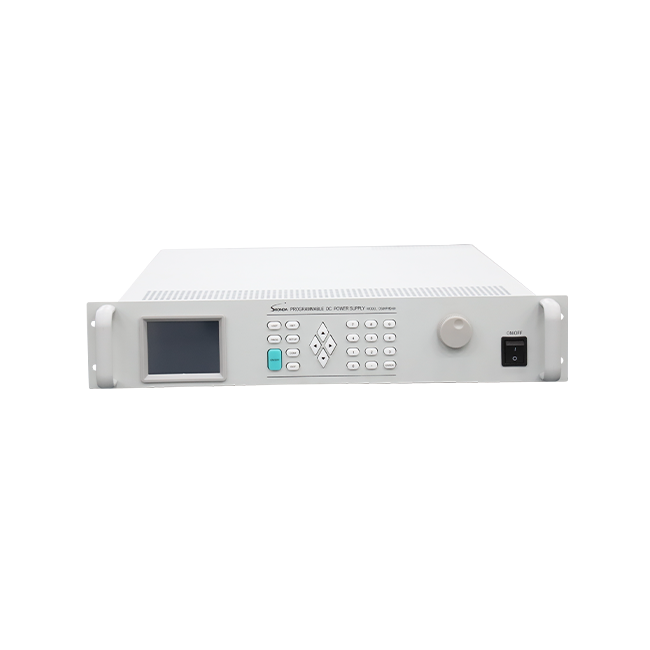

Programmable DC power supply-DSP series

Programmable DC power supply is a power supply product that has the ability to output high-precision voltage/current, and also has high-precision measurement function. This series can meet the testing needs of different products such as high voltage low current/low voltage high current to the maximum extent, and is equipped with RS-232 (standard)/GPIB communication interface, which can be used for ATE integration. The remote voltage compensation circuit can make the output more accurate.

Fixed power architecture, wider voltage/current output range
Small size, high-power power supply: 2-4U height, standard cabinet width

Product Catalog

User Manual

Product Video

Product Details

Features

• Fixed power architecture, wider voltage/current output range

• Small size, high-power power supply: 2-4U height, standard cabinet width

• Voltage 0-600V; current 0-240A, multiple models to choose from

• Input PFC power correction design, power factor>0.95

• Multiple power sources can be connected in parallel to achieve greater power output

• Programmable simulation of special voltage variation waveforms

• Remote Sense Voltage Compensation

• Improve protection functions: overvoltage, current limiting, and overheating

• Full color LCD screen and numeric keypad for easier operation

• ARM control technology, optimized instruction format, fast communication speed

• RS232 (standard)/GPIB communication port

Product Application

• This series can be used in laboratories, research and development, production testing, and quality control departments, and is an essential product for production testing and quality control.

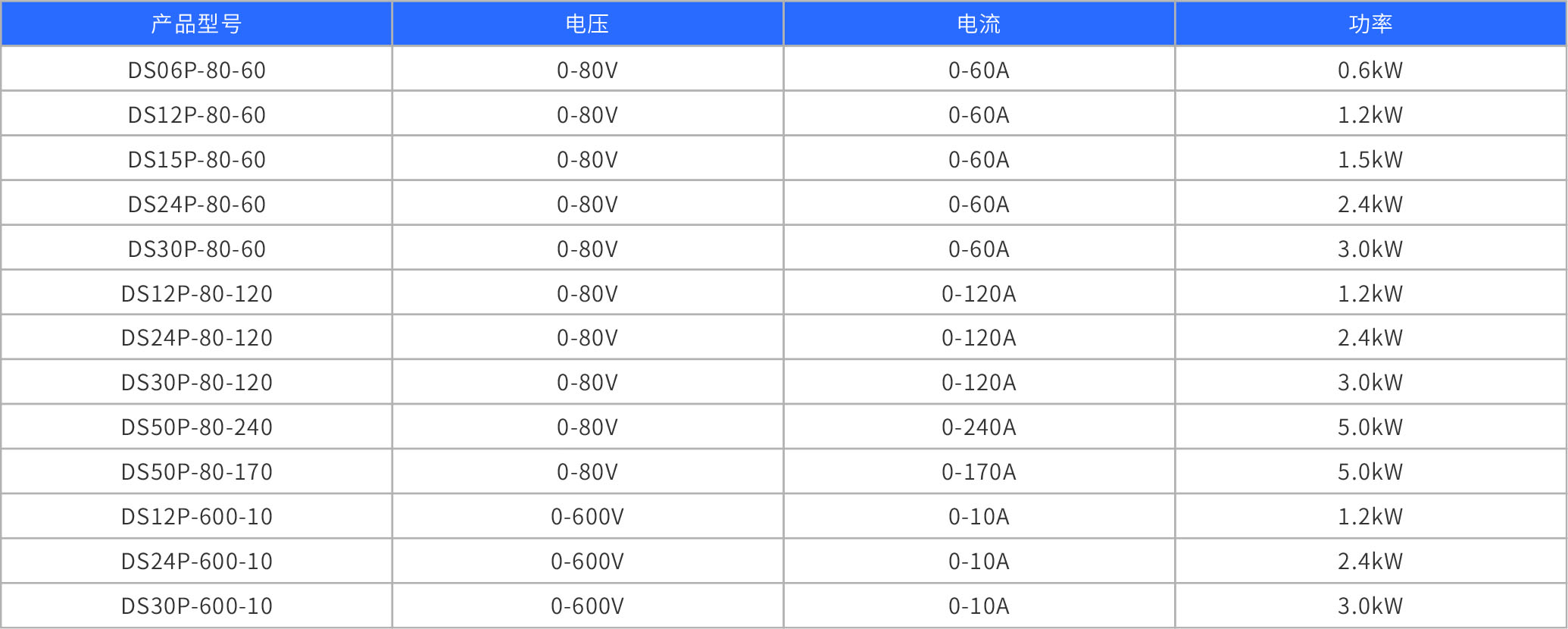

Purchase Information

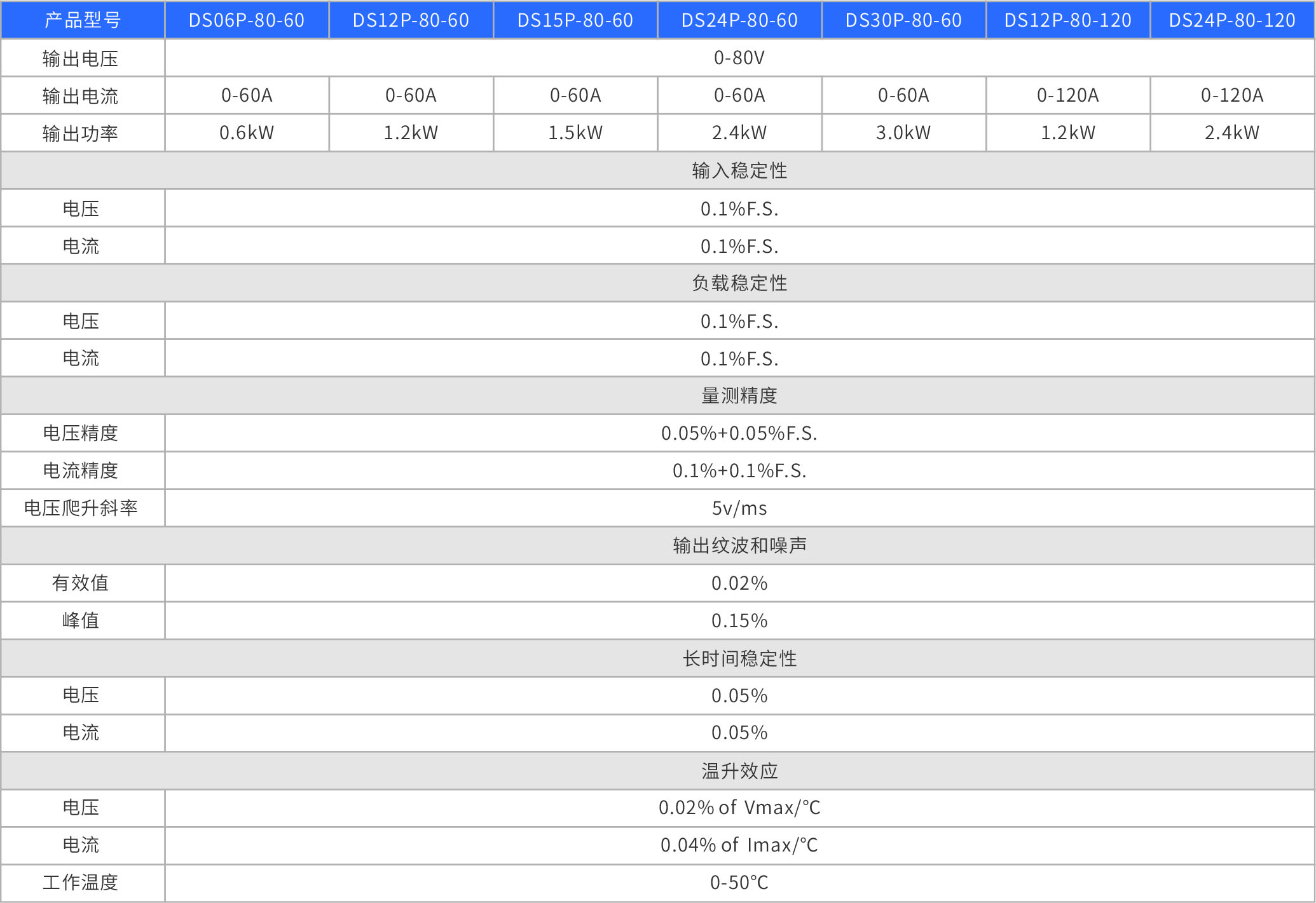

Technical Parameters

Download Materials

Product Name	Type	Size	Update time	Download
Programmable DC power supply-DSP series	pdf	577.31 KB	2025.09.25
