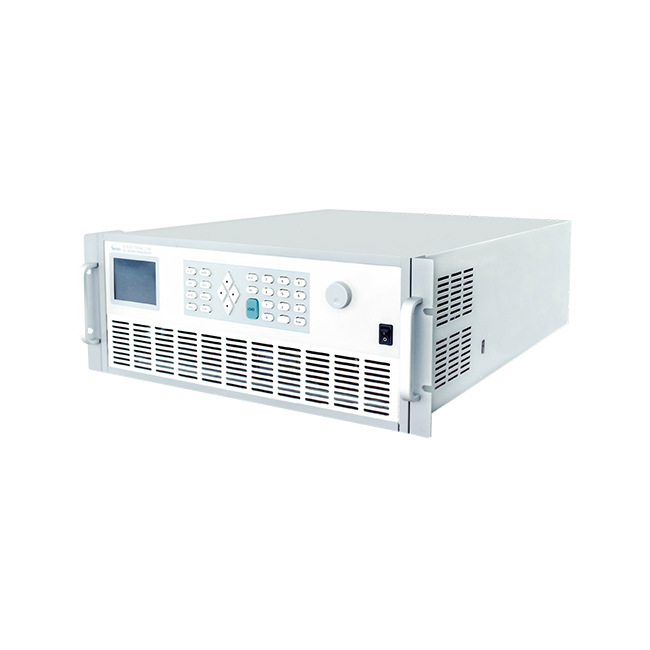

High power electronic load_Standard single machine_Charging facilities_Applications

Product Details

Features

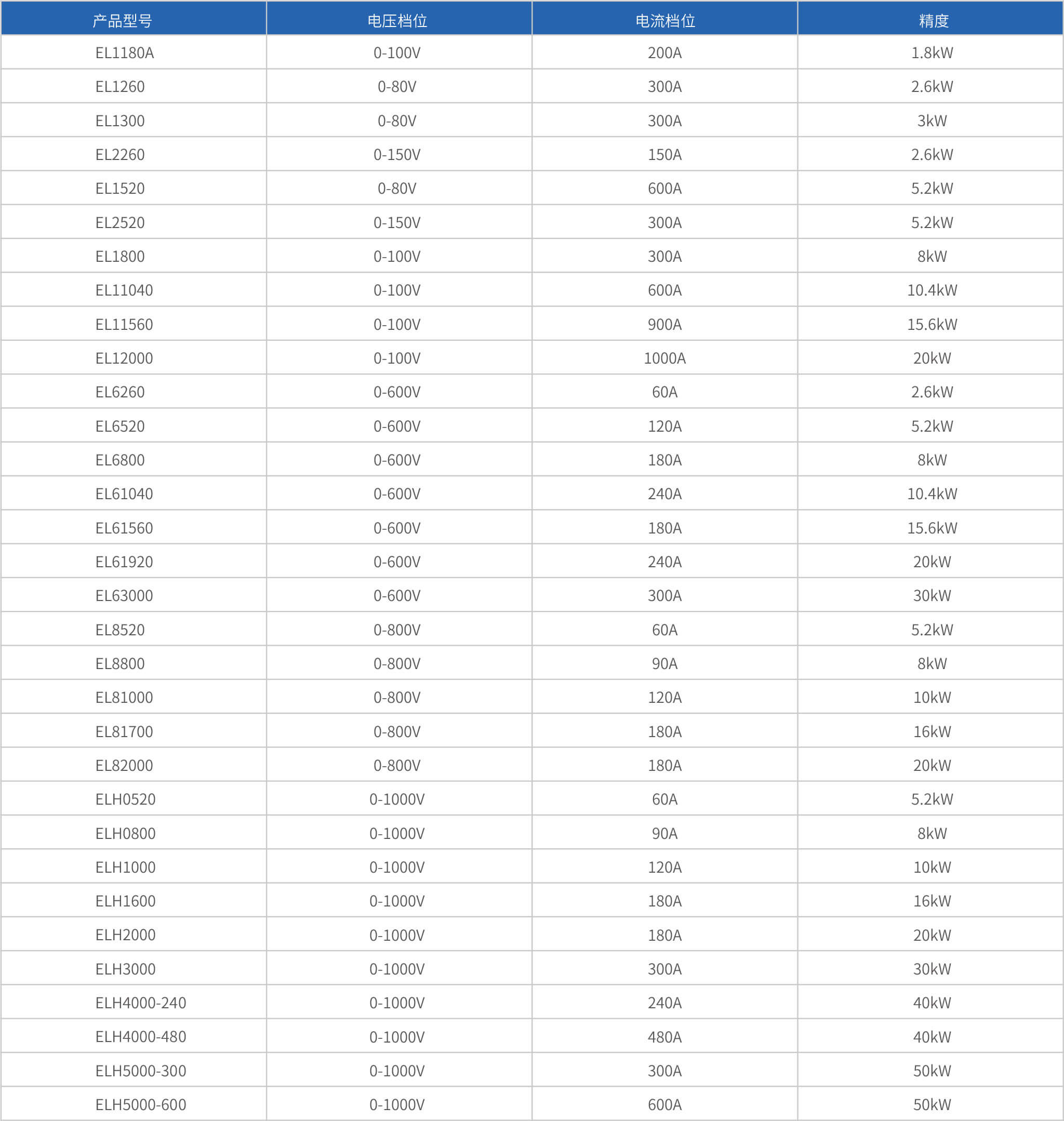

• Voltage: 0-1000V; maximum current: 1000A; power: 1.8kW-50kW

• Four static loading modes: constant voltage, constant current, constant resistance, and constant power

• High speed dynamic load, with a maximum frequency of 20kHz

• Low voltage full load characteristic: 0.7V can reach rated load current (EL1260)

• Compatible with multiple similar product communication commands, system integration is simpler

• Equipped with overvoltage, overcurrent, over power, over temperature, and reverse protection functions

• Equipped with RS232 communication interface, optional RS485/GPIB/LAN/CAN communication interface

• Environmental temperature: 0-40 ℃ (40 ℃ -50 ℃ for derating use)

• Load waveform simulation function

• Battery discharge simulation and measurement of discharge time function

• Quick OCP testing function

• Programmable switching of multiple sets of loads

• High precision voltage, current, and power measurement

• ARM control technology, fast communication speed

• Intelligent fan control

Product Application

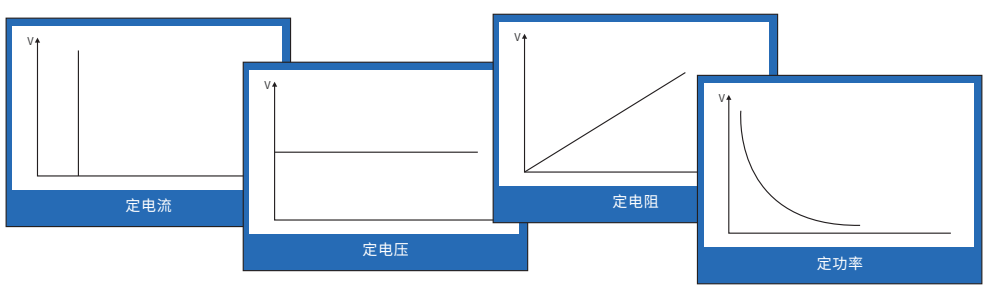

• Four static loading modes are provided: constant current mode (CC) and constant resistance mode (CR) are suitable for traditional switch mode power supply load simulation, constant voltage mode (CV) is suitable for battery charger and constant current output power supply load simulation, and constant power mode (CP) can be used for power battery pack and energy storage device load simulation.
