Features

• Covering global DC pile standards: national standards, CHAOJi， European standard, American standard, Japanese standard, NACS optional

• Supports up to 20 BMS channels, with channel interfaces supporting up to 1000A

• The highest voltage support is 1500V, covering the latest national standards

• Real time dynamic power allocation and dynamic load aging, simulating real multi vehicle charging scenarios

• The system supports charging piles, integrated piles, pile charging power cabinets, and independent gun cabinets for independent aging testing

• The system supports DC bus pile testing and V2G mode aging

• The independent BMS channel has independent testing function, and the system can be distributed to configure multi station shared power pools

• The maximum communication feedback efficiency is 94%, maximizing energy consumption savings

• Support independent workstation and independent channel aging data detection, which can directly locate and determine faults

• Support multiple models and interfaces for input of power distribution modules and power distribution engineering construction

• Support scanning and binding of gun port codes, location codes, and product barcodes, with one-to-one data correspondence and traceability

• Support open MES system functional interfaces and support customized development

• Real time aging data monitoring and graphical display

• Support customized report editing function, one click output of reports

• Support communication extensions such as Bluetooth, WIFI, RS485, LAN, etc. for automated testing of products

• Graphic user interface programming and operation control interface

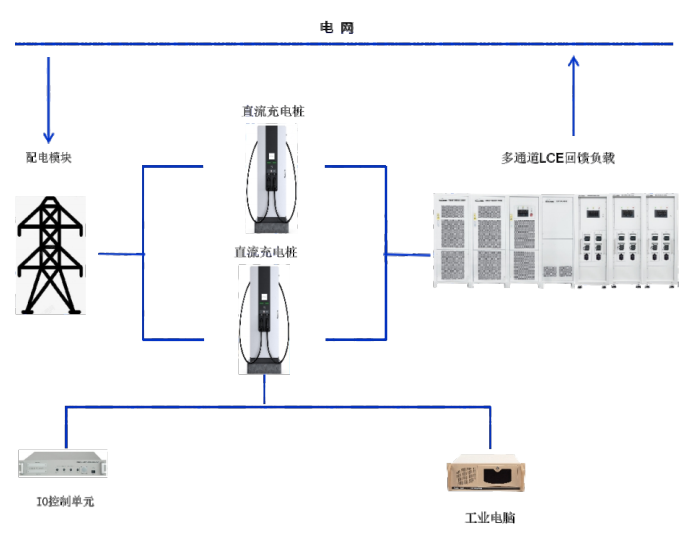

System Architecture

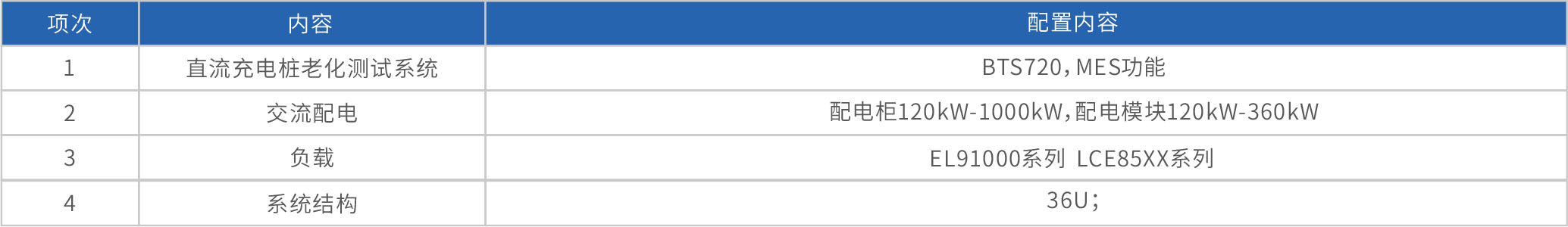

Selection Information

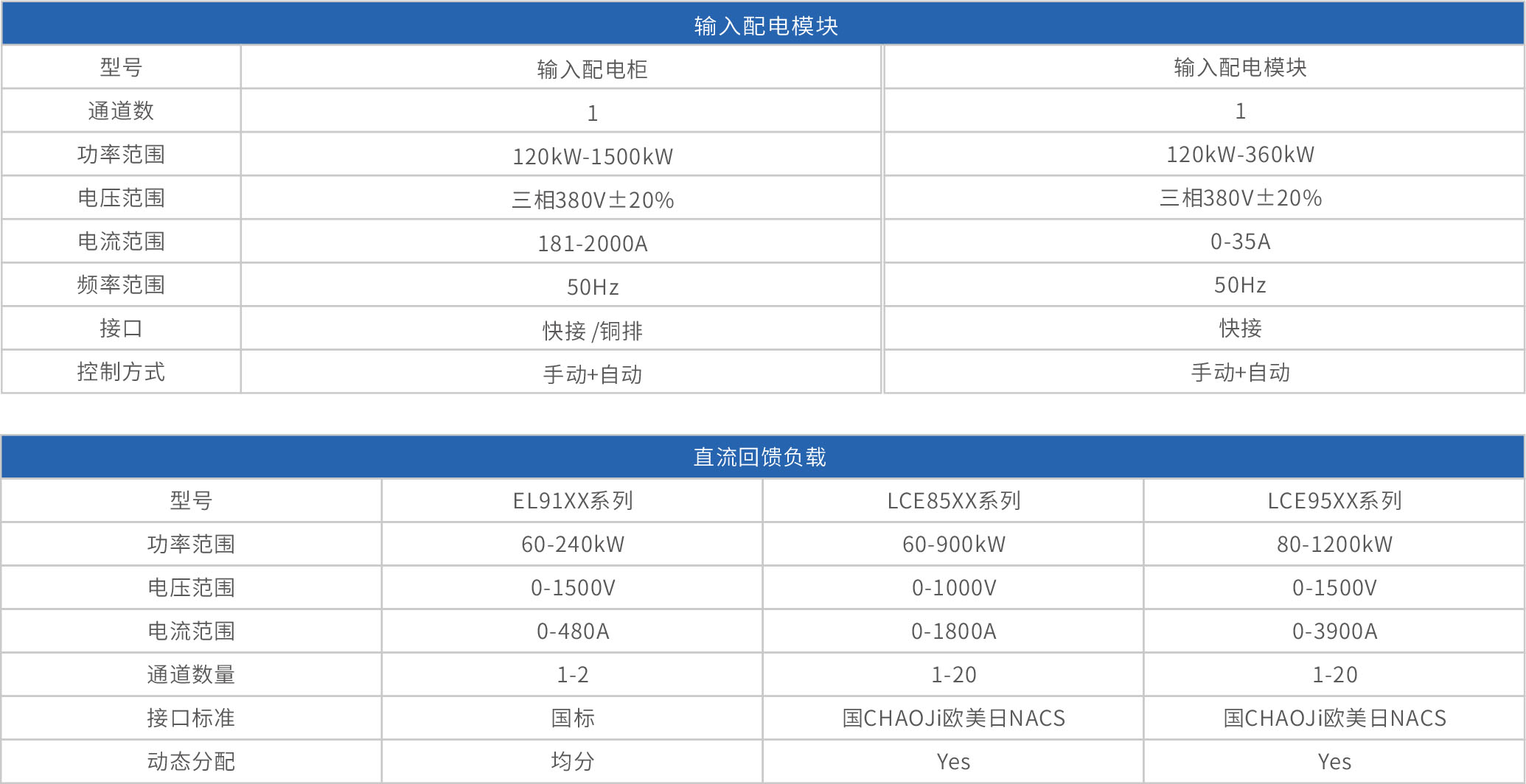

Specifications
