Features

• Mobile trolley platform structure design, designed for offline room temperature aging applications

• Support multi standard compatibility for communication stations: national standard, European standard, American standard, NACS optional

• Support AC pile 7kw - three-phase 22kW, national and European standard single three-phase, American standard two equal multi power selection

• Communication pile with 8 workstations connected in series standardized platform trolley structure, supporting series expansion

• Support MS level bypass jump, faults do not affect the aging of other products

• The maximum communication feedback efficiency is 92%, maximizing energy consumption savings

• Support default jump function, automatically adapt to tail aging

• Support independent workstation aging data detection, which can directly locate and determine faults

• Support multi structure selection such as room temperature bench, room temperature trolley, constant temperature cabinet, constant temperature storage body, etc

• Support scanning and binding of shelf codes, location codes, and product barcodes, with one-to-one data correspondence and traceability

• Support open MES system functional interfaces and support customized development

• Real time aging data monitoring and graphical display

• Support customized report editing function, one click output of reports

• Support communication extensions such as Bluetooth, WIFI, RS485, LAN, etc. for automated testing of products

• Graphic user interface programming and operation control interface

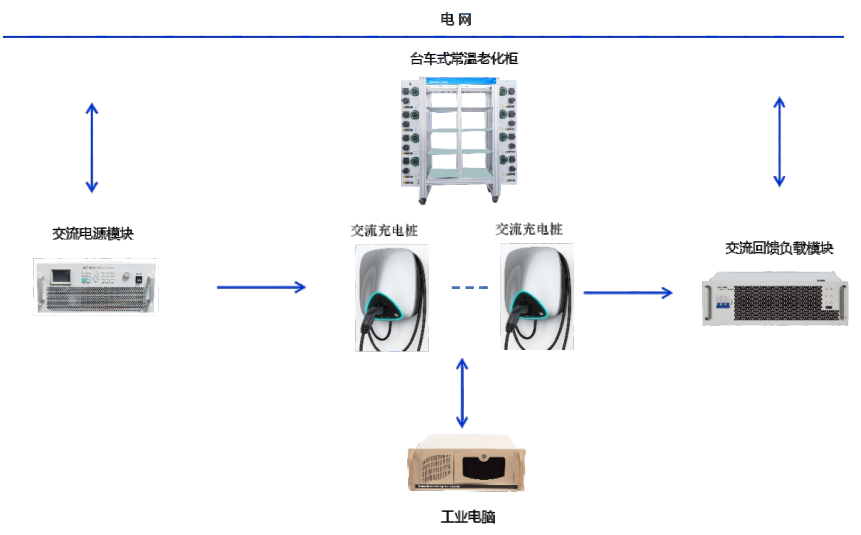

System Architecture

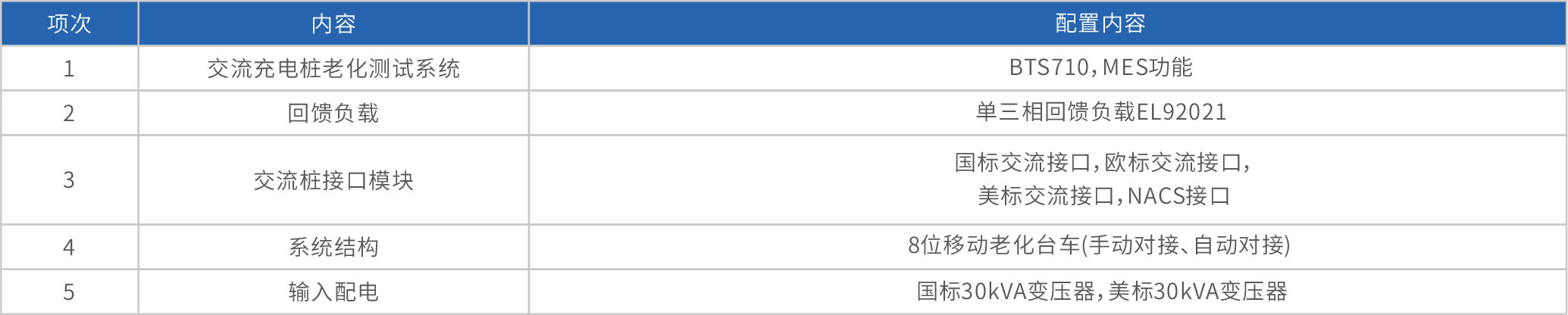

Selection Information

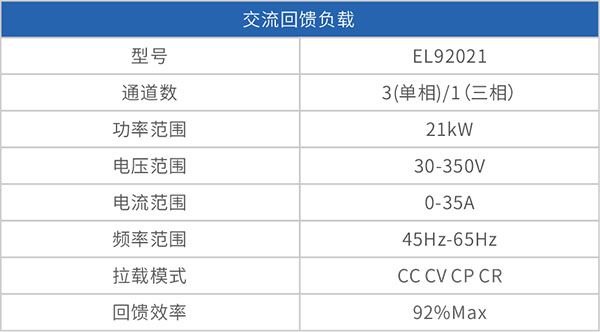

Specifications
