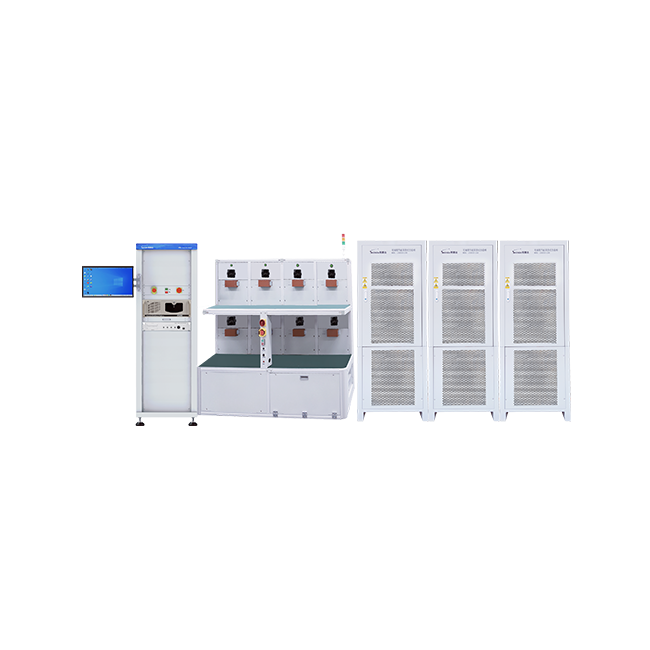

Bidirectional small DC charging pile aging test system BTS720

The bidirectional small DC charging pile aging testing system BTS720 is mainly used for DC charging pile aging testing, etc. It can be equipped with different standard interfaces and supports standard DC charging piles such as national standard, European standard, American standard, NACS, etc. Users can choose input distribution modules, upper computer, MES functional modules, etc. according to their actual needs, which can meet customized production testing.

Covering global DC pile standards: national standard, European standard, American standard, Japanese standard, NACS optional;
Maximum support for 20 small DC piles;

Product Catalog

User Manual

Product Video

Product Details

Features

• Covering global DC pile standards: national standard, European standard, American standard, Japanese standard, NACS optional;

• Supports up to 20 small DC piles;

• The highest voltage support is 1000V, covering the latest national standard support;

• The independent BMS channel has independent testing function, and the system can be distributed to configure multi station shared power pools;

• The maximum communication feedback efficiency is 94%, maximizing energy consumption savings;

• Support independent workstation and independent channel aging data detection, which can directly locate and determine faults;

• Support multiple models and interfaces for input of power distribution modules and power distribution engineering construction;

• Support scanning and binding of gun port codes, location codes, and product barcodes, with one-to-one data matching and traceability;

• Support open MES system functional interfaces and support customized development;

• Real time aging data monitoring and graphical display;

• Support customized report editing function, one click output of reports;

• Support communication extensions such as Bluetooth, WIFI, RS485, LAN, etc. for automated testing of products;

• Graphic user interface programming and operation control interface;

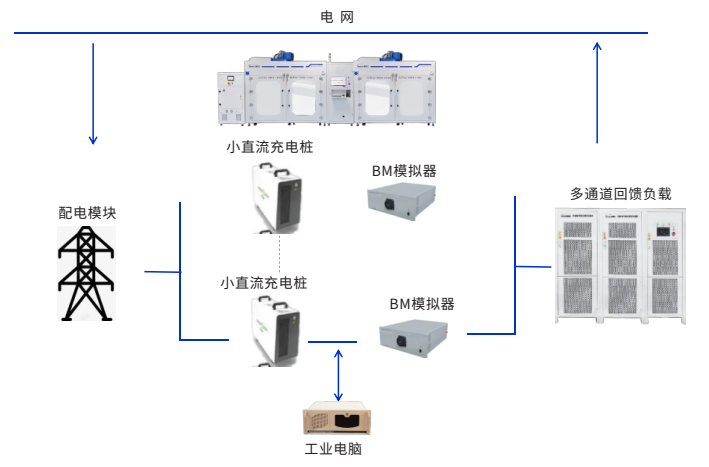

System Architecture

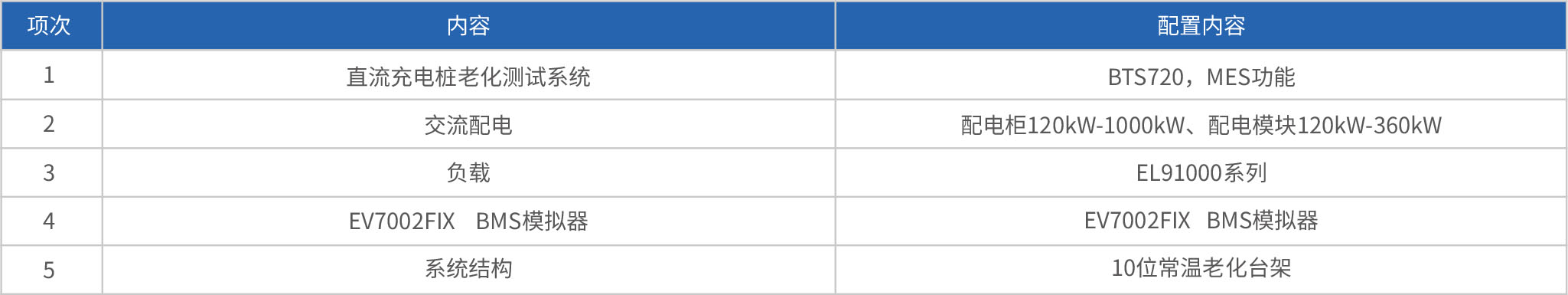

Selection Information

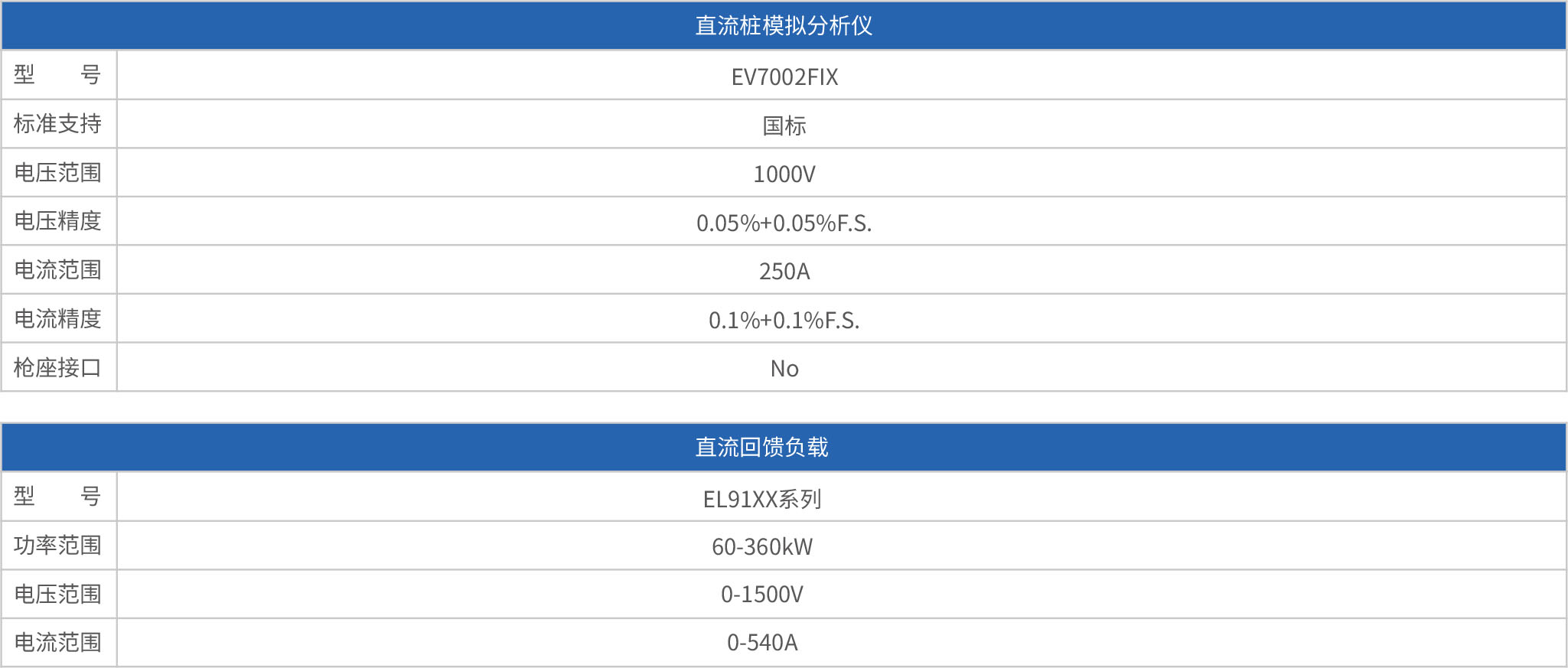

Specifications

Download Materials

Product Name	Type	Size	Update time	Download
Bidirectional small DC charging pile aging test system BTS720	pdf	1.12 MB	2025.09.25
