Features

• Built in standardized on-board charger and DCDCTest Project, professional testing system

• Supports GB/T40432 and GB/T24347 related standards, with simple and fast application.

• Standardized interface panel, supporting free conversion of multiple product type interfaces.

• Support one-way and two-way OBC function testing

• Support product communication protocol DBC format, easy programming

• Support the development of custom extension functions for product communication protocols and open source programming.

• Built in Test Project supports secondary development based on actual production applications, with no restrictions on application terminals

• Support automatic line network interface function, matched with automatic line automation testing

• Support customized hardware selection and configuration to expand platform application functions

• Open architecture software platform that supports manual operation, program editing, and secondary project development

• Graphic user interface programming and operation control interface

• Support customized diversified report editing functions such as Word and Excel

• Support four levels of operation permission management: developer, administrator, engineer, and operator

• Support system operation and entry/exit system recording for homework personnel

• Open MES system functional interfaces and support customized development

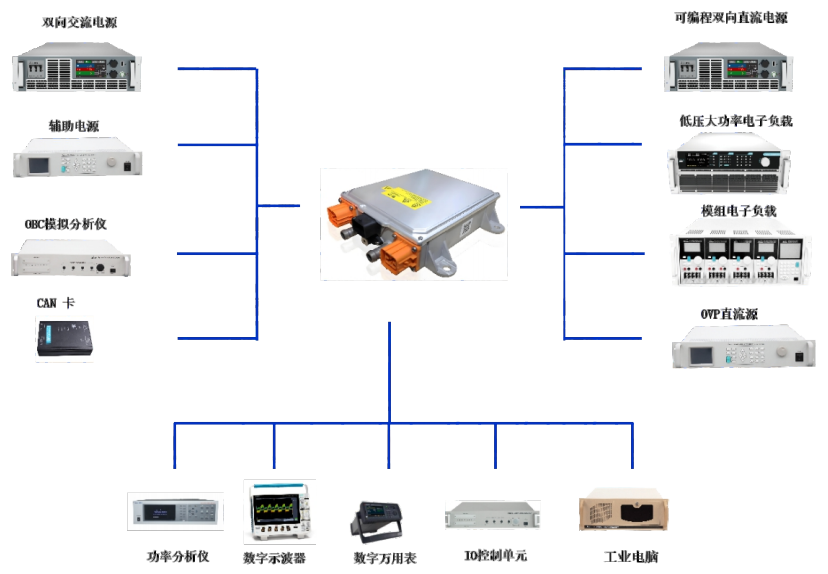

System Architecture

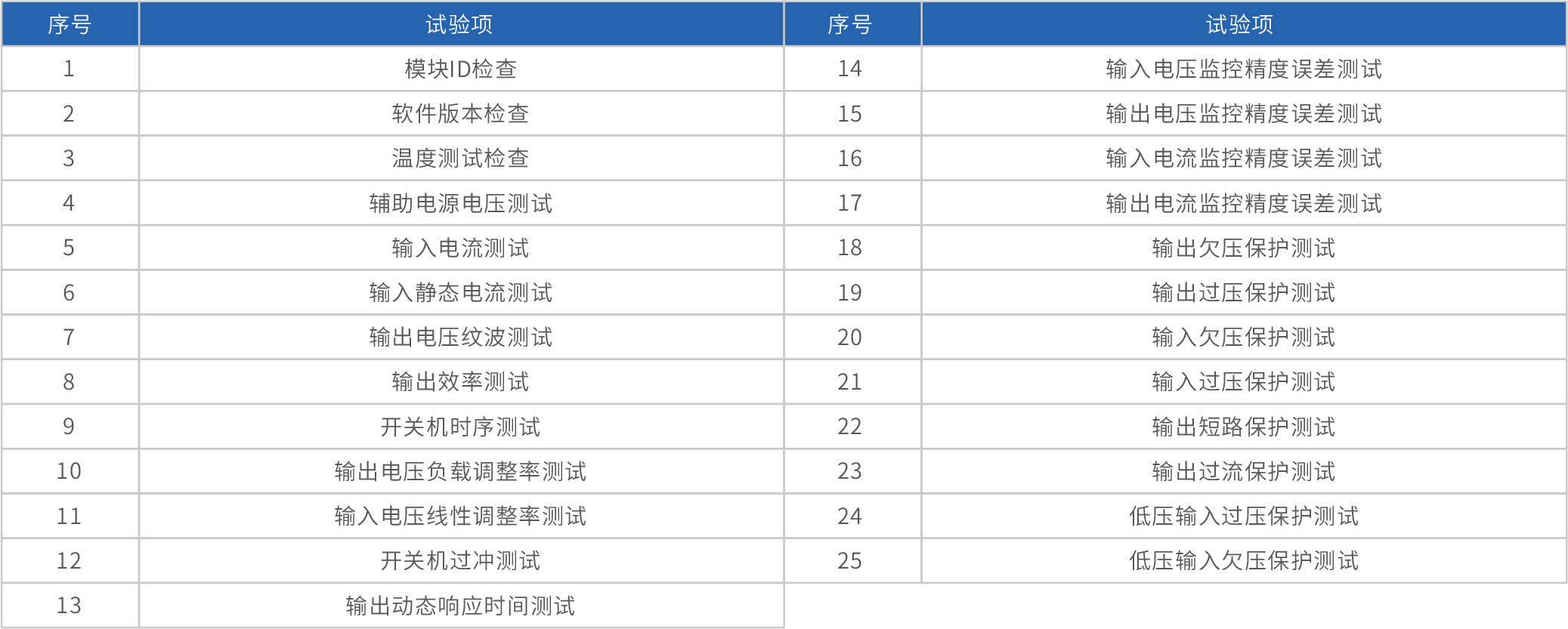

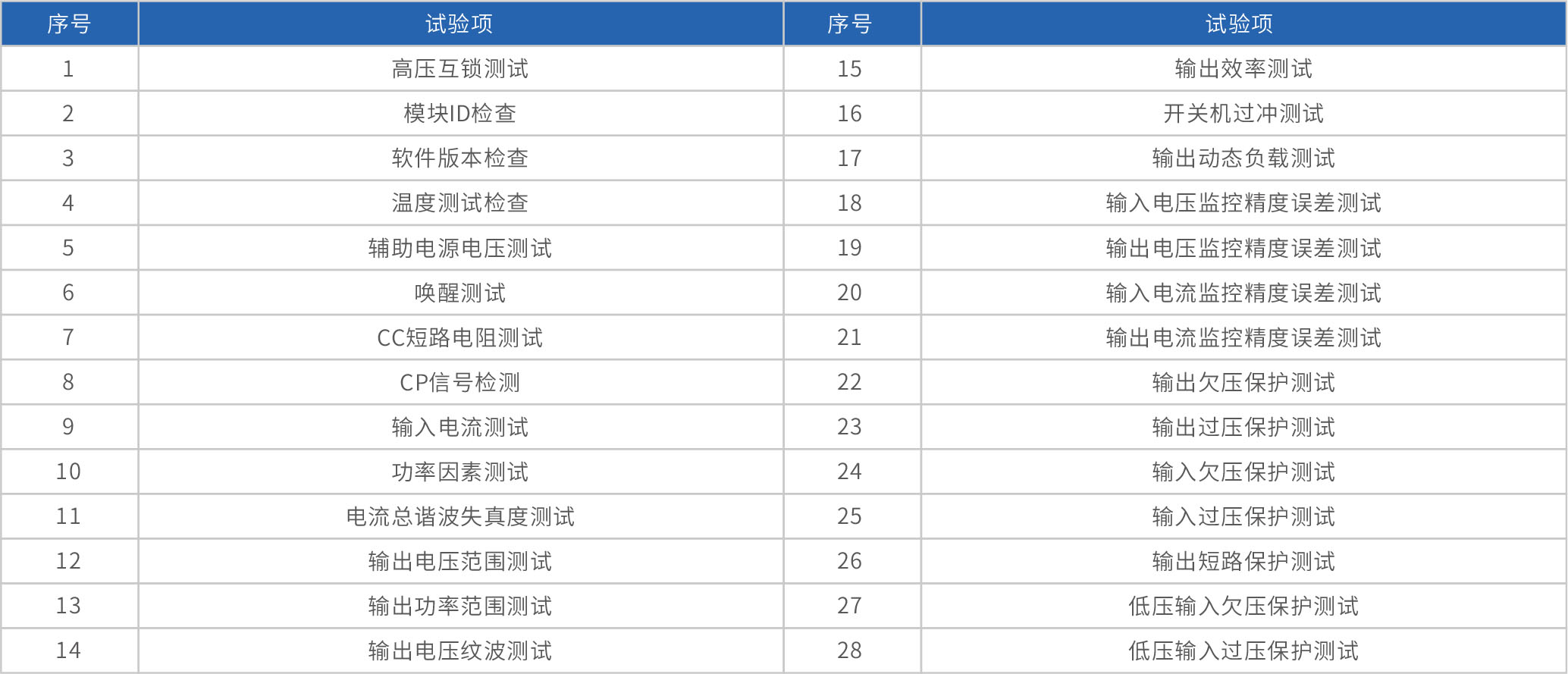

Test Project

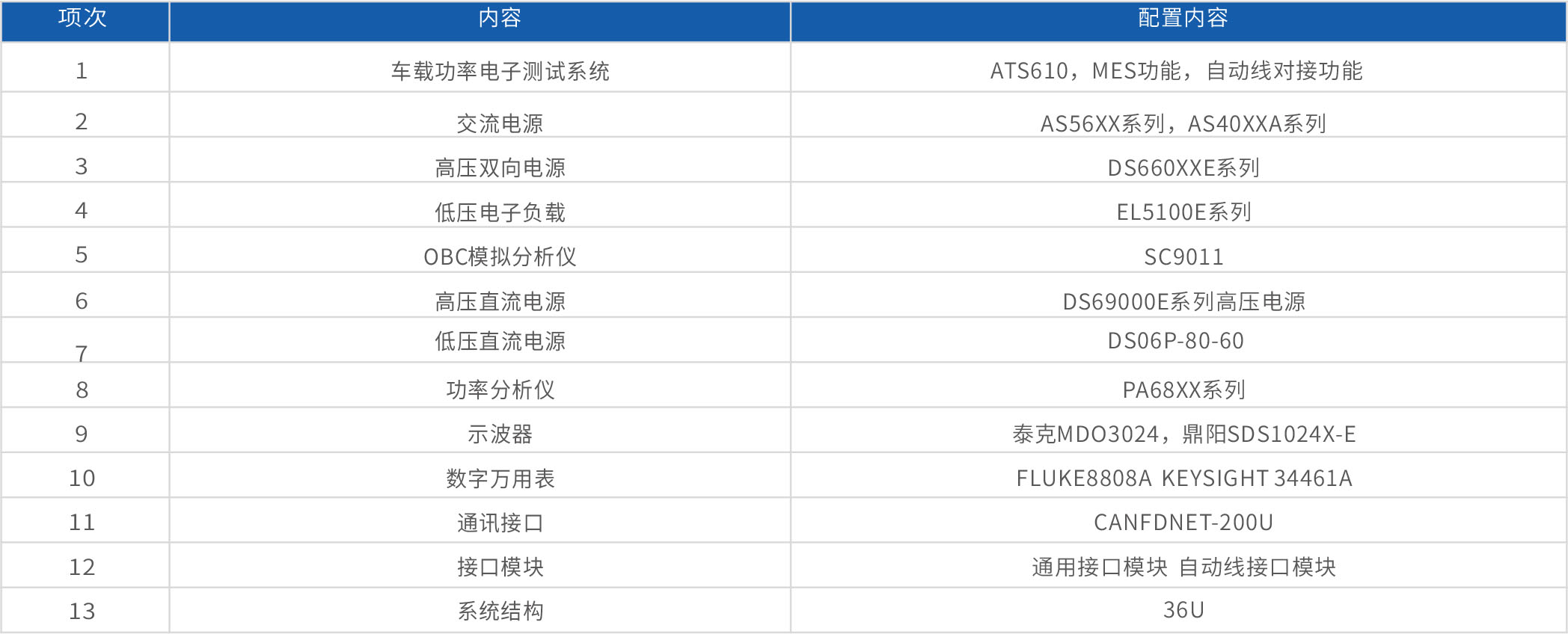

Purchase Information

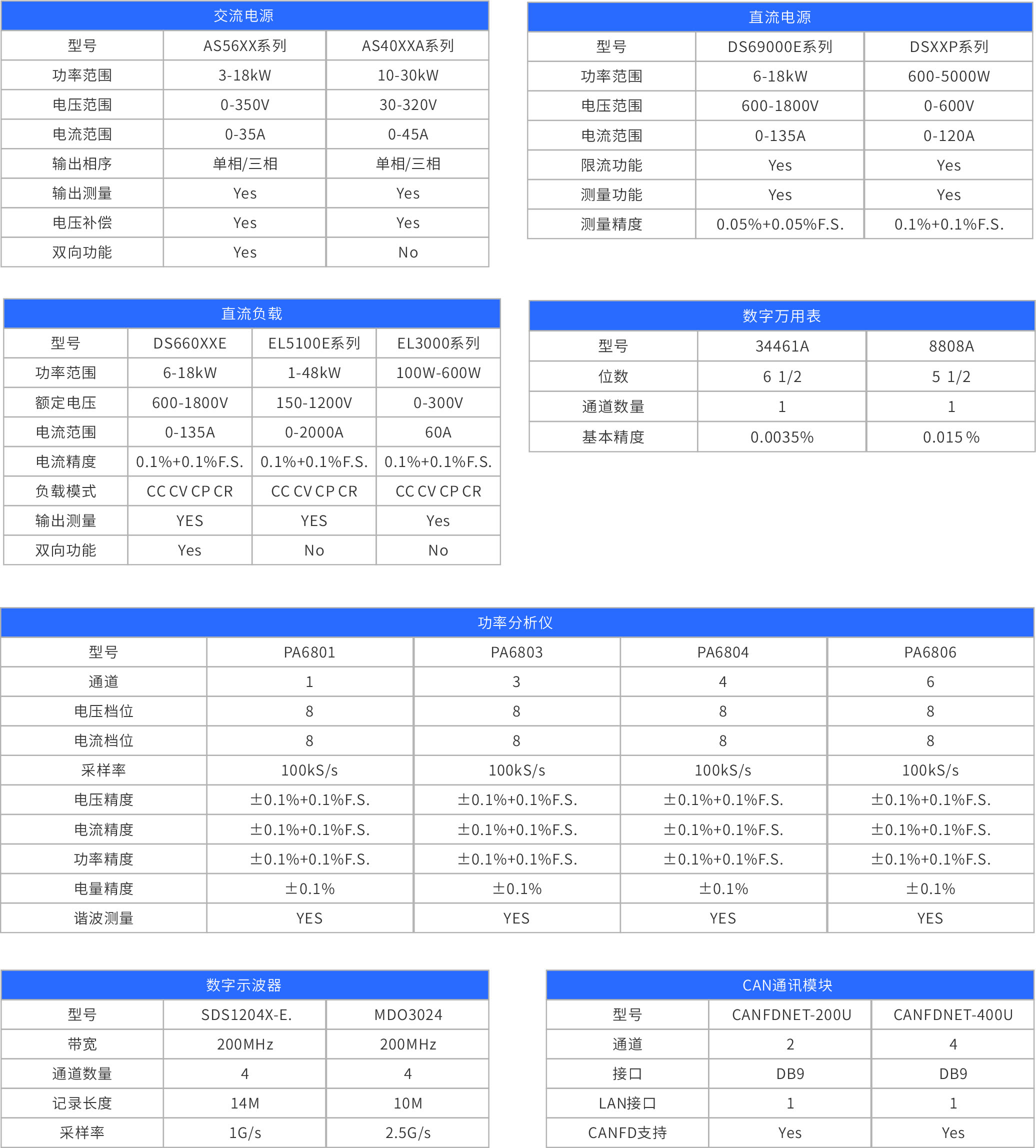

Specifications
