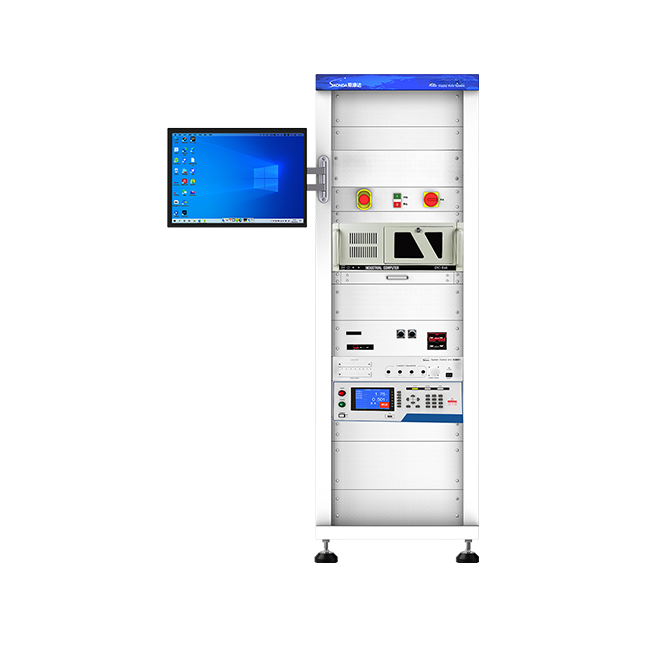

In-vehicle power electronics safety test system HTS610

The vehicle mounted power electronic safety testing system HTS610 is a safety testing system specifically designed for various power vehicle onboard power supplies, onboard chargers, MCUs, and other products. Establish and optimize standard testing items based on the national standards of GB/T 40432-2011 Conductive Car Chargers for Electric Vehicles and GB/T 24347-2021 DC/DC Converters for Electric Vehicles. Fast testing speed, stable system operation, and easy operation. Supports various products such as unidirectional OBC, bidirectional OBC, OBC+DCDC, DCDC, PUD, MCU, etc. Its modular functional design can meet the needs of production, research and development, and quality testing.

Product Catalog

User Manual

Product Video

Product Details

Features

• Multi channel withstand voltage, insulation, and grounding testing integrated, fast testing speed, and simple tooling interface

• Built in standard Test Project that meets standard requirements and can be used directly without the need for secondary development

• Built in testing program testing mode, fast testing speed, optimized production line testing time

• Support automatic line network interface function, matched with automatic line automation testing

• Support customized hardware selection and configuration to expand platform application functions

• Open architecture software platform that supports manual operation, program editing, and secondary project development

• Graphic user interface programming and operation control interface

• Support customized diversified report editing functions such as Word, Excel, etc

• Support four levels of operation permission management: developer, administrator, engineer, and operator

• Support system operation and entry/exit system recording for homework personnel

• Open MES system functional interfaces and support customized development

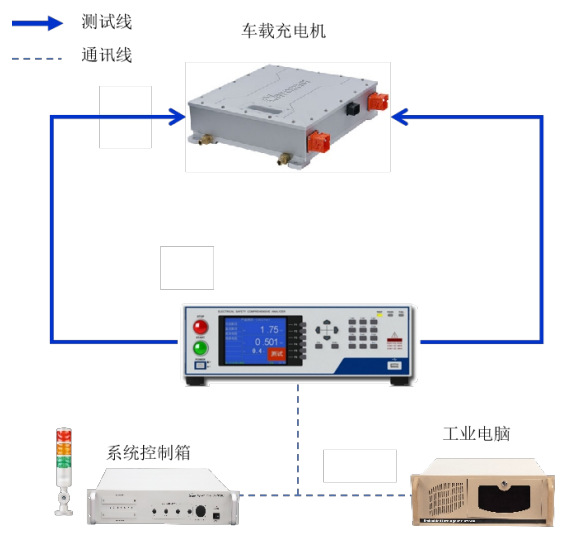

System Architecture

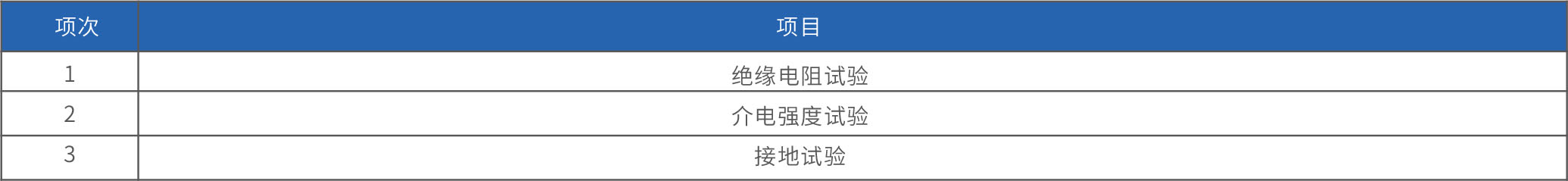

Test Project

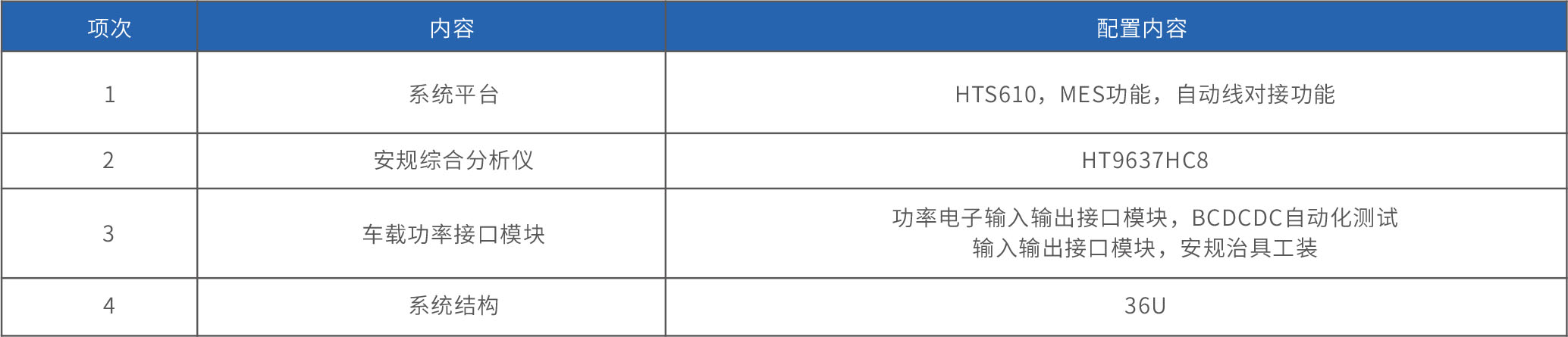

Selection Information

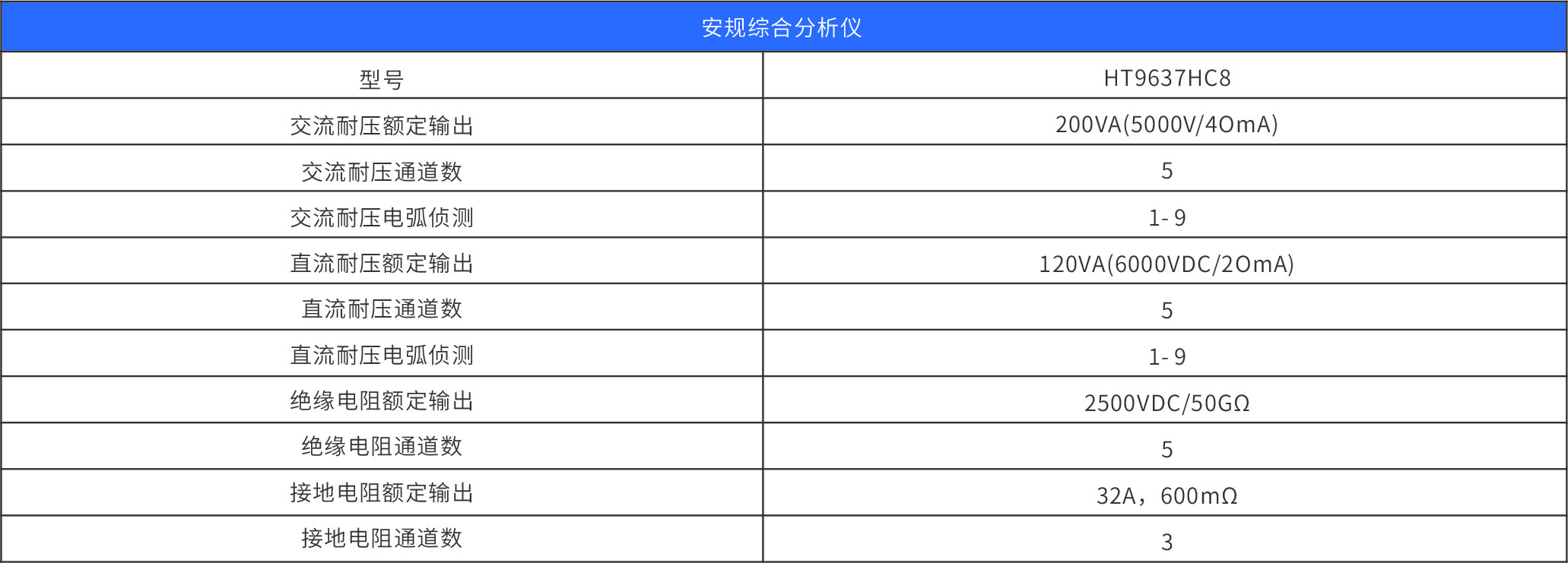

Specifications

Download Materials

Product Name	Type	Size	Update time	Download
In-vehicle power electronics safety test system HTS610	pdf	915.45 KB	2025.09.25
