Features

• Built in standardized wireless car charger Test Project, professional testing system

• Supports GBT 38775.1 and GBT 38775.2 related standards, with simple and fast application.

• Standardized interface panel, supporting free conversion of multiple product type interfaces.

• Multi axis platform precise control, simulating various application scenarios

• Support product communication protocol DBC format, easy programming

• Support the development of custom extension functions for product communication protocols and open source programming.

• Built in Test Project supports secondary development based on actual production applications, with no restrictions on application terminals

• Support automatic line network interface function, matched with automatic line automation testing

• Support customized hardware selection and configuration to expand platform application functions

• Open architecture software platform that supports manual operation, program editing, and secondary project development

• Graphic user interface programming and operation control interface

• Support customized diversified report editing functions such as Word, Excel, etc

• Support four levels of operation permission management: developer, administrator, engineer, and operator

• Support system operation and entry/exit system recording for homework personnel

• Open MES system functional interfaces and support customized development

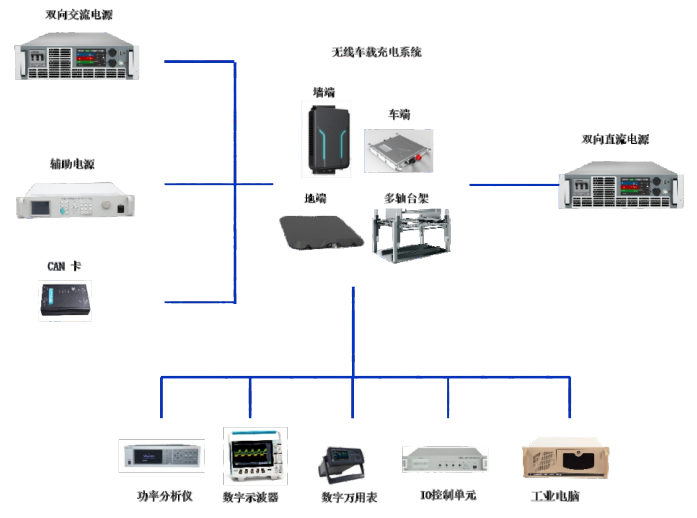

System Architecture

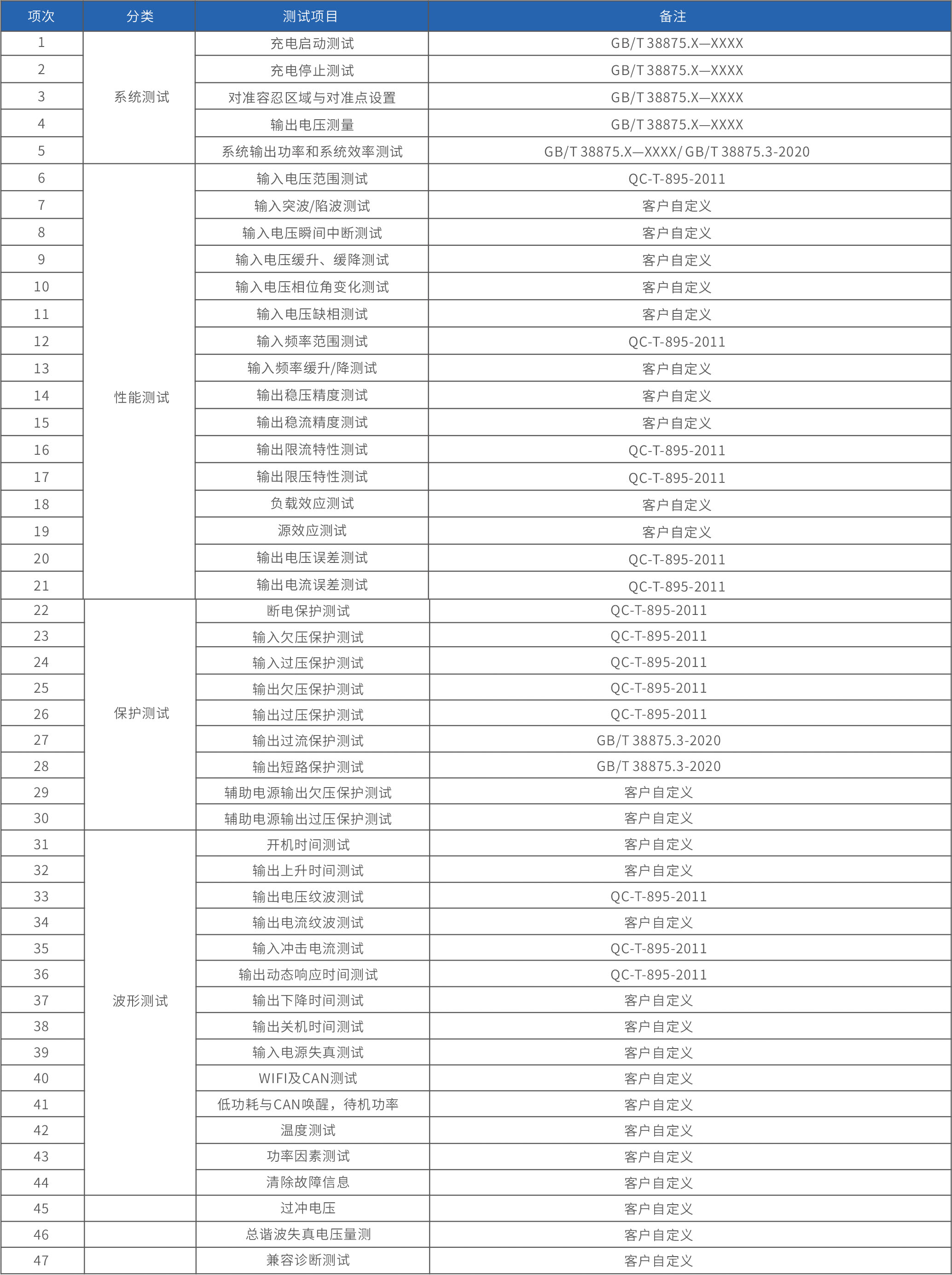

Test Project

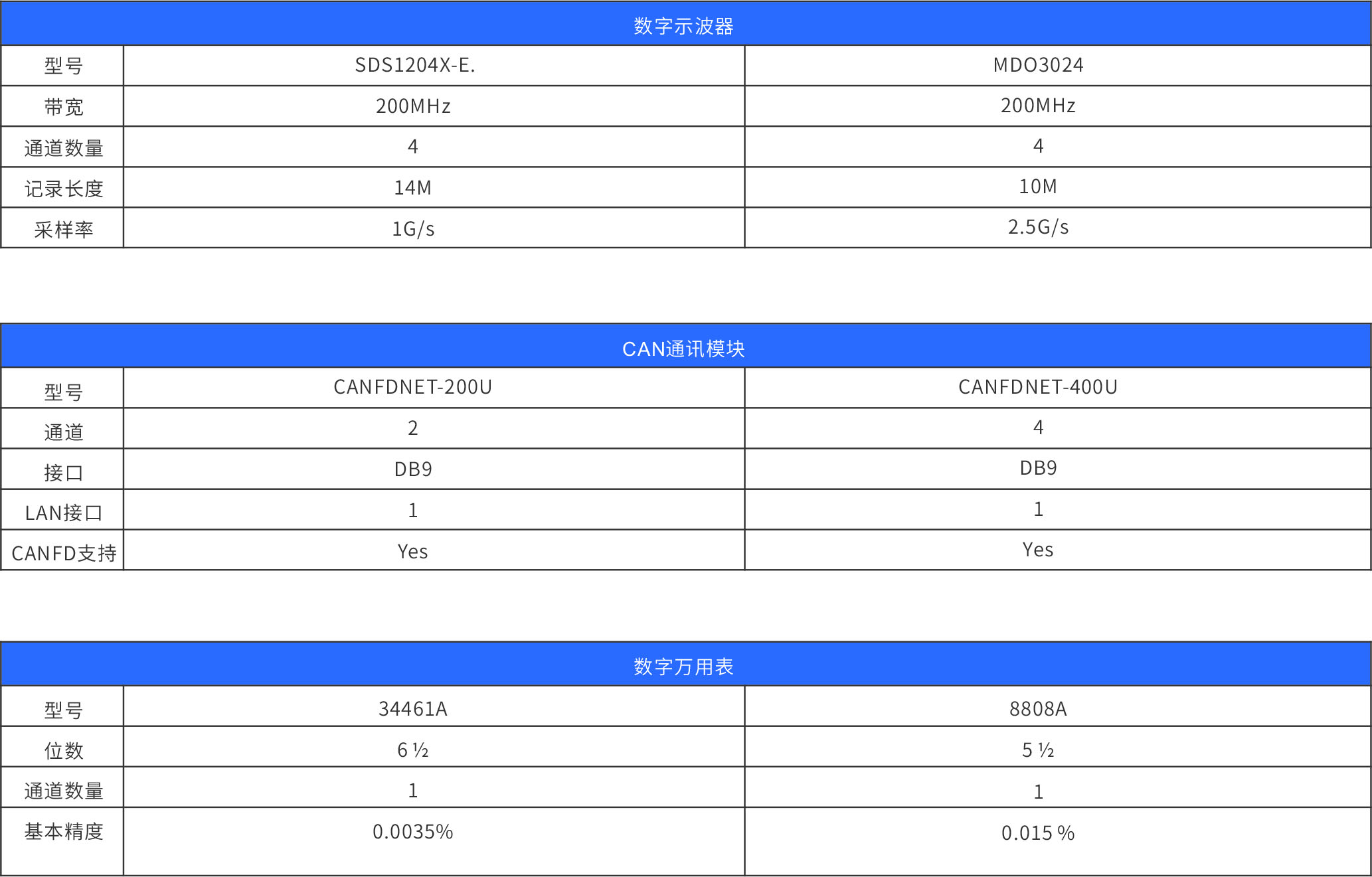

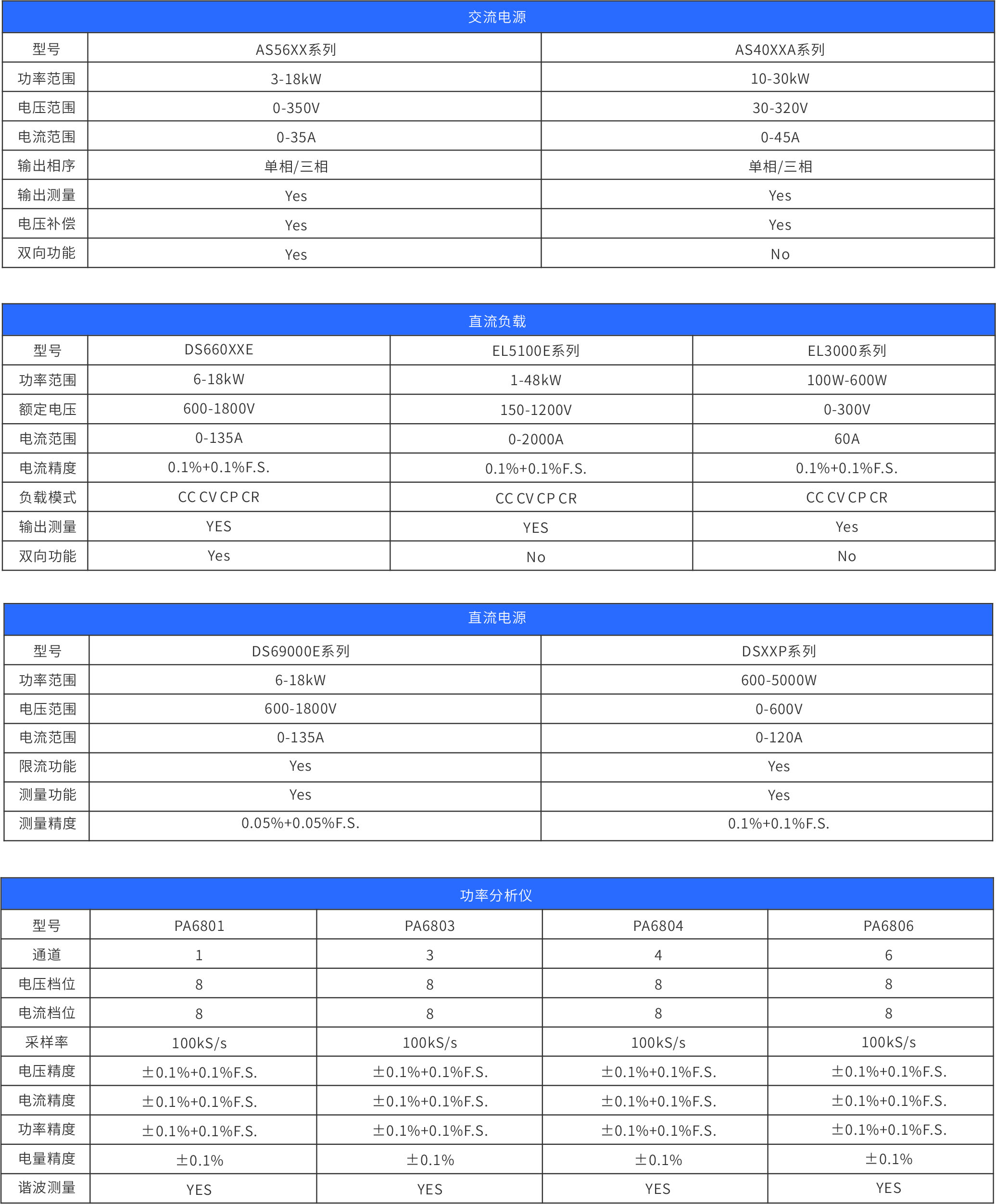

Equipment Selection

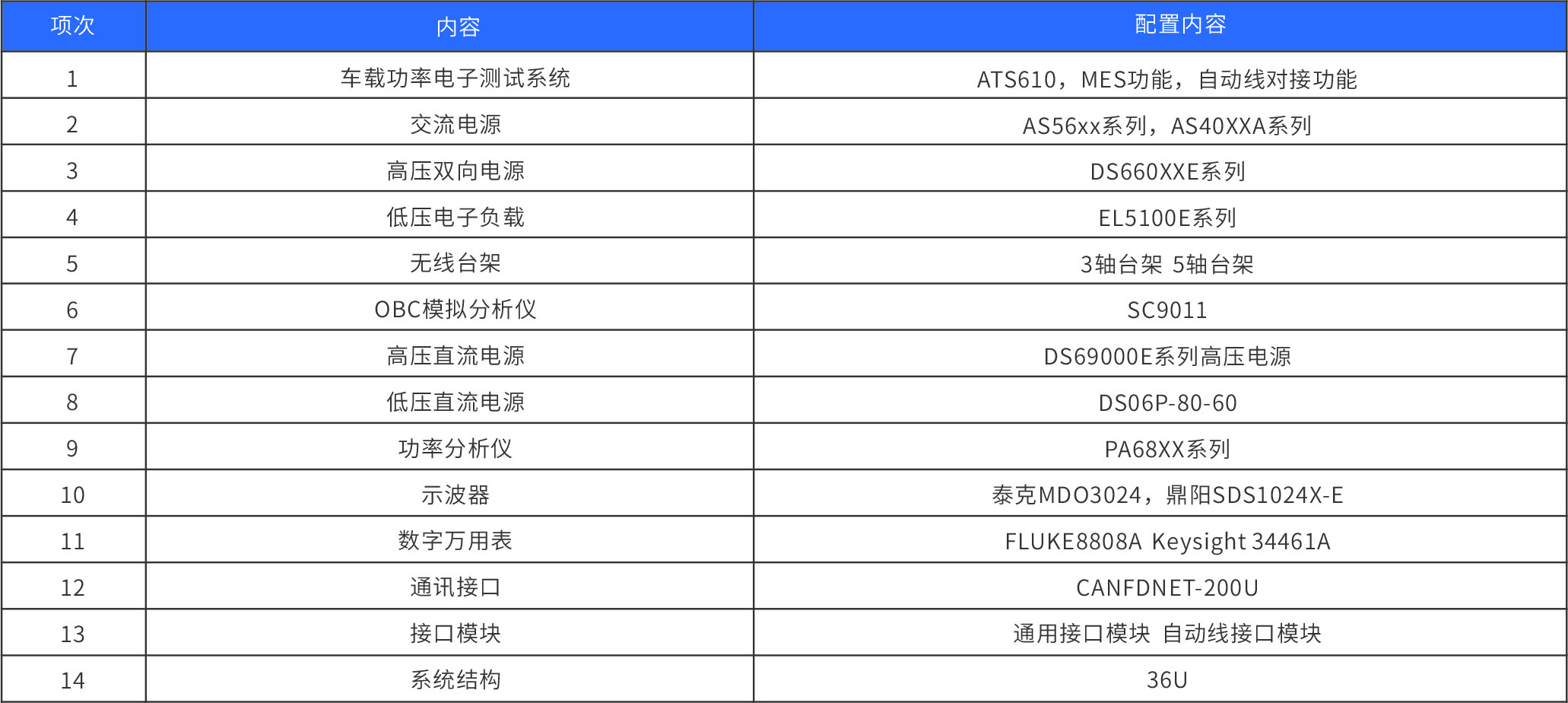

Specifications
