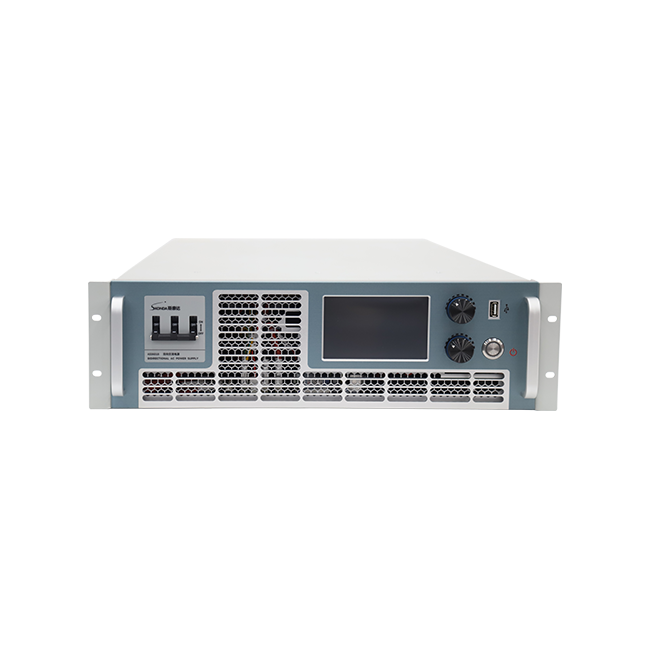

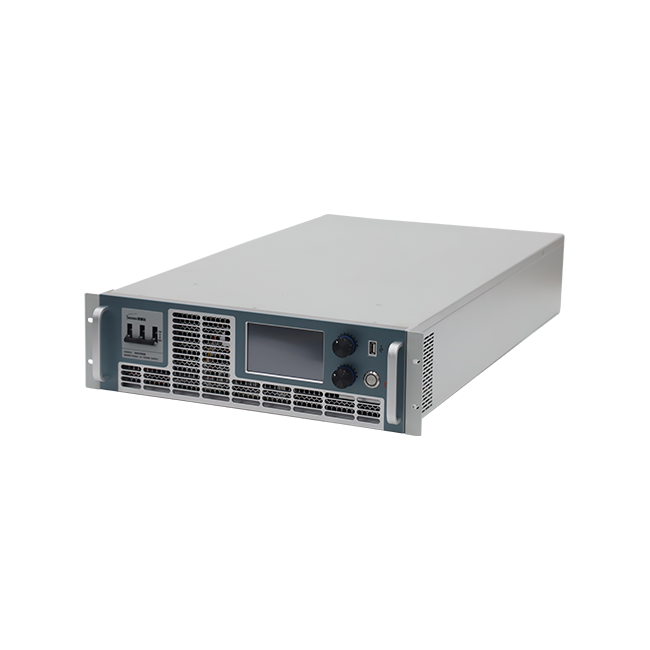

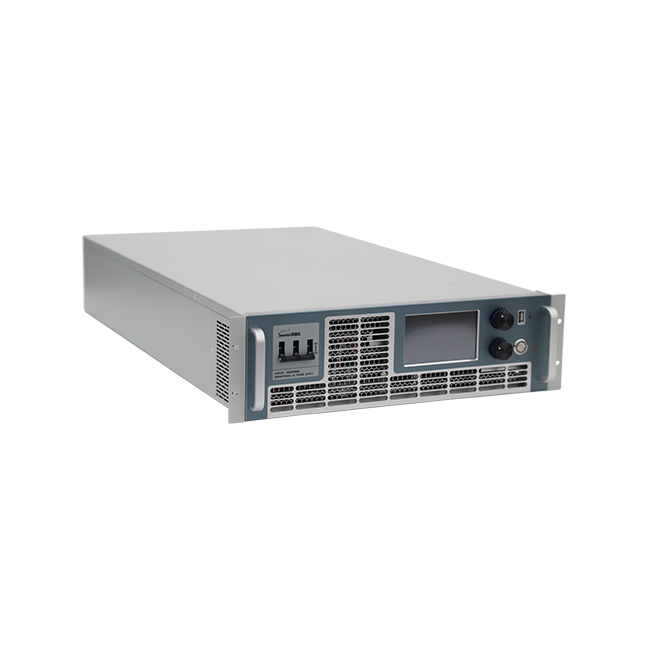

Bidirectional AC power supply-AS56000 series

The AS56000 series bidirectional AC power supply is a product with high power density, high precision, and high performance. It can be used as a stable power supply or as a feedback load to feed back electrical energy to the grid without pollution, achieving low energy consumption and high conversion efficiency, and saving electricity costs.

The AS56000 series AC power supply offers multiple control options, supports digital RS232/LAN/GPIB/CAN communication interfaces, has built-in waveform encoding function, and flexible single/three-phase operation modes. It is a versatile, high-performance, and widely applicable AC power supply.

Wide voltage, wide current
Input adopts power factor correction design, power factor>0.95

Product Catalog

User Manual

Product Video

Product Details

Features

• Wide voltage and wide current

• Input adopts power factor correction design, power factor>0.95

• Optimize instruction format for fast communication speed

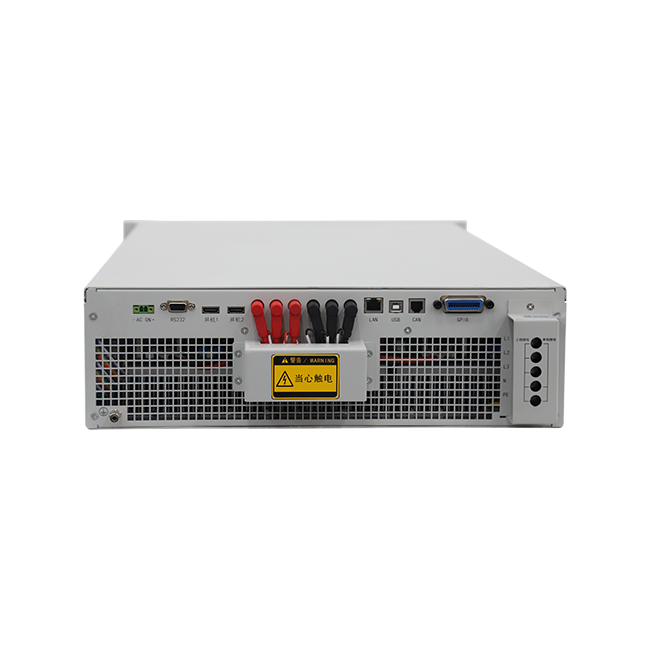

• Supports RS232/LAN/GPIB/CAN communication interfaces

• The combination of touch screen and knob operation, full-color LCD screen, makes operation more convenient

• Equipped with comprehensive protection functions such as overvoltage, current limiting, and overheating

• Equipped with advanced LIST function, LIST mode supports variable frequency, variable voltage, and variable waveform functions

• Up to 50 harmonic simulation functions

• Harmonic/interharmonic waveform synthesis

• Built in multiple special AC waveforms

• Can simulate any waveform output and support CSV file import of waveforms

Product Application

• This series can be used in various fields such as new energy vehicles, research and development laboratories, and is the preferred product for production testing and quality control.
