Programmable AC power supply-AS33000 series_Standard single machine_Photovoltaic energy storage_Applications

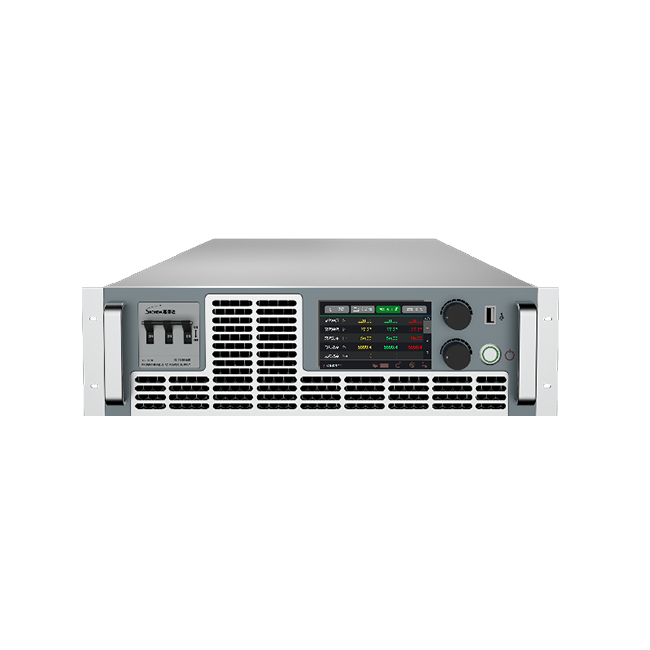

Programmable AC power supply-AS33000 series

The AS33000 series AC power supply is a product with high power density, high precision, and high performance, which can be used as a stable power supply. Multiple control modes can be selected, supporting digital RS232/LAN/GPIB/CAN communication interfaces, built-in waveform encoding function, flexible single/three-phase operation mode, making it a versatile, high-performance, and widely applicable AC power supply.

Wide voltage, wide current
Input adopts power correction design with power factor>0.95

Product Catalog

User Manual

Product Video

Product Details

Features

• Wide voltage and wide current

• Input adopts power correction design with power factor>0.95

• Supports RS232/LAN/GPIB/CAN communication interfaces

• The combination of touch screen and knob operation, full-color LCD screen, makes operation more convenient

• Equipped with advanced List function, List mode supports frequency conversion, voltage conversion, and waveform conversion functions

• Can simulate any waveform output and support CSV file import of waveforms

• Equipped with comprehensive protection functions such as overvoltage, current limiting, and overheating

• Up to 50 harmonic simulation functions

• Harmonic/interharmonic waveform synthesis

• Built in multiple special AC waveforms

• Optimize instruction format for fast communication speed

Product Application

• This series can be used in various fields such as new energy vehicles, research and development laboratories, and is the preferred product for production testing and quality control.
