Home > Applications > Photovoltaic energy storage > Standard single machine >

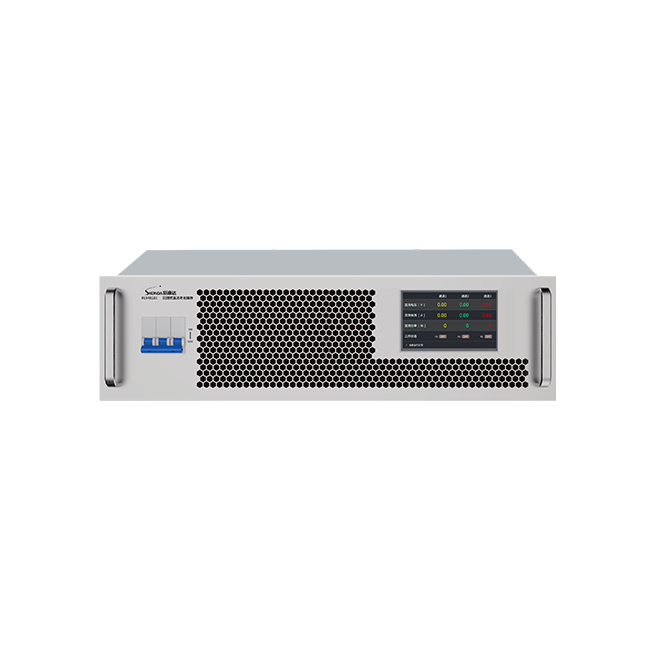

Bidirectional DC power supply-FL94000E series

The FL94000E series is a bidirectional DC power supply that can be used as a DC source and simulate multiple loads to feed back electrical energy to the grid, reducing the cost of power conversion and suitable for testing energy storage systems for new energy.

Wide voltage input/output range (0V-1800V)
Wide current input/output range (0A-510A)
High voltage accuracy (0.5%+0.5% F.S.)
High current accuracy (1%+0.5% F.S.)
Each channel is isolated from each other

Product Catalog

Product Details

Features

• Wide voltage input and output range (0V-1800V)

• Wide current input and output range (0A-510A)

• High voltage accuracy (0.5%+0.5% F.S.)

• High current accuracy (1%+0.5% F.S.)

• Each channel is isolated from each other

• Support CC/CV/CP working mode

• Supports RS485 and CAN communication methods

• Efficiency up to 92%

• Over/under voltage/over temperature/over voltage/over-current/short circuit protection, etc

• High voltage plug-in design, easy to replace

• Input PFC design, power factor>0.95

Product Application

• This series is suitable for testing energy storage systems for new energy.

Purchase Information

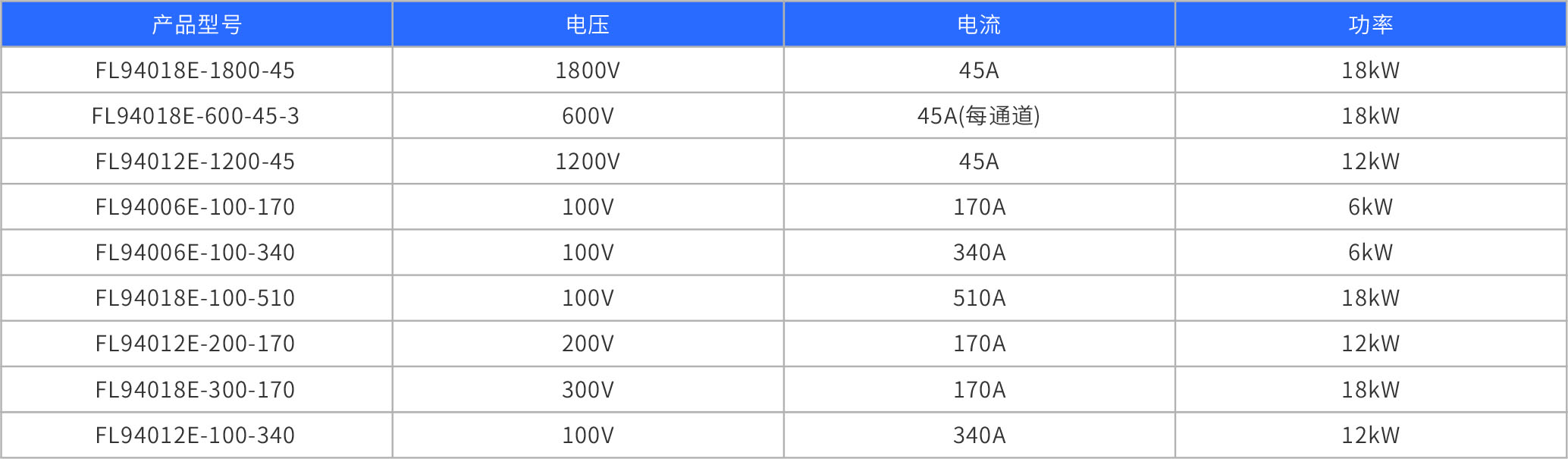

Technical Parameters

Download Materials

Product Name	Type	Size	Update time	Download
Bidirectional DC power supply-FL94000E series	pdf	1.02 MB	2025.09.25
