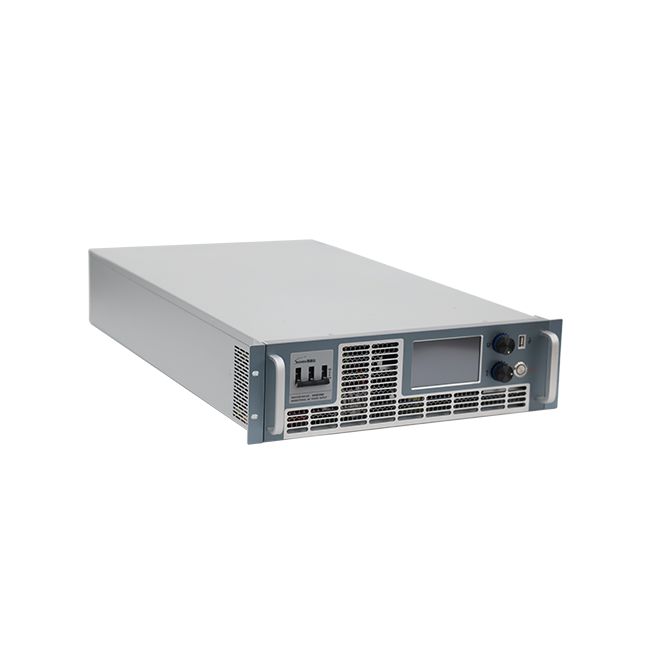

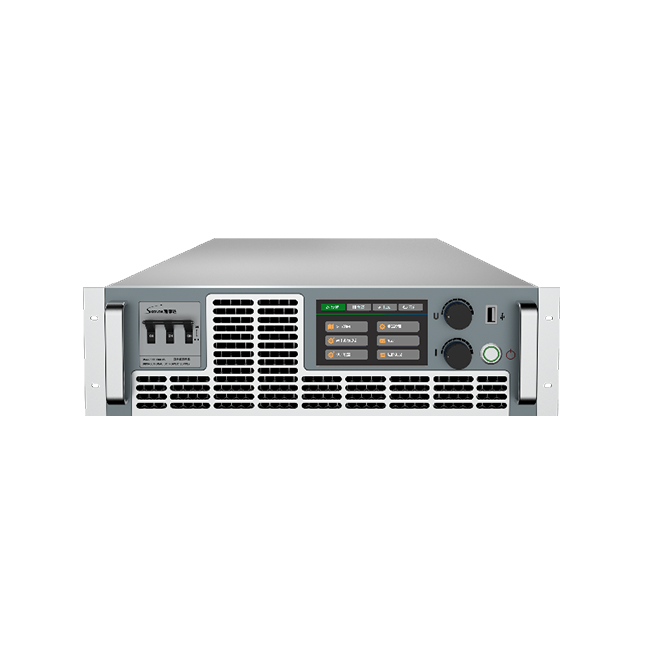

Bidirectional DC power supply-DS66000 series

The DS66000 series bidirectional DC power supply is a power supply that combines power supply and regenerative load characteristics, operates in two quadrants, and allows energy input of the tested object. This series can meet the testing needs of different products such as high voltage, low current, low voltage, and high current to the maximum extent. Multiple control modes can be selected, supporting digital RS232/LAN/GPIB/CAN communication interfaces. It is a versatile, high-performance, and widely applicable bidirectional DC power supply.

Wide voltage, wide current
Input adopts PFC power factor correction design, power factor>0.95

Product Catalog

User Manual

Product Video

Product Details

Features

• Wide voltage and wide current

• Input adopts PFC power factor correction design, power factor>0.95

• Optimize instruction format for fast communication speed

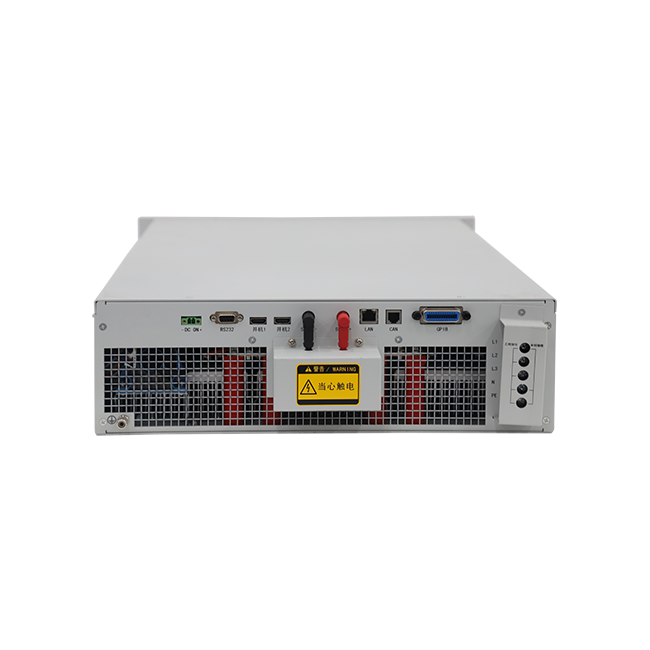

• Supports RS232/LAN/GPIB/CAN communication interfaces

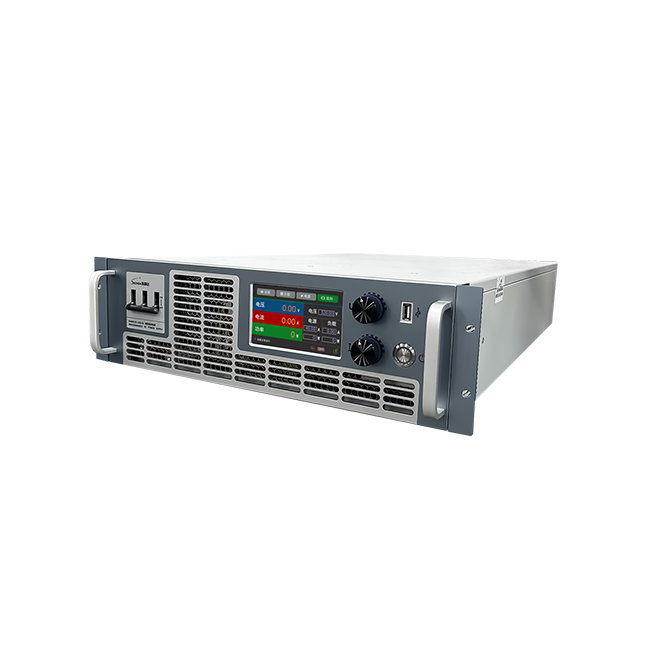

• The combination of touch screen and knob operation, full-color LCD screen, makes operation more convenient

• Equipped with comprehensive overvoltage, current limiting, and over temperature protection functions, etc

Product Application

• This series can be used in various fields such as new energy vehicles, research and development laboratories, and is the preferred product for production testing and quality control.
