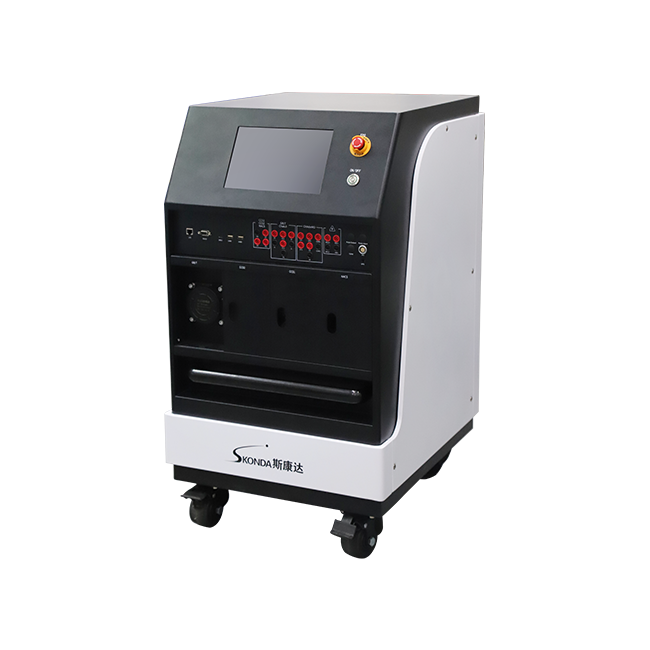

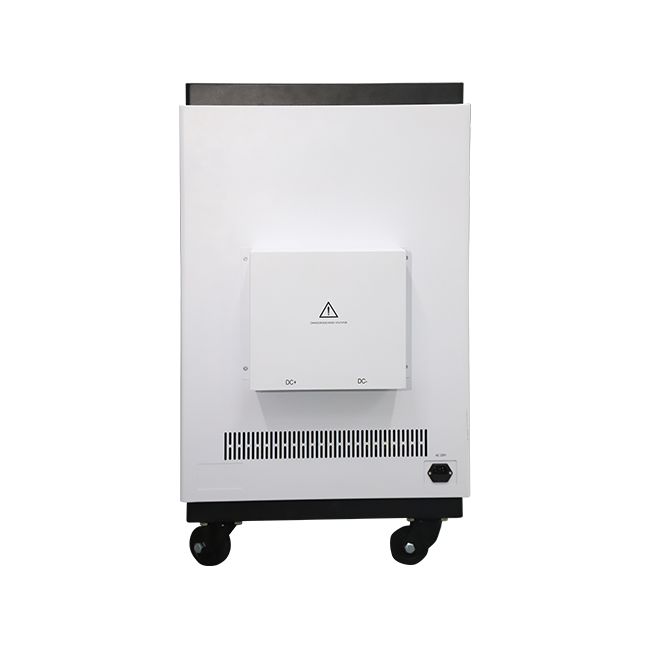

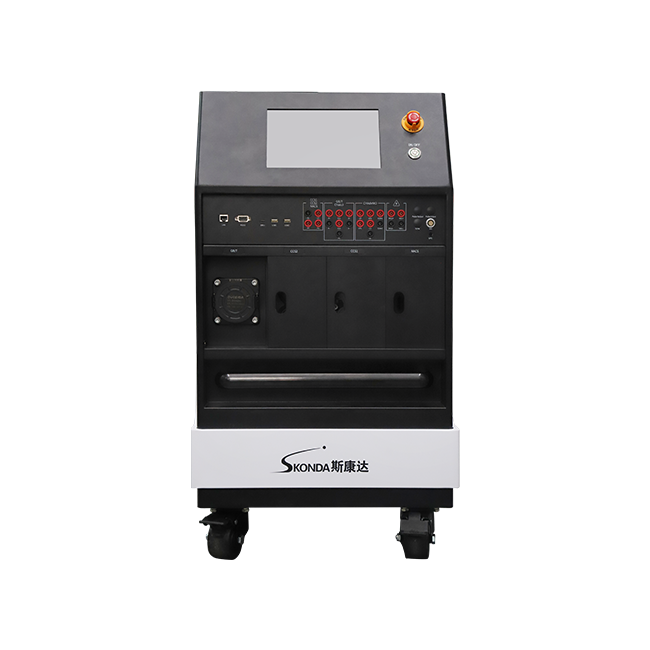

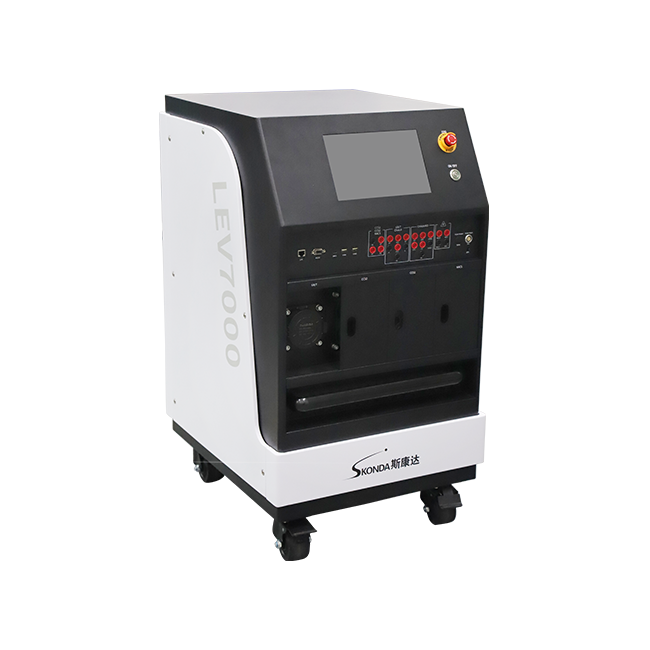

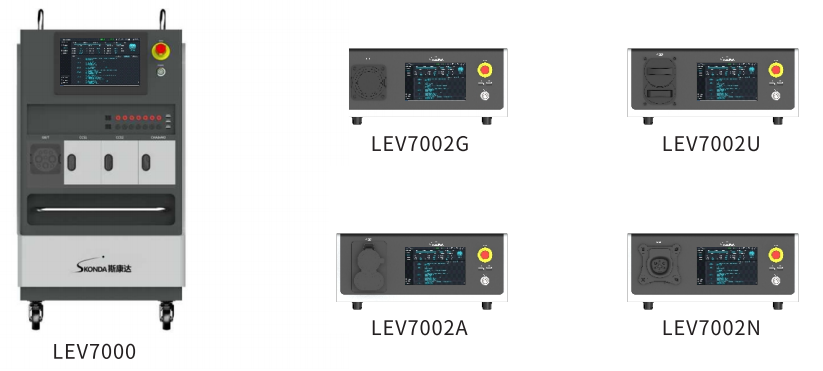

DC charging pile test analyzer - LEV7000 series & LEV7002 series

The LEV7000 series and LEV7002 series DC charging station test analyzers are equipped with vehicle BMS simulation functions that comply with national standards for DC charging interfaces, suitable for testing and calibration of the entire lifecycle of DC charging station equipment; Support interoperability specification testing, communication protocol consistency testing, and metrological verification testing as stipulated by national standards; Built in message parsing and waveform recording functions enable visualization of the charging interaction process, making various analog quantities and message information clear at a glance.

Support the selection of the new national standard GB/T 27930.2-2024 (2015+) protocol standard
Support GB/T 27930-2015/2023 protocol version

Product Catalog

User Manual

Product Video

Product Details

• The LEV7000 series and LEV7002 series meet the following standards:

The national standard communication protocol complies with the requirements of GB/T27930.2-2024 (2015+)

The national standard control guidance complies with the requirements of GB/T18487.5-2024

National standard metrological verification meets the requirements of JJG1149-2022

The communication protocols of European, American, and NACS comply with the requirements of ISO15118 and DIN70121

Features

• Support optional new national standard GB/T 27930.2-2024 (2015+) protocol standard

• Supports GB/T 27930-2015/2023 protocol version

• Support optional European and American standard CCS2/CCS1/NACS protocols

• Support optional protocol consistency testing and interoperability testing

• Support optional metrological verification function

• Support message parameter editing and message parsing

• Support optional waveform recording function, waveform curve can be selected

• Support charging record playback and export

• Built in system operation log, traceable parameter setting process

• Built in fault simulation circuit, capable of simulating interface abnormalities and insulation faults

• Equipped with a large-sized high-resolution capacitive touch screen as standard, the operation is smooth

• Standard upper computer software SEV7200, supporting remote control

• Cloud OTA (remote upgrade) function, local USB drive upgrade

Product Application

• This series of products is suitable for various occasions such as research and development, production quality inspection, after-sales operation and maintenance, third-party laboratory inspection, and metrological testing of charging piles.
