European standard portable DC charging pile simulation test analyzer PEV7002UE

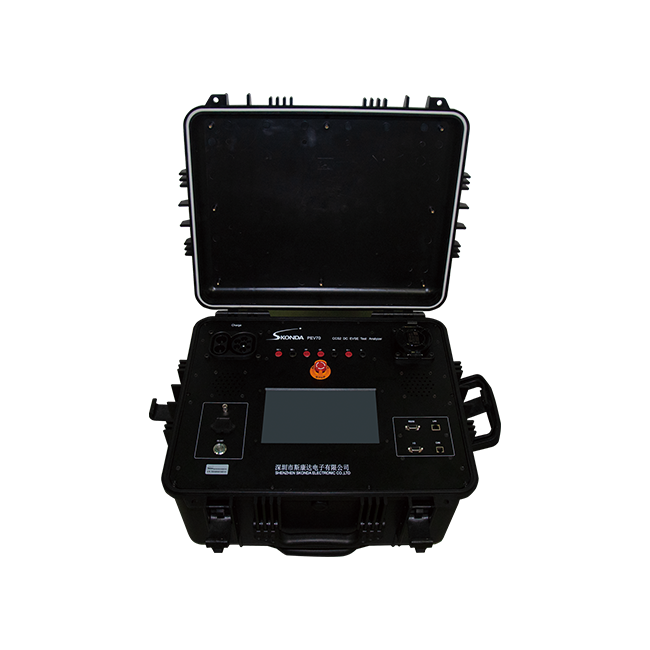

SKONDA portable European standard DC charging pile simulation test analyzer PEV7002UE, with European standard charging simulation function. The analyzer has the characteristics of high accuracy, small size, light weight, and easy portability, which can meet the measurement and performance testing needs of various occasions such as laboratories and on-site. The charging protocol meets the European standard communication protocol: the charging communication meets the requirements of ISO15118 and DIN70121 standards. The power transmission protocol meets the European standard for power transmission: power transmission meets the requirements of IEC61851 standard. Configure standard connection socket: The vehicle socket meets the requirements of IEC62196 standard.

Product Catalog

User Manual

Product Video

Product Details

Features

• European standard communication protocol: Charging communication meets the requirements of ISO15118 and DIN70121 standards.

• European standard power transmission: Power transmission meets the requirements of IEC61851 standard

• Standard connection socket: The vehicle socket meets the requirements of IEC62196 standard

• Charging parameter simulation: The interface directly sets BMS parameters, which is simple and easy to use

• Abnormal state simulation: CP disconnection, PE disconnection, insulation fault, insulation resistance setting, S2 disconnection test

• Real time display of charging status parameters, customer touch button control, integrated monitoring and control

• Equipped with RS232 and LAN remote control interfaces, it can facilitate remote control by the upper computer

• Equipped with a 10 inch high-definition LCD touch screen, convenient for users to touch and operate

Product Application

• Mainly used for performance testing of newly installed DC charging piles, maintenance charging piles, and upgraded and modified charging piles.

Product Selection Information

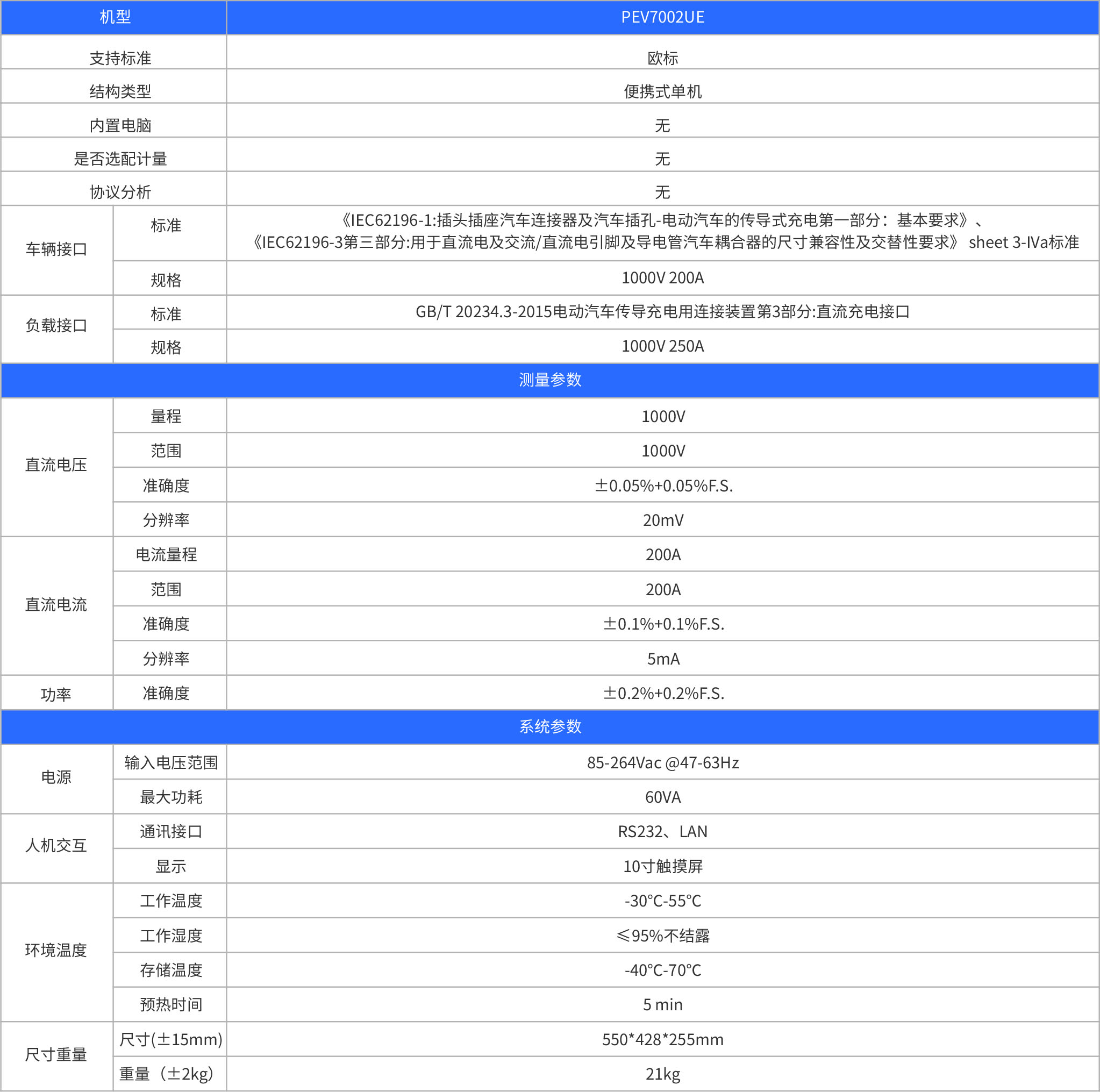

Technical Specifications

Download Materials

Product Name	Type	Size	Update time	Download
European standard portable DC charging pile simulation test analyzer PEV7002UE	pdf	610.18 KB	2025.09.24
