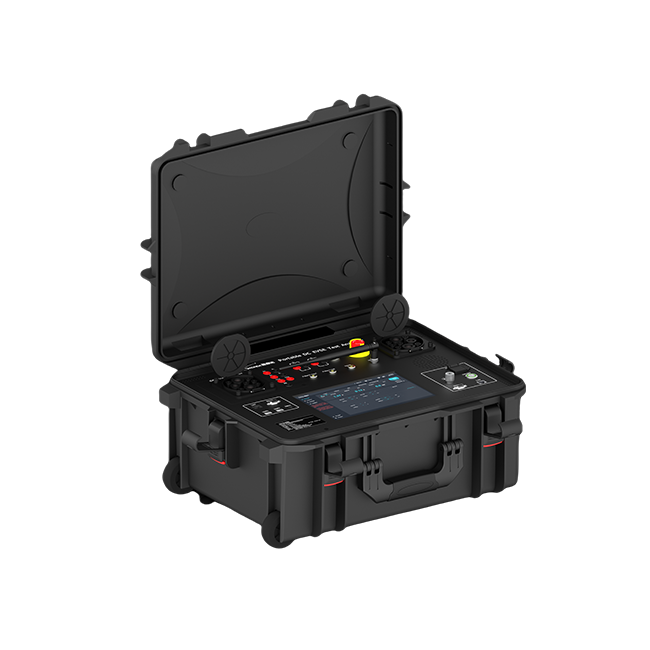

Portable DC charging pile test analyzer - PEV7002G

The portable DC charging pile testing analyzer PEV7002G has functions such as interoperability specification testing, communication protocol consistency testing, metrological verification testing, message editing, real-time message parsing, etc. It supports the latest GB/T 27930.2-2024 (2015+) standard. The product has the characteristics of cutting-edge technology, complete functions, high measurement accuracy, and portability.

Support the new national standard GB/T 27930.2-2024 (2015+) protocol
Support GB/T 27930-2015/2023 protocol version
Support customized development of Bay Area group standards, V2G (draft V3.1), and private protocols

Product Catalog

User Manual

Product Video

Product Details

Features

• Support the new national standard GB/T 27930.2-2024 (2015+) protocol

• Supports GB/T 27930-2015/2023 protocol version

• Support customized development of Bay Area group standards, V2G (draft V3.1), and private protocols

• Supports waveform recording function, covering analog quantities and message timing

• Support interoperability testing and protocol consistency testing

• Support metrological verification function

• Built in charging history playback function

• Built in message parameter editing and parsing function

• Built in fault simulation function, capable of simulating insulation faults and conducting battery reverse connection tests

• Simulation testing of abnormal control guidance lines with R4 resistance, interface disconnection, etc

• Standard upper computer software SEV7200, which can be remotely operated

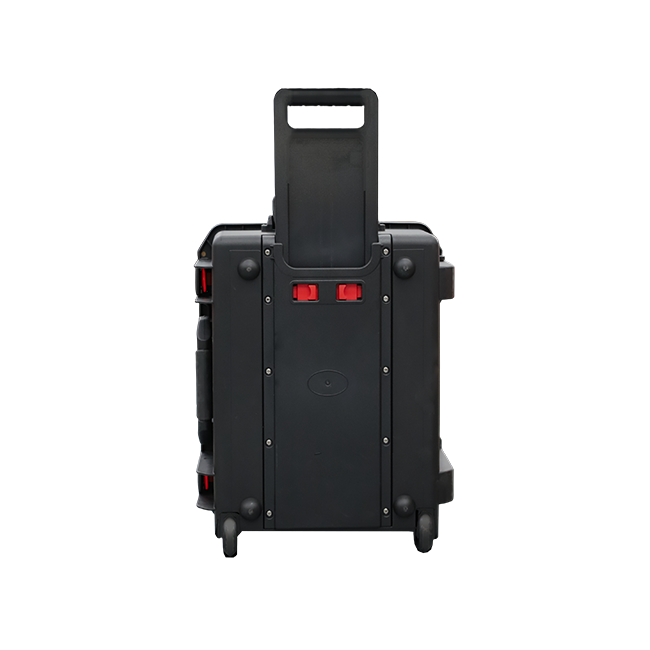

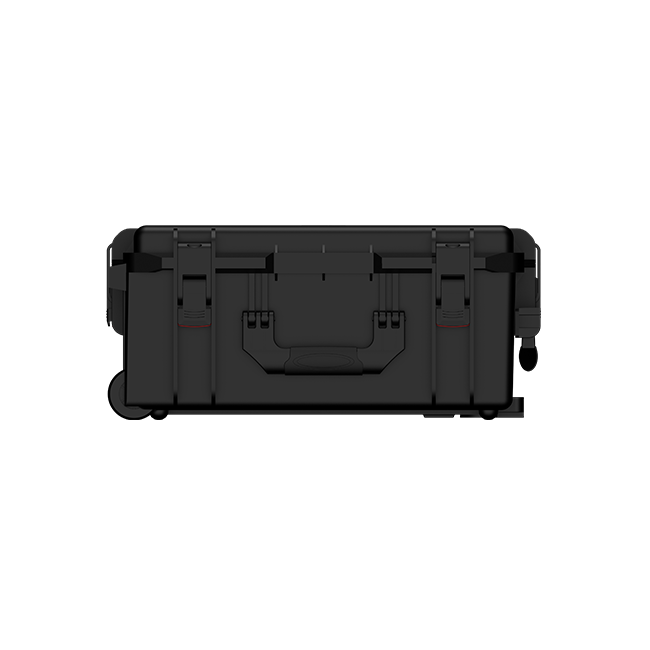

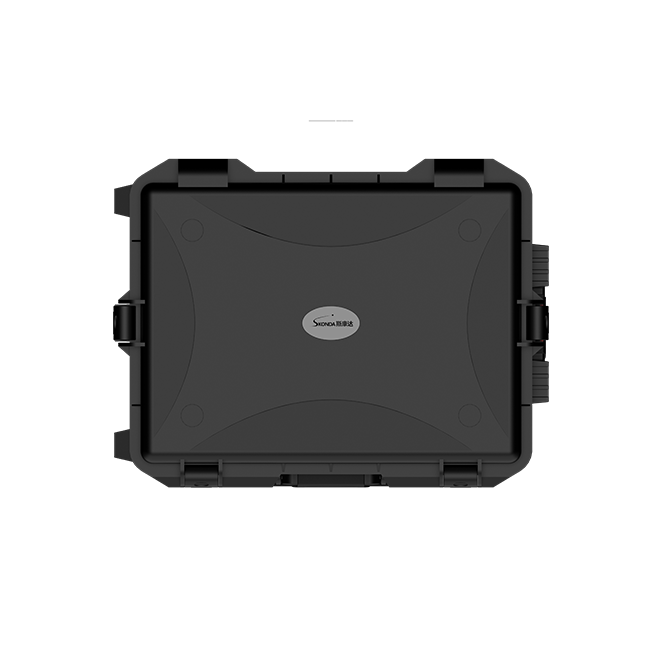

• Pull rod box design, lightweight and portable

• 10 inch capacitive touch screen, smooth operation

• Support local USB flash drive upgrade and cloud OTA (remote upgrade) function

Product Application

• The product is suitable for the full life cycle testing and calibration of DC charging pile products, such as research and development debugging, production quality inspection, after-sales maintenance, operation and maintenance inspection, etc.

Purchase Information

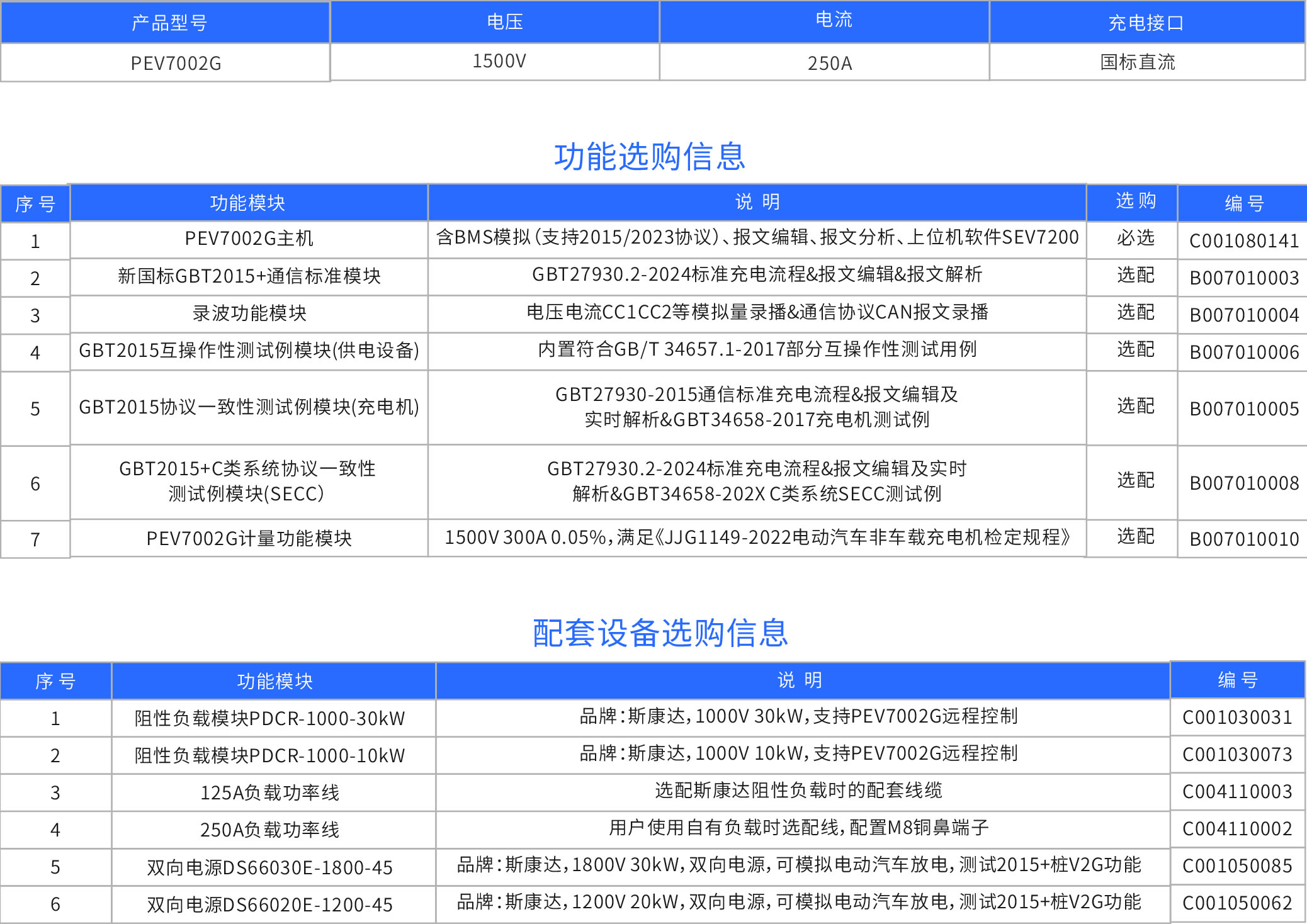

Technical Parameters

Download Materials

Product Name	Type	Size	Update time	Download
Portable DC charging pile test analyzer - PEV7002G	pdf	842.8 KB	2025.09.25
