Features

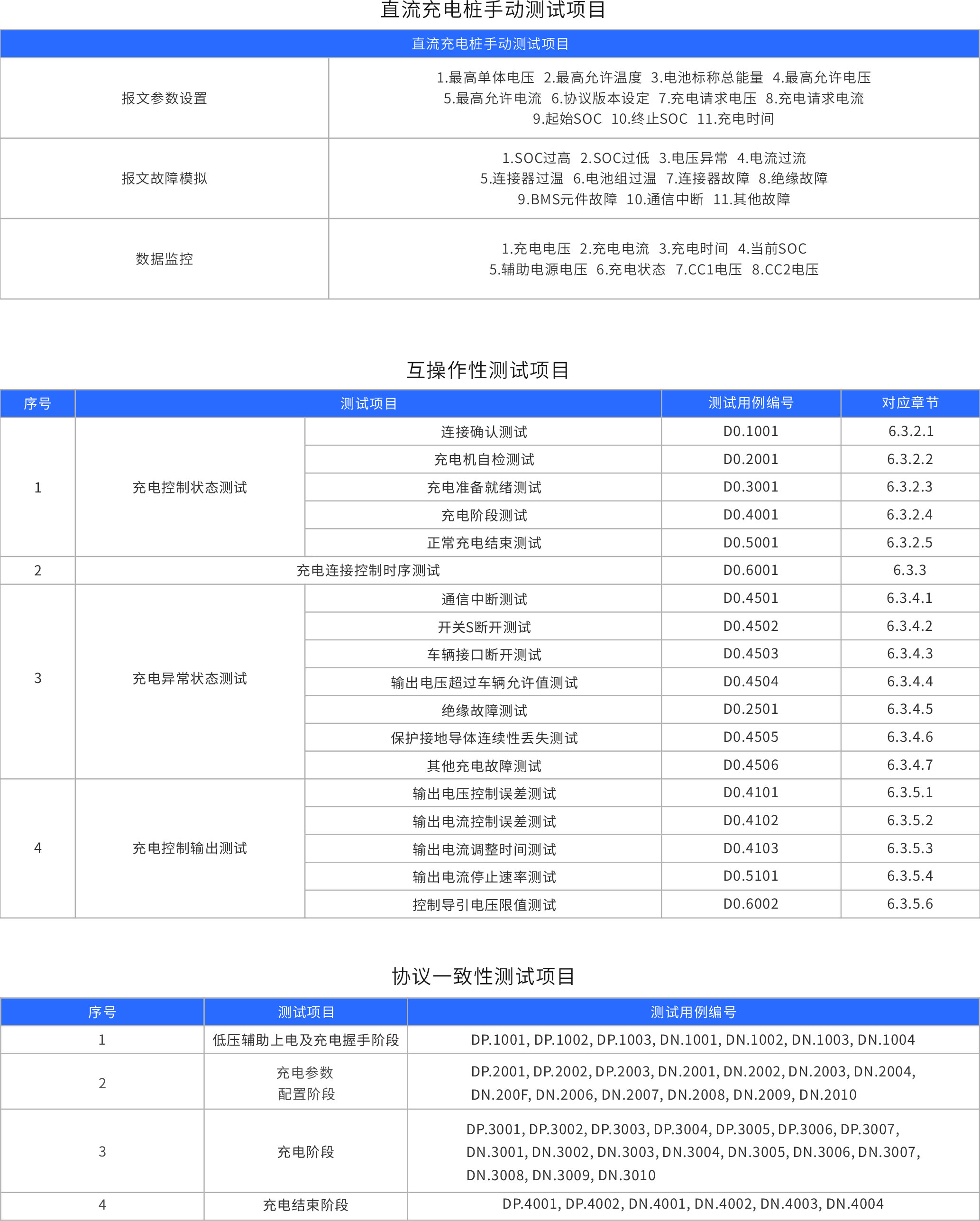

• Built in interoperability test cases for power supply equipment as described in GB/T34657.1-2017 and communication protocol consistency test cases for charging machines as described in GB/T34658-2017 can be completed in conjunction with the testing system.

• Multiple models to choose from: Supports fast charging and overcharging DC charging pile testing, with a maximum voltage of 1200V and a maximum current of 1000A.

• Multiple charging protocols are supported, such as GB/T 27930-2011, GB/T 27930-2015, GB/T 27930-2023, V2G (draft V3.1), etc.

• Interface fault simulation: It can simulate hardware PE pin breakage, vehicle interface disconnection, message simulation connector overheating, battery pack overheating, connector failure, component failure and other fault tests.

• BMS parameter simulation: required voltage, current SOC、 Multiple charging parameters such as charging duration can be set, making it simple and easy to use.

• Rich expansion interfaces: Control the guidance detection points, synchronization signals, PE and other signals to all lead out connection terminals, which can be connected to external testing equipment such as oscilloscopes to monitor the actual charging station status during the testing process.

• Supports multiple communication interfaces (optional): Supports GPIB, RS232, LAN and other communication interfaces, supports SCPI commands, and can be remotely operated and controlled.

• External load interface: It can be used in conjunction with external load testing to test the load characteristics of charging piles according to actual testing needs.

• High definition touch screen design: 7-inch resistive touch screen, smooth operation.

Product Application

• This product can be applied to online debugging, production line testing, on-site verification and other scenarios of DC charging pile products.

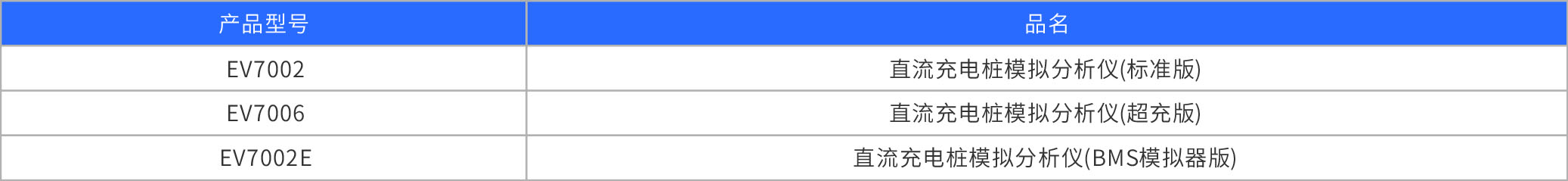

Purchase Information

Technical Parameters
