Features

• During measurement, the load is allowed to be connected to the actual vehicle or any simulated load

• It has the function of detecting environmental temperature, calculating the error caused by temperature based on the actual working scene temperature, and determining the measurement results

• Equipped with GPS timing function, it can perform Beijing time timing error testing on the charger

• Equipped with a charging timing test interface, it can connect to pile end signals such as emergency stop switch actions to meet interoperability testing standards

• Equipped with 16 channel timing synchronization measurement function, it can meet the requirements of interoperability testing related timing tests, such as T1, T1 ', T2, T2', T3, T3 ', T3' ', T2-T2' time, etc

• Built in vehicle end R2 resistor, R3 resistor simulation equivalent resistance simulation function, R2 resistor adjustment range of 500 Ω~4000 Ω, resistance value continuously adjustable online, R3 equivalent resistor nominal value of 1400 Ω~8000 Ω, resistance value continuously adjustable online

• Capable of measuring the voltage, current, and CP signal of AC charging stations

• Built in standard national standard Test Project, set up programs for automatic testing and report generation, facilitating changes and upgrades to national standard items

• The analyzer has the function of generating test report templates, which can generate test report formats according to the customer's layout format. The report formats can be TXT, EXECL, XLC, WORD

• The test report supports multiple data export methods: USB drive export, computer upper computer export

• The testing module of the analyzer software platform has structured input and output standard data, which is easy to parse and call

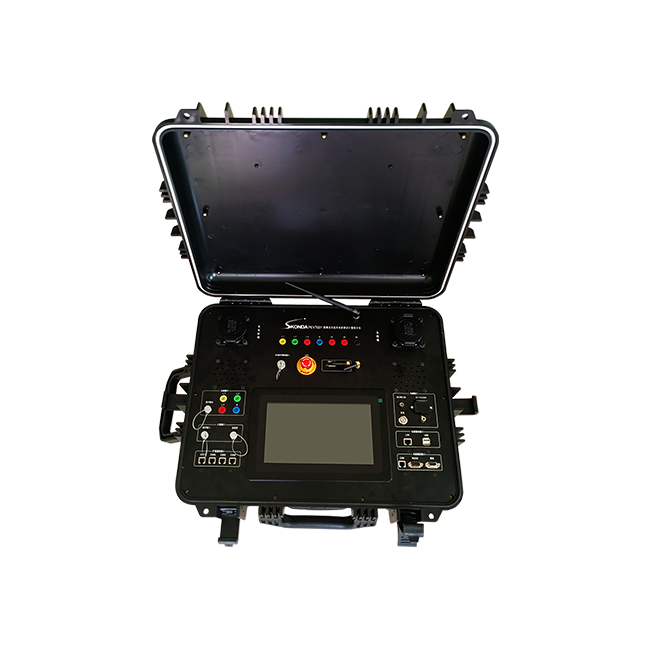

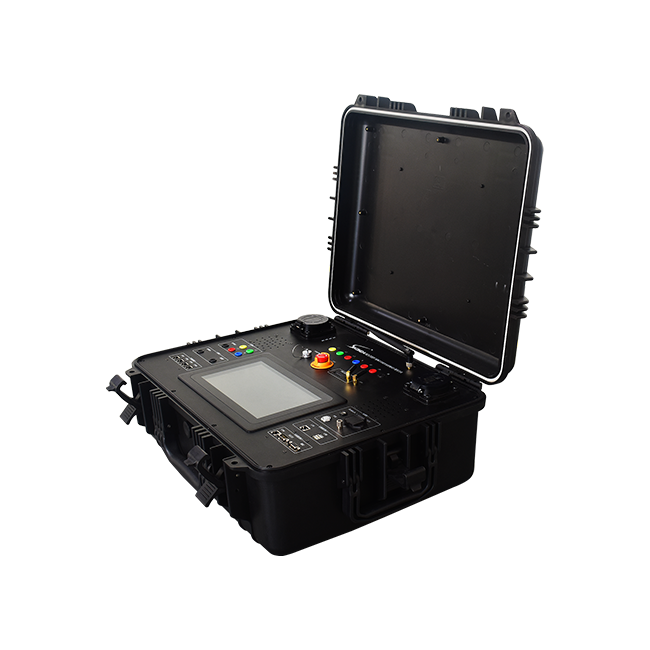

• The analyzer has a 10 inch high-definition LCD touch screen, which is convenient for users to touch and operate

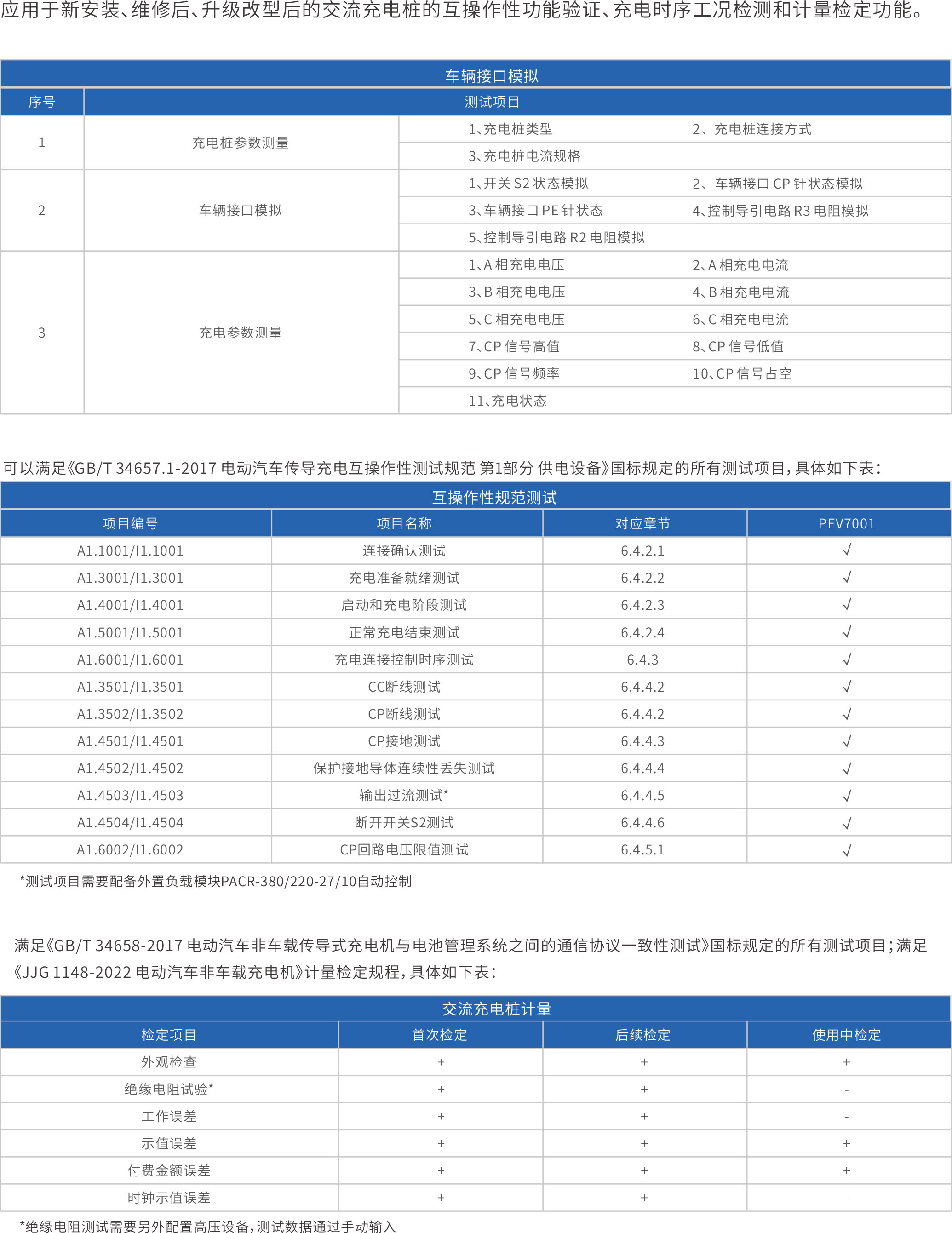

Product Application

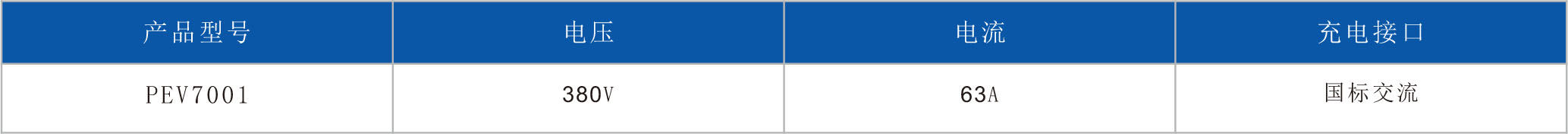

Purchase Information

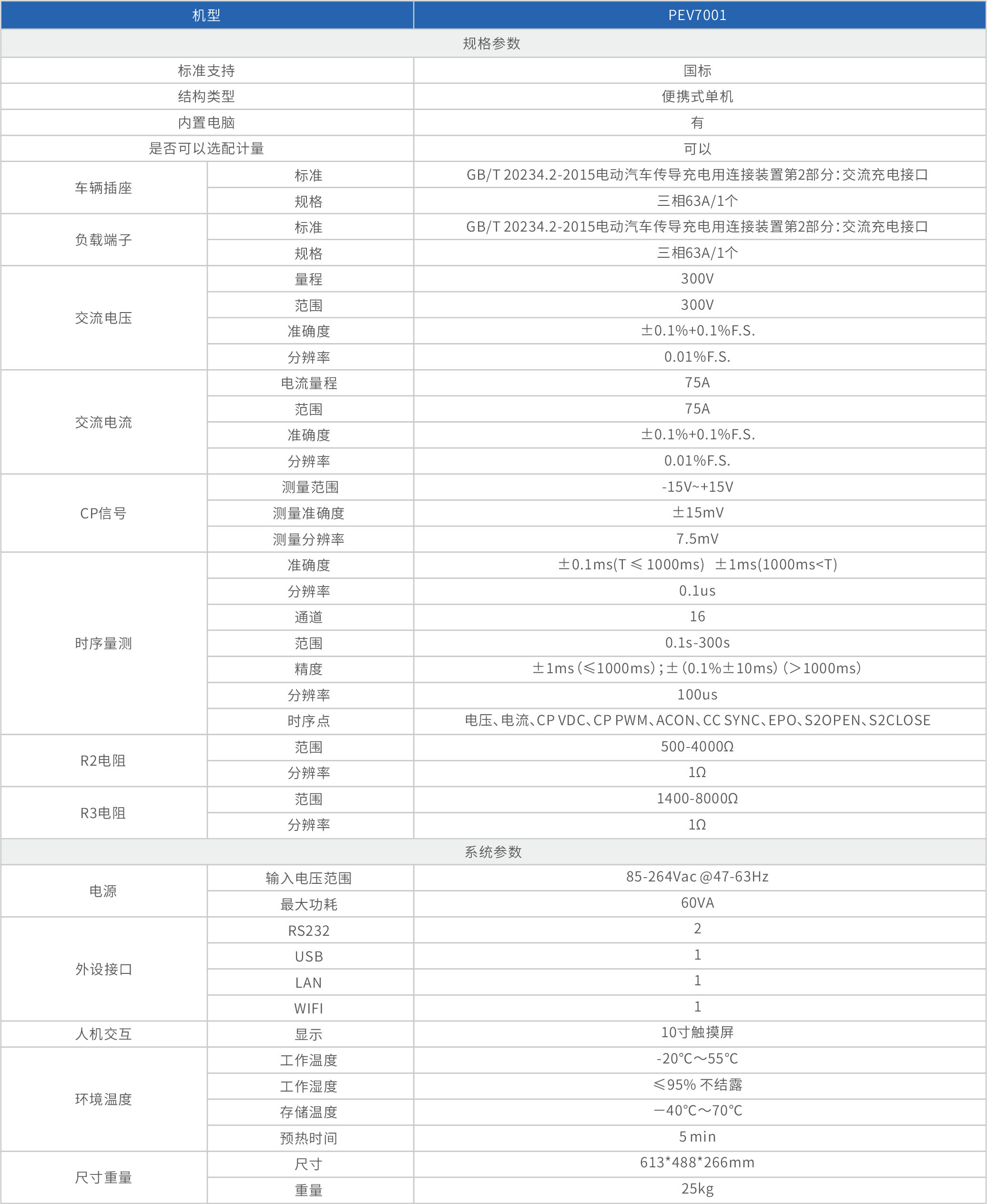

Technical Parameters
