Carbon peak "and" carbon neutrality "have become hot topics after the 2021 National People's Congress and Chinese People's Political Consultative Conference. China solemnly promises to strive to achieve carbon peak before 2030 and strive to achieve carbon neutrality, that is, net zero carbon dioxide emissions, before 2060. The dual carbon strategy has a significant impact on the development of energy storage!

Under the dual carbon background, the construction of new power systems is flourishing. According to the National Energy Administration on the 19th, the new installed capacity of photovoltaics in China for the whole year of 2022 was 87.41 GW. However, as of the end of June this year alone, the new installed capacity of photovoltaics has reached 78.42 GW, a year-on-year increase of 154%. It is certain that the newly installed photovoltaic capacity will exceed 100 gigawatts in 2023!

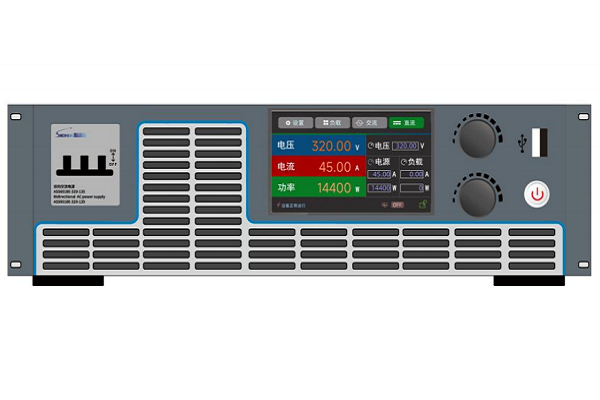

In order to meet the rapidly growing production capacity needs of the industry, SKONDA has launched the DS66000E series bidirectional high-power density DC power supply, which is a power supply product capable of outputting high-precision voltage/current and supporting high voltage low current/low voltage high current testing; The specification of 1800V/135A can meet the testing needs of inverter manufacturers. Support master/slave parallel operation mode, customers can flexibly configure according to their needs.

Voltage output range: 0-600V/1200V/1800V

Current output range: 0-45A/90A/135A

Power output range: 0-6kW/12kW/18kW

Supports digital RS232/LAN/GPIB/CAN communication interfaces

Improve protection functions: overvoltage, current limiting, and overheating

Remote Sense Voltage Compensation

Input PFC power correction design, power factor>0.95

ARM control technology, optimized instruction format, fast communication speed

Operation interface combining touch screen and knob

Full color LCD screen and numeric keypad for easier operation

The DS66000E series bidirectional high-power density DC power supply has functions such as bidirectional DC source, DC electronic load, battery simulation, battery charging and discharging, etc. The models cover multiple specifications from 600V to 1800V, meeting customers' needs in optical storage OBC、 Testing needs in multiple fields such as battery modules, semiconductors, fuel cells, etc. It is a recommended product for new energy vehicles and R&D laboratories in the fields of production testing, quality control, and other applications.
