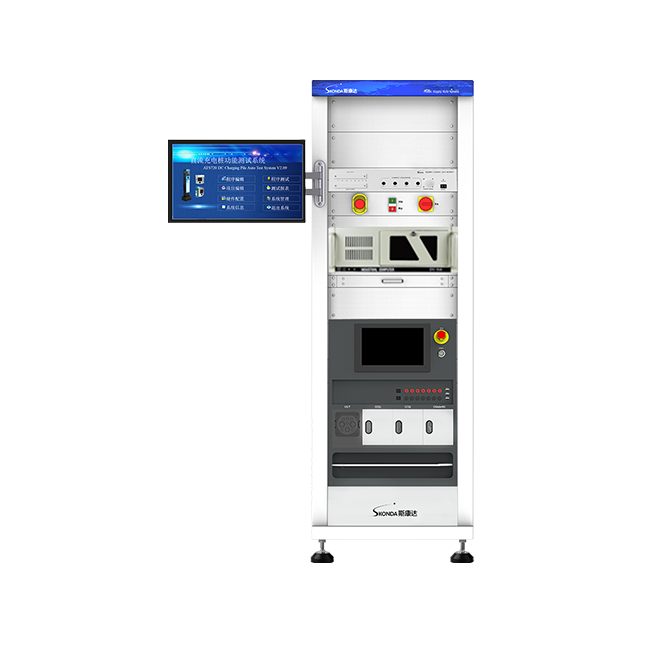

DC charging pile protocol conformance test system ATS700

The ATS700 DC charging pile protocol consistency testing system is mainly used for DC charging pile protocol consistency testing. It can be equipped with different standard interfaces and supports standard DC charging piles such as national standard, European standard, American standard, NACS, etc. Users can choose the DC pile simulation analyzer function module according to their actual needs. Its open function design can meet the protocol consistency testing and report output of third-party testing institutions and research and development laboratories for charging piles.

Product Catalog

User Manual

Product Video

Product Details

Features

• Includes global mainstream DC pile standards including national, European, American, Japanese, and NACS optional

• Support project protocol consistency for all Test Projects

• Built in standard Test Project that meets standard requirements and can be used directly without the need for secondary development

• Support automatic capture and report output of waveform images from oscilloscopes, recorders, and other devices

• Support communication extensions such as Bluetooth, WIFI, RS485, LAN, etc. for automated testing of products

• Support automatic line network interface function, matched with automatic line automation testing

• Support customized hardware selection and configuration to expand platform application functions

• Open architecture software platform that supports manual operation, program editing, and secondary project development

• Graphic user interface programming and operation control interface

• Support customized diversified report editing functions such as Word, Excel, etc

• Support four levels of operation permission management: developer, administrator, engineer, and operator

• Support system operation and entry/exit system recording for homework personnel

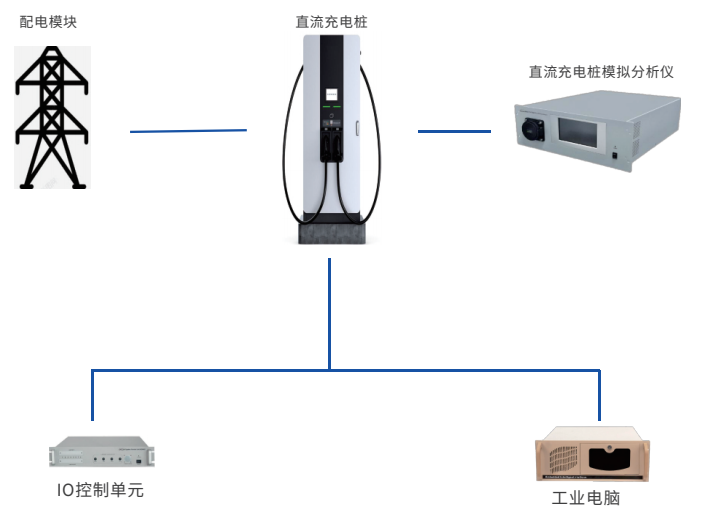

System Architecture

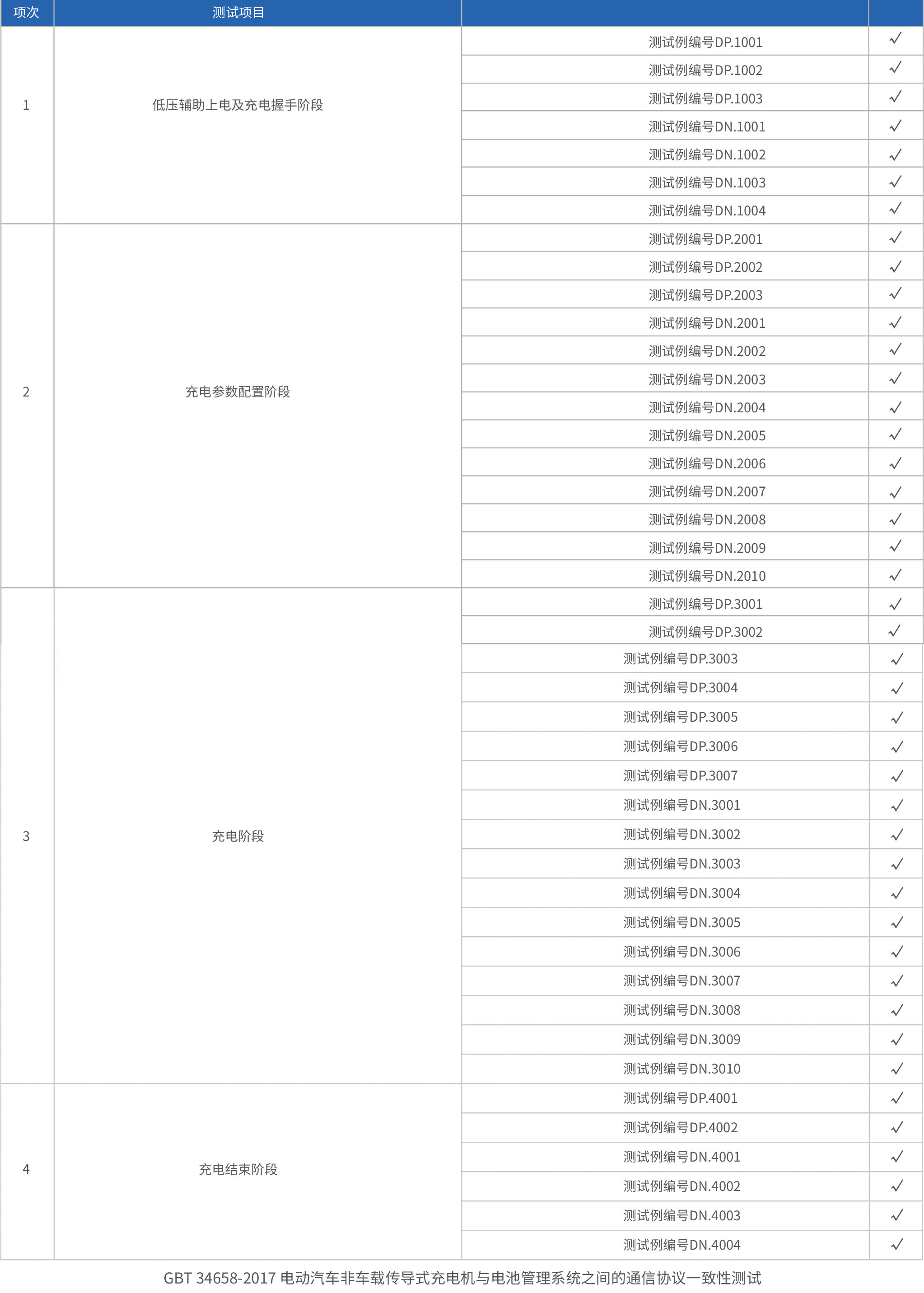

Test Project (Protocol Consistency)

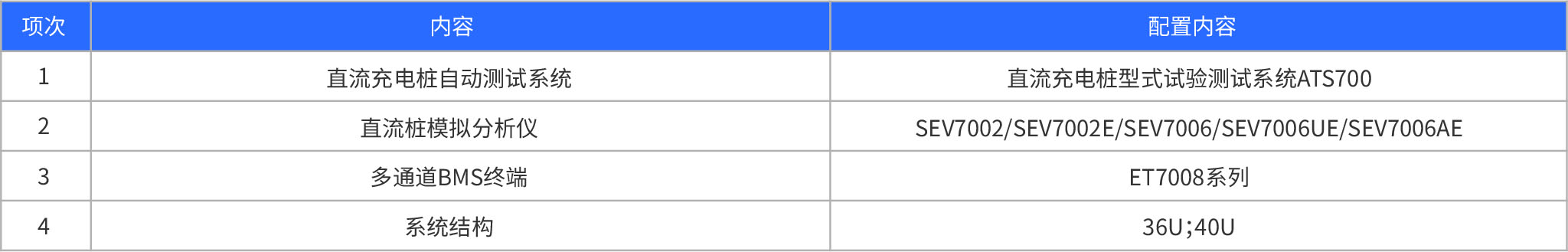

Selection Information

Specifications

Download Materials

Product Name	Type	Size	Update time	Download
DC charging pile protocol conformance test system ATS700	pdf	968.52 KB	2025.09.25
