AC charging pile safety test system-HTS710_Test system_Charging facilities_Applications

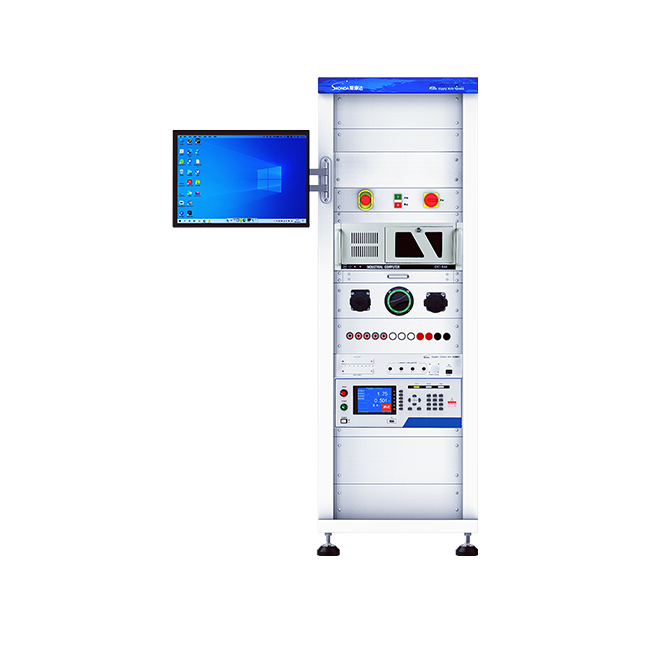

AC charging pile safety test system-HTS710

The HTS710 AC charging pile safety testing system is mainly used for AC charging pile safety testing, impact withstand voltage testing, etc. It can be equipped with different standard interfaces and supports standard AC charging piles such as national standard, European standard, American standard, etc. Users can customize testing projects and programs based on their actual needs through secondary development on the platform. Its elastic function can meet production testing, automated production line matching testing, and quality inspection.

Support multi standard compatibility for communication stations: national standard, European standard, American standard, NACS optional
Built in standard testing projects that meet standard requirements and can be used directly without the need for secondary development

Product Catalog

User Manual

Product Video

Product Details

Features

• Support multi standard compatibility for communication stations: national standard, European standard, American standard, NACS optional

• Built in standard Test Project that meets standard requirements and can be used directly without the need for secondary development

• Built in testing program testing mode, fast testing speed, optimized production line testing time

• Support automatic line network interface function, matched with automatic line automation testing

• Support customized hardware selection and configuration to expand platform application functions

• Open architecture software platform that supports manual operation, program editing, and secondary project development

• Graphic user interface programming and operation control interface

• Support customized diversified report editing functions such as Word, Excel, etc

• Support four levels of operation permission management: developer, administrator, engineer, and operator

• Support system operation and entry/exit system recording for homework personnel

• Open MES system functional interfaces and support customized development

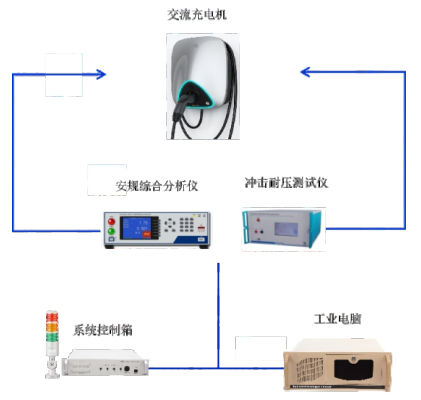

System Architecture

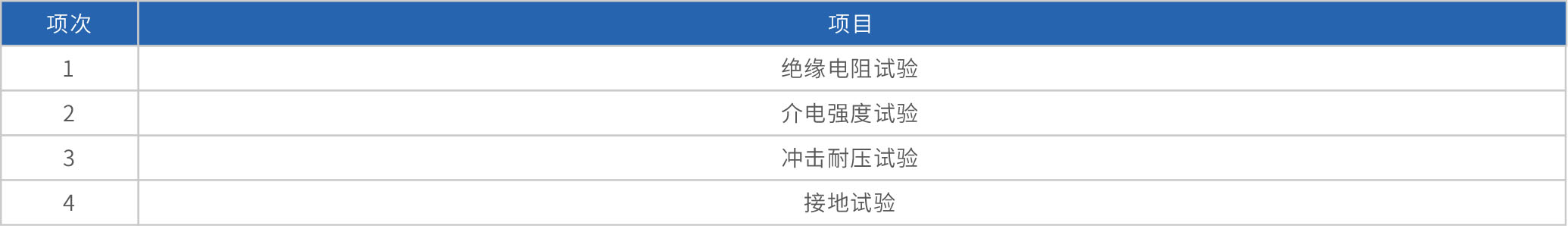

Test Project

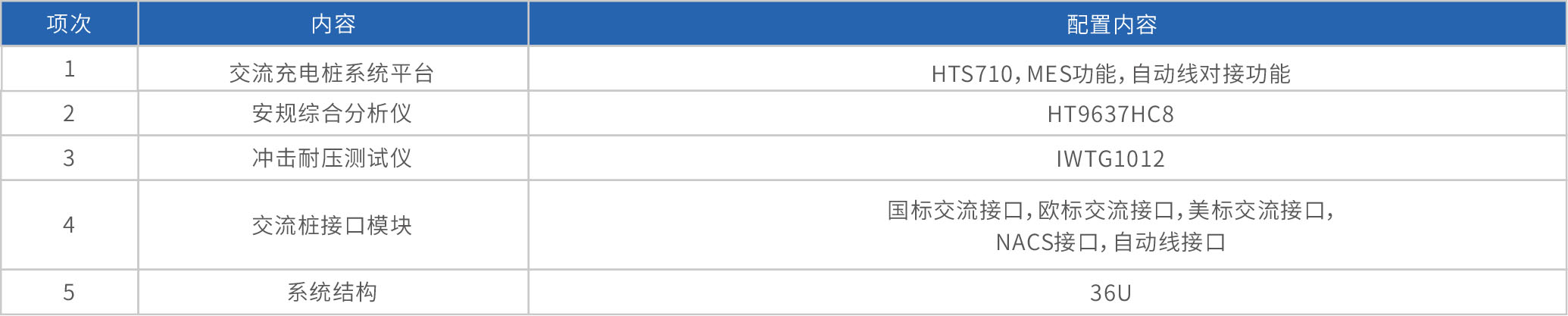

Selection Information

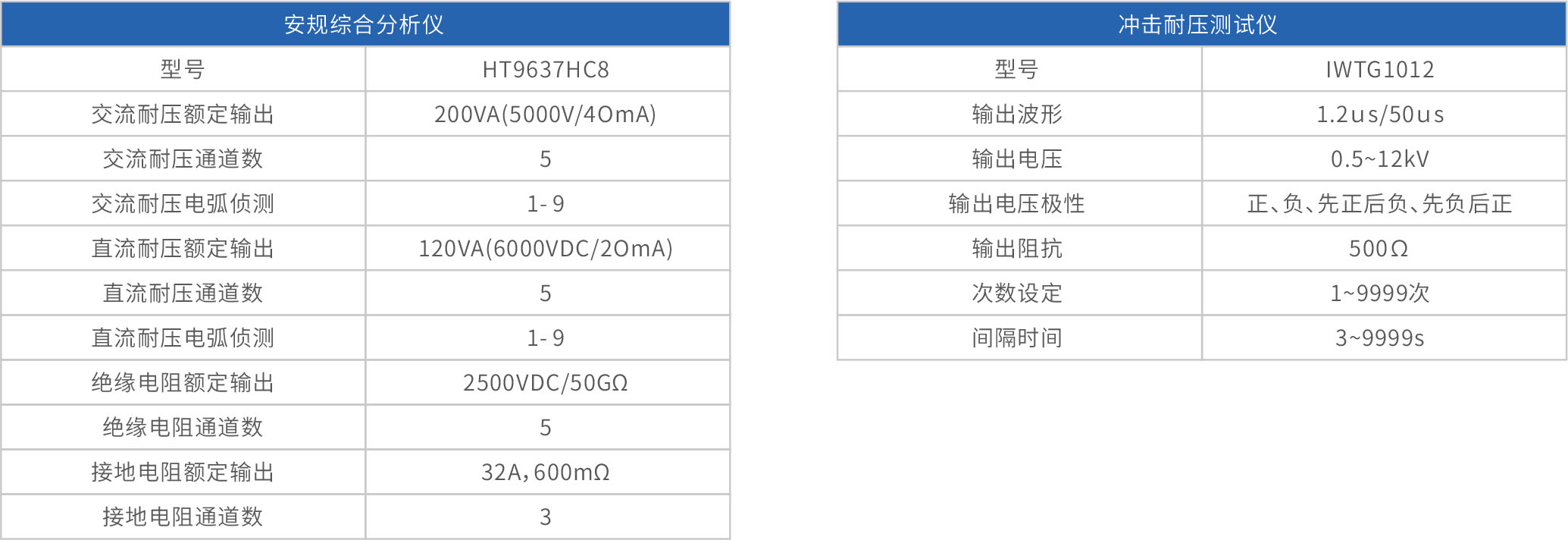

Specifications

Download Materials

Product Name	Type	Size	Update time	Download
AC charging pile safety test system-HTS710	pdf	1.18 MB	2025.09.25
