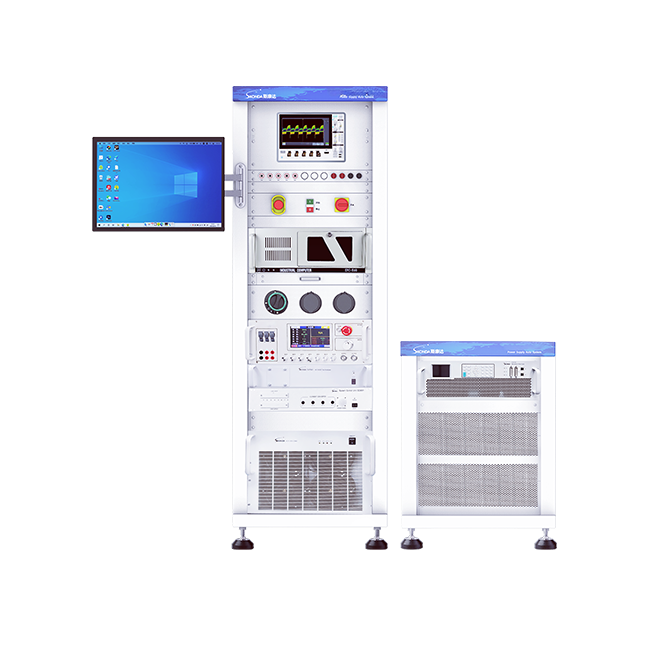

AC charging pile R&D test system ATS700

The ATS700 research and testing system for AC charging piles is mainly used for type testing of AC charging piles. It can be equipped with different standard interfaces and supports standard AC charging piles such as national, European, and American standards. Users can choose functional modules such as AC power module, AC pile simulation analyzer, residual current tester, metering module, oscilloscope, etc. according to their actual needs. Its open functional design can meet the requirements of third-party testing institutions and R&D laboratories for type testing and report output of charging piles.

Support multi standard compatibility for communication stations: national standard, European standard, American standard, NACS optional
Support AC pile mode 2 and mode 3

Product Catalog

User Manual

Product Video

Product Details

Features

• Support multi standard compatibility for communication stations: national standard, European standard, American standard, NACS optional

• Support AC pile mode 2 and mode 3

• Support AC pile 7kw - three-phase 42kW, national and European standard single three-phase, American standard two equal multi power selection

• Built in standardized test project for type testing, set specifications for quick application

• Support automatic capture and report output of waveform images from oscilloscopes, recorders, and other devices

• Support customized report editing functions such as Word, Excel, etc., with one click output of reports

• Support laboratory testing with time-division breakpoint testing mode, and support single item retesting to update reports

• Support communication extensions such as Bluetooth, WIFI, RS485, LAN, etc. for automated testing of products

• Support customized hardware selection and configuration to expand platform application functions

• Open architecture software platform that supports manual operation, program editing, and secondary project development

• Graphic user interface programming and operation control interface

• Support four levels of operation permission management: developer, administrator, engineer, and operator

• Support experimental personnel in operating the system and recording system access and exit

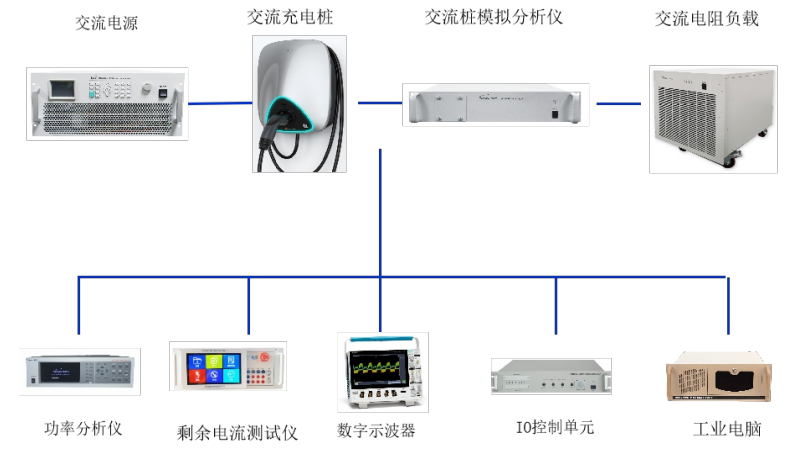

System Architecture

Test Project

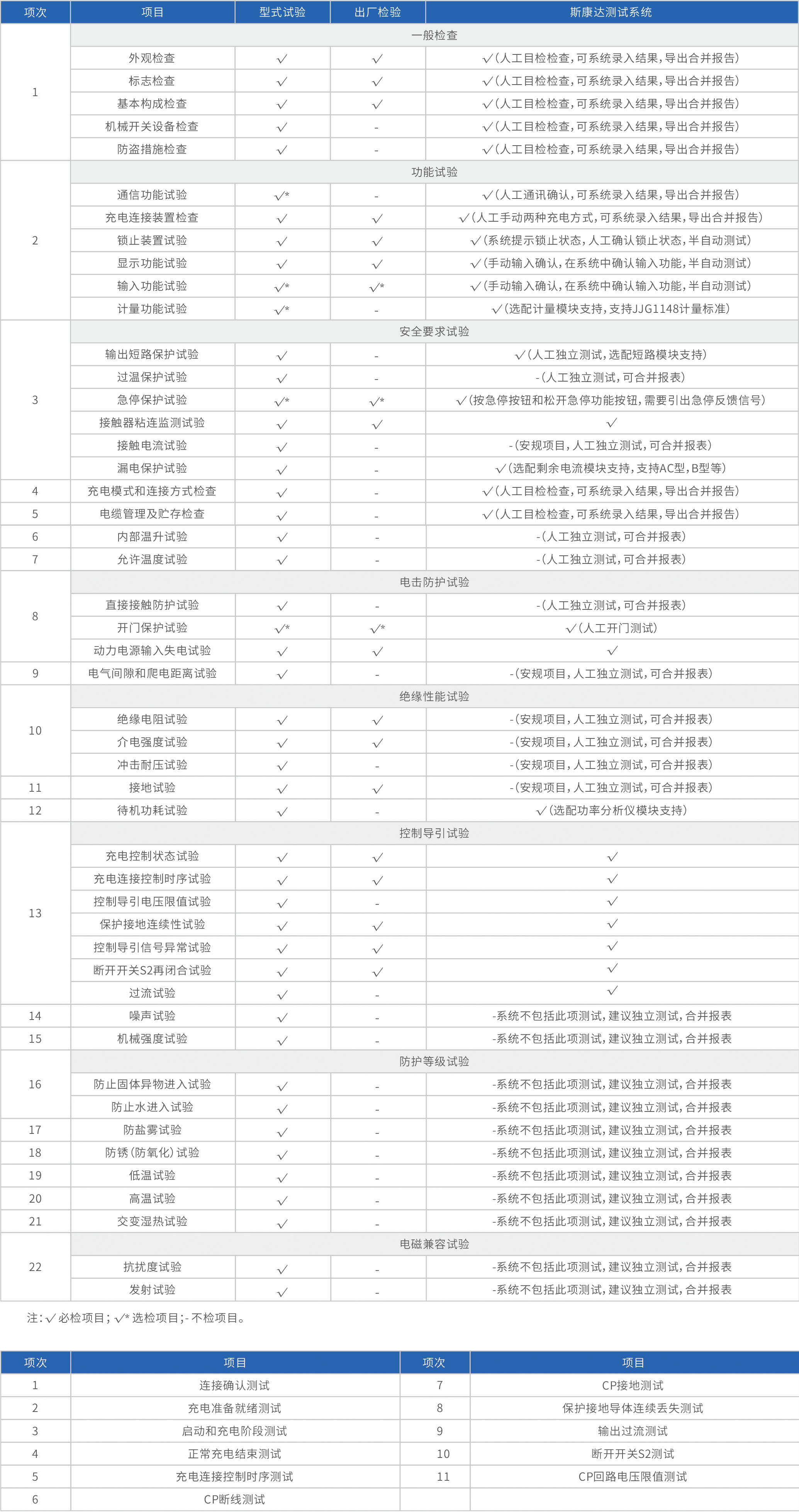

• NBT 33008.2-2013_Specification for Inspection and Testing of Electric Vehicle Charging Equipment - Part 2: AC Charging Pile

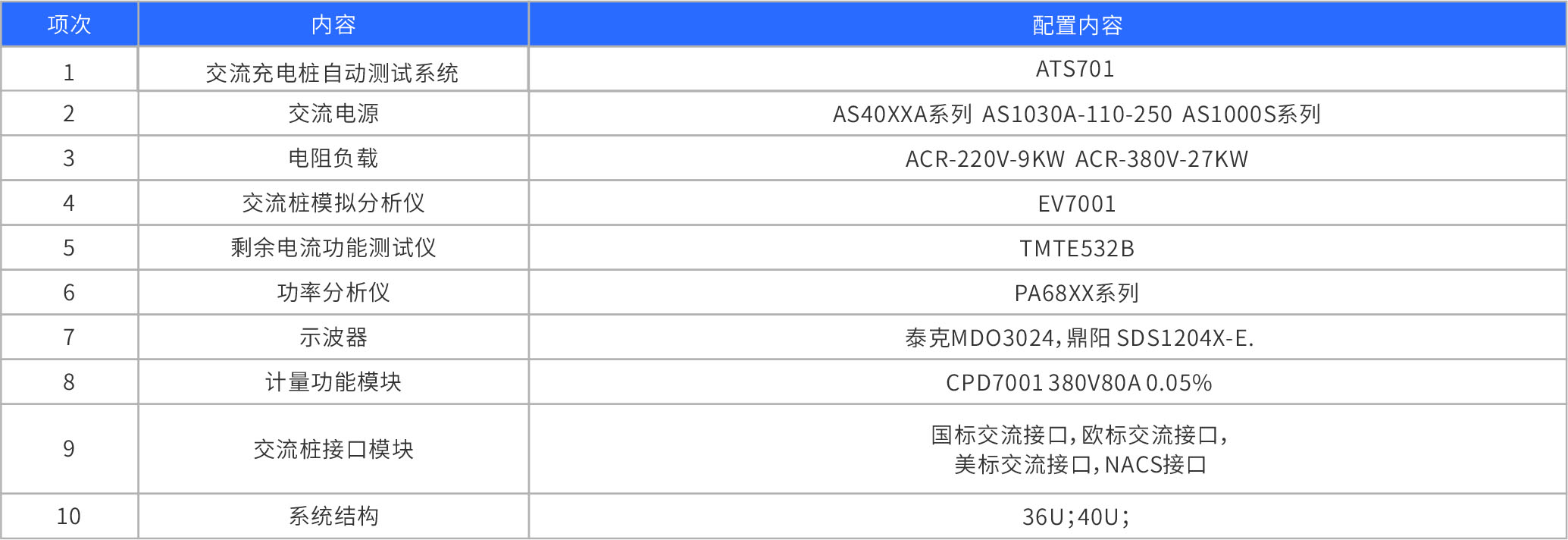

Equipment Selection

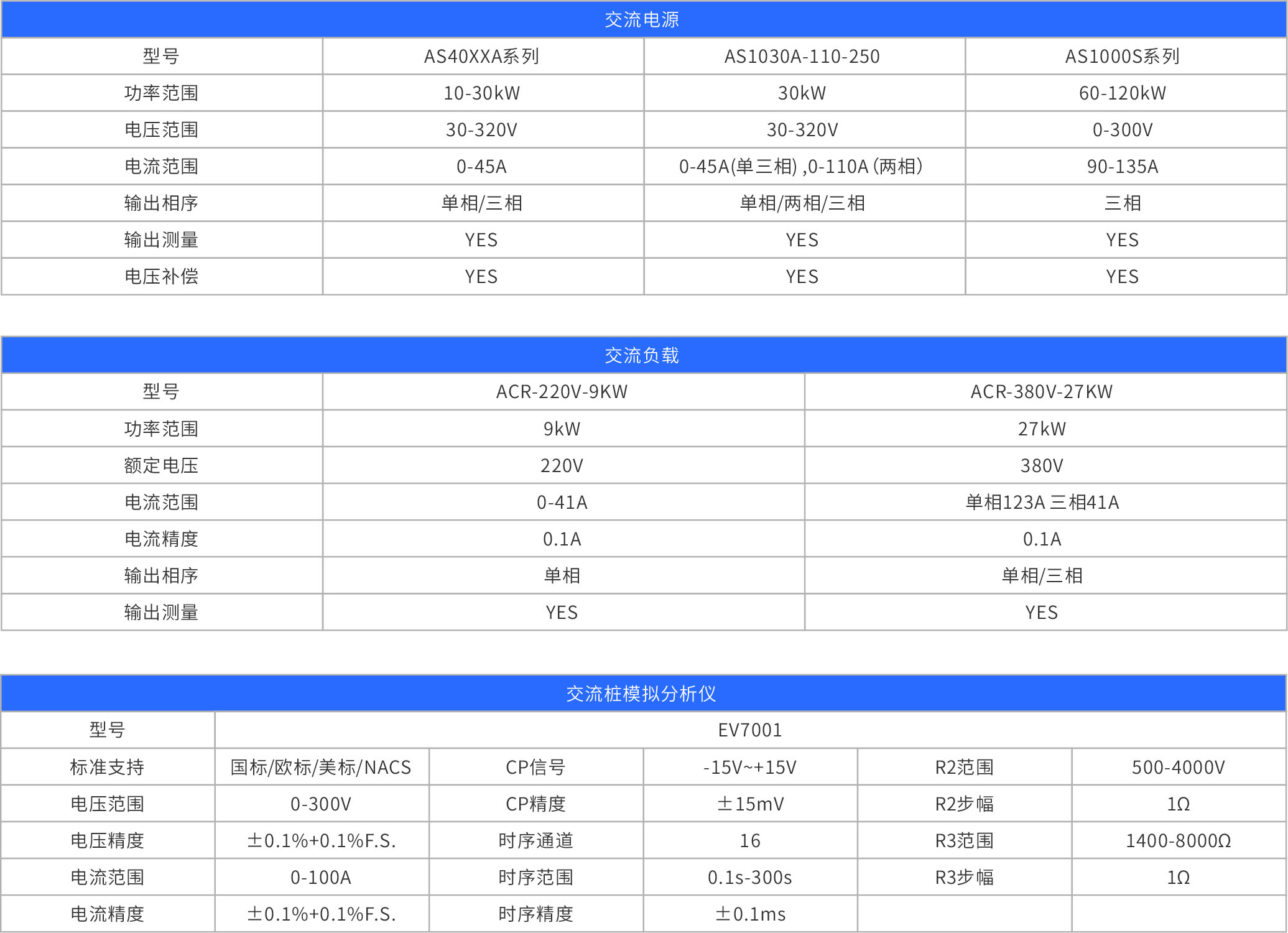

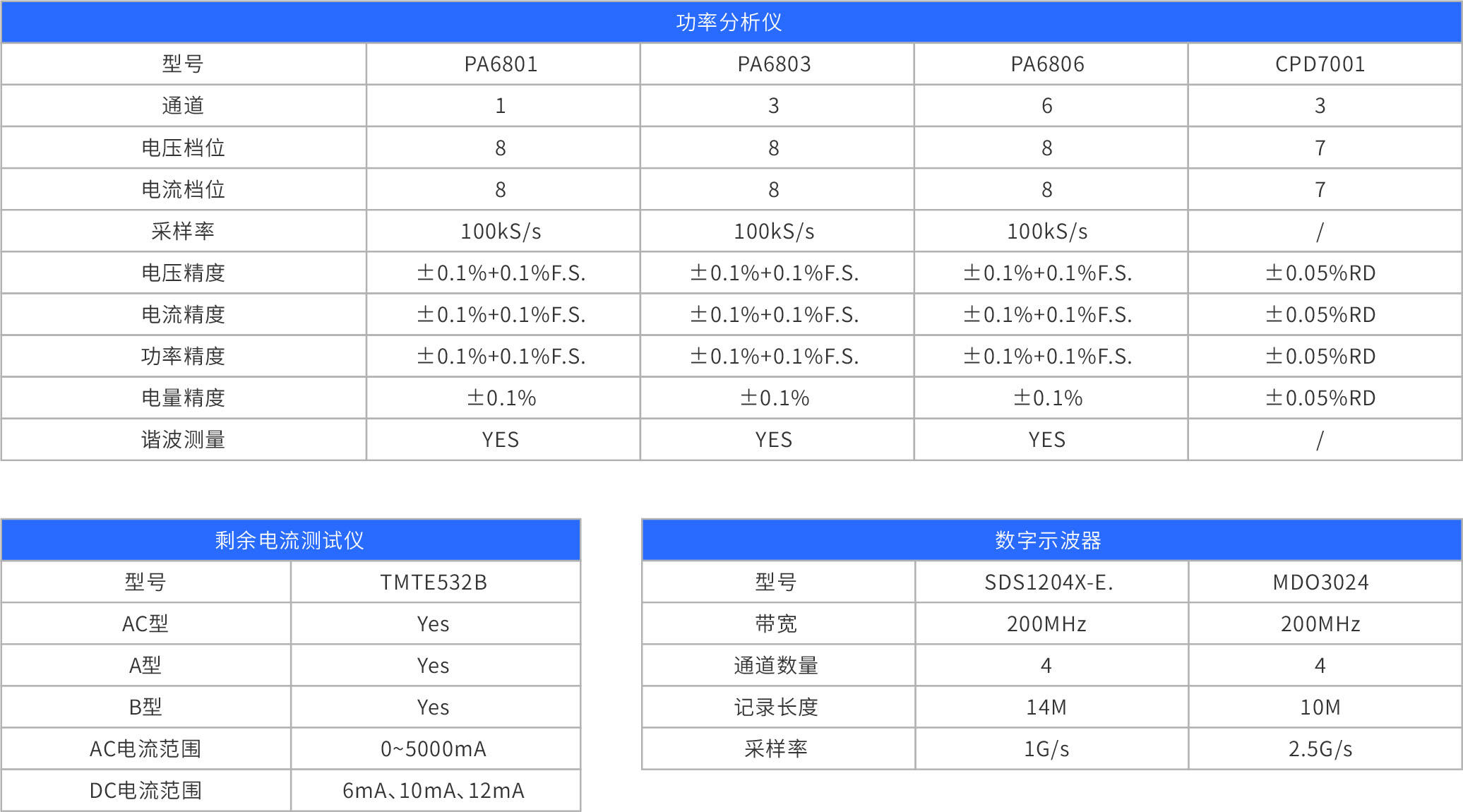

Specifications

Download Materials

Product Name	Type	Size	Update time	Download
AC charging pile R&D test system ATS700	pdf	1.12 MB	2025.09.25
