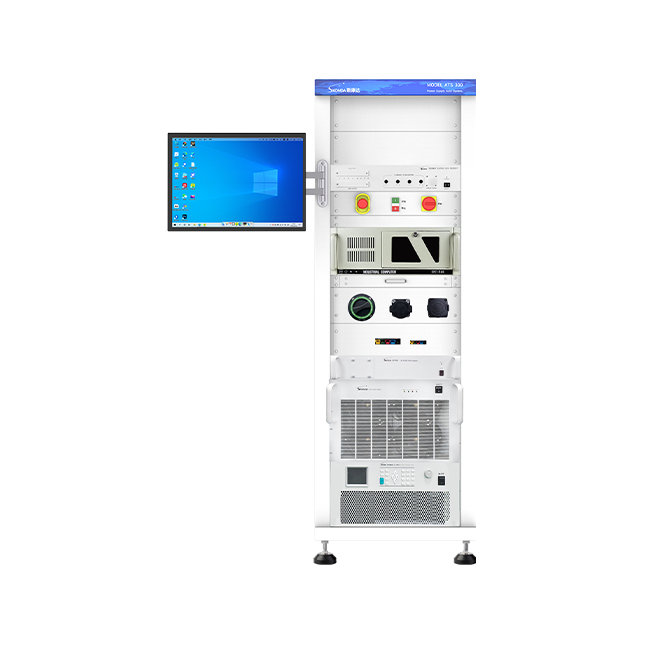

AC charging pile function test system-ATS710

Mainly used for functional testing and residual current testing of AC charging stations, it can be equipped with different standard interfaces and supports standard AC charging stations such as national, European, and American standards. Users can choose functional modules such as AC power module, AC pile simulation analyzer, residual current tester, etc. according to their actual needs. Its modular functional design can meet production testing and quality inspection testing.

Support multi standard compatibility for communication stations: national standard, European standard, American standard, NACS optional
Support AC pile mode II and mode III

Product Catalog

User Manual

Product Video

Product Details

Features

• Support multi standard compatibility for communication stations: national standard, European standard, American standard, NACS optional

• Support AC pile mode II and mode III

• Support AC pile 7kw - three-phase 42kW, single and three-phase according to national and European standards, and two equal and multi power selection according to American standards

• Built in standard Test Project that meets standard requirements and can be used directly without the need for secondary development

• Built in testing program testing mode, fast testing speed, optimized production line testing time

• Support communication extensions such as Bluetooth, WIFI, RS485, LAN, etc. for automated testing of products

• Support single station and multi station parallel testing

• Support automatic line network interface function, matched with automatic line automation testing

• Support customized hardware selection and configuration to expand platform application functions

• Open architecture software platform that supports manual operation, program editing, and secondary project development

• Graphic user interface programming and operation control interface

• Support customized diversified report editing functions such as Word, Excel, etc

• Support four levels of operation permission management: developer, administrator, engineer, and operator

• Support system operation and entry/exit system recording for homework personnel

• Open MES system functional interfaces and support customized development

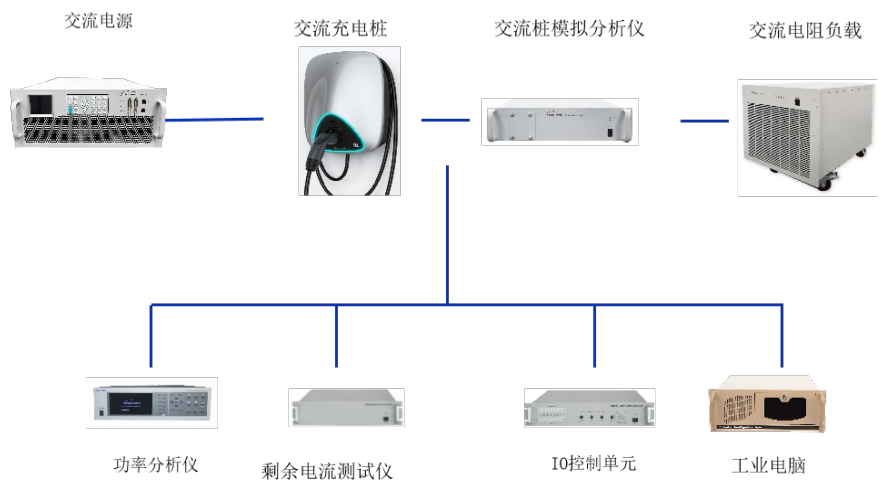

System Architecture

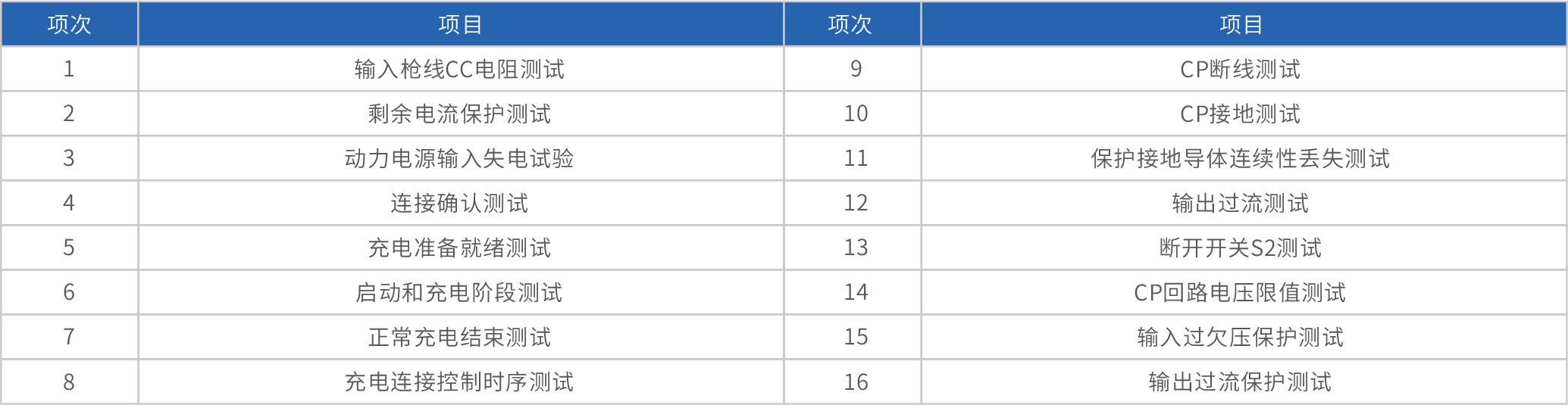

Test Project

Selection Information

Specifications

Download Materials

Product Name	Type	Size	Update time	Download
AC charging pile function test system-ATS710	pdf	813.79 KB	2025.09.25
