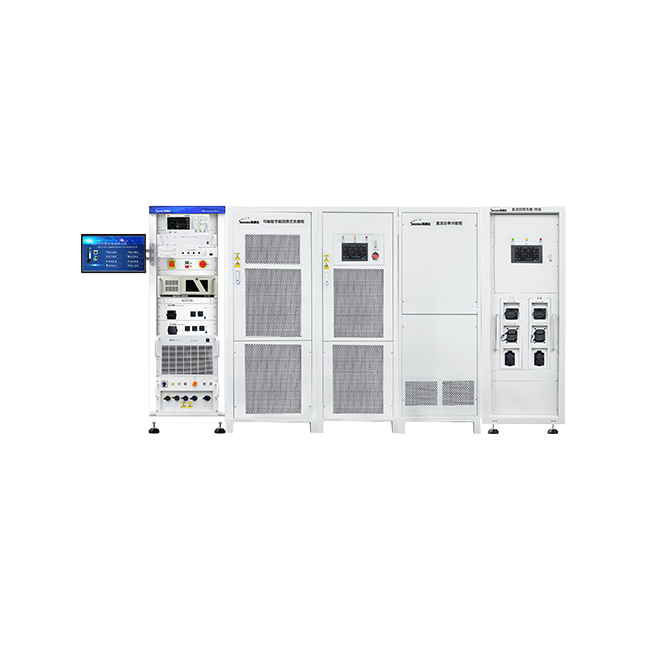

AC/DC charging pile 3C testing system ATS700

The ATS700 AC/DC charging pile 3C detection system is mainly used for type testing of DC charging piles. It can be equipped with different standard interfaces and supports national standards and DC charging piles. Users can choose AC power module, DC pile analog analyzer, interface temperature module digital oscilloscope, metering module, DC feedback load and other functional modules according to their actual needs. Its open function design can meet the 3C strong testing and report output of third-party testing institutions and research and development laboratories for charging piles.

Covering the electrical function testing items of DC pile standard, national standard 3C mandatory inspection
Support R&D laboratory layout planning, high and low temperature experiments, environmental systems, power distribution engineering and other supporting integration

Product Catalog

User Manual

Product Video

Product Details

Features

• Covering DC pile standard, national standard, 3C strong inspection, electrical function test project

• Support R&D laboratory layout planning, high and low temperature experiments, environmental systems, power distribution engineering and other supporting integration

• Supports up to 2 BMS channels, with channel interfaces supporting up to 1000A

• Built in standard Test Project that meets standard requirements and can be used directly without the need for secondary development

• Support automatic capture and report output of waveform images from oscilloscopes, recorders, and other devices

• Support communication extensions such as Bluetooth, WIFI, RS485, LAN, etc. for automated testing of products

• Support automatic line network interface function, matched with automatic line automation testing

• Support customized hardware selection and configuration to expand platform application functions

• Open architecture software platform that supports manual operation, program editing, and secondary project development

• Graphic user interface programming and operation control interface

• Support customized diversified report editing functions such as Word, Excel, etc

• Support four levels of operation permission management: developer, administrator, engineer, and operator

• Support system operation and entry/exit system recording for homework personnel

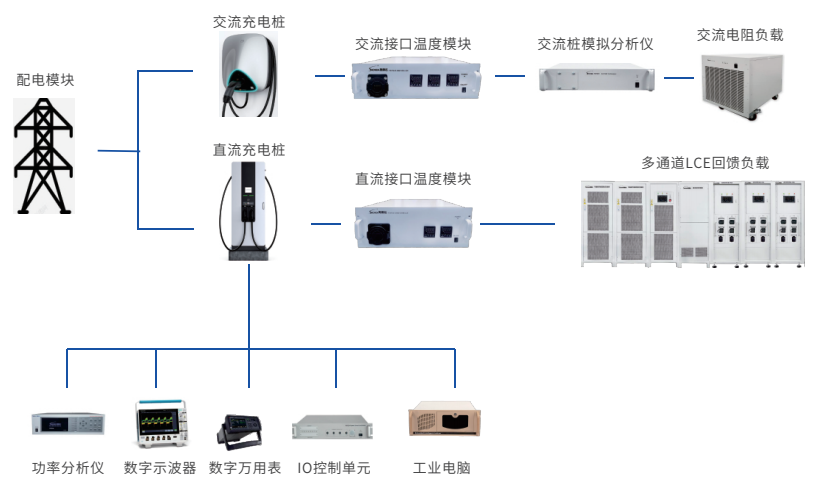

System Architecture

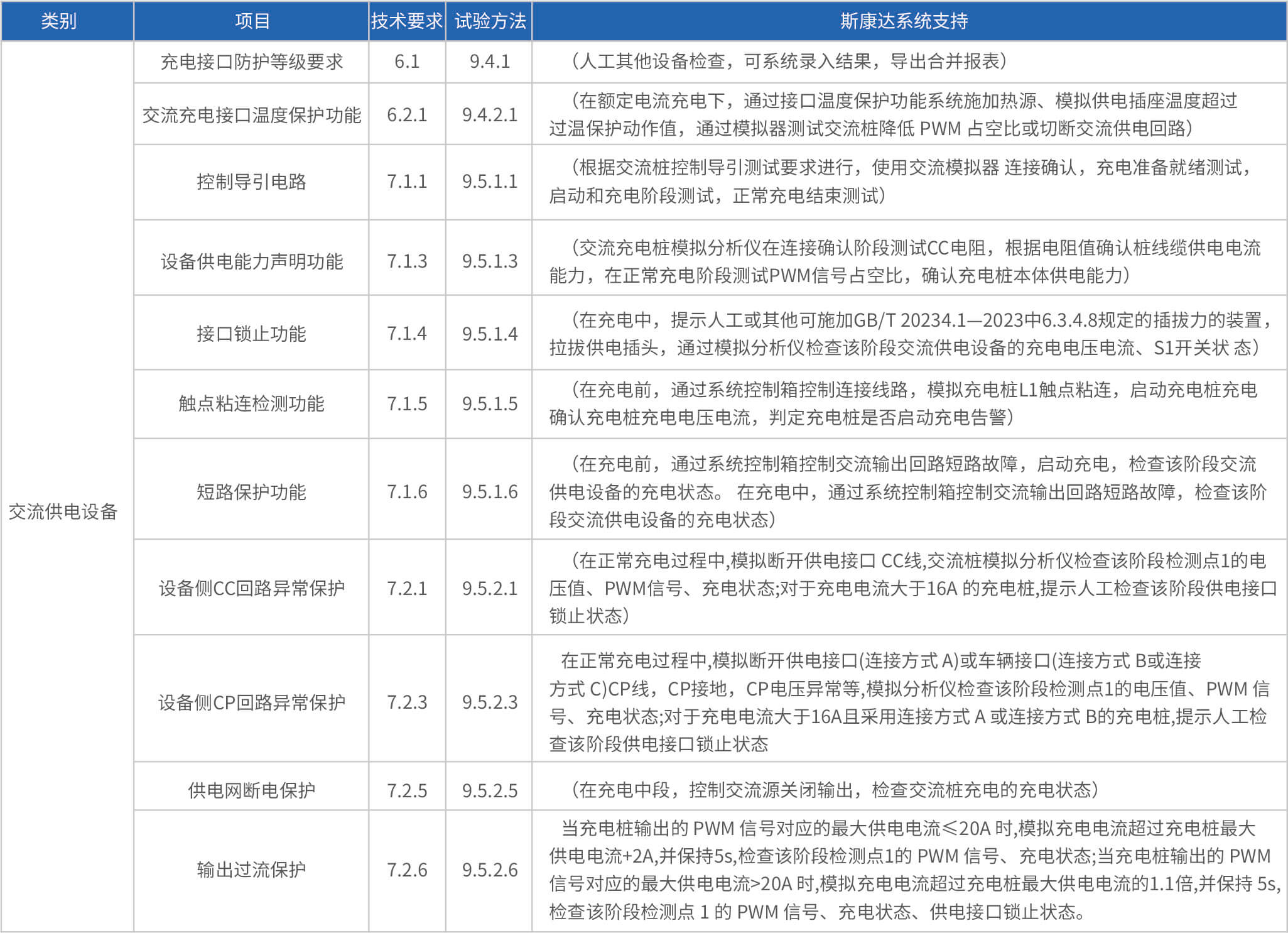

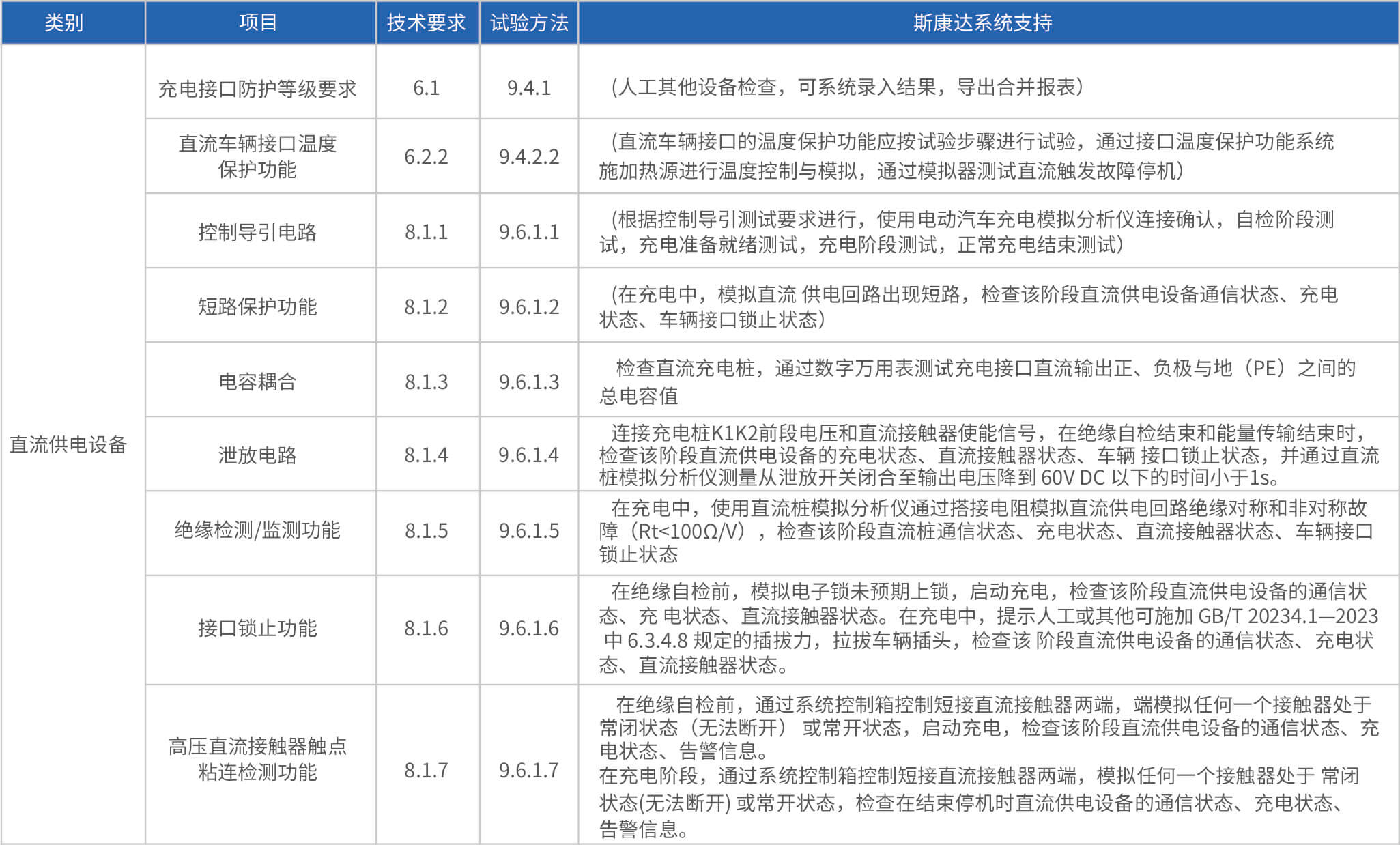

Test Project (Mandatory Inspection)

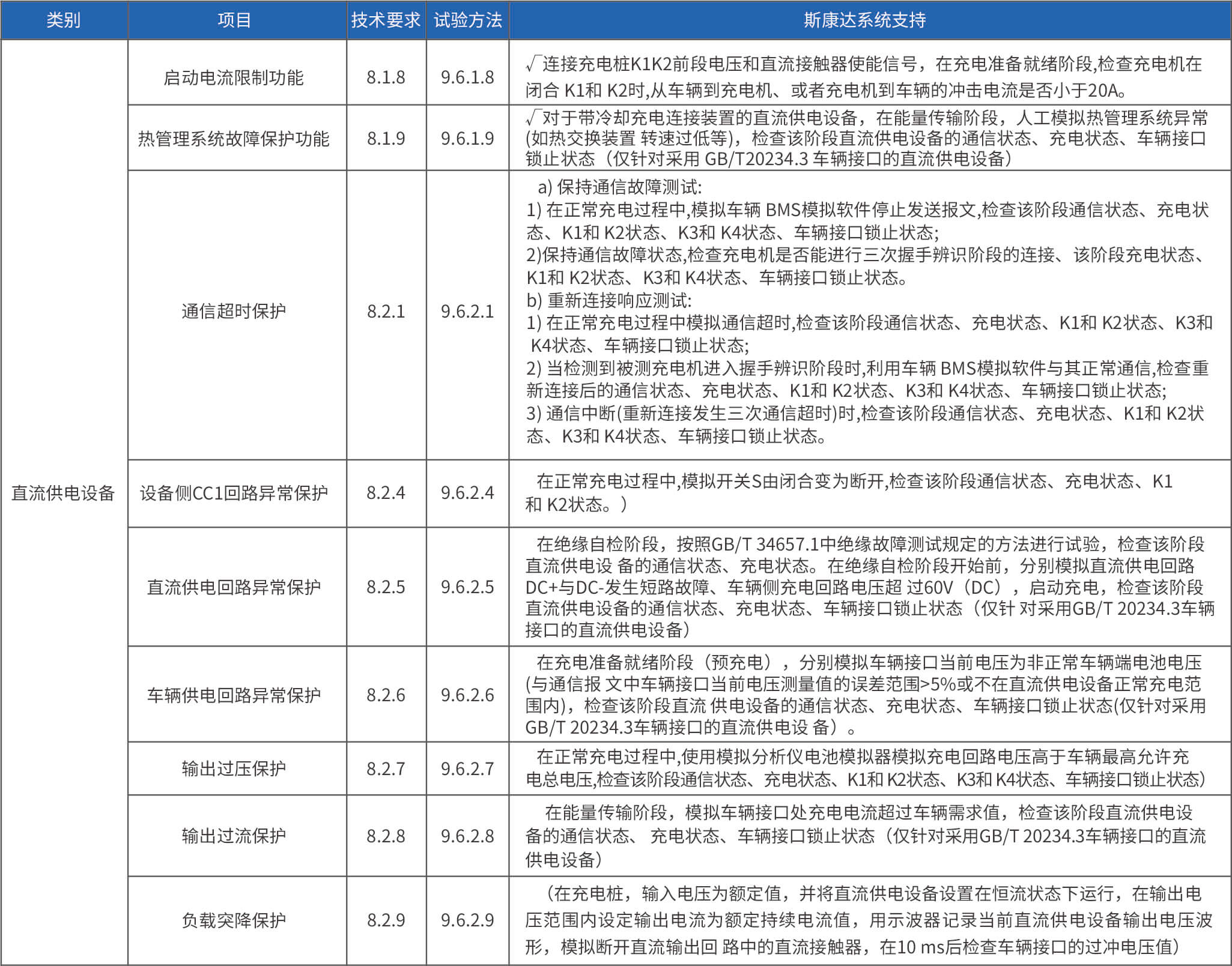

Test Project (Mandatory Inspection Communication)

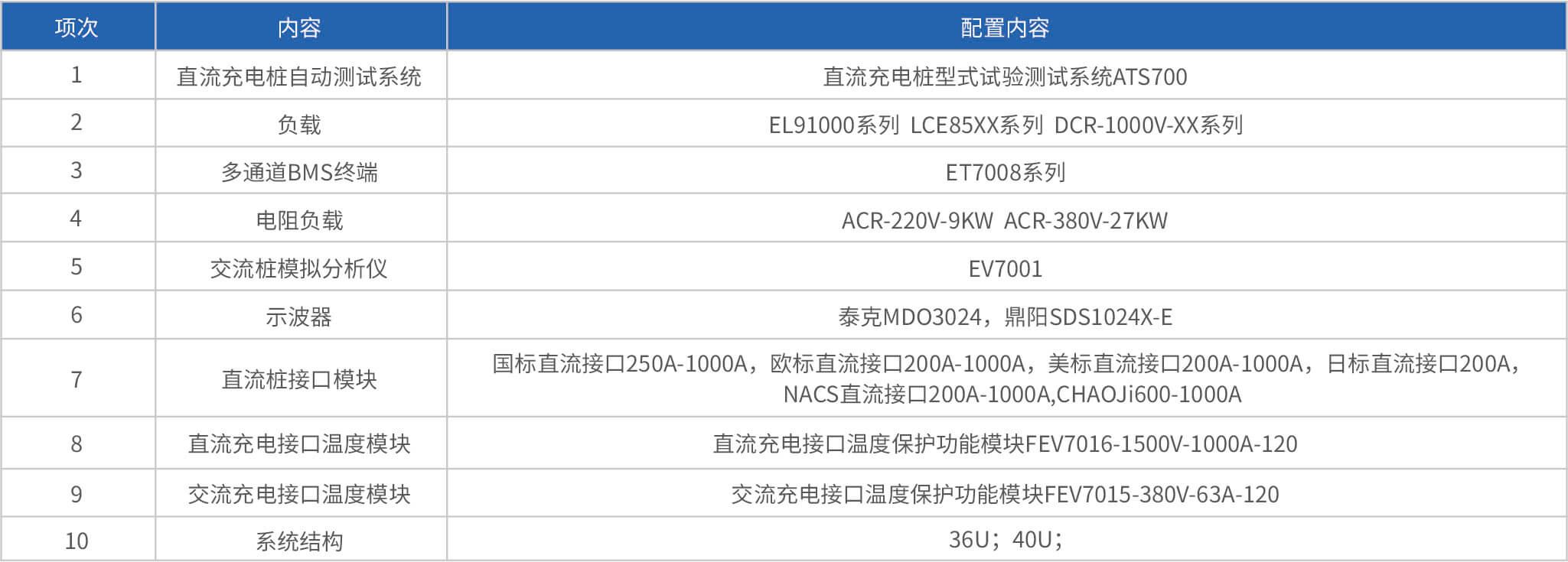

Selection Information

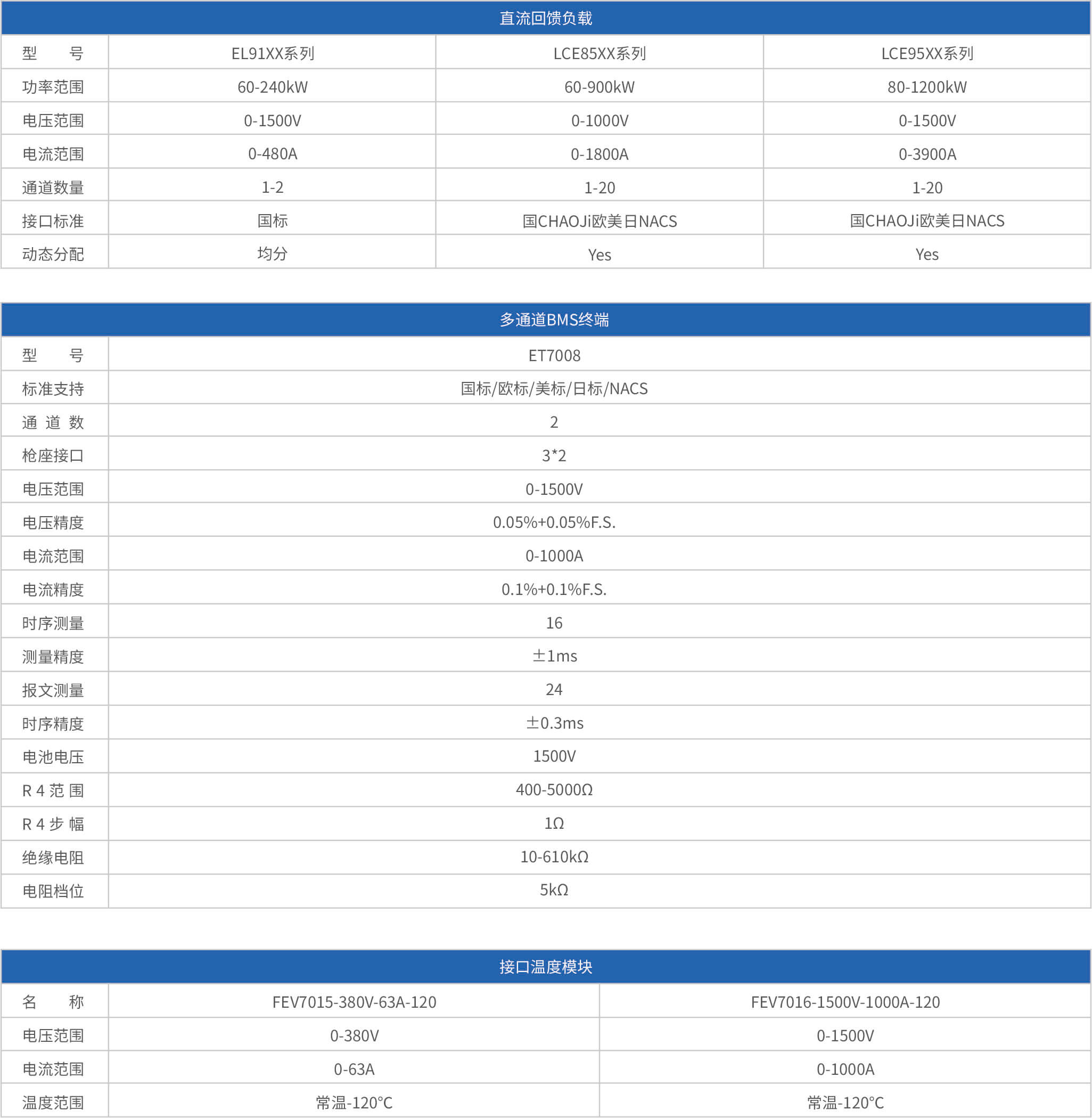

Specifications

Download Materials

Product Name	Type	Size	Update time	Download
AC/DC charging pile 3C testing system ATS700	pdf	1.49 MB	2025.09.25
