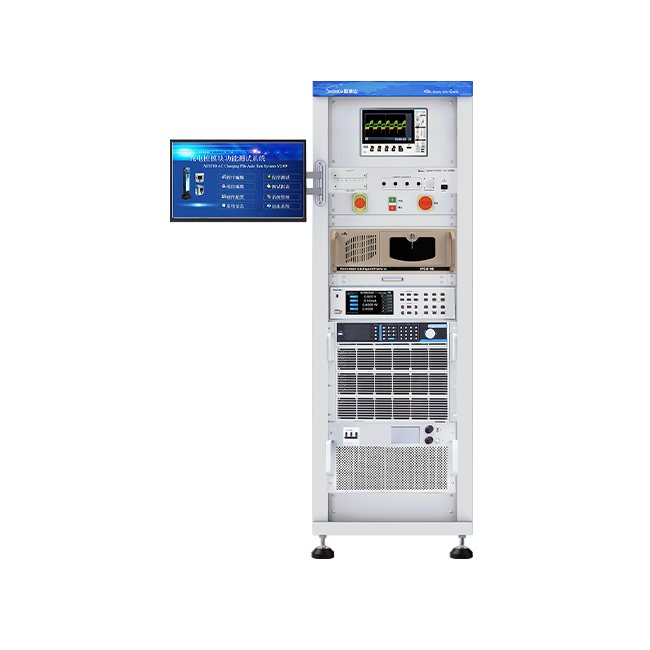

Charging pile module function test system ATS310

The ATS310 charging station module function testing system is dedicated to testing the electrical characteristics of various high-voltage charging station modules, bidirectional charging station modules, and low-voltage charging station modules. According to national standards such as GB/T18487, NB/T33001, NB/T33008, standard testing items have been established and optimized, with fast testing speed, stable system operation, and easy operation. Different power level equipment can be selected according to power, supporting multiple products such as high voltage, low voltage, bidirectional, etc. Its modular functional design can meet the needs of production, research and development, and quality testing.

Scenario coverage: production, research and development, quality inspection and testing;
Product coverage: High voltage charging station module, bidirectional charging station module, low-voltage charging station module;

Product Catalog

User Manual

Product Video

Product Details

Features

• Scene coverage: production, research and development, quality inspection and testing;

• Product coverage: High voltage charging station module, bidirectional charging station module, low-voltage charging station module;

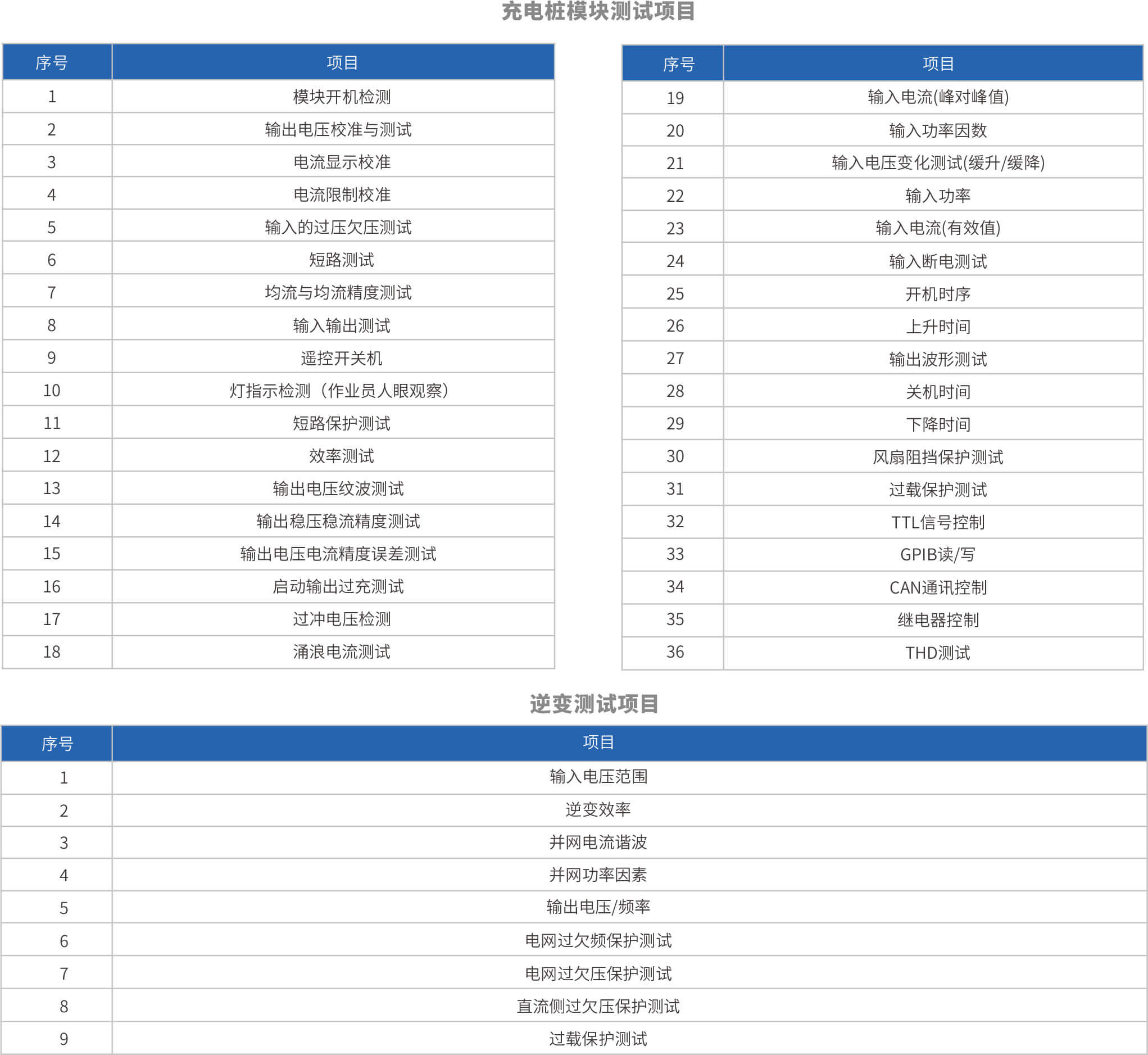

• Function coverage: input characteristic testing, output characteristic testing, control accuracy testing, voltage and current accuracy calibration, protection function testing, communication function testing, and extended communication function testing;

• Specification parameters: 10kW, 15kW, 20kW, 30kW, 40kW, 60kW and other high-power 80V-1500V high and low voltage high-power charging pile modules;

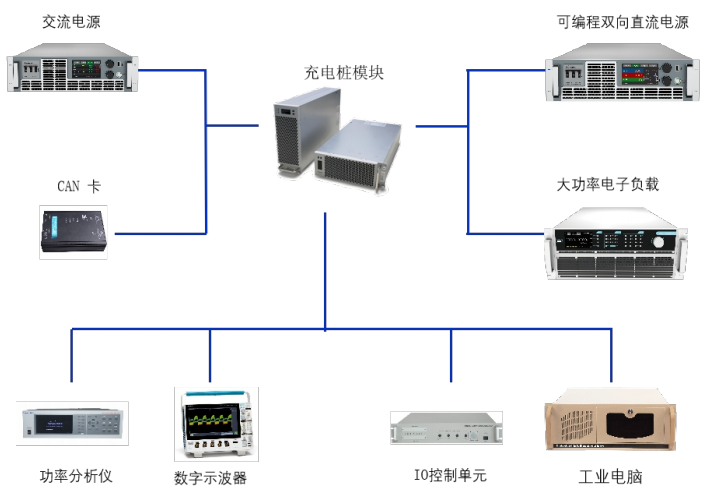

Principle Block Diagram
