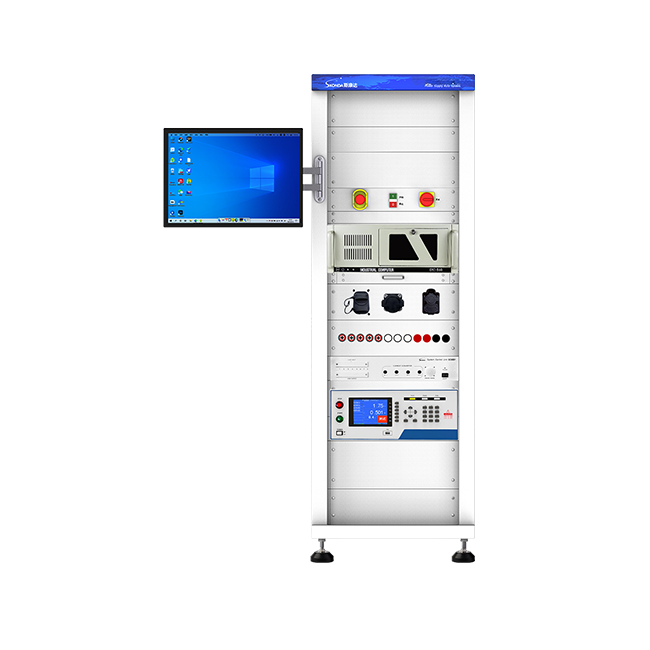

DC charging pile safety test system HTS720

The HTS720 DC charging pile safety testing system is mainly used for DC charging pile safety testing, impact withstand voltage testing, etc. It can be equipped with different standard interfaces and supports standard DC charging piles such as national standard, European standard, American standard, Japanese standard, NACS, etc. Users can customize testing projects and programs based on their actual needs through secondary development on the platform. Its elastic function can meet production testing, automated production line matching testing, and quality inspection.

Product Catalog

User Manual

Product Video

Product Details

Features

• Support multi standard compatibility for communication stations: national standard, European standard, American standard, Japanese standard, NACS optional

• Built in standard Test Project that meets standard requirements and can be used directly without the need for secondary development

• Built in testing program testing mode, fast testing speed, optimized production line testing time

• Support automatic line network interface function, matched with automatic line automation testing

• Support customized hardware selection and configuration to expand platform application functions

• Open architecture software platform that supports manual operation, program editing, and secondary project development

• Graphic user interface programming and operation control interface

• Support customized diversified report editing functions such as Word, Excel, etc

• Support four levels of operation permission management: developer, administrator, engineer, and operator

• Support system operation and entry/exit system recording for homework personnel

• Open MES system functional interfaces and support customized development

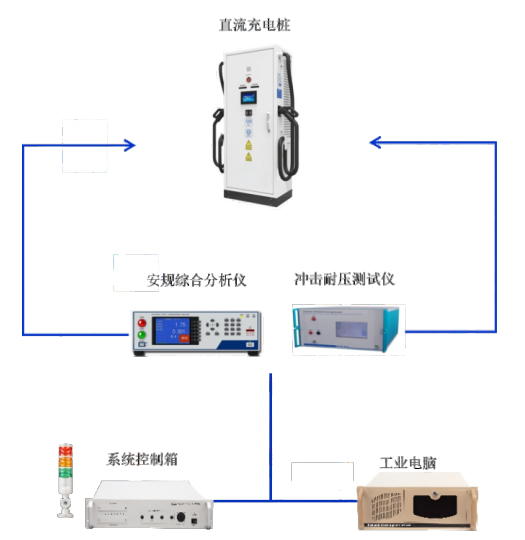

System Architecture

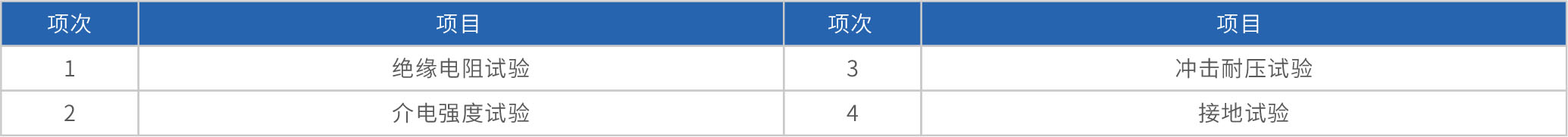

Test Project

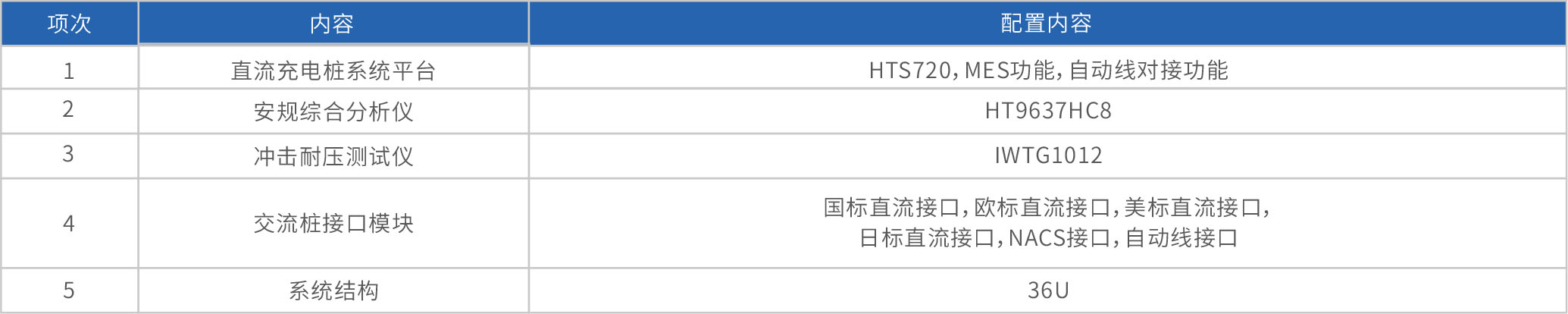

Equipment Selection

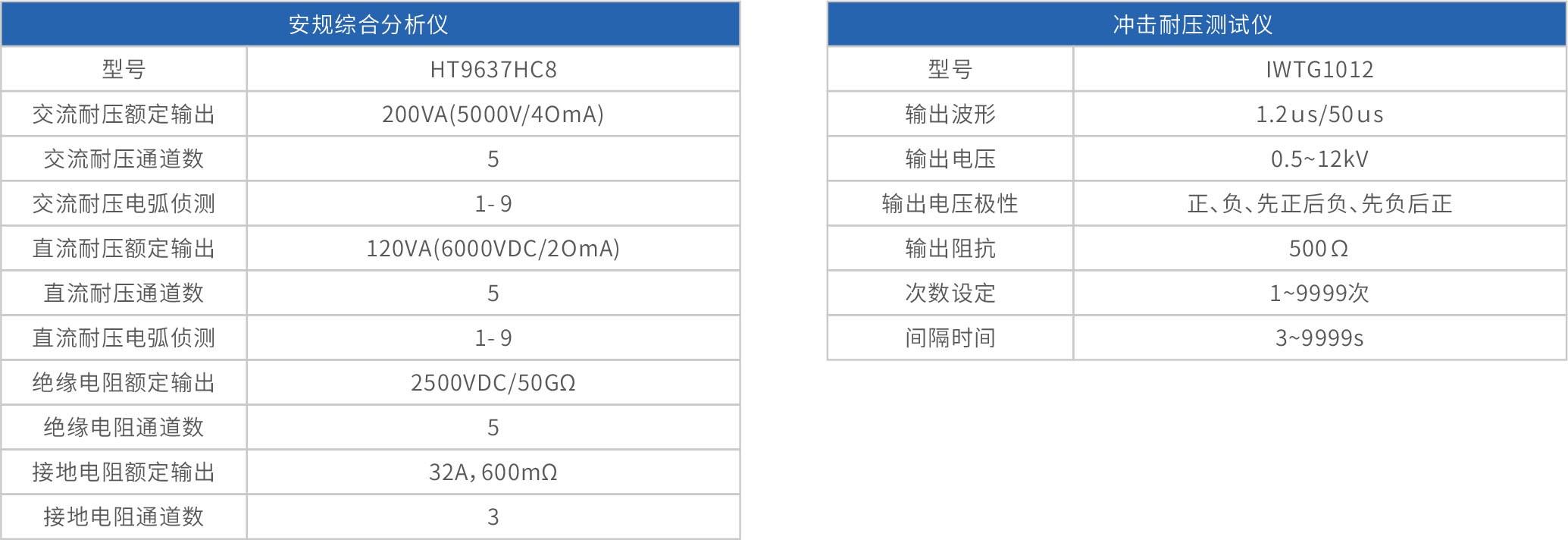

Specifications

Download Materials

Product Name	Type	Size	Update time	Download
DC charging pile safety test system HTS720	pdf	1.09 MB	2025.09.25
