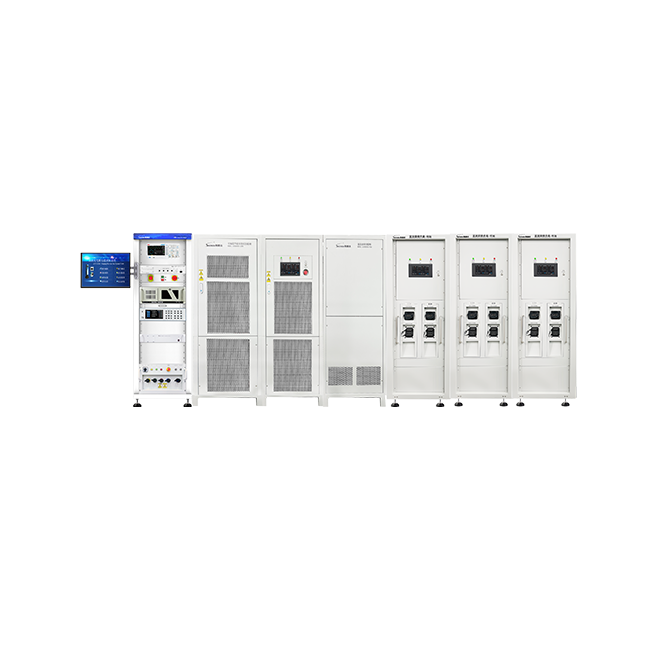

DC charging pile/charging stack function test system ATS720

The ATS720 DC charging pile/charging pile function testing system is mainly used for DC charging pile function testing, residual current testing, etc. It can be equipped with different standard interfaces and supports national standards CHAOJi、 European, American, Japanese, NACS and other standard DC charging piles. Users can choose AC power module, DC pile simulation analyzer, power analyzer, electronic load and other functional modules according to their actual needs. Its modular functional design can meet production testing and quality inspection testing.

Covering global DC pile standards: national standards, CHAOJi， European standard, American standard, Japanese standard, NACS optional
Supports up to 20 BMS channels and channel interfaces up to 1000A

Product Catalog

User Manual

Product Video

Product Details

Features

• Covering global DC pile standards: national standards, CHAOJi， European standard, American standard, Japanese standard, NACS optional

• Supports up to 20 BMS channels, with channel interfaces supporting up to 1000A

• The highest voltage support is 1500V, covering the latest national standards

• Real time dynamic power allocation, simulating real multi vehicle charging scenarios

• The system supports charging piles, integrated piles, pile charging power cabinets, and independent gun cabinets for independent testing

• The system supports DC bus pile testing and V2G mode

• The independent BMS channel has independent testing function, and the system can be distributed to configure multi station shared power pools

• Built in standard Test Project that meets standard requirements and can be used directly without the need for secondary development

• Built in testing program testing mode, fast testing speed, optimized production line testing time

• Support communication extensions such as Bluetooth, WIFI, RS485, LAN, etc. for automated testing of products

• Support automatic line network interface function, matched with automatic line automation testing

• Support customized hardware selection and configuration to expand platform application functions

• Open architecture software platform that supports manual operation, program editing, and secondary project development

• Graphic user interface programming and operation control interface

• Support customized diversified report editing functions such as Word, Excel, etc

• Support four levels of operation permission management: developer, administrator, engineer, and operator

• Support system operation and entry/exit system recording for homework personnel

• Open MES system functional interfaces and support customized development

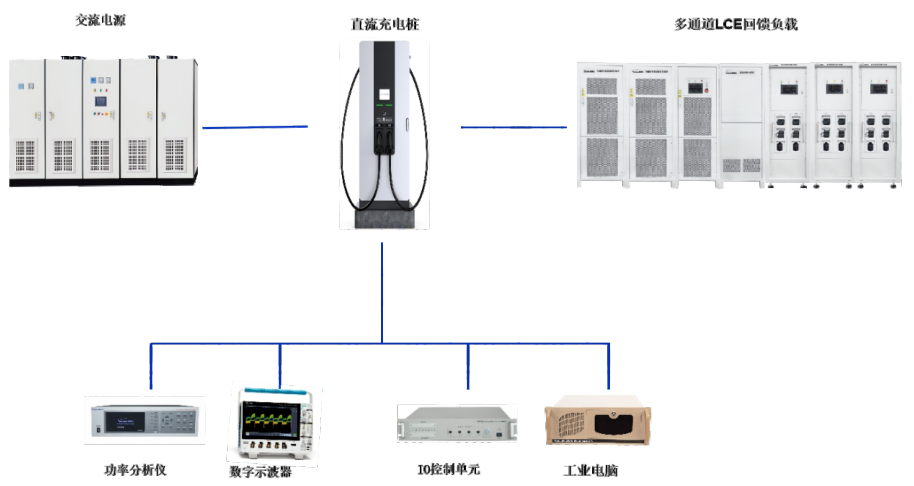

System Architecture

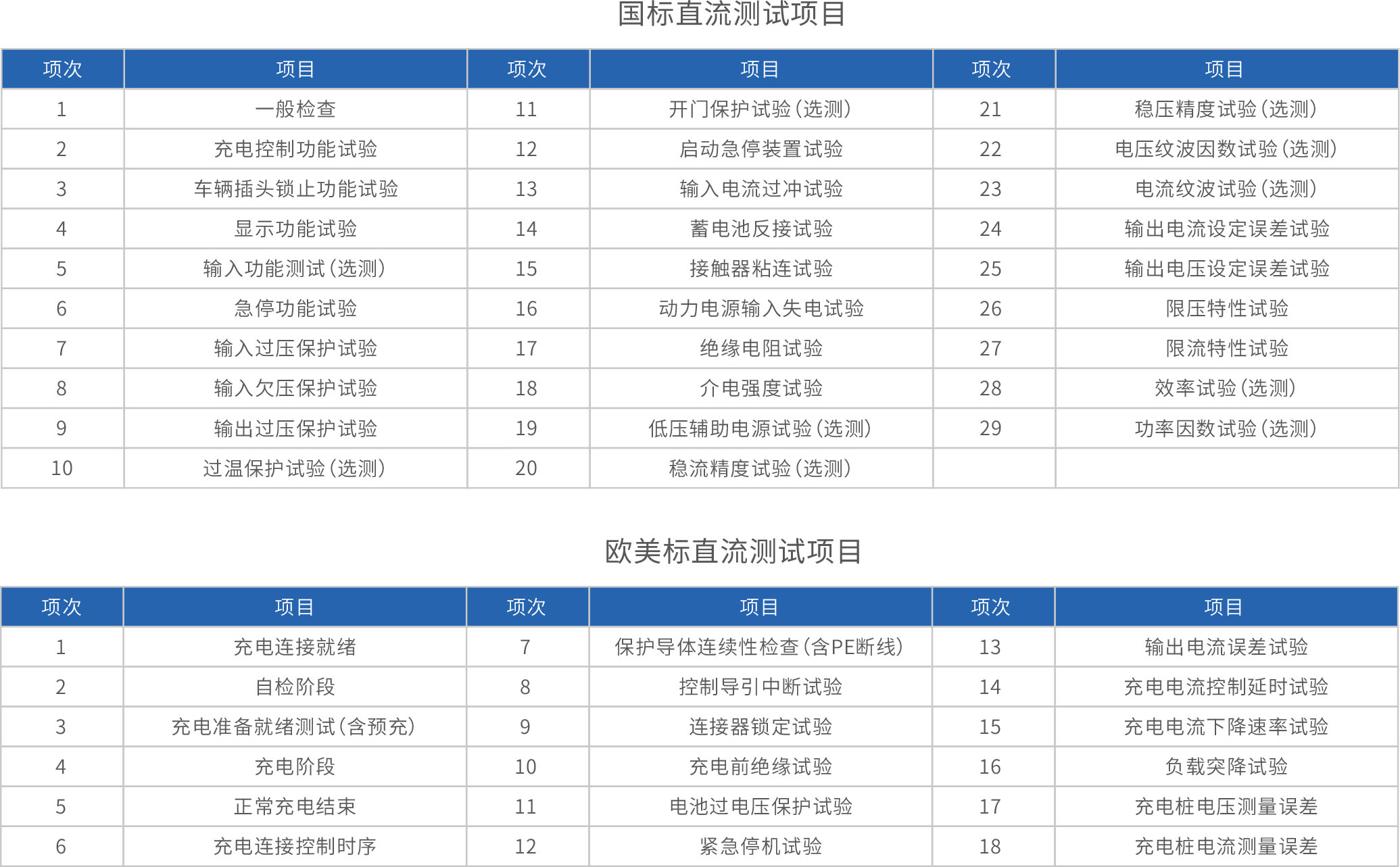

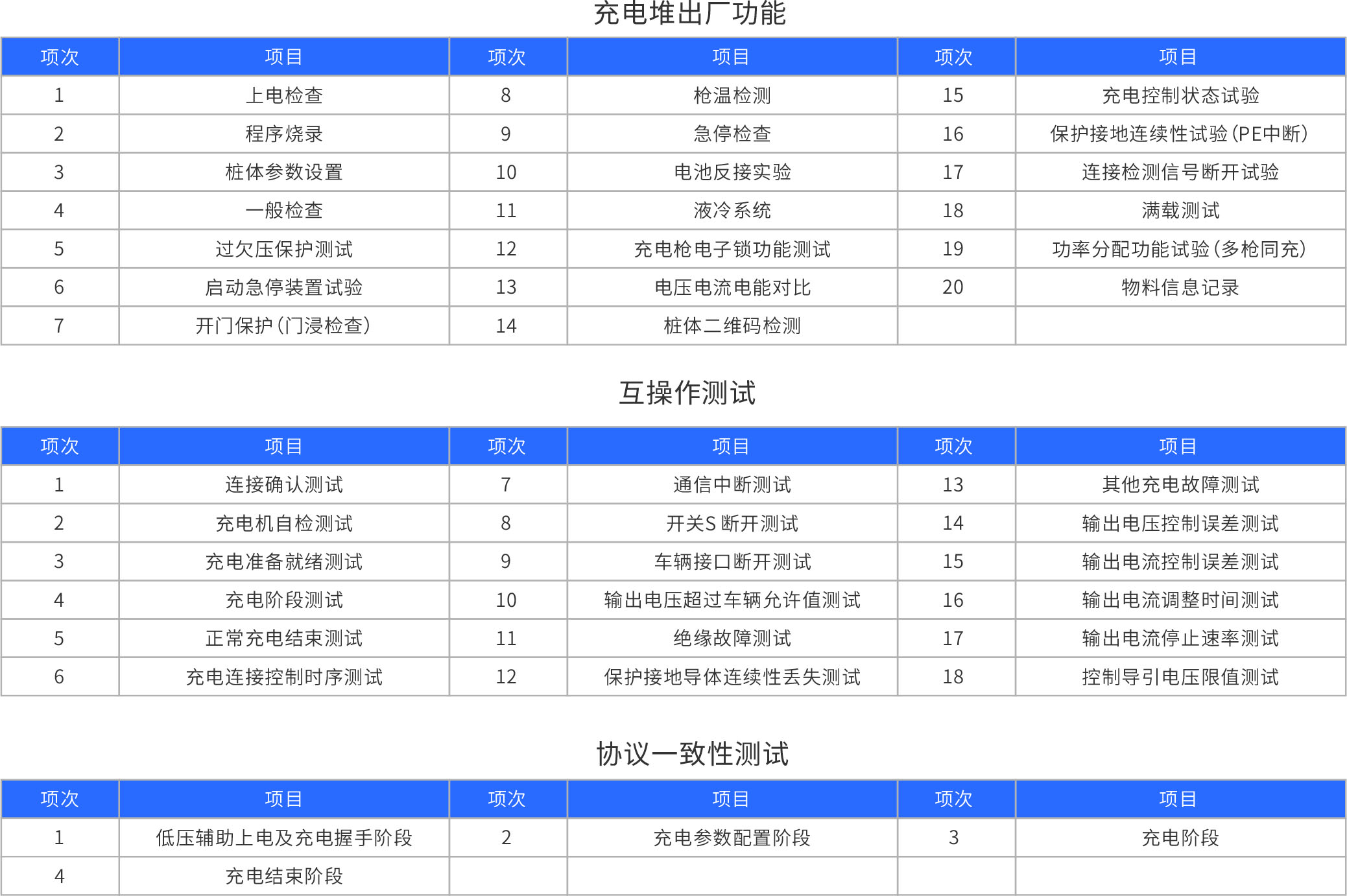

Test Project (Factory)

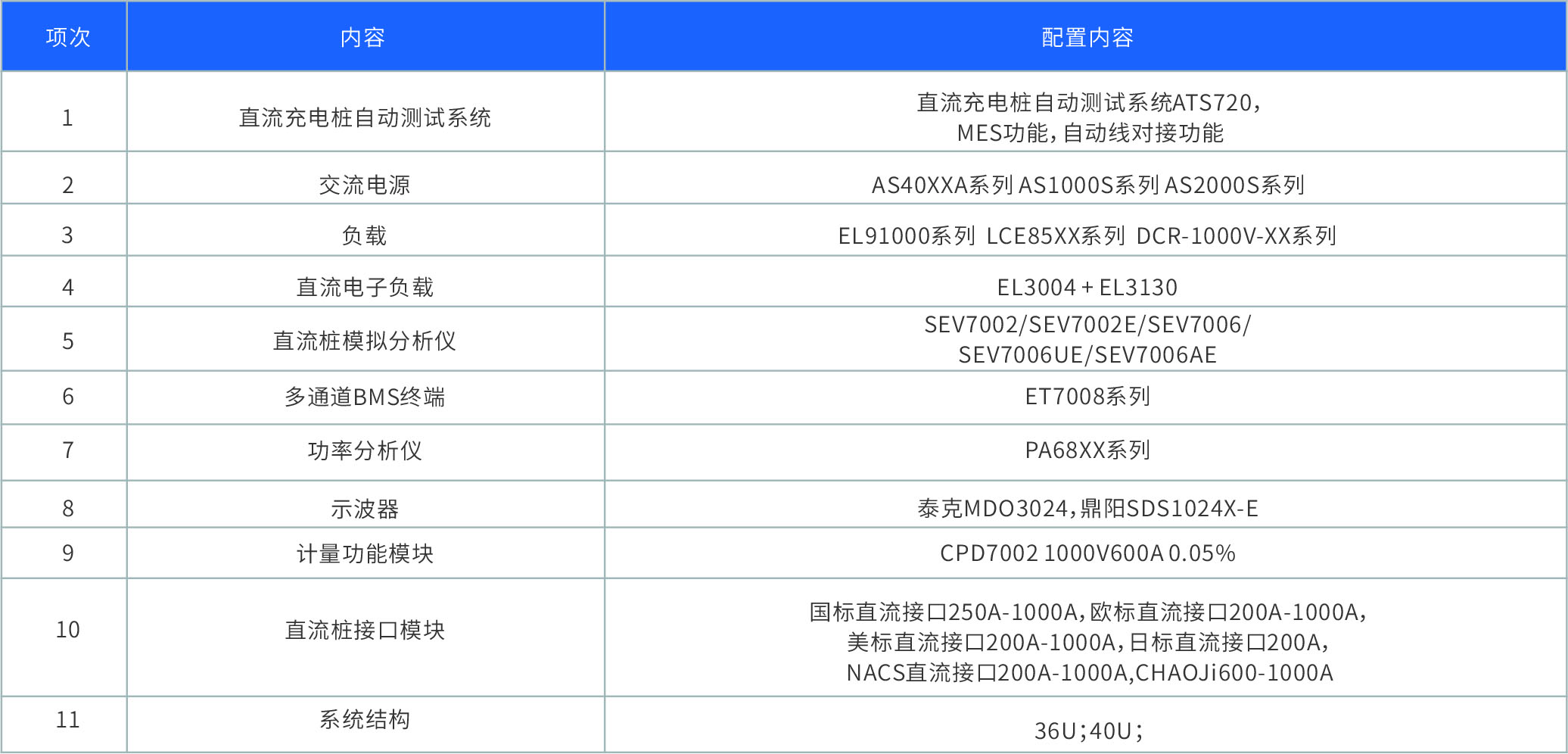

Order Information

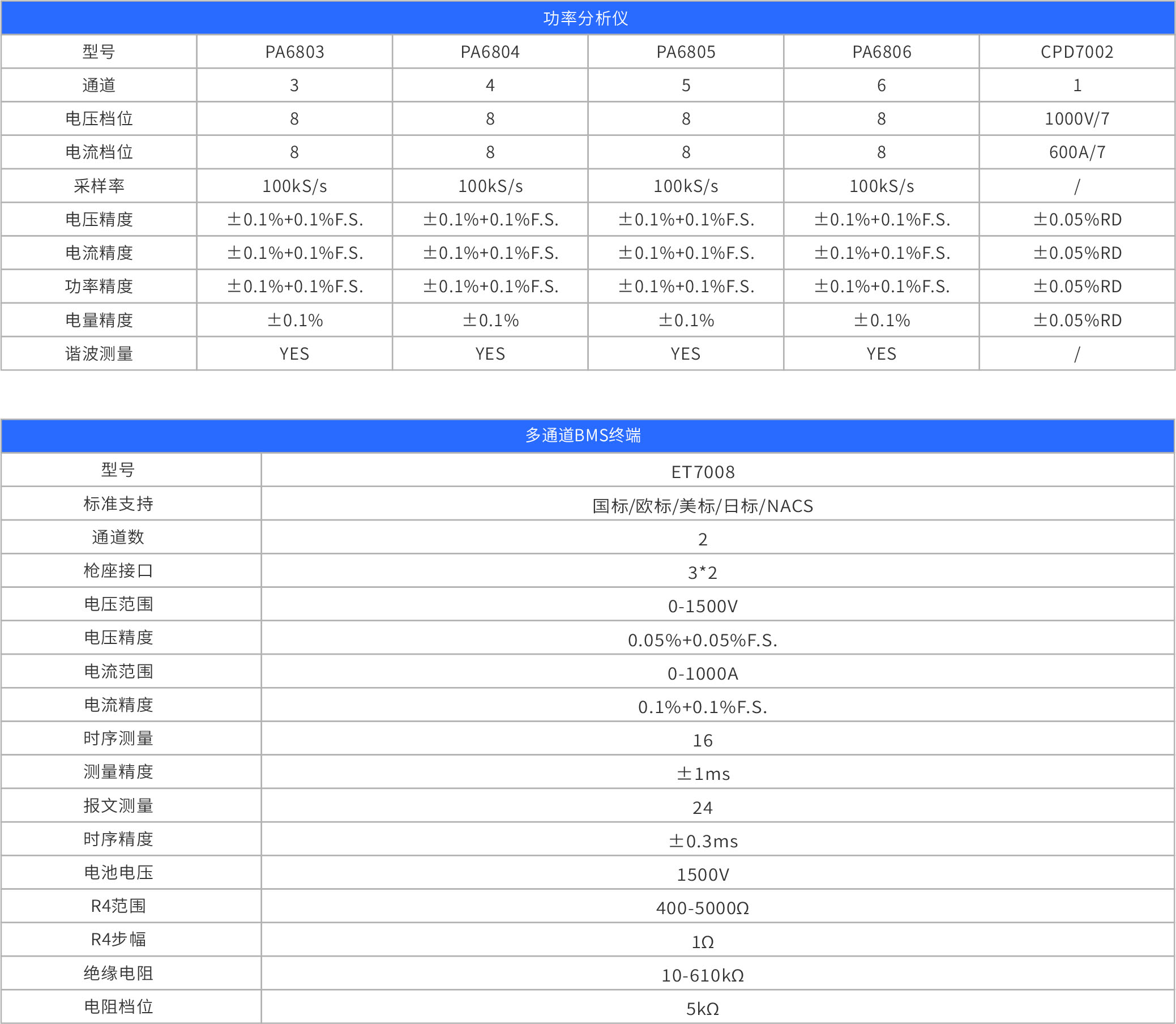

Specifications

Download Materials

Product Name	Type	Size	Update time	Download
DC charging pile/charging stack function test system ATS720	pdf	25.1 MB	2025.09.25
