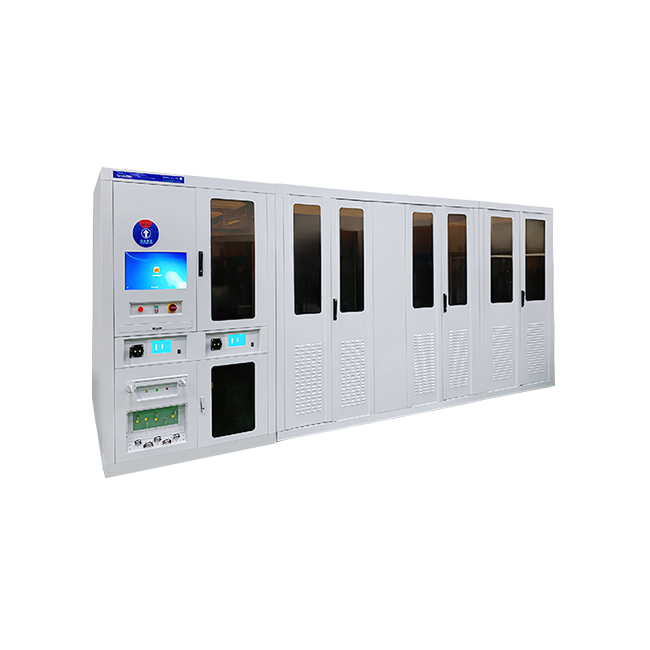

DC charging pile dual-gun functional test system ATS720_Test system_Charging facilities_Applications

Features

• Covering global DC pile standards: national standards, CHAOJi， European standard, American standard, Japanese standard, NACS optional

• Supports up to 2 BMS channels, with channel interfaces supporting up to 1000A

• The highest voltage support is 1500V, covering the latest national standards

• The independent BMS channel has independent testing function

• Built in standard Test Project that meets standard requirements and can be used directly without the need for secondary development

• Built in testing program testing mode, fast testing speed, optimized production line testing time

• Support communication extensions such as Bluetooth, WIFI, RS485, LAN, etc. for automated testing of products

• Support automatic line network interface function, matched with automatic line automation testing

• Support customized hardware selection and configuration to expand platform application functions

• Open architecture software platform that supports manual operation, program editing, and secondary project development

• Graphic user interface programming and operation control interface

• Support customized diversified report editing functions such as Word, Excel, etc

• Support four levels of operation permission management: developer, administrator, engineer, and operator

• Support system operation and entry/exit system recording for homework personnel

• Open MES system functional interfaces and support customized development

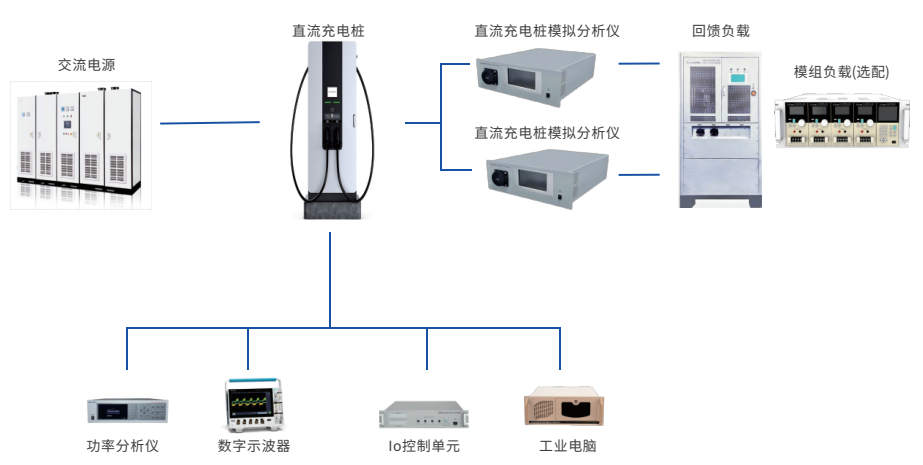

System Architecture

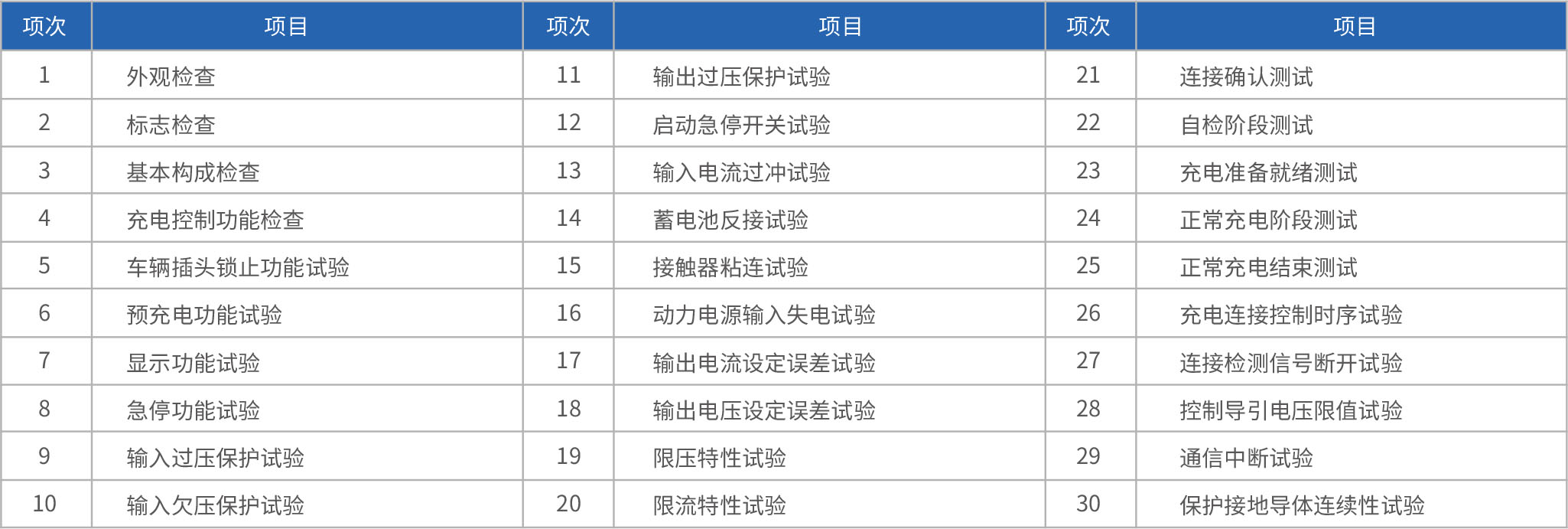

Functional Support (Single/Dual Gun Factory Function Project)

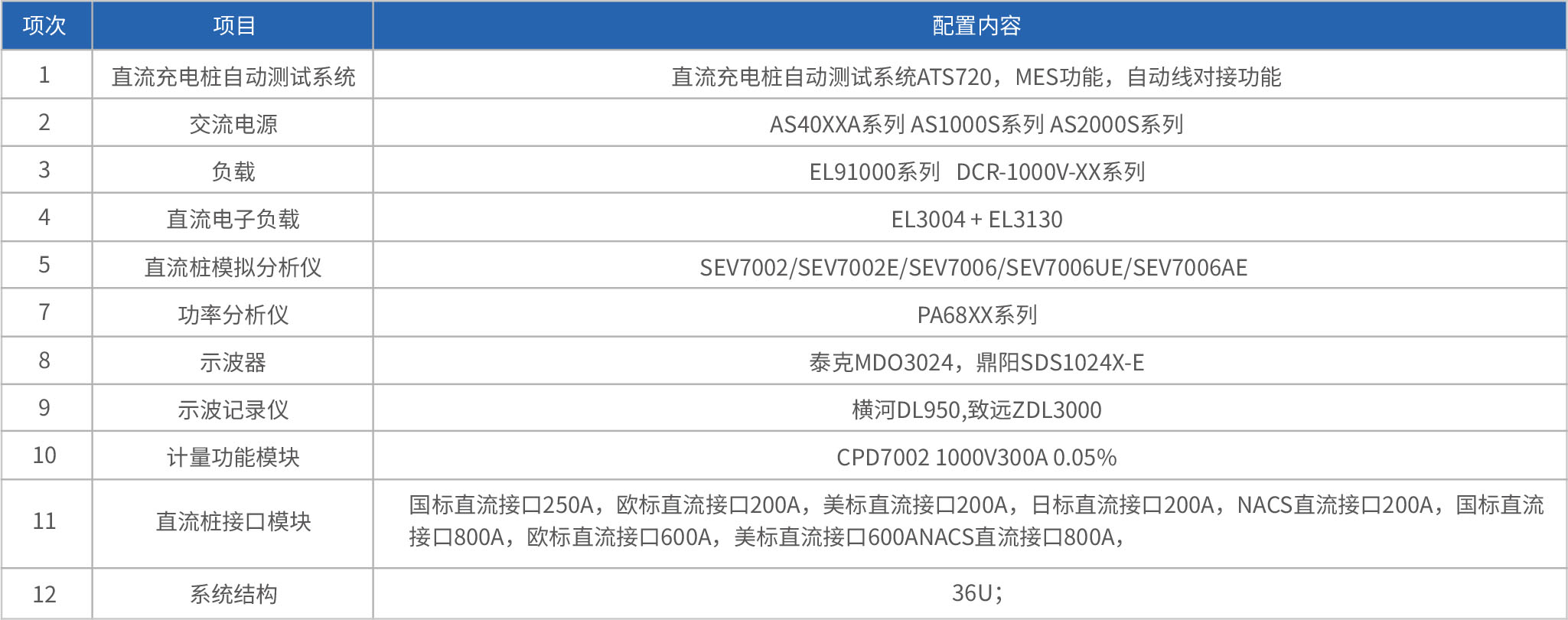

Sales Strategy

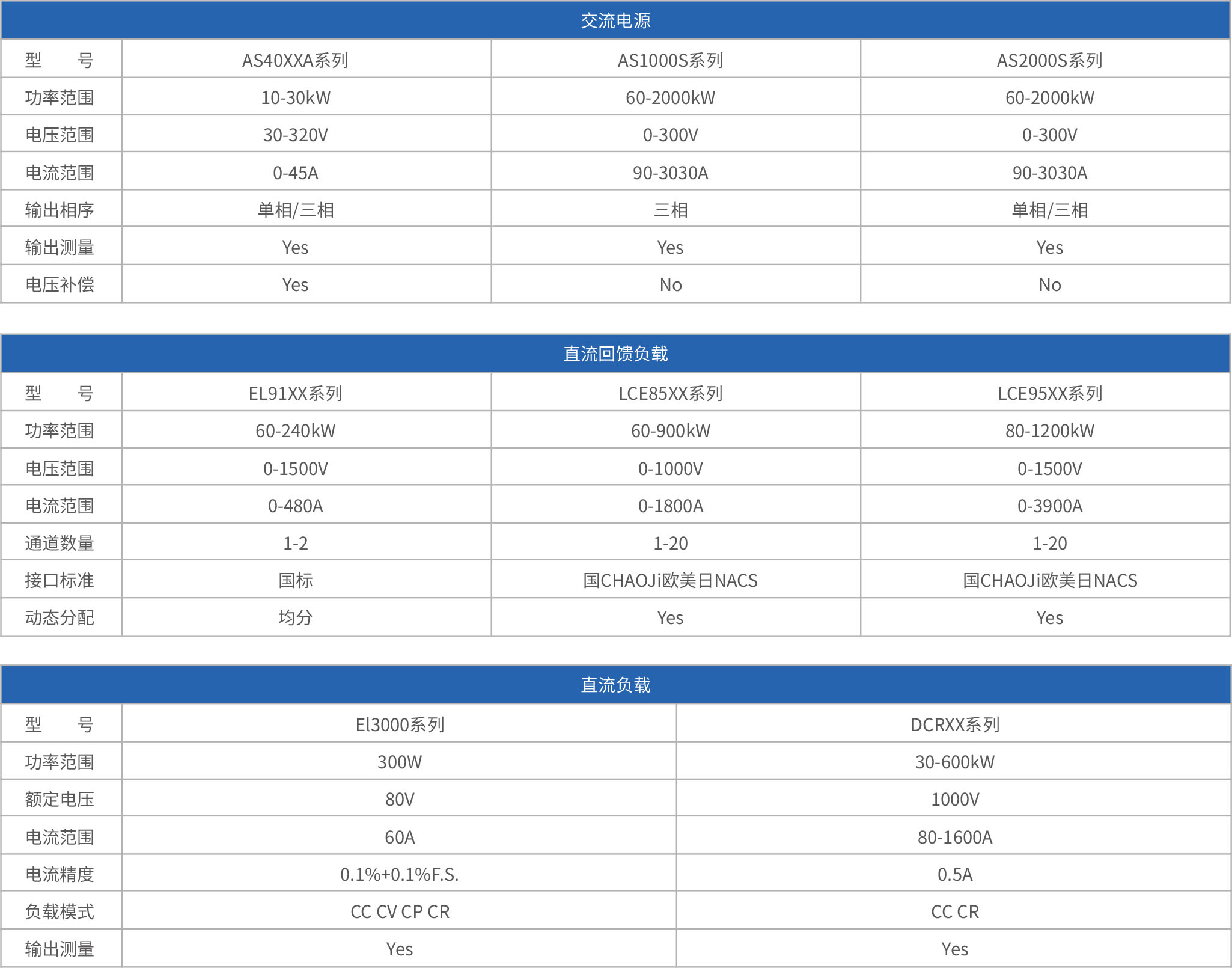

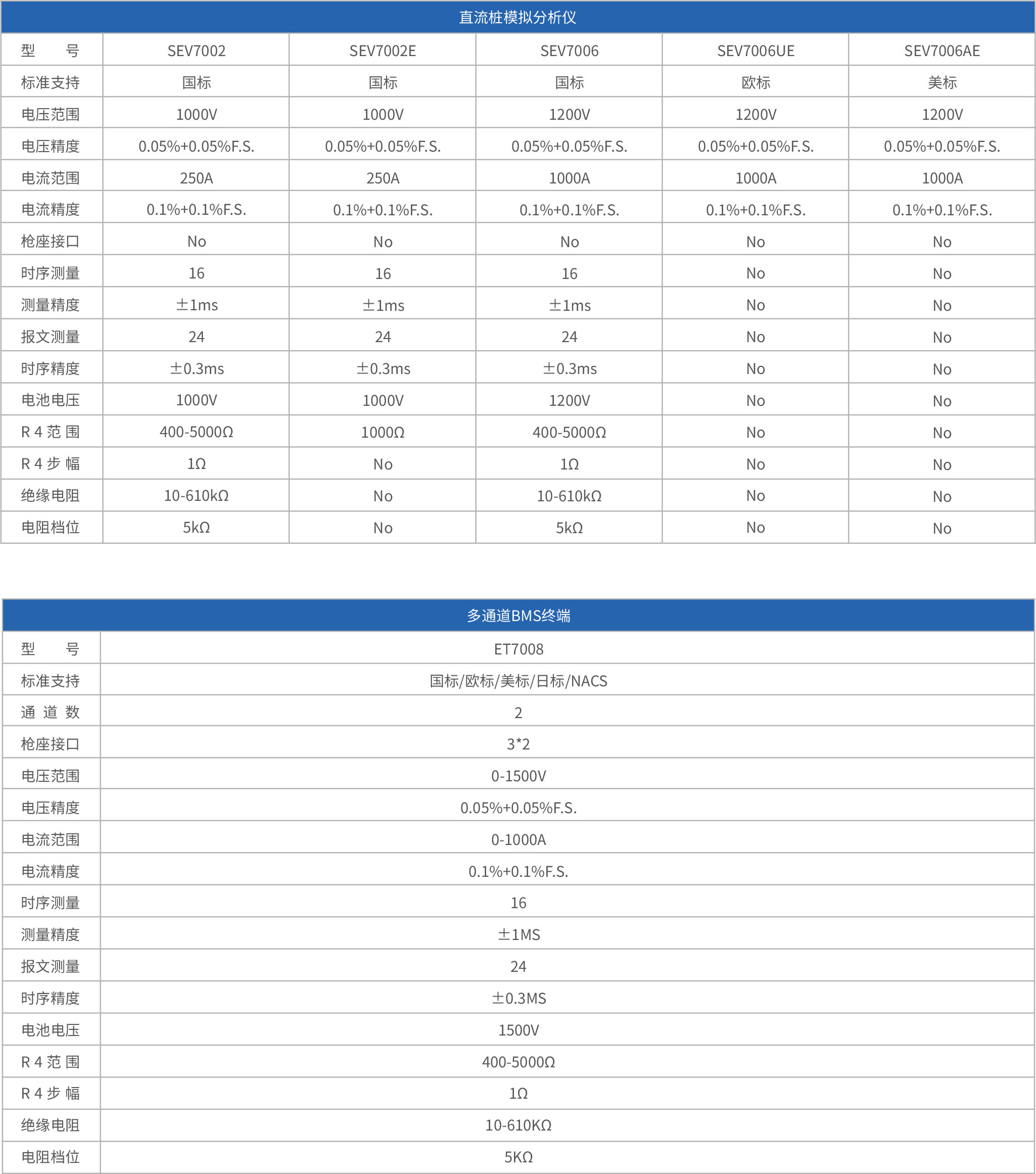

Specifications

Product Name	Type	Size	Update time	Download
DC charging pile dual-gun functional test system ATS720	pdf	1.04 MB	2025.09.25
