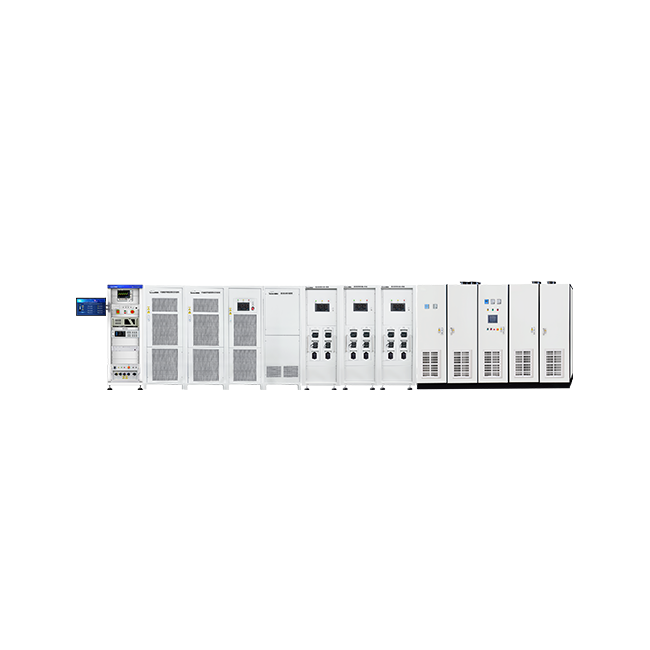

The ATS700 AC/DC charging pile type testing system is mainly used for DC charging pile type testing. It can be equipped with different standard interfaces and supports national standards CHAOJi、 European, American, NACS and other standard DC charging stations. Users can choose AC power module, DC pile simulation analyzer, power analyzer, digital oscilloscope, metering module, DC feedback load, resistance load and other functional modules according to their actual needs. Its open functional design can meet the requirements of third-party testing institutions and R&D laboratories for type testing and report output of charging piles.
Features
• Covering the global mainstream DC pile standards and national standards, CHAOJi， European standard, American standard, Japanese standard, NACS optional
• Support projects covering functional requirements such as electrical, safety regulations, interoperability, protocol consistency, etc
• Support national standard pile 3C certification testing requirements, covering safety requirements for power supply equipment and conductive charging safety requirements standards
• Support R&D laboratory layout planning, high and low temperature experiments, environmental systems, power distribution engineering and other supporting integration
• Supports up to 20 BMS channels, with channel interfaces supporting up to 1000A
• Built in standard Test Project that meets standard requirements and can be used directly without the need for secondary development
• Support automatic capture and report output of waveform images from oscilloscopes, recorders, and other devices
• Support communication extensions such as Bluetooth, WIFI, RS485, LAN, etc. for automated testing of products
• Support automatic line network interface function, matched with automatic line automation testing
• Support customized hardware selection and configuration to expand platform application functions
• Open architecture software platform that supports manual operation, program editing, and secondary project development
• Graphic user interface programming and operation control interface
• Support customized diversified report editing functions such as Word, Excel, etc
• Support four levels of operation permission management: developer, administrator, engineer, and operator
• Support system operation and entry/exit system recording for homework personnel

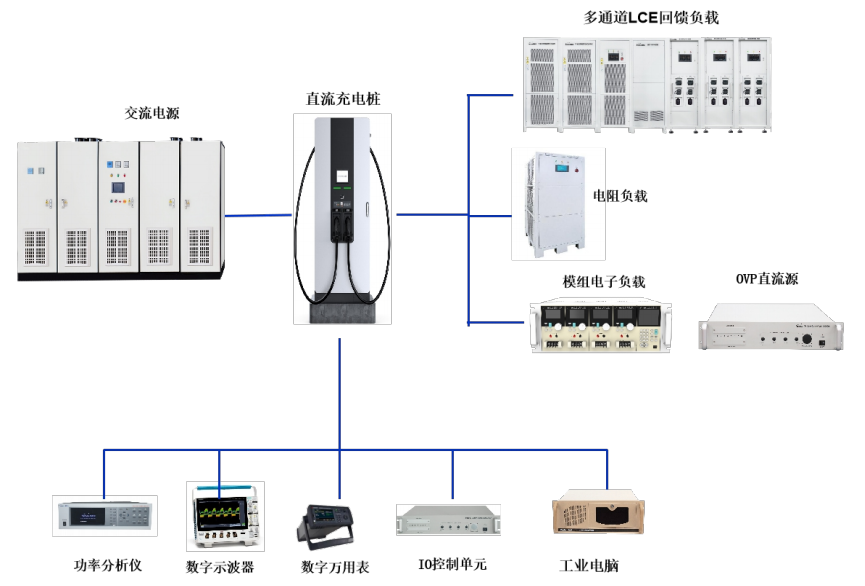

System Architecture

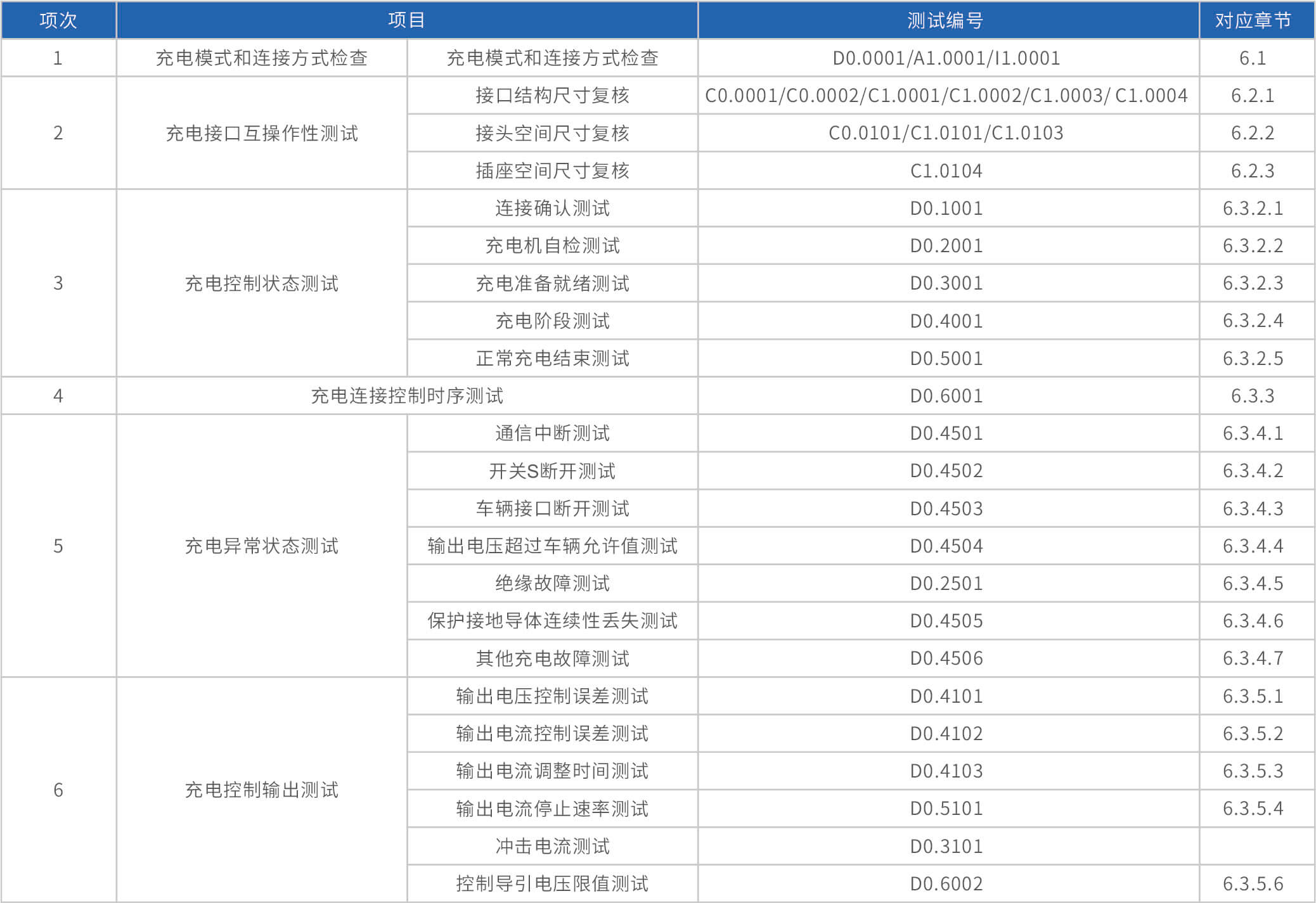

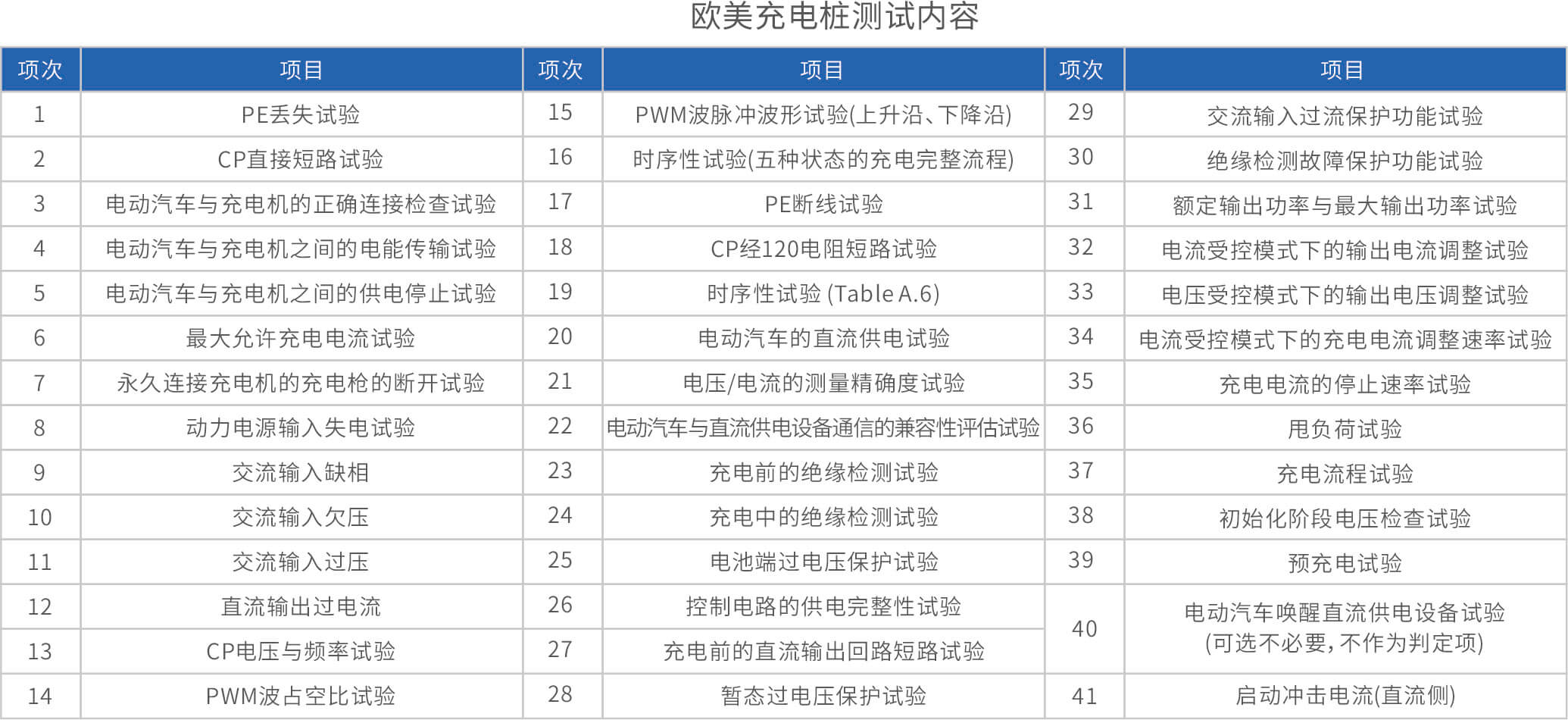

Test Project (Type Test)
Test Project (Interoperability Specification)

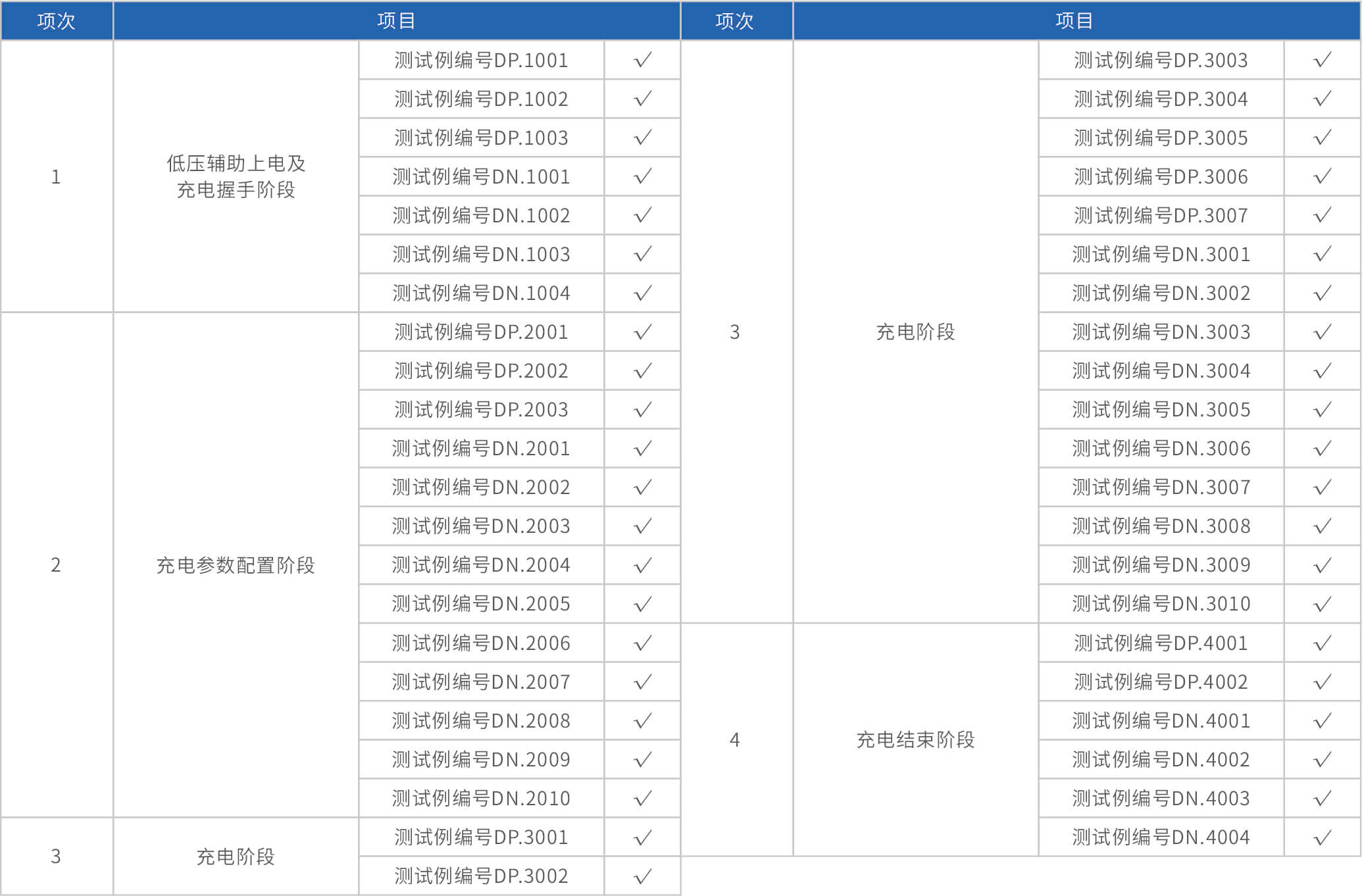

Test Project (Protocol Consistency)
Test Project (Type Test)

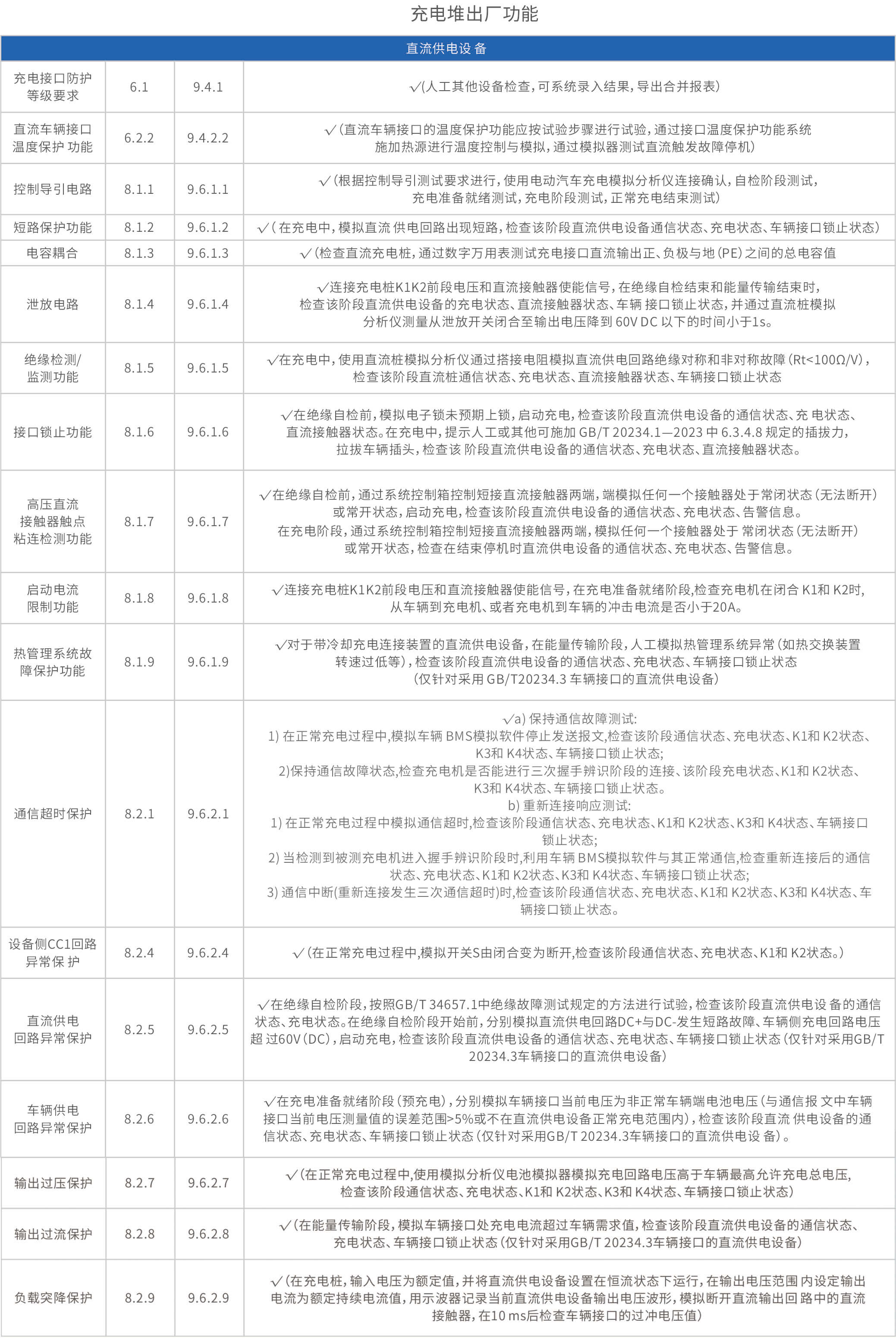

Test Project (Mandatory Inspection)

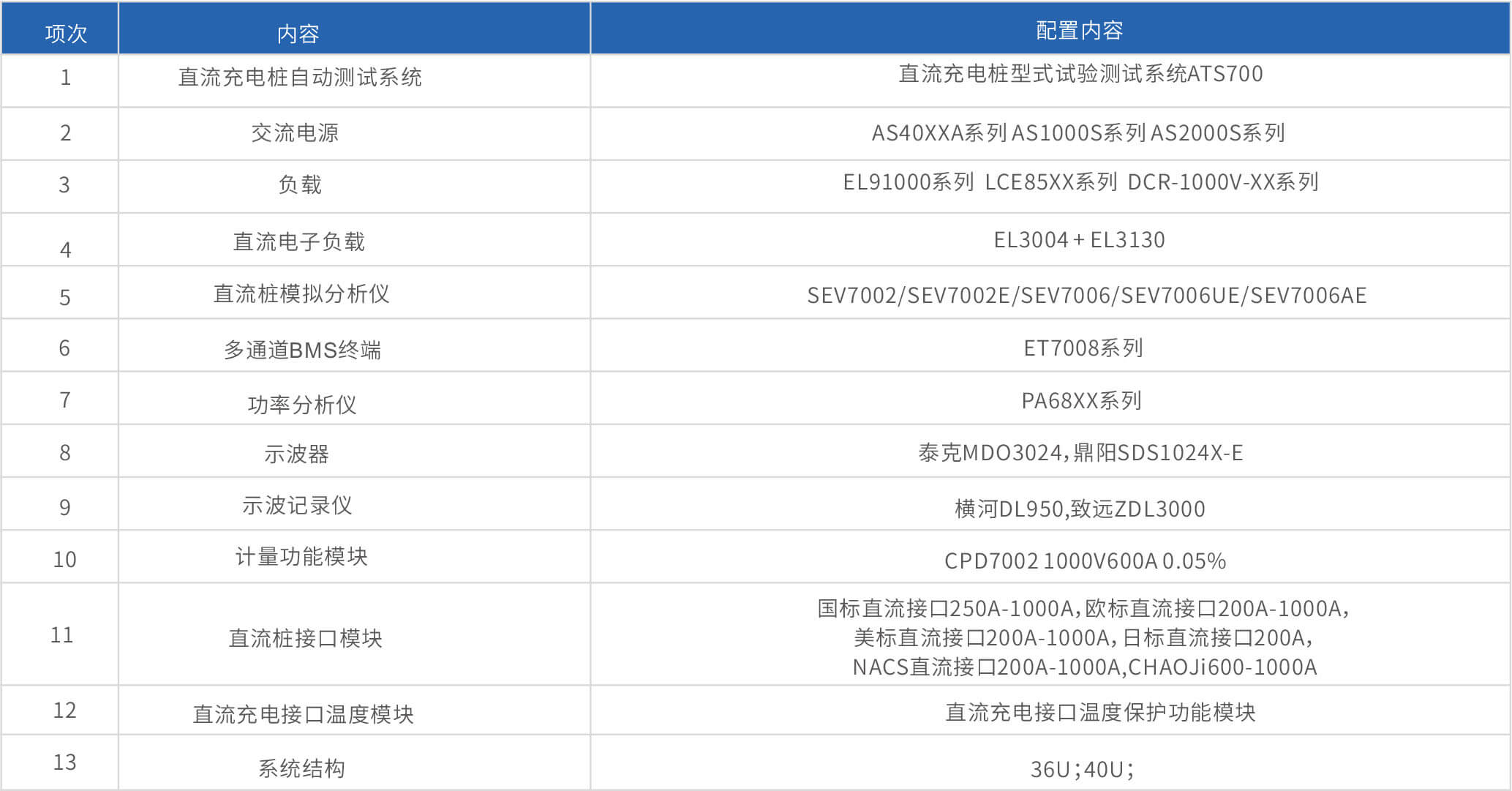

Selection Information

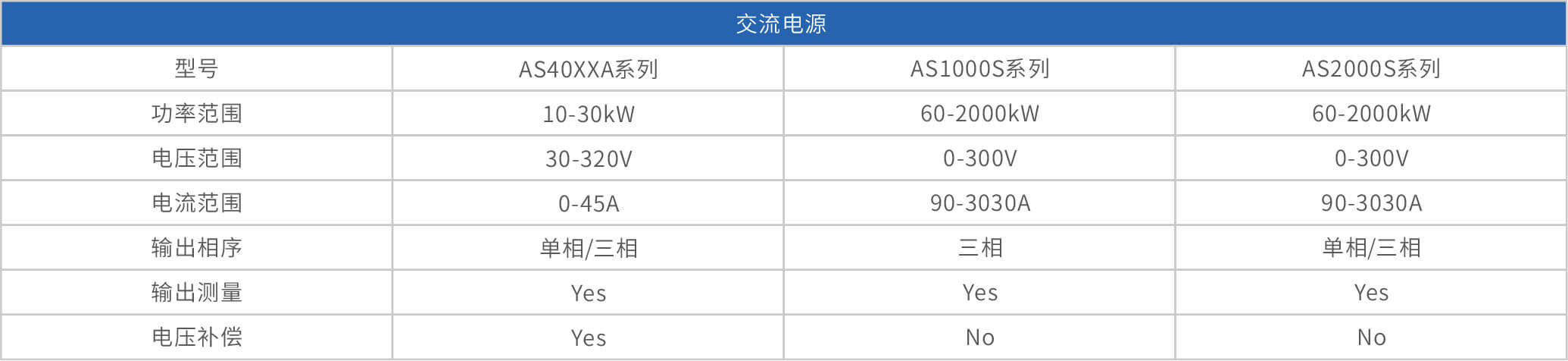

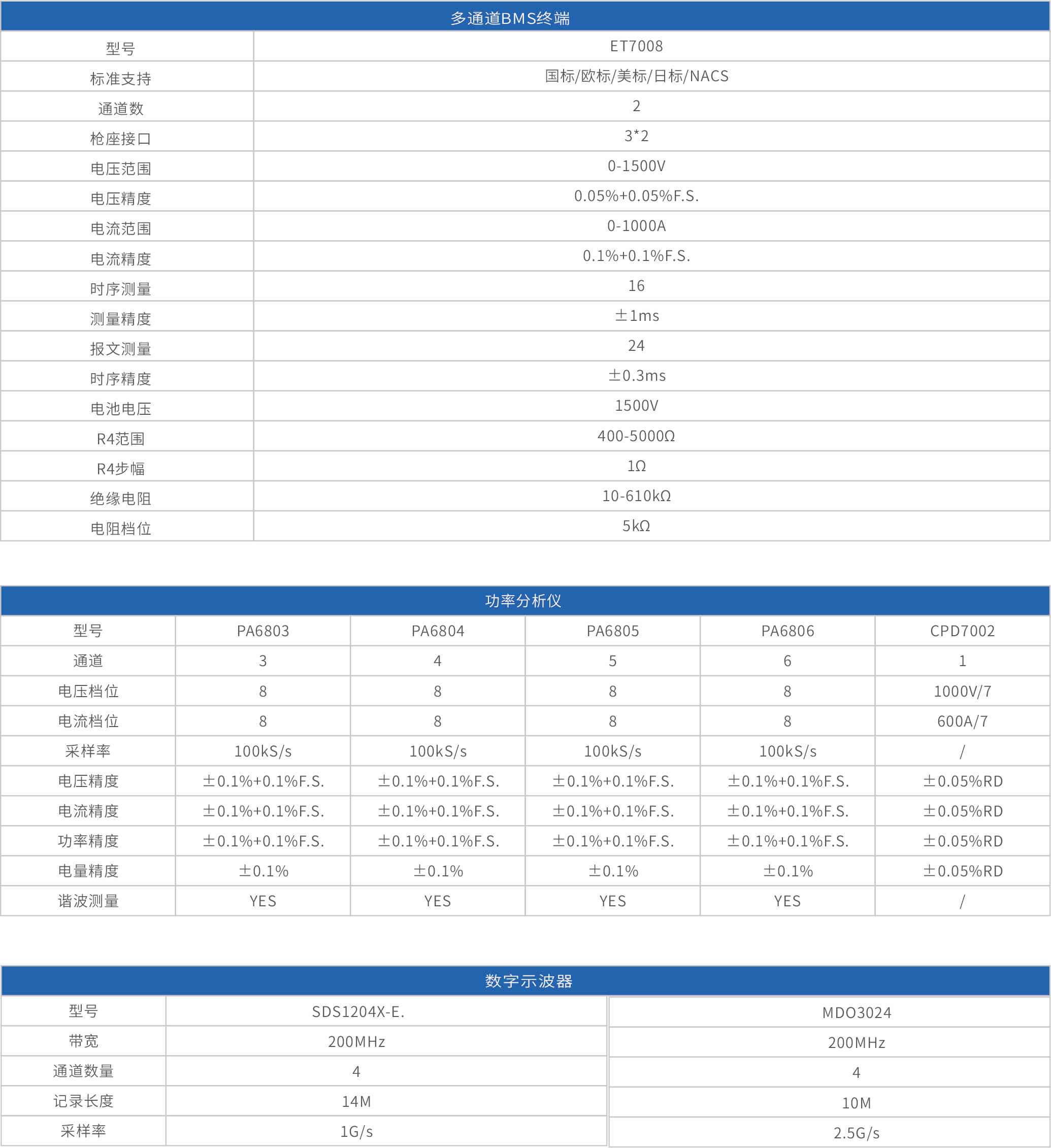

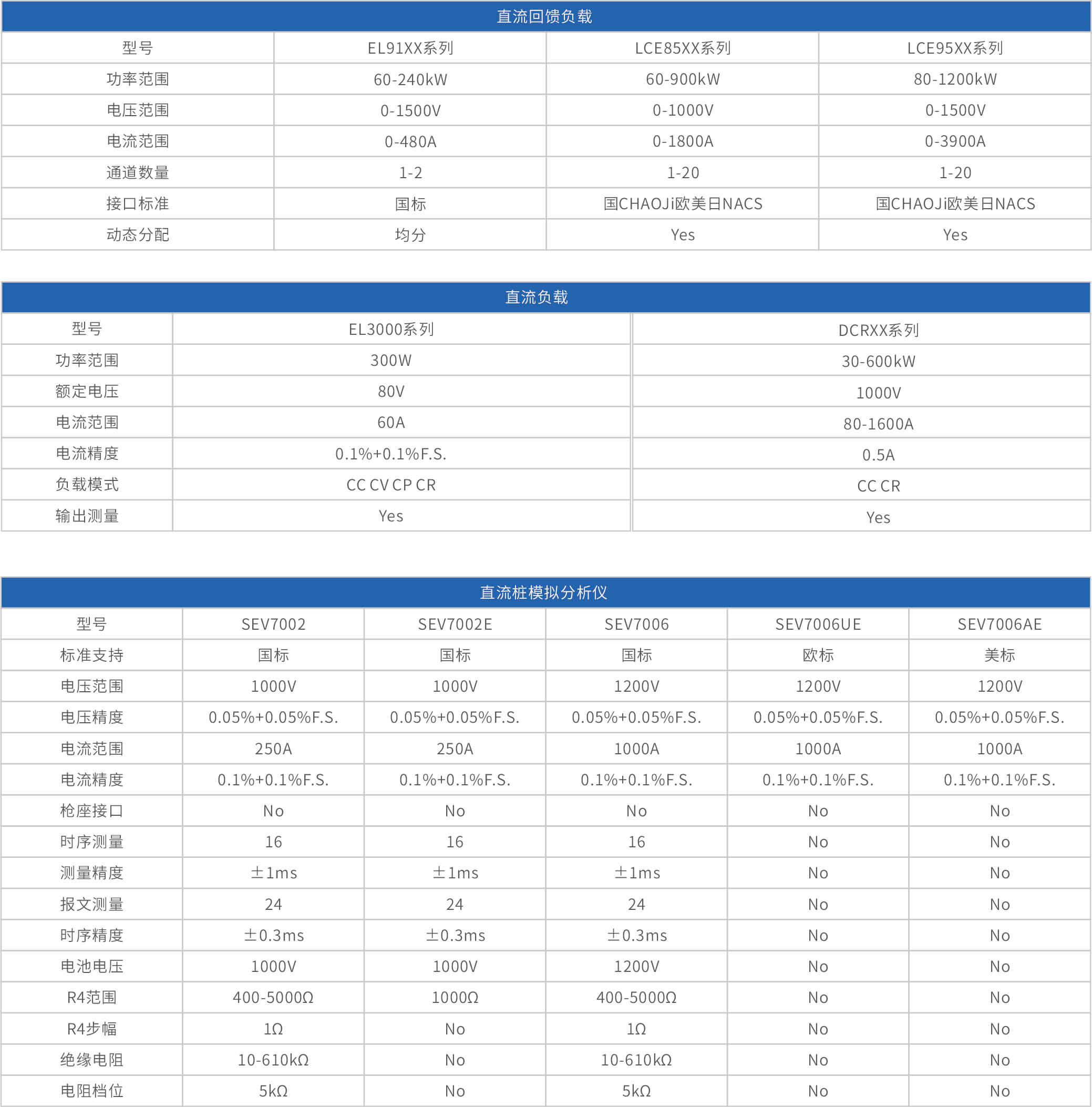

Specifications
| Product Name | Type | Size | Update time | Download |
| AC/DC charging pile type test system ATS700 | 1.21 MB | 2025.09.25 |  |
