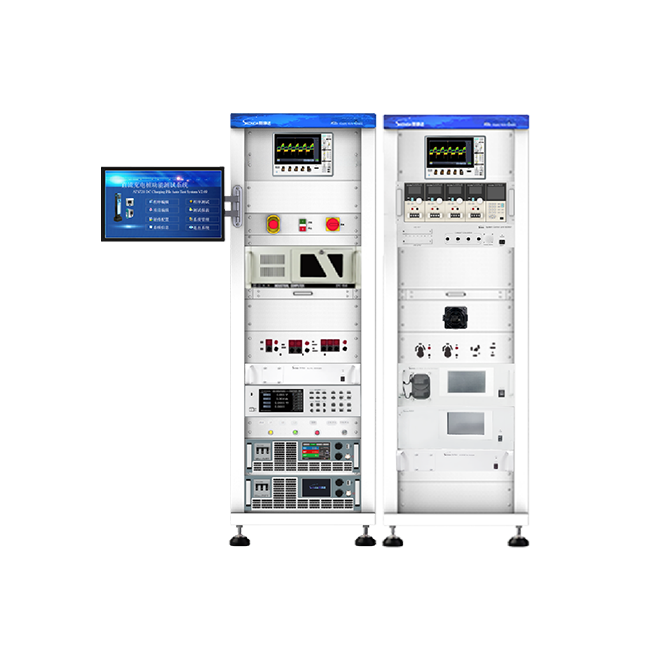

Bidirectional small DC charging pile function test system ATS720

The bidirectional small DC charging pile function testing system ATS720 is mainly used for small DC charging pile function testing, etc. It can be equipped with different standard interfaces and supports standard DC charging piles such as national standard, American standard, Japanese standard, NACS, etc. Users can choose power grid simulator module, DC pile simulation analyzer, power analyzer, bidirectional DC power supply and other functional modules according to their actual needs. Its modular functional design can meet production testing and quality inspection testing.

Covering global DC pile standards: national standard, European standard, American standard, Japanese standard, NACS optional
Maximum support for a single BMS channel, channel interface supports up to 200A

Product Catalog

User Manual

Product Video

Product Details

Features

• Covering global DC pile standards: national standard, European standard, American standard, Japanese standard, NACS optional

• Maximum support for a single BMS channel, channel interface supports up to 200A

• The highest voltage support is 1000V, covering the latest national standards

• The independent BMS channel has independent testing function

• Built in standard Test Project that meets standard requirements and can be used directly without the need for secondary development

• Built in testing program testing mode, fast testing speed, optimized production line testing time

• Support communication extensions such as Bluetooth, WIFI, RS485, LAN, etc. for automated testing of products

• Support automatic line network interface function, matched with automatic line automation testing

• Support customized hardware selection and configuration to expand platform application functions

• Open architecture software platform that supports manual operation, program editing, and secondary project development

• Graphic user interface programming and operation control interface

• Support customized diversified report editing functions such as Word, Excel, etc

• Support four levels of operation permission management: developer, administrator, engineer, and operator

• Support system operation and entry/exit system recording for homework personnel

• Open MES system functional interfaces and support customized development

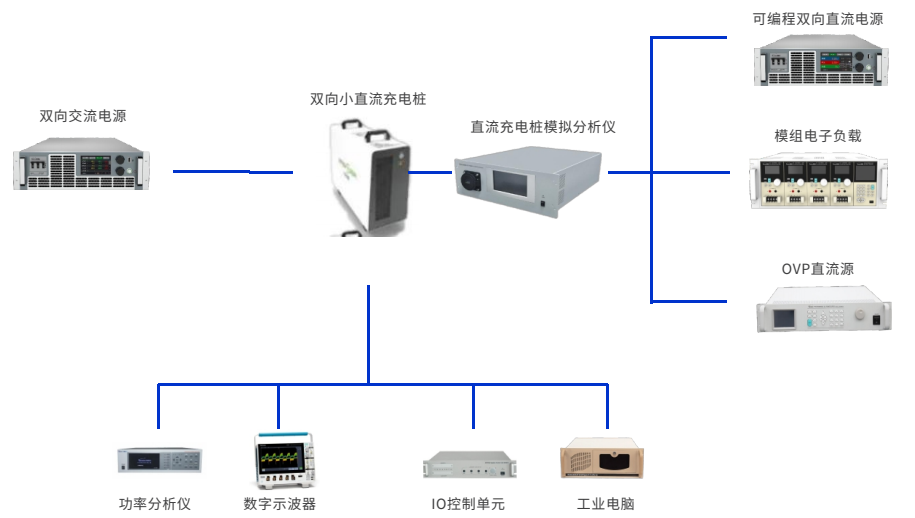

System Architecture

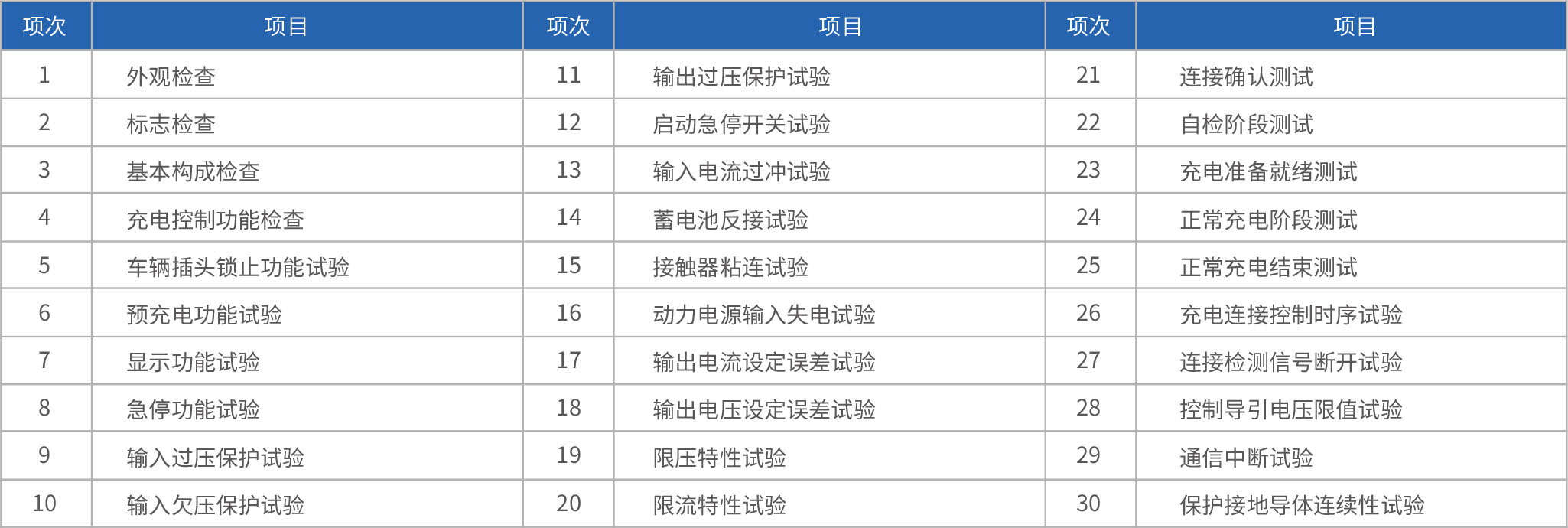

Factory Functional Items

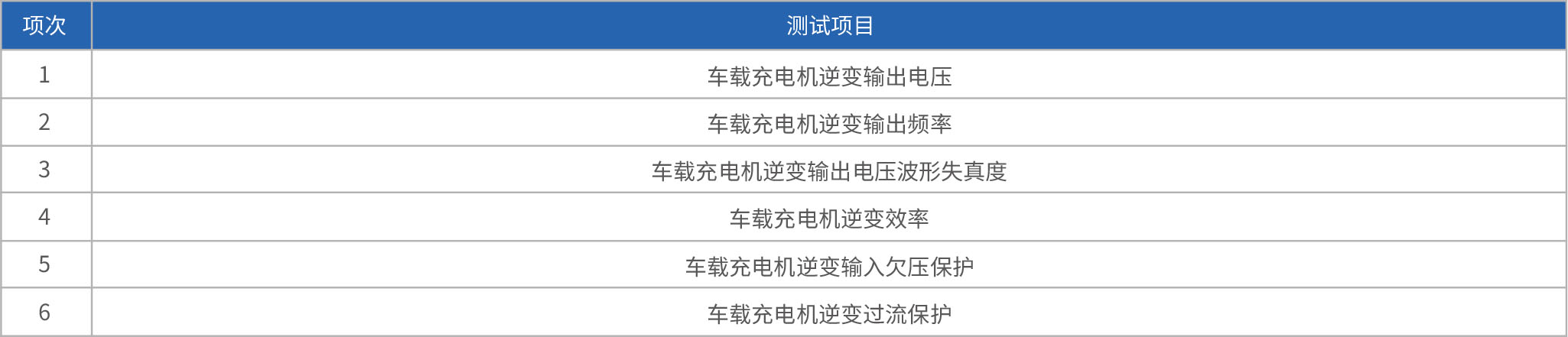

Reverse Functional Testing

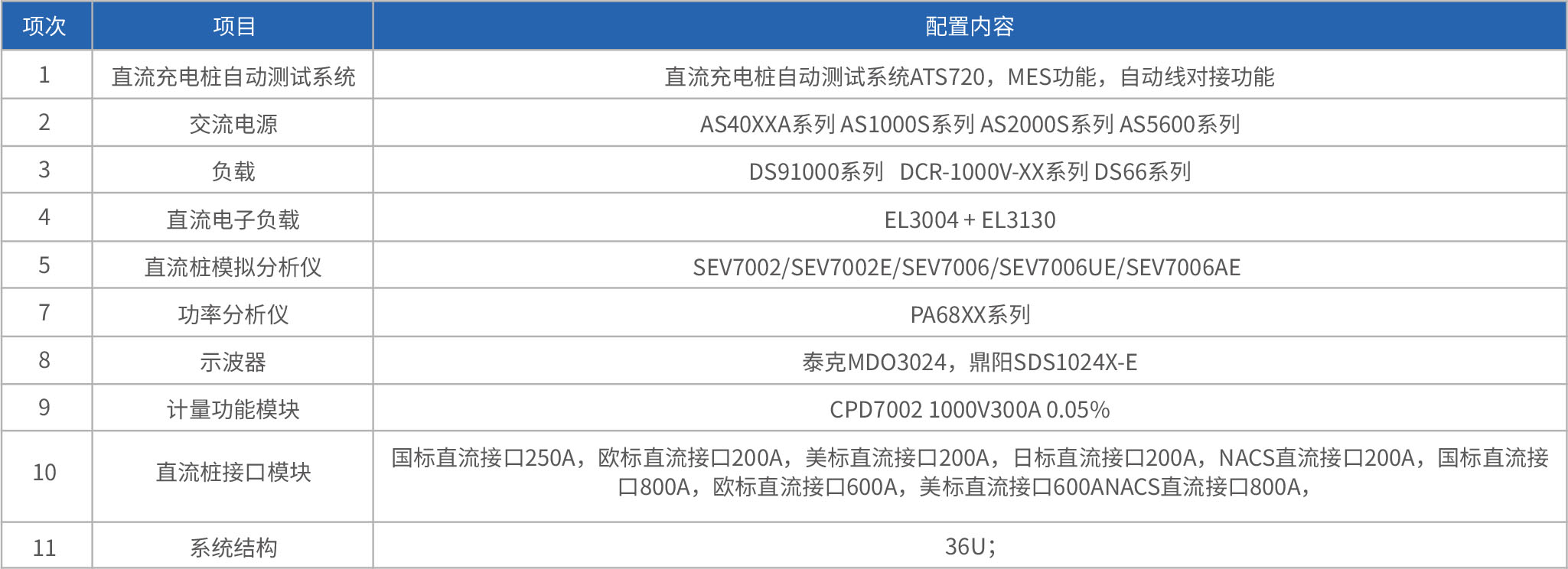

Sales Strategy

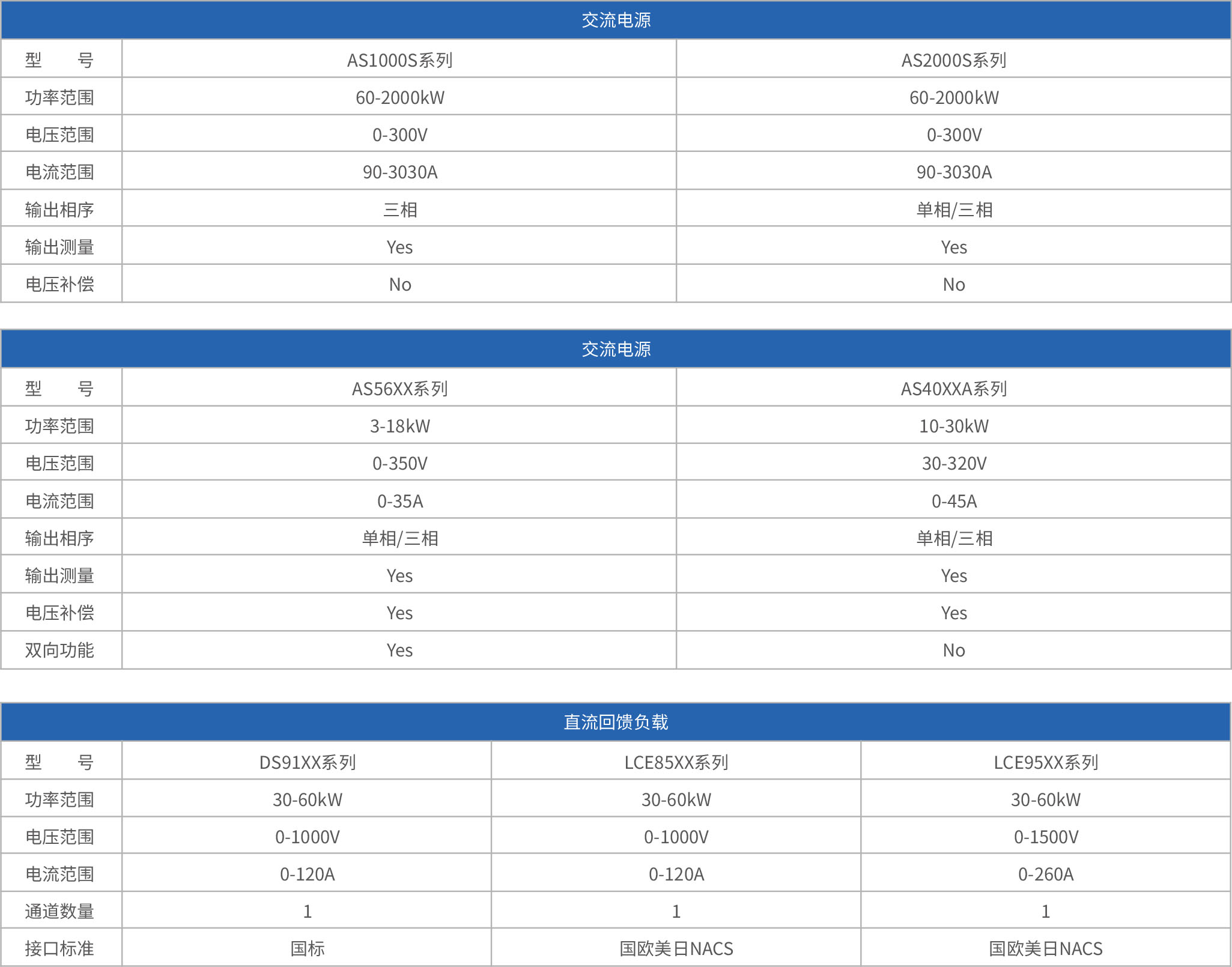

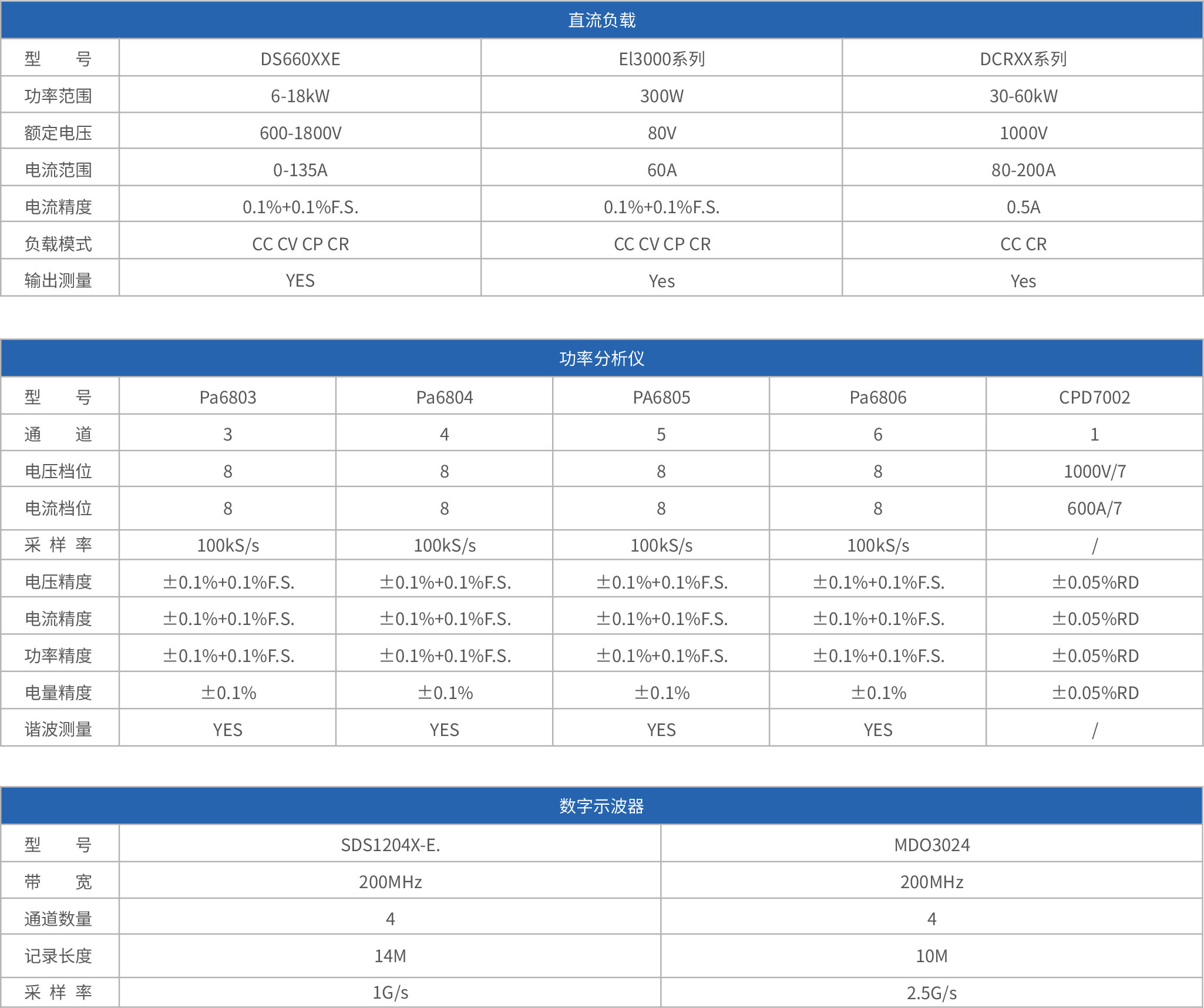

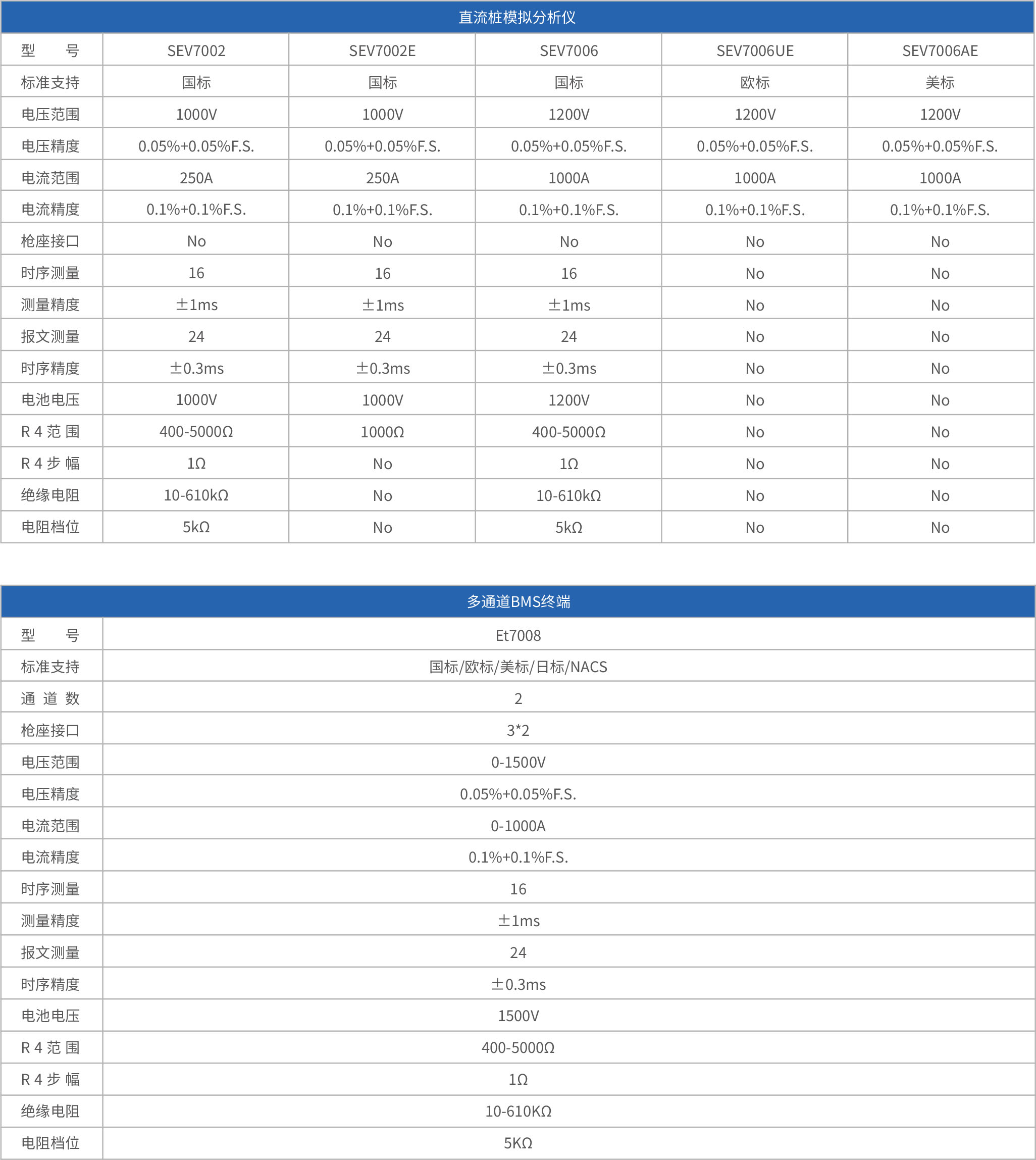

Specifications

Download Materials

Product Name	Type	Size	Update time	Download
Bidirectional small DC charging pile function test system ATS720	pdf	1017.72 KB	2025.09.25
