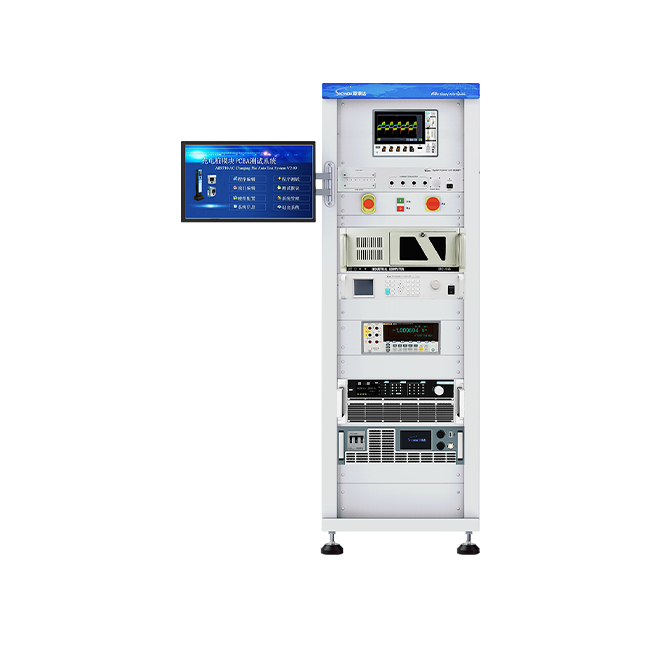

Charging pile module PCBA functional test system ATS310

The ATS310 charging pile module PCBA function testing system is dedicated to testing the PACB semi-finished electrical characteristics of various high-voltage charging pile modules, bidirectional charging pile modules, and low-voltage charging pile modules. Based on the functional design of the power module PCBA and standards such as GB/T18487, NB/T33001, NB/T33008, standard testing items have been established and optimized to achieve fast testing speed, stable system operation, and easy operation. Different power level equipment can be selected according to power, supporting multiple products such as high voltage, low voltage, bidirectional, etc. Its modular functional design can meet the needs of production, research and development, and quality testing.

Product coverage: PCBA semi-finished products
Scene coverage: production, research and development

Product Catalog

User Manual

Product Video

Product Details

Features

• Product coverage: PCBA semi-finished products

• Scene coverage: production, research and development

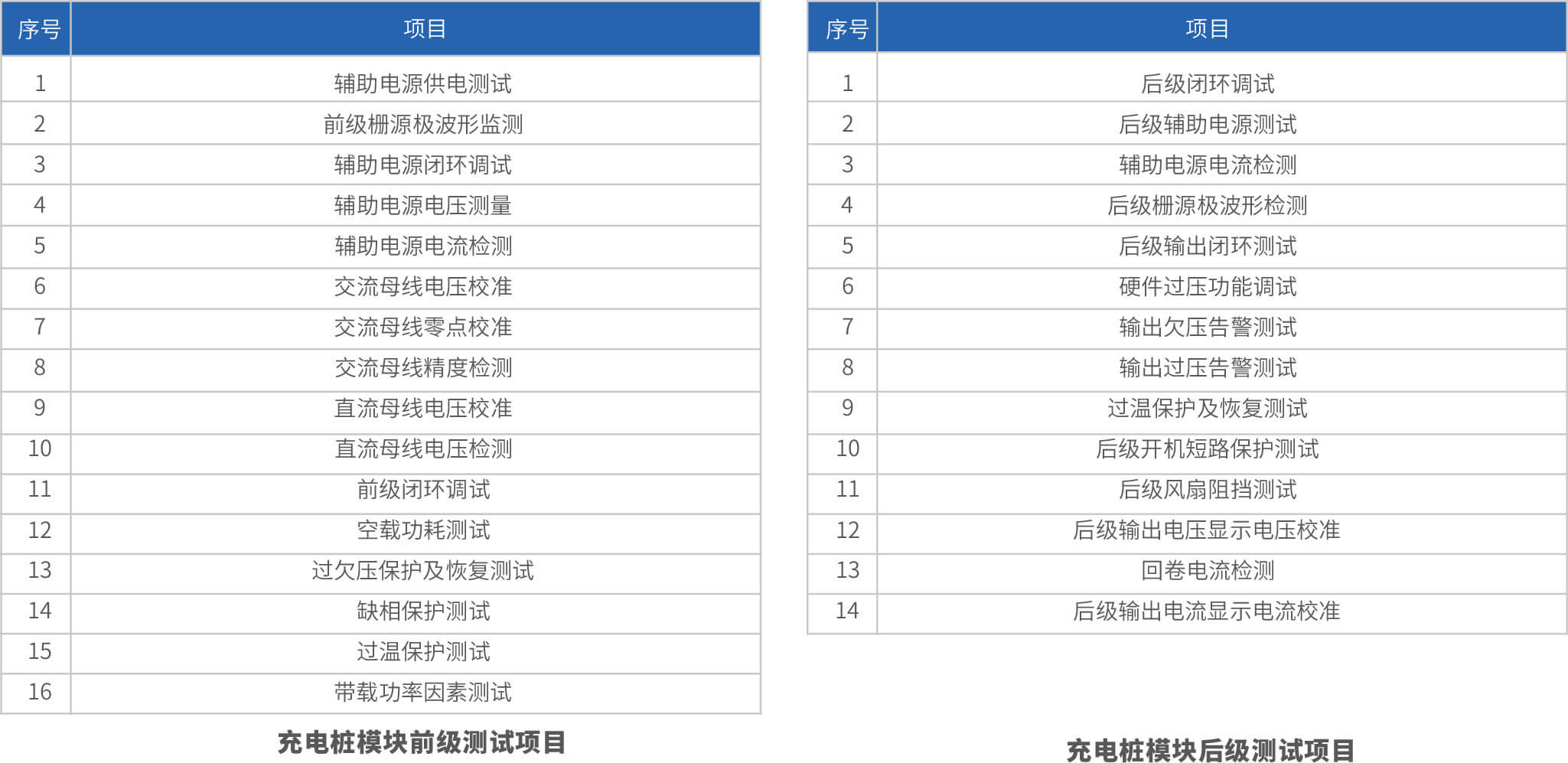

• Function coverage: Input characteristic testing, output characteristic testing, voltage and current accuracy calibration, control accuracy testing, voltage and current accuracy calibration, protection function testing, communication function testing, extended communication function testing

• Specification parameters: 10kW, 15kW, 20kW, 30kW, 40kW, 60kW and other high-power 80V-1500V high and low voltage high-power charging pile module PCBA

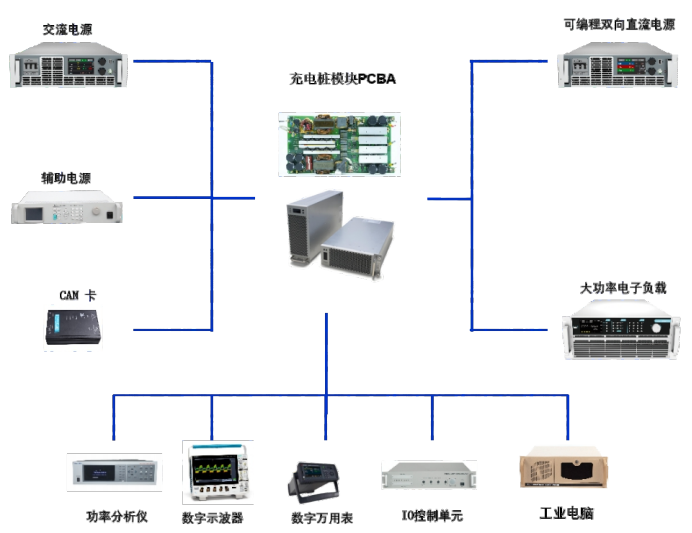

Principle Block Diagram

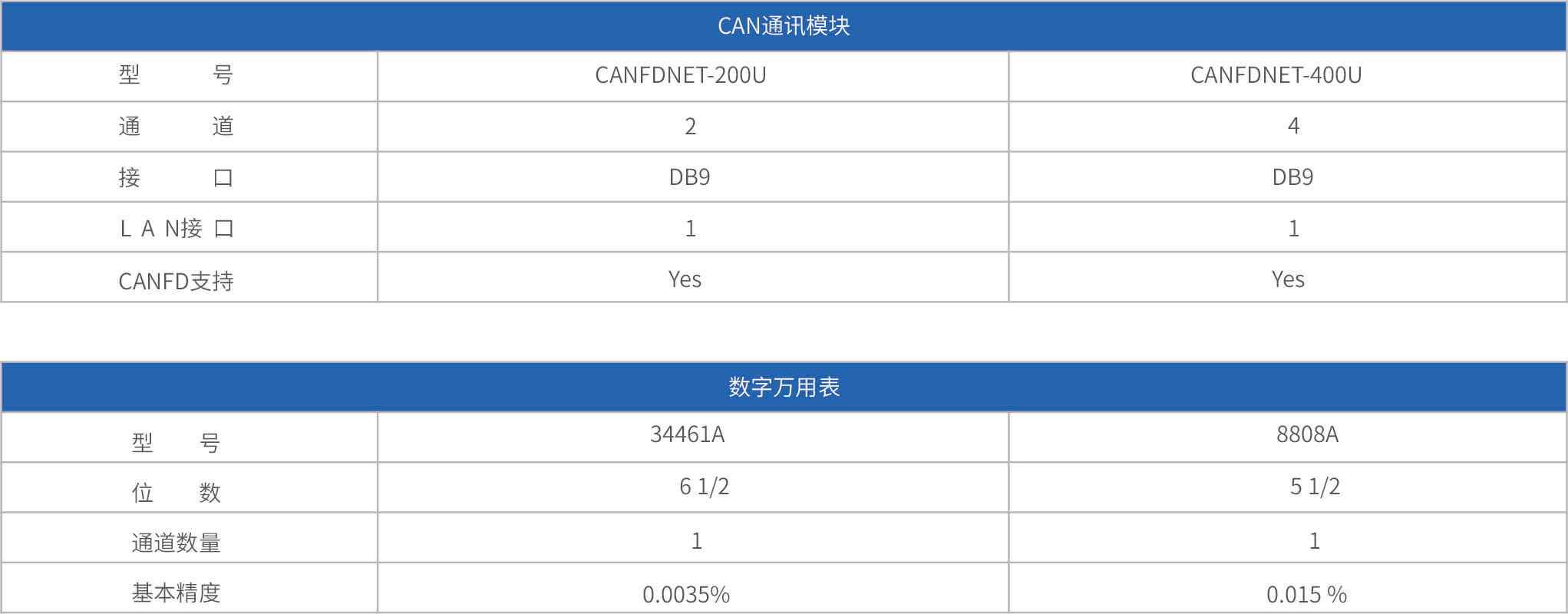

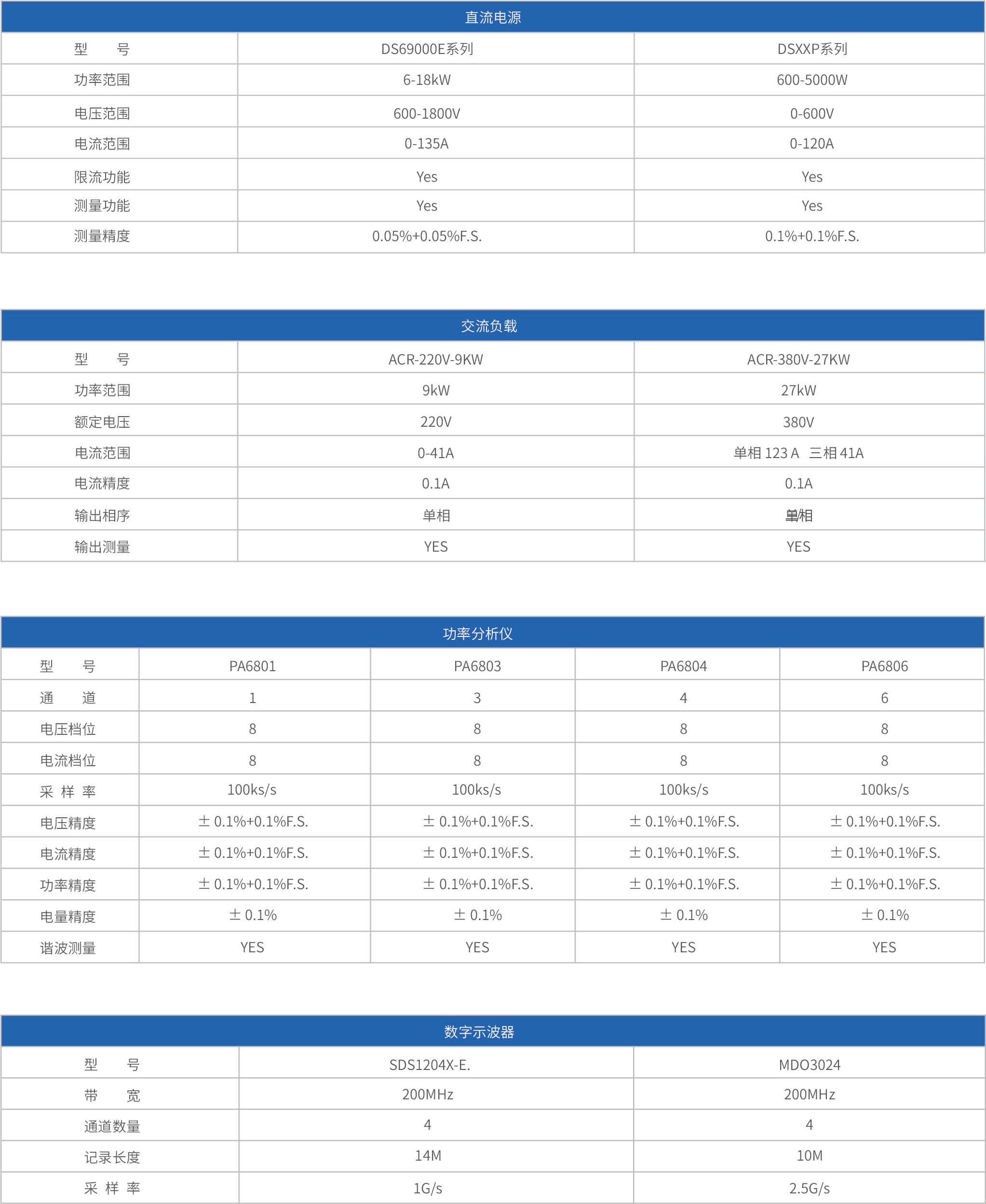

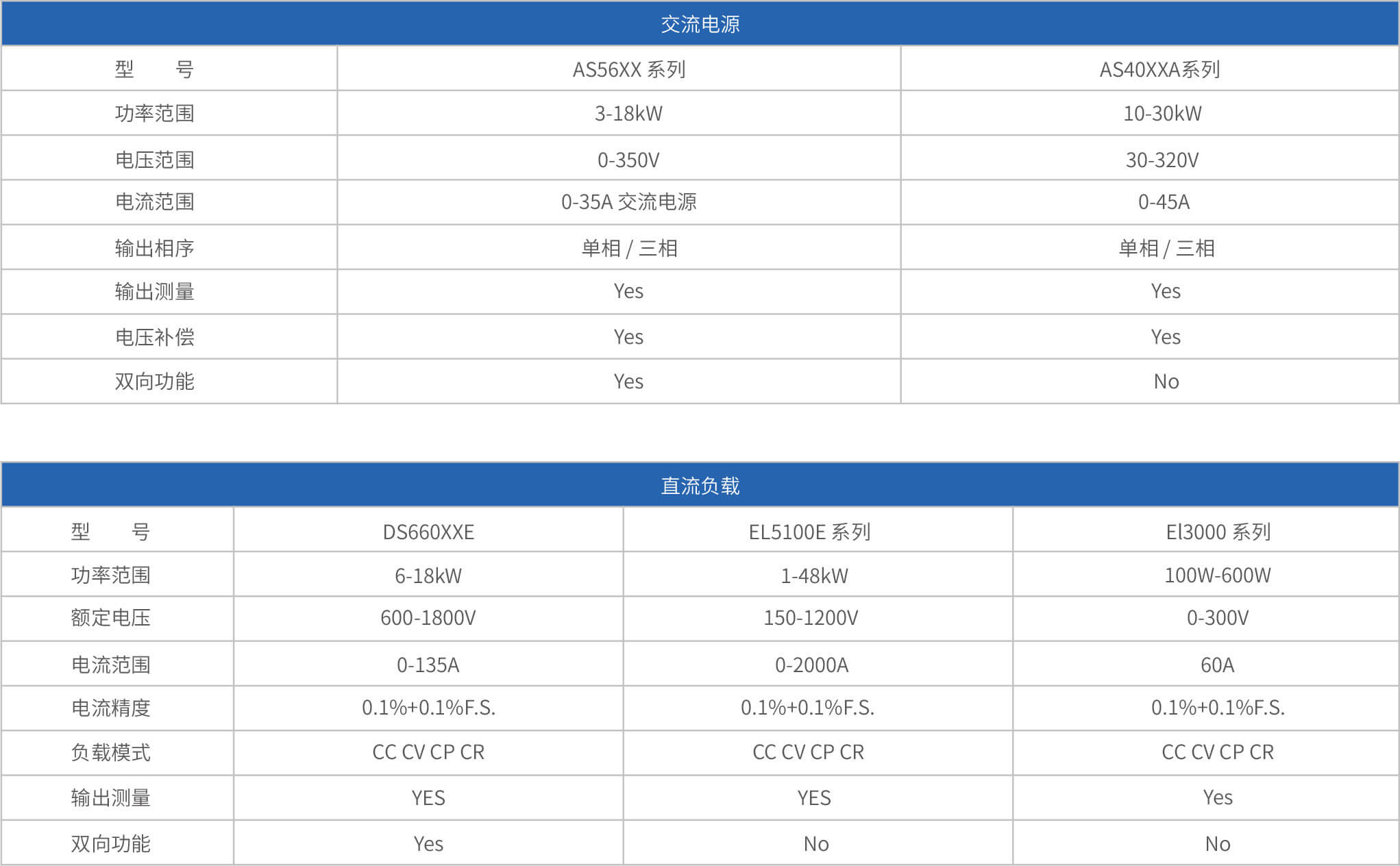

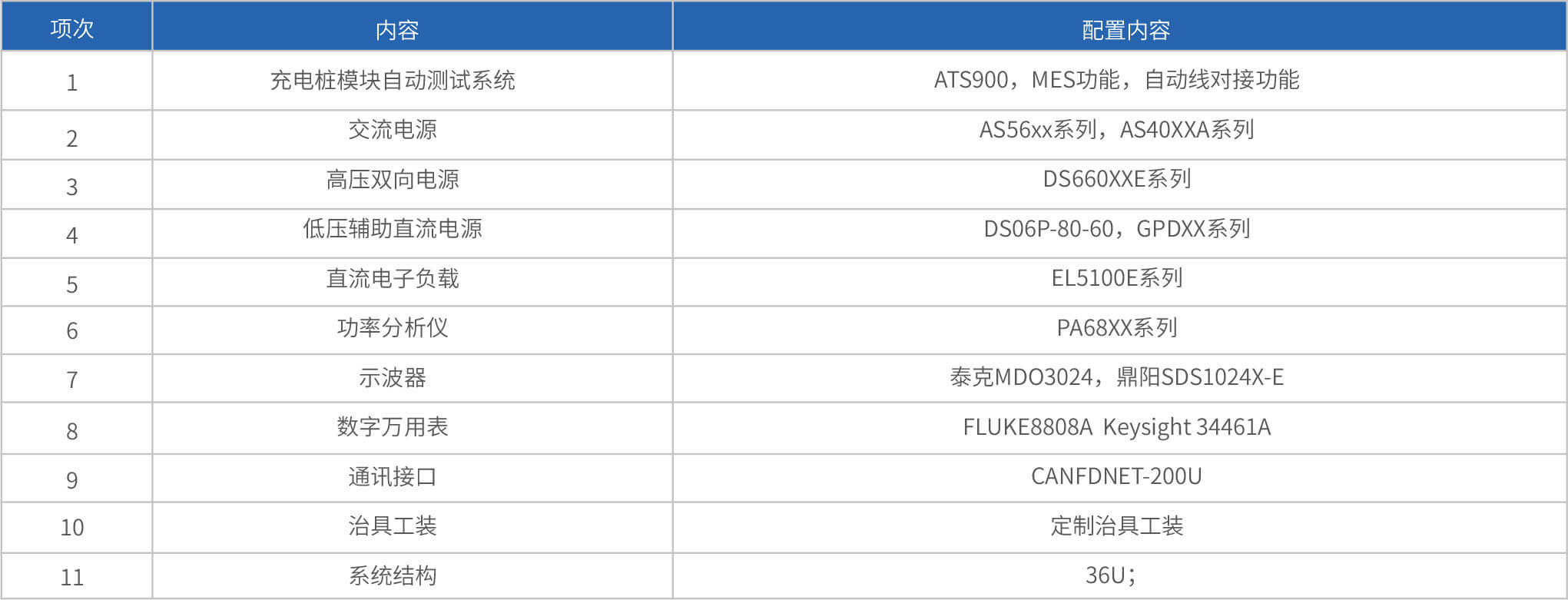

Functional Support

The ATS900 charging pile module PCBA testing system is dedicated to testing the electrical characteristics of PACB semi-finished products for various high-voltage charging pile modules, bidirectional charging pile modules, and low-voltage charging pile modules. Based on the functional design of the power module PCBA and standards such as GB/T18487, NB/T33001, NB/T33008, a standard Test Project has been established and optimized to achieve fast testing speed, stable system operation, and easy operation. Different rate level equipment can be selected according to power, supporting multiple products such as high voltage, low voltage, bidirectional, etc. Its modular functional design can meet the needs of production, research and development, and quality testing.
